Overview
Nordost Tyr 2 Digital Interconnects – 75 Ohm & 110 Ohm | Norse 2 Series
The Nordost Tyr 2 Digital Interconnects are premium digital audio cables from the Norse 2 Series, engineered for precise impedance matching, extremely wide bandwidth, and accurate digital signal transmission. Tyr 2 is available in both 75 Ohm S/PDIF and 110 Ohm AES/EBU versions, allowing you to select the proper interface for your digital source and DAC.
Both versions use silver-plated 99.99999% solid-core OFC conductors, Nordost’s patented Dual Mono-Filament technology, precision FEP insulation, and mechanically tuned lengths. These technologies are designed to maintain consistent impedance while reducing internal microphonics and high-frequency impedance resonance. (Nordost)
Available in 75 Ohm & 110 Ohm

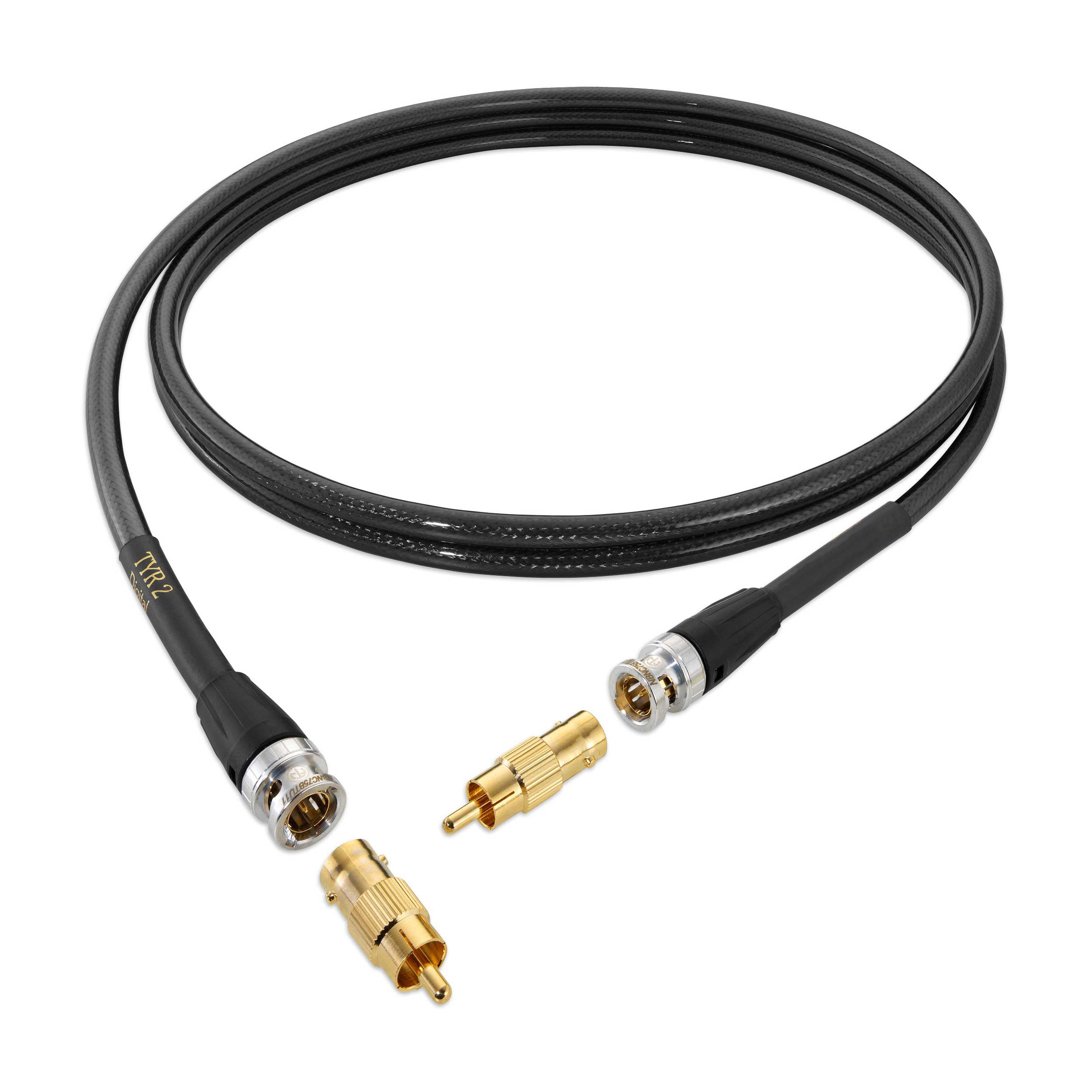

75 Ohm S/PDIF – BNC
The Tyr 2 75 Ohm version uses a precision coaxial design and true 75 Ohm BNC termination for S/PDIF digital audio connections.
-
1 × 18 AWG solid-core conductor
-
Silver-plated 99.99999% OFC
-
Dual Mono-Filament technology
-
Mechanically tuned spacing and length
-
Precision coaxial design
-
FEP insulation
-
15.9 pF/ft capacitance
-
True 75 Ohm impedance
-
97% overall shield coverage
-
88% velocity of propagation
-
Gold-plated true 75 Ohm Neutrik BNC
-
Gold-plated BNC-to-RCA adapter included (Nordost)

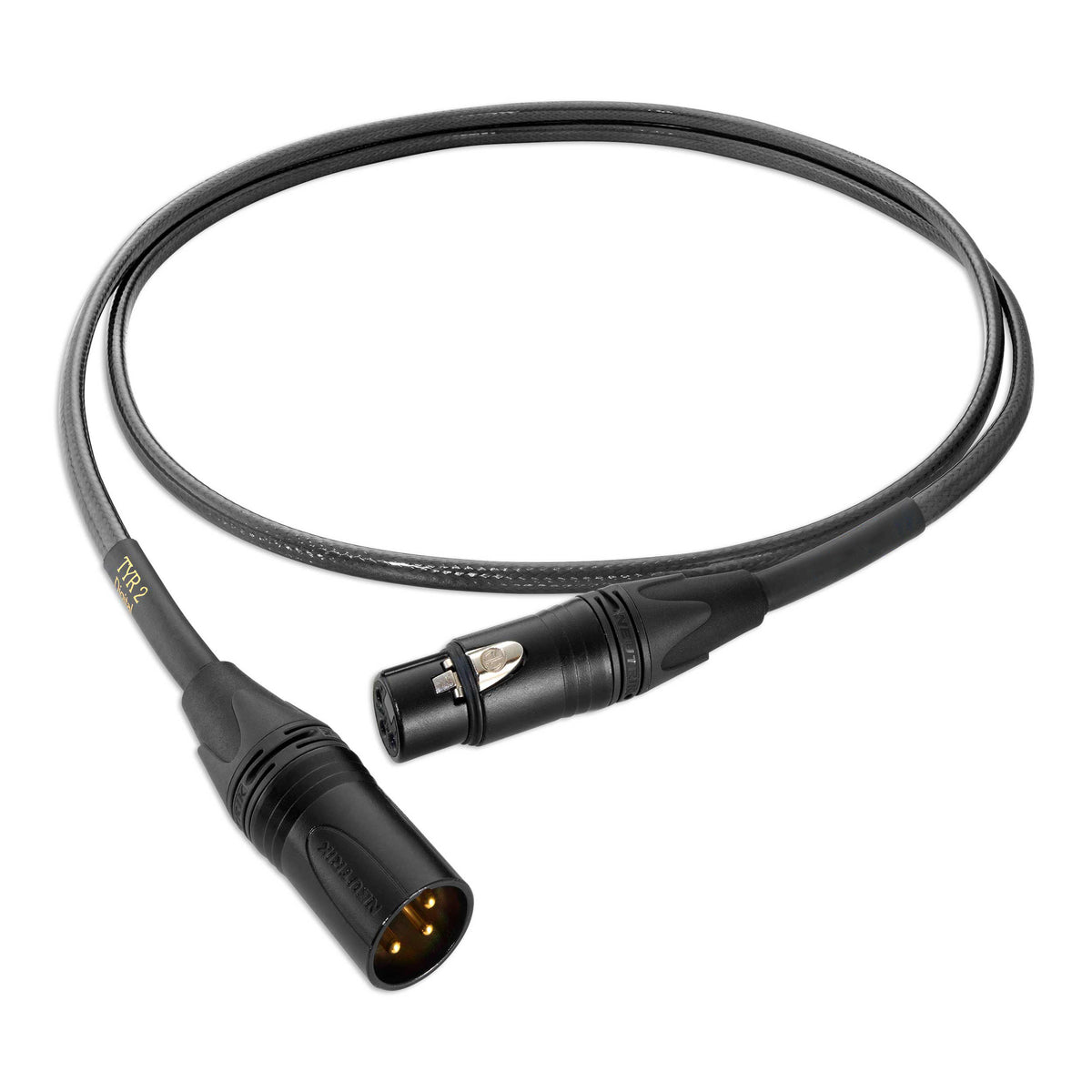

110 Ohm AES/EBU – XLR
The Tyr 2 110 Ohm version is designed for balanced AES/EBU digital transmission and uses a twin-axial construction with true 110 Ohm XLR termination.
-
2 × 19 AWG solid-core conductors
-
Silver-plated 99.99999% OFC
-
Dual Mono-Filament technology
-
Mechanically tuned spacing and length
-
Precision twin-axial balanced design
-
FEP insulation
-
11.0 pF/ft capacitance
-
True 110 Ohm impedance
-
97% overall shield coverage
-
88% velocity of propagation
-
Gold-plated true 110 Ohm Neutrik XLR termination (Nordost)
Which Version Do You Need?
Choose 75 Ohm S/PDIF for digital coaxial connections using BNC or RCA. The standard termination is BNC, and Nordost includes a BNC-to-RCA adapter for components equipped with RCA digital inputs or outputs.
Choose 110 Ohm AES/EBU for high-end audio components equipped with balanced XLR digital connections. Its twin-axial construction and true 110 Ohm XLR termination are designed to maintain consistent impedance across the entire signal path. (Nordost)
The Grid HiFi
Upgrade your digital signal path with the Nordost Tyr 2 Digital Interconnect, available from The Grid HiFi in both 75 Ohm S/PDIF and 110 Ohm AES/EBU configurations.
Contact The Grid HiFi for pricing, availability, cable lengths, and expert assistance choosing the correct 75 or 110 Ohm configuration for your digital audio system.
