Overview

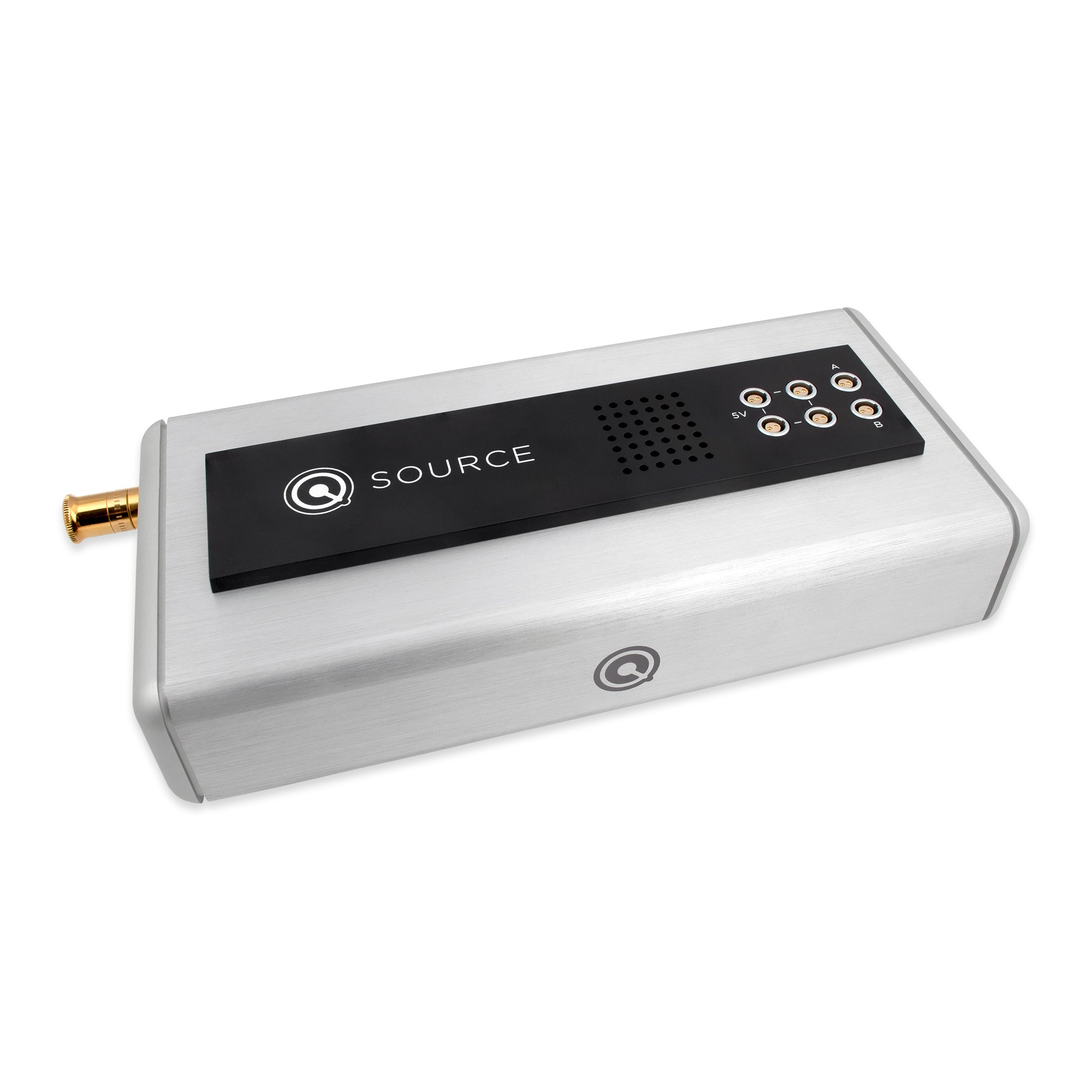

Nordost QSOURCE Linear Power Supply – QRT Series
The Nordost QSOURCE Linear Power Supply is a premium, fanless linear power supply engineered specifically for high-performance HiFi audio systems. It provides stable, clean DC power at multiple selectable voltages while maintaining extremely low noise levels, helping compatible audio components operate with a cleaner and more consistent power source.
At the heart of the QSOURCE is a high-quality transformer combined with Nordost’s specialized circuit design. An internal QRT module is used to smooth the DC output and reduce electrical anomalies and noise artifacts from the incoming power. Nordost designed the QSOURCE for excellent regulation, very low ripple, and strong transient response.
Key Features
- Premium fanless linear power supply for HiFi applications
- Stable, clean DC power output
- Extremely low-noise design
- High-quality transformer with specialized circuit architecture
- Integrated Nordost QRT technology
- Internal QRT module helps reduce electrical noise and anomalies
- Excellent voltage regulation and very low ripple
- Designed for strong transient response
- Powers up to four Nordost QPOINT Resonance Synchronizers
- Two additional selectable-voltage outputs for compatible DC-powered audio components
- Compatible with dedicated QSOURCE DC Cables
- Switchable 110/220 VAC, 50/60 Hz input
- Fanless construction for silent operation
Flexible DC Power Outputs
The QSOURCE provides six DC outputs, making it useful for both Nordost QRT products and compatible third-party HiFi components. Four outputs provide 5V DC and are specifically intended for QPOINT Resonance Synchronizers. Two additional outputs provide selectable voltage options:
- Output 5: 9V, 12V, or 19V
- Output 6: 12V, 19V, or 24V
This flexibility allows the QSOURCE to power a variety of compatible DC-powered audio electronics when the correct voltage and connector requirements are met.
Specifications
| Specification | QSOURCE |
|---|---|
| AC Input | Switchable 110/220 VAC, 50/60 Hz |
| AC Fuse | 1.25A Time-Lag, Ceramic Body |
| Variable Output @ 19/24V | 66W each |
| Variable Output @ 12V | 20W each |
| Variable Output @ 9V | 10W each |
| Combined 5V Outputs | 5W |
| PSRR | 75 dB |
| Dimensions | 280 × 121 × 67 mm |
| Dimensions (inches) | 11 × 4.75 × 2.625 in |
| Weight | 2.7 kg / 6 lb |
QSOURCE DC Cable Options
Nordost offers purpose-built QSOURCE DC Cables for connecting the power supply to compatible equipment. The standard cable uses 2 × 22 AWG silver-plated solid-core OFC conductors, Micro Mono-Filament construction, FEP insulation, and shielded twisted pairs. A Premium QSOURCE DC Cable upgrades the conductor size to 2 × 18 AWG.
Available termination configurations include LEMO-to-LEMO, LEMO-to-5.5 × 2.1mm, and LEMO-to-5.5 × 2.5mm DC connectors.
The Grid HiFi
Improve the DC power foundation of your digital and analog audio system with the Nordost QSOURCE Linear Power Supply. The Grid HiFi can help determine the correct output voltage, DC cable, and compatibility for your audio components, as well as configure QSOURCE with QPOINT and other Nordost QRT products.
Contact The Grid HiFi for pricing, availability, and expert system-matching assistance.
