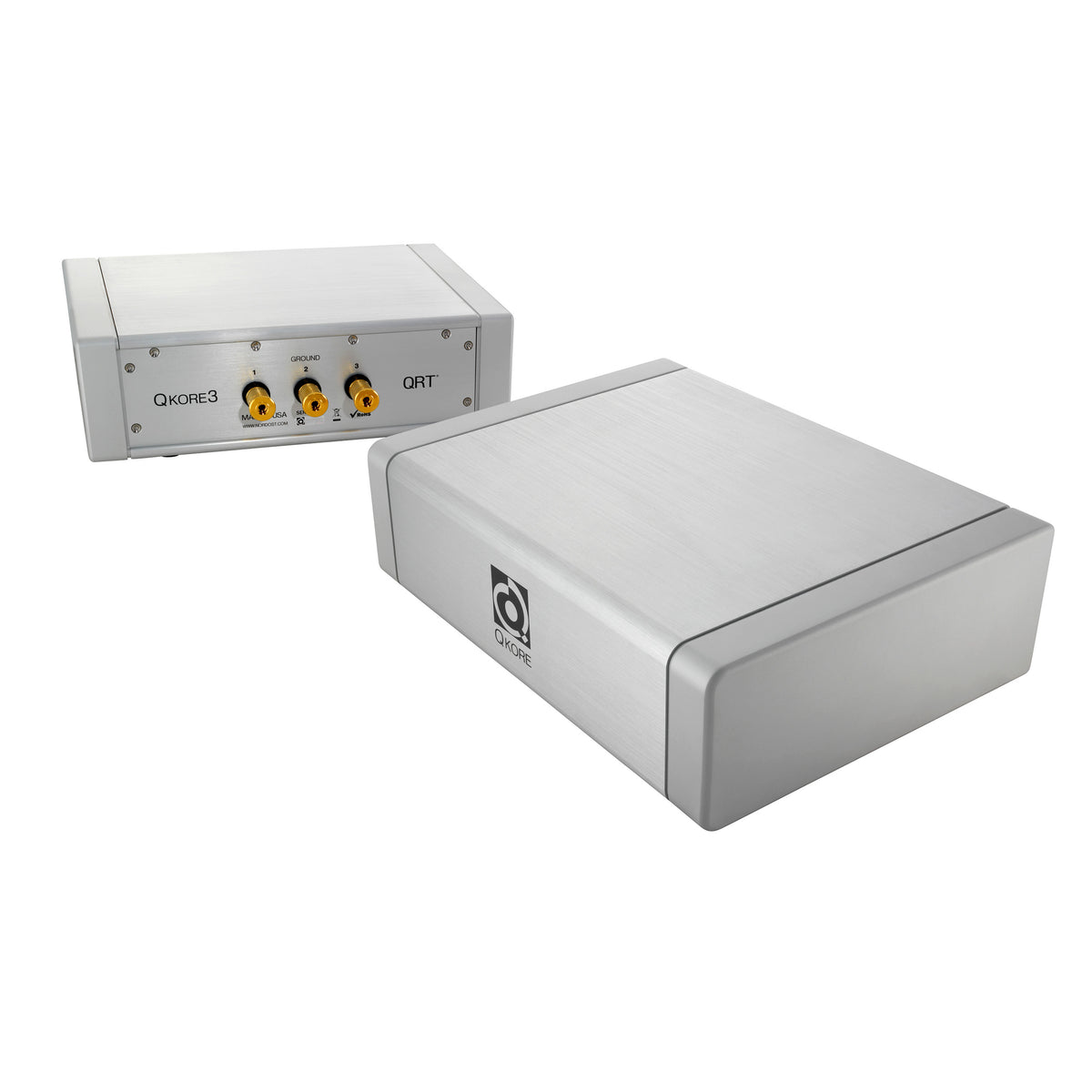

Nordost QKORE Ground Unit – QRT Series

The Nordost QKORE Ground Unit is a passive parallel grounding system designed specifically for high-performance HiFi systems. It provides an artificial “clean” earth reference, helping address high-frequency electrical noise and voltage-generated magnetic fields that can contaminate an audio system’s ground and affect overall performance.

QKORE combines Nordost’s Mono-Filament technology, proprietary Low-Voltage Attractor Plates (LVAPs), a passive electronic circuit, and a mechanically tuned enclosure. The system uses gold-plated WBT binding posts to connect compatible audio components to the QKORE grounding system.

Key Features

• Passive parallel grounding system for high-end audio
• Provides an artificial clean-earth reference for HiFi components
• Designed to reduce stray high-frequency noise
• Proprietary Low-Voltage Attractor Plates (LVAPs)
• Nordost Mono-Filament technology
• Passive electronic circuit — no AC power required
• Mechanically tuned enclosure
• Premium gold-plated WBT binding posts
• Available in QKORE1, QKORE3, and QKORE6 configurations
• Compatible with dedicated QKORE Wire
• Premium QKORE Wire upgrade also available
• Designed to complement Nordost QBASE power distribution products

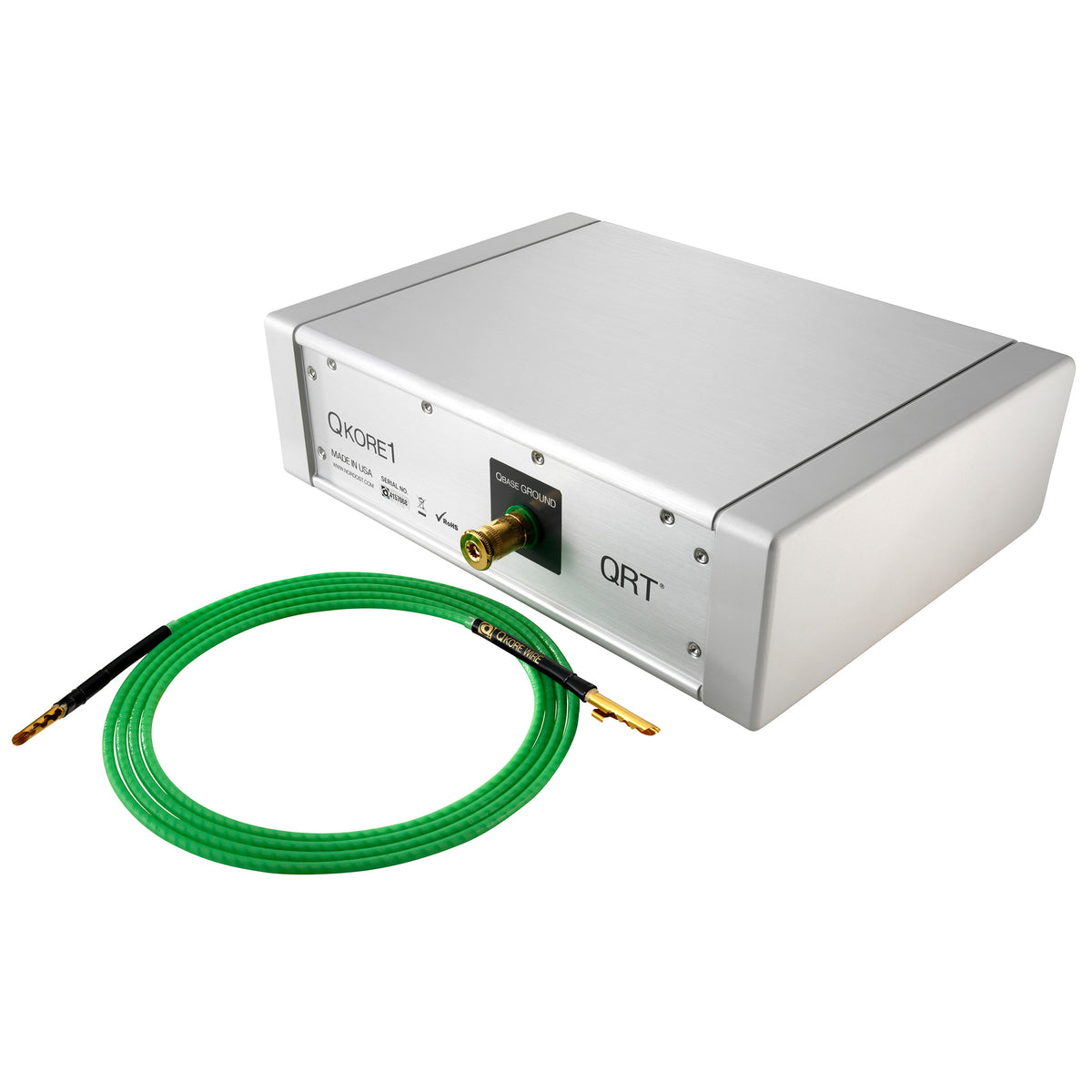

QKORE1

The QKORE1 is designed primarily to provide a parallel ground for a Nordost QBASE distribution unit on the primary side of the power supply.

• 1 × QBASE Ground binding post
• Includes 2-meter Banana-to-Banana QKORE Wire
• Ideal for systems centered around a Nordost QBASE

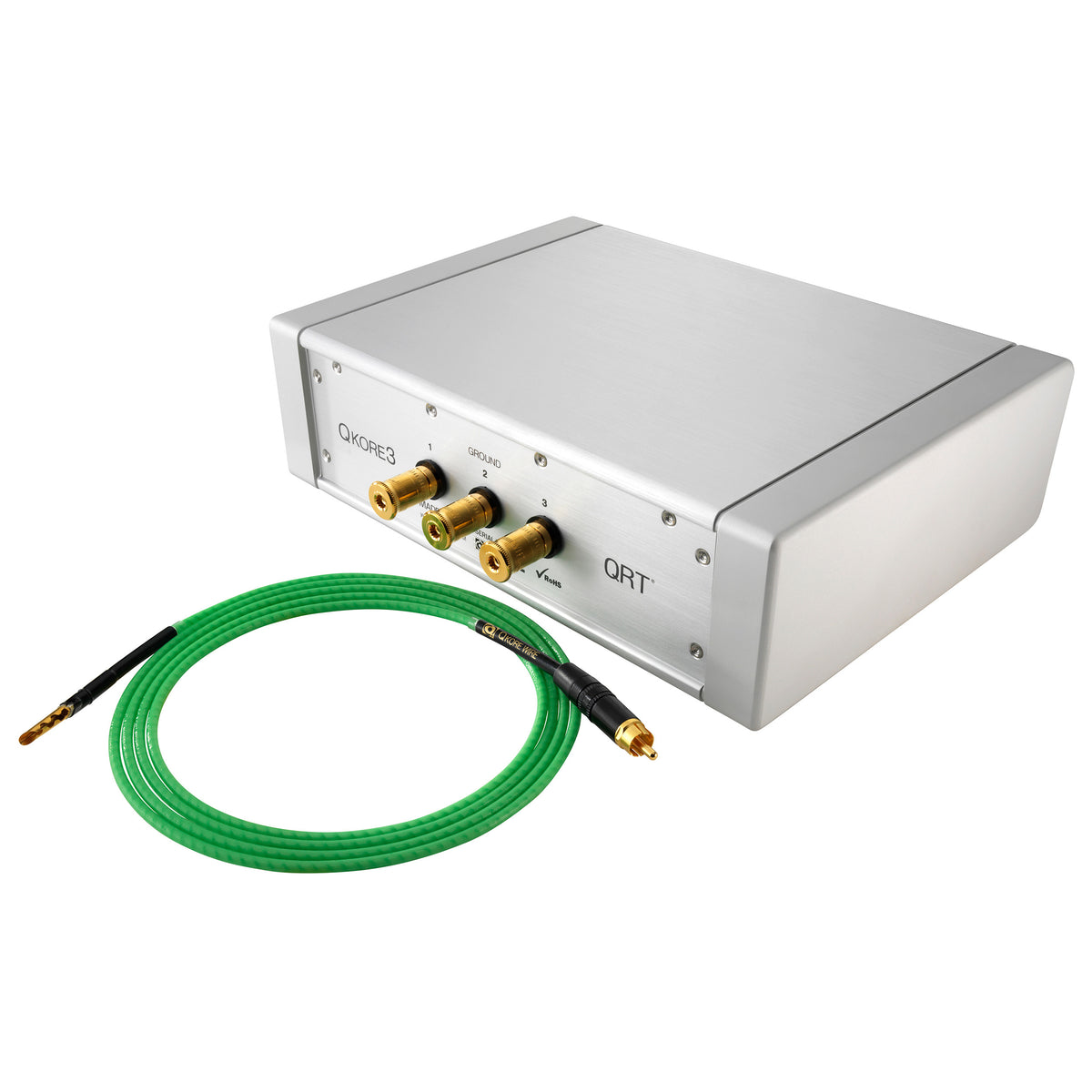

QKORE3

The QKORE3 is designed for grounding individual audio components on the secondary side of the power supply, where the audio circuitry resides.

• 3 × multi-use binding posts
• Ground up to three compatible audio components
• Includes 2-meter RCA-to-Banana QKORE Wire
• Ideal for components such as DACs, preamps, streamers, phono stages, and integrated amplifiers

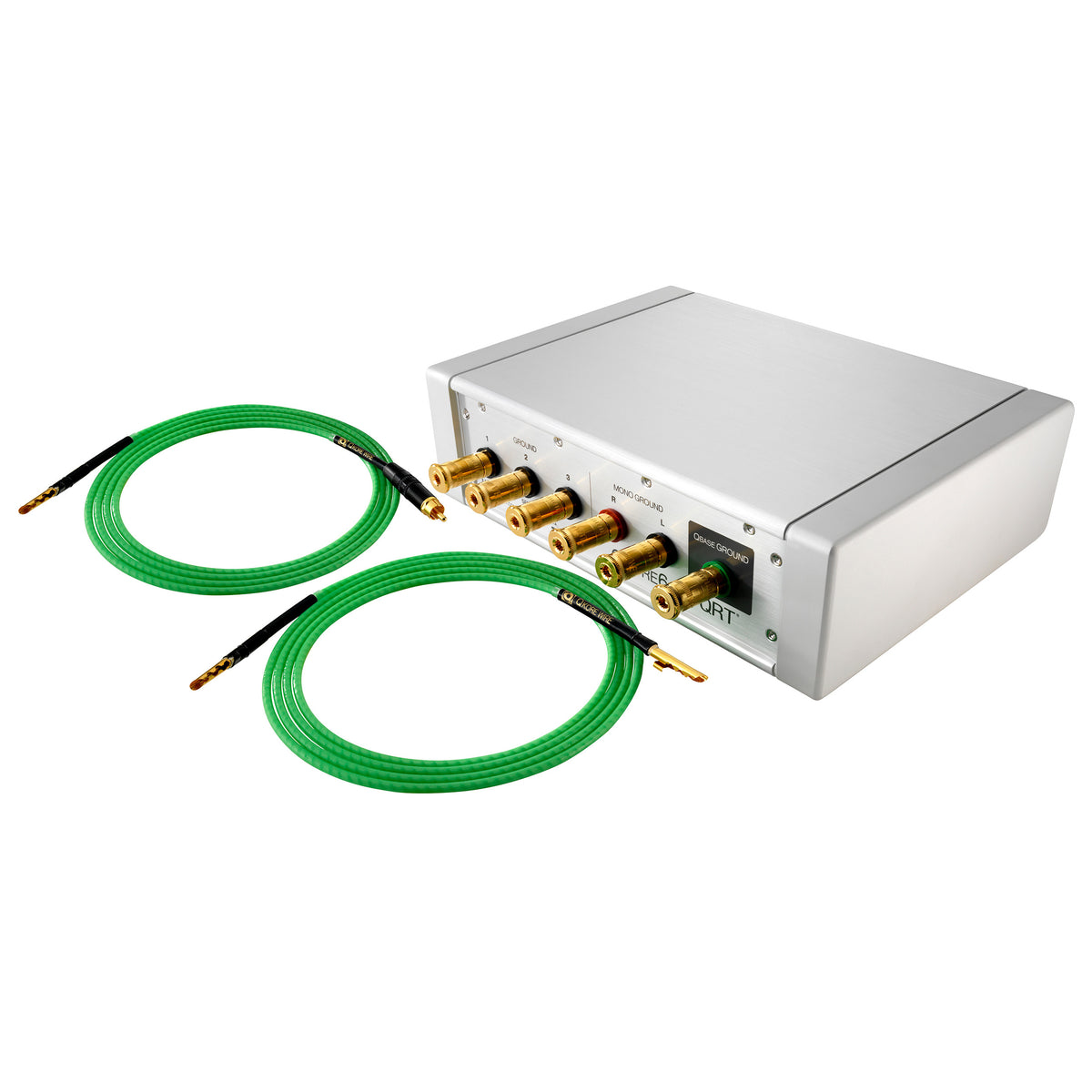

QKORE6

The QKORE6 is Nordost’s most comprehensive QKORE solution, combining grounding for the distribution block, individual audio components, and separate left/right monoblock amplifiers.

• 6 total binding posts
• 1 × QBASE Ground connection
• 2 × dedicated monoblock connections
• 3 × multi-use audio component connections
• Includes 2-meter Banana-to-Banana QKORE Wire
• Includes 2-meter RCA-to-Banana QKORE Wire
• Provides grounding options on both the primary and secondary sides of the system’s power supplies

QKORE Wire

Nordost’s dedicated QKORE Wire uses a 16 AWG silver-plated 99.9999% solid-core OFC conductor, FEP insulation, and Micro Mono-Filament construction. Available termination options include Banana, Spade, RCA, Male XLR, Female XLR, BNC, RJ45, USB-A, and USB-B.

A Premium QKORE Wire is also available, upgrading the conductor to 14 AWG silver-plated 99.9999% solid-core OFC while retaining FEP insulation and Micro Mono-Filament construction.

Important Note

The QKORE is a parallel grounding product for audio-system optimization. It is not designed to replace the protective earth/household safety ground in your electrical system.
