Nordost QBASE Mark III – AC Distribution Units

The Nordost QBASE Mark III is a premium AC distribution solution designed to provide a solid power foundation for high-performance two-channel and HiFi systems. Available as the QB4 Mark III, QB6 Mark III, and QB8 Mark III, the QBASE uses Nordost’s unique Star-Earth topology to manage grounding while maintaining a direct, unrestricted AC path to connected components.

Unlike traditional power conditioners, QBASE Mark III uses no in-line filtering or active circuitry. Its passive architecture is designed to maintain low AC supply impedance and maximize current delivery while reducing interaction between the signal and ground paths of connected components.

Key Features

• Nordost Star-Earth grounding topology
• Dedicated Primary Earth outlet
• No in-line filtering or active circuitry
• Designed for unrestricted current delivery
• Dual-level PCB configuration separates ground connections from line and neutral traces
• Optimized PCB trace geometry for increased current flow and reduced crosstalk
• Internal Nordost Mono-Filament wiring
• Mechanically tuned extruded-aluminum chassis
• External ground post for connection to a compatible separate grounding solution
• Dedicated fuse with two replacement fuses included
• Compatible with Nordost QKORE grounding systems
• Optional QRT Stand Mount and Sort Kone integration for additional resonance control

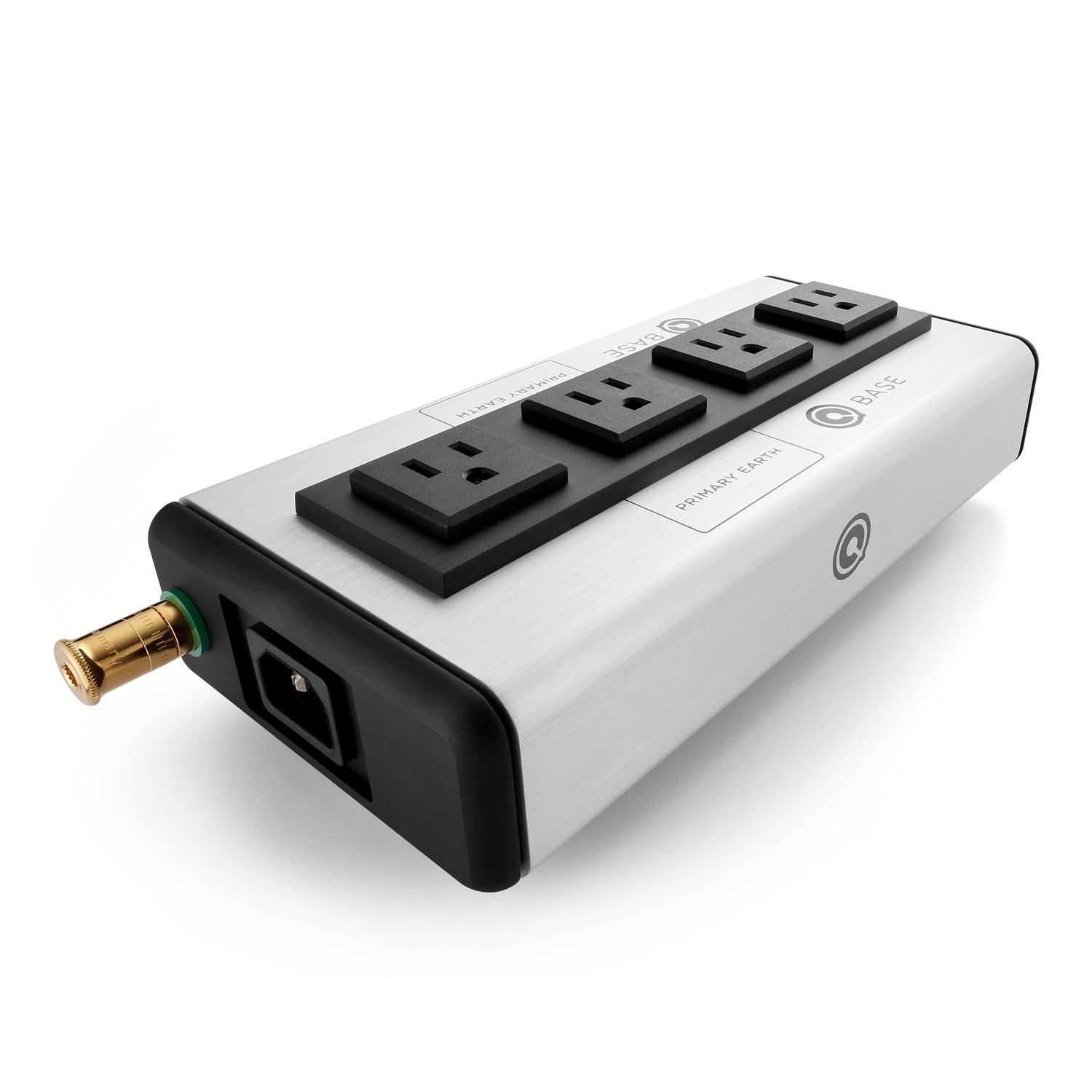

QBASE QB4 Mark III

The QB4 Mark III is the compact four-outlet version, ideal for smaller high-performance audio systems or dedicated source and amplification setups.

• 4 AC outlets
• Star-Earth topology
• Primary Earth grounding
• US, EU (Schuko), and Australian configurations
• Dimensions: 234 × 67 × 120 mm

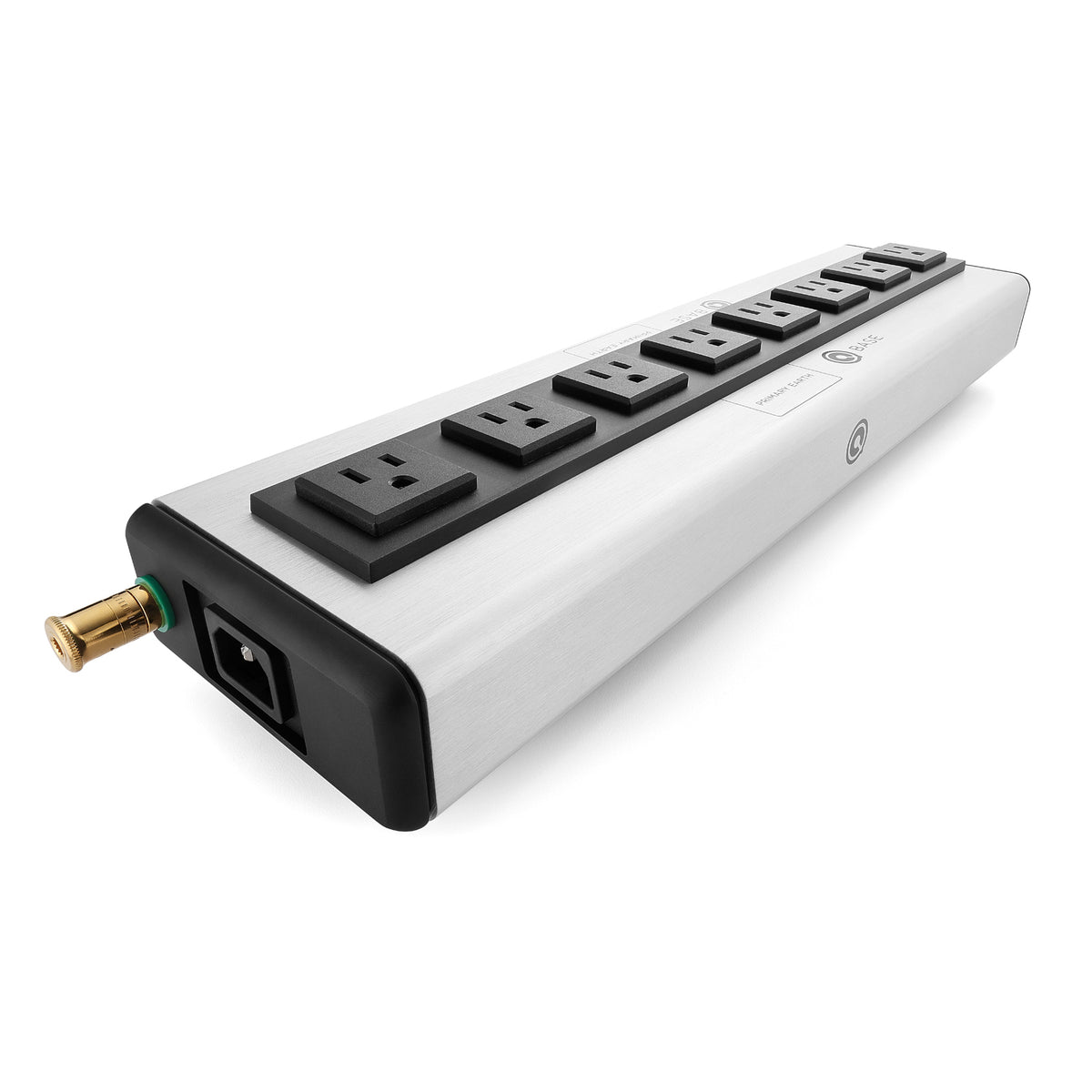

QBASE QB8 Mark III

The QB8 Mark III expands the QBASE architecture to eight outlets, making it ideal for larger systems with multiple source components, preamplifiers, amplifiers, DACs, streamers, and other electronics.

• 8 AC outlets
• Star-Earth topology
• Primary Earth grounding
• US, EU (Schuko), and Australian configurations
• Dimensions: 460 × 67 × 120 mm

QBASE QB6 Mark III

The QB6 Mark III is specifically configured for the UK market, providing six 13A UK outlets while incorporating the same core QBASE Mark III technologies.

• 6 AC outlets
• Star-Earth topology
• Primary Earth grounding
• 13A UK configuration
• Dimensions: 460 × 67 × 120 mm

Input & Power Configuration

Depending on configuration, the QBASE Mark III platform supports C-14 IEC (15A/10A) and C-20 IEC (20A/16A) inputs. Output configurations include US, EU Schuko, Australian, and 13A UK, depending on the QBASE model.

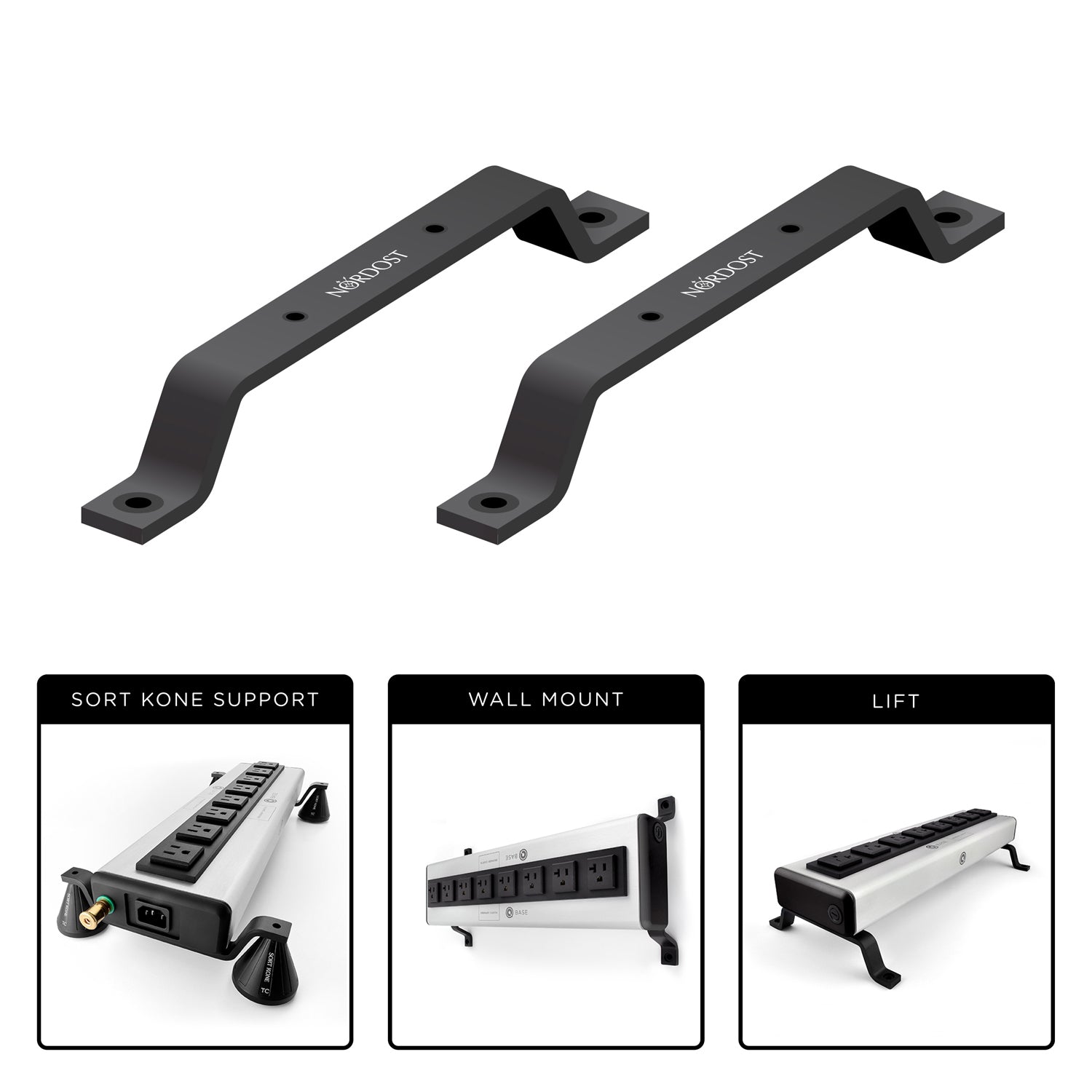

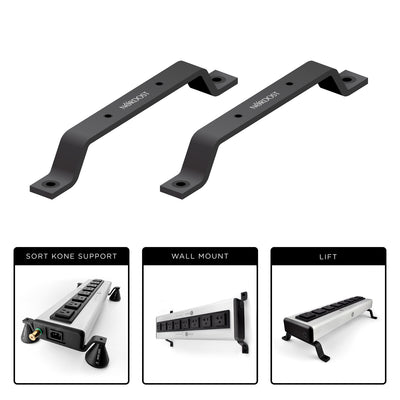

Nordost QRT Stand Mount

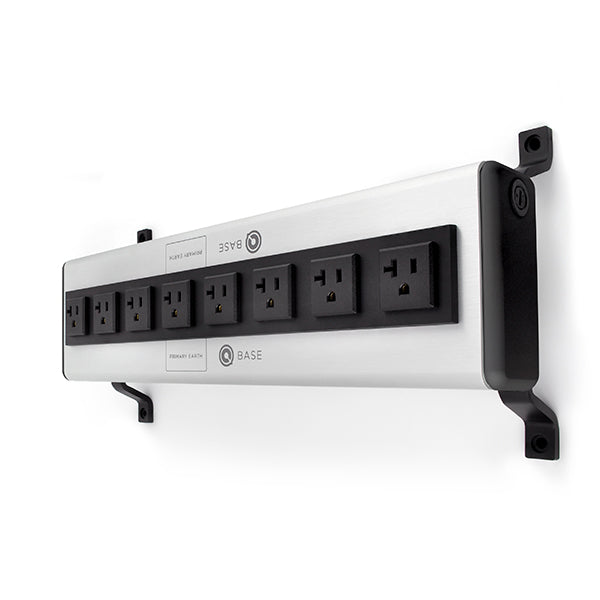

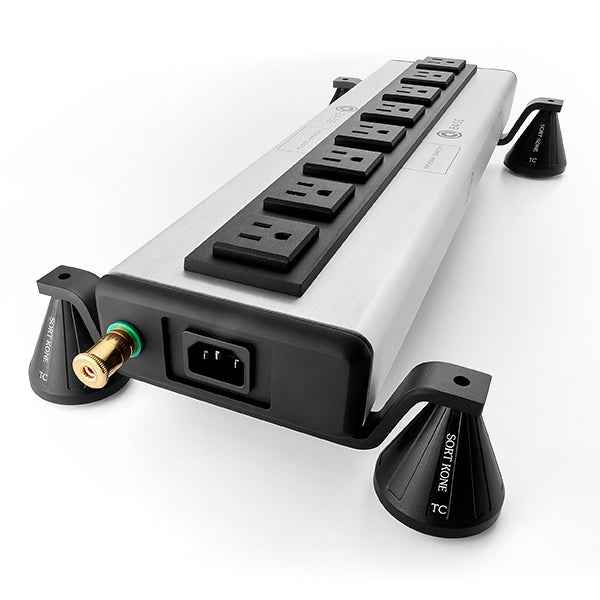

The optional QRT Stand Mount provides additional installation flexibility for compatible Nordost QRT products. For the QBASE Mark III family, it allows the unit to be supported with Nordost Sort Kones, wall-mounted, or raised and stabilized above a floor or equipment rack. Nordost specifies compatibility with QB4, QB6, and QB8 Mark II and Mark III models.

Stand Mount includes:

• Pair of anodized-aluminum stand/mount pieces
• Supports integration with Nordost Sort Kones
• Allows wall mounting
• Allows the QBASE to be raised above a rack or floor

The Grid HiFi

Build a stronger power foundation for your high-end audio system with the Nordost QBASE Mark III. Whether you need the compact QB4, the larger QB8, or the UK-specific QB6, The Grid HiFi can help select the right QBASE configuration and integrate it with Nordost power cables, QKORE grounding, QRT accessories, and Sort Kones.

Contact The Grid HiFi for pricing, availability, and expert assistance designing a complete Nordost power solution.
