Aurender NH10 Audiophile Network Switch

The Aurender NH10 is an audiophile-grade Gigabit Ethernet network switch engineered specifically for high-end digital audio systems. It combines an OCXO master clock, FPGA-controlled synchronization, fully linear power regulation, filtered RJ45 Ethernet ports, optically isolated SFP connections and external 10MHz master-clock input in a precision-machined aluminum chassis. Aurender Music

Designed for systems built around high-performance music servers, streamers and network transports, the NH10 addresses electrical noise, timing stability and galvanic isolation at the network level without adding unnecessary networking complexity.

OCXO Clock & FPGA Synchronization

At the center of the NH10 is an OCXO — Oven-Controlled Crystal Oscillator — specified at less than 0.005 ppm frequency stability.

FPGA synchronization aligns internal network operations to the same master clock, reducing timing discrepancies within the switch. For systems using an external reference clock, the NH10 provides a dedicated 10MHz BNC master-clock input with 50-ohm impedance and 0.7Vrms input specification. Aurender Music

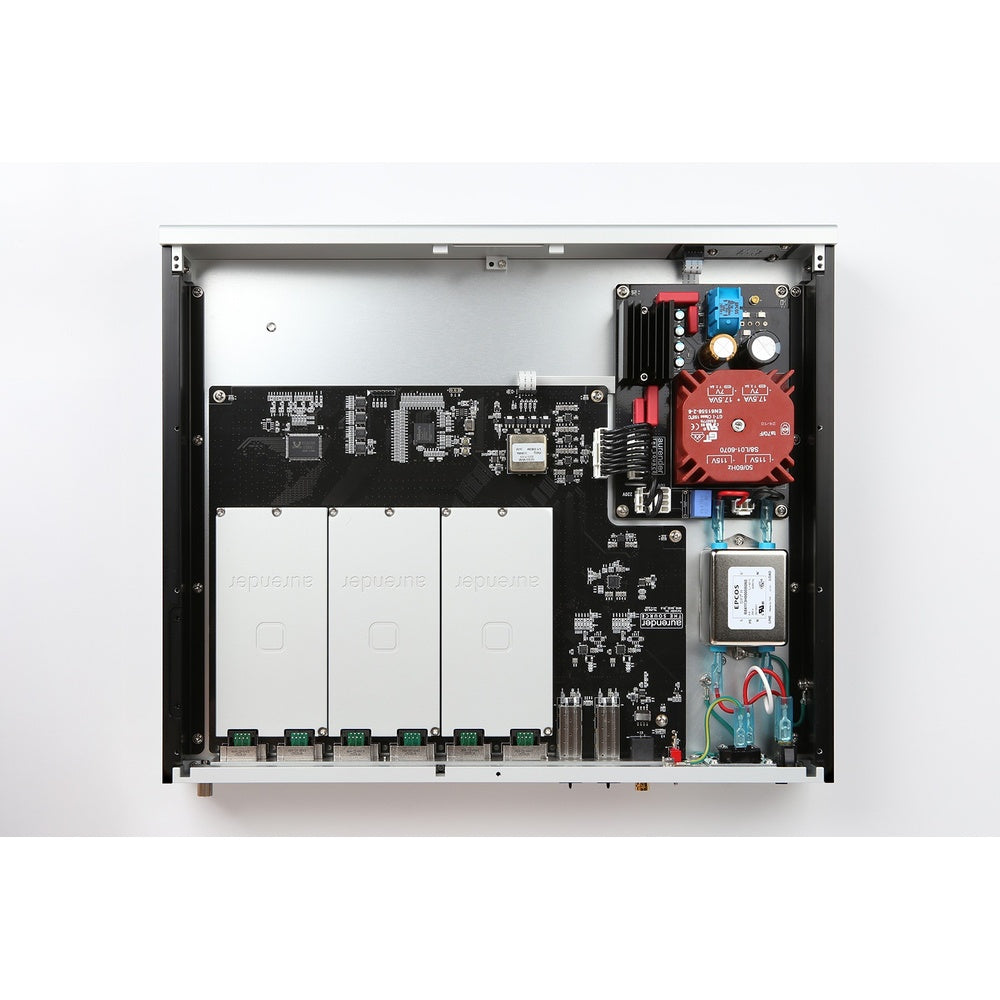

Fully Linear Power Supply

Every circuit within the NH10 is powered through linear regulation. Aurender specifically avoids DC-to-DC switching converters inside the unit to reduce power-supply-generated electrical noise.

This makes the NH10 fundamentally different from conventional IT-oriented Ethernet switches whose design priorities center on networking performance rather than integration into a low-noise audio system. Aurender Music

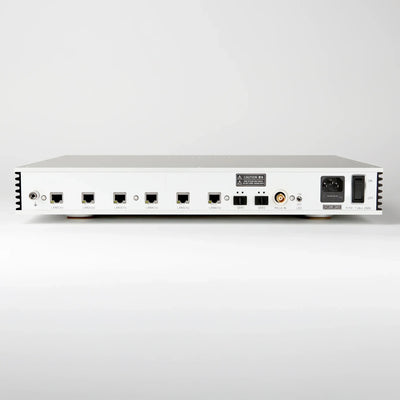

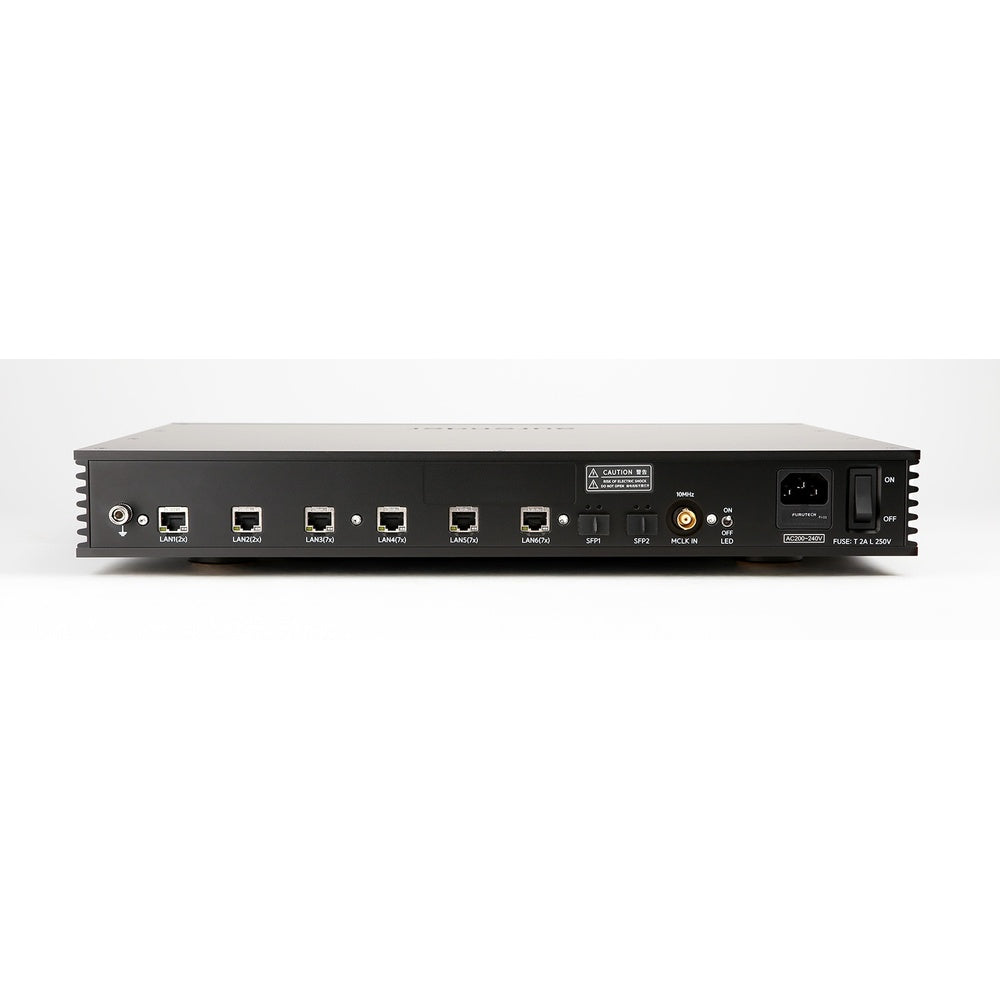

Filtered RJ45 Ethernet Ports

The NH10 provides six RJ45 Gigabit Ethernet ports, each incorporating filtering intended to suppress unwanted electrical noise.

The RJ45 connections support 100Mbps and 1000Mbps Ethernet, providing sufficient bandwidth for high-resolution network audio while maintaining compatibility with conventional Gigabit Ethernet infrastructure. Aurender Music

Dual SFP Ports with Galvanic Isolation

Two SFP network ports provide optical-network capability and complete galvanic isolation when configured with appropriate optical SFP modules and fiber.

Because an optical connection does not create an electrical path between connected components, it can isolate the audio network from electrical noise originating elsewhere in the network infrastructure. Aurender Music

LED Disable

A rear-panel LED On/Off toggle allows the Ethernet activity LEDs to be disabled. Aurender includes this specifically as an additional noise-reduction measure for critical audio applications. Aurender Music

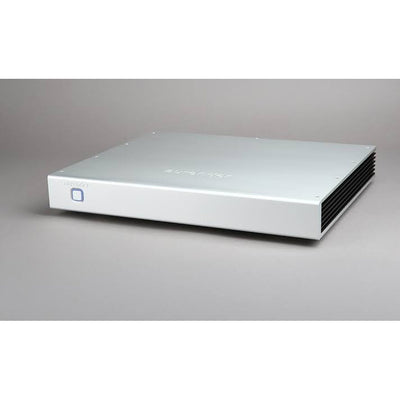

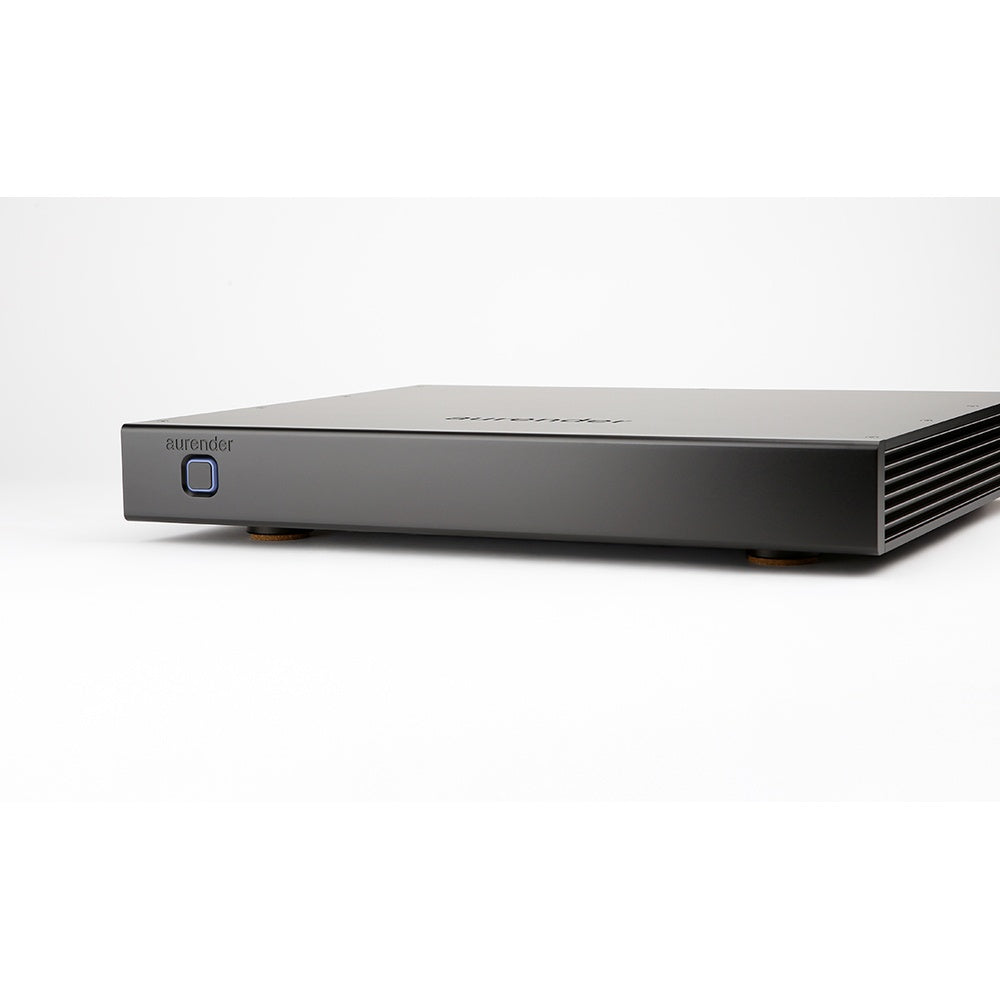

Precision Aluminum Chassis

The NH10 uses a substantial precision-machined aluminum chassis designed to provide mechanical rigidity while shielding its internal circuitry from vibration and electrical interference.

At 17.6 lb, the NH10 is constructed more like a dedicated high-end audio component than a conventional network switch. Aurender Music

Aurender NH10 Technical Specifications

Aurender's current specification table identifies an unusual filtering arrangement as LAN1–2 (2x) and LAN3–6 (7x). Because Aurender doesn't explain what the “2x/7x” notation specifically represents, I would leave that claim out of the customer-facing description rather than invent an interpretation. Aurender Music

NH10 with Aurender Music Servers

The NH10 is particularly relevant in systems using components such as the Aurender N50, N30SA, N20, N200 and N150, where the network is part of a dedicated high-performance digital source chain. Aurender itself demonstrated the NH10 with its digital front end at High End Vienna 2026. Aurender Music

It can also be used with other Ethernet-connected music servers, network transports, streaming DACs and network audio components; it is not limited to Aurender players.

External Master Clock Integration

The NH10's 10MHz BNC input allows the network switch to join a system using a compatible external reference clock.

This is especially relevant to advanced Aurender systems where network switching, music transport and digital conversion are being treated as an integrated digital front end rather than independent components.

Aurender NH10 at The Grid HiFi

The Aurender NH10 is designed for reference digital systems where network architecture receives the same attention as the music server, DAC, master clock and digital cabling.

The Grid HiFi can integrate the NH10 with Aurender music servers, external master clocks, fiber/SFP networking, high-performance Ethernet infrastructure and reference DAC systems to create a complete digital source architecture.

Order the Aurender NH10 from The Grid HiFi or call (713) 218-8120 for help designing a high-performance digital audio network.
