Overview

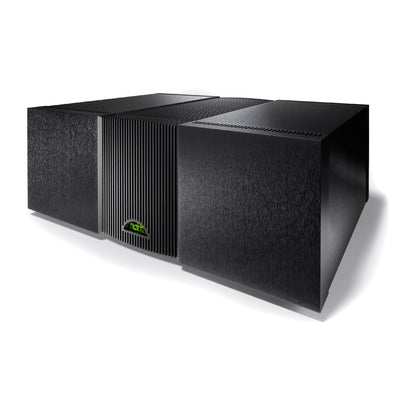

Reference two Channel Power Amplifier with dedicated Power Supply   As the debut product in our reference 500 Series range, the NAP 500 is a monumental expression of Naim Audio amplifier technology. Its design was honed over six years of collaborative work with suppliers of specialist parts and each product takes days of dedicated assembly by our most skilled technicians in Salisbury. It’s this eye for detail, alongside its remarkable power, that allows the NAP 500 to bring your music into breath-taking focus.
Features
  • 140W per channel output into 8 ohms; capable of prolonged output into 2 ohms with no discernible impact on performance
  • Bridged power amplifier configuration for maximised open and closed-loop speed, with ten stages of local regulation per channel
  • Two-box configuration with 500 PS power supply for optimum rejection of electromagnetic interference
  • 1,100VA toroidal transformer provides 12 raw DC supplies for the power amplifier
  • 25kg brushed, black-anodised chassis with distinctive heatsink plus variable speed intelligent fan system for discreet extra cooling if required
Audio Inputs Input Impedance 18kΩ Analogue Input 2 x XLR Audio Outputs Minimum Load Impedance 2Ω Frequency Response -3dB at 1.5Hz and 100kHz Gain +30dB Finish Case Brushed and black anodised Front Brushed and black anodised Physical Shipping Weight 28.2 kg Shipping Dimensions 270 x 570 x 520 mm Weight 25 kg Dimensions (HxWxD) 160 x 432 x 374 mm Power Mains Supply 100V, 115V, 230V; 50 or 60Hz Power Supply Options 500PS Speaker Outputs Power Output 140W/channel, 8Ω Transient 700VA Speaker Outputs L & R, 4mm “banana” sockets Supplied with Supplied with 500PS, Power-Line, Burndy
