Michell Revolv Reference Turntable

Product Description

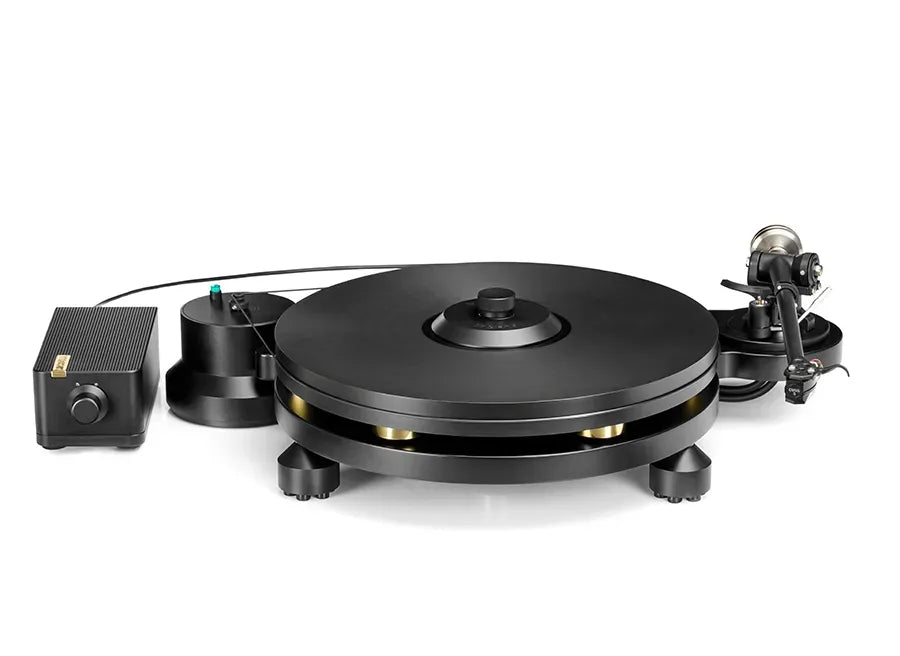

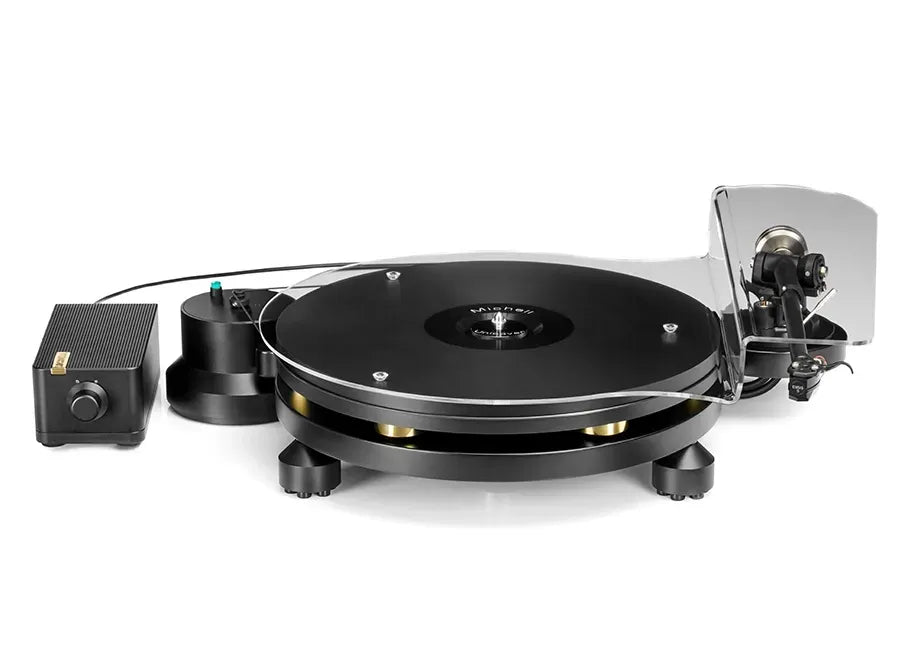

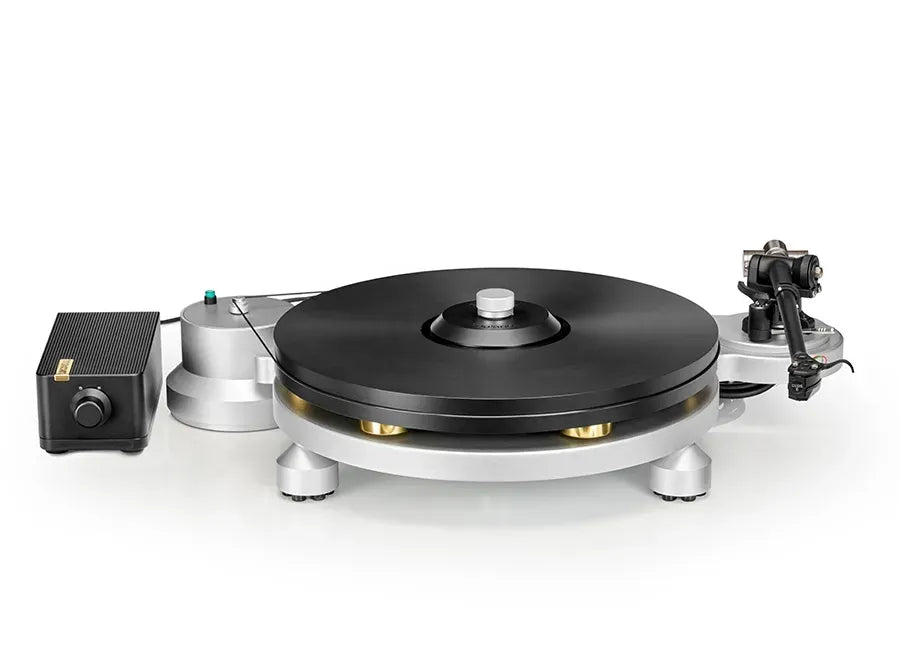

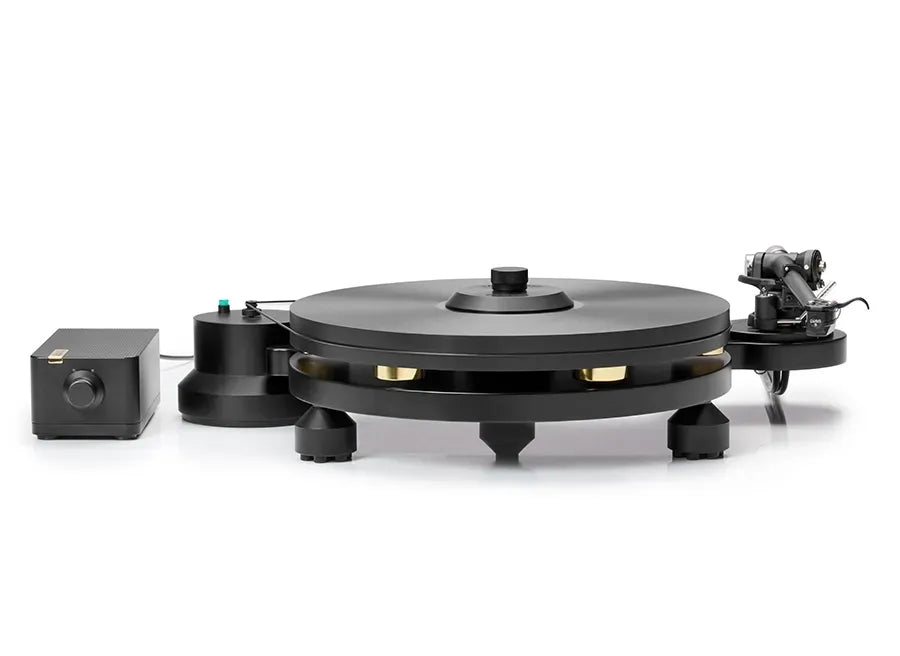

The Michell Revolv is a precision-engineered British belt-drive turntable that brings advanced analog technology to a minimalist, unsuspended design. Positioned between the TecnoDec and the fully suspended Gyro, the Revolv combines a solid aerospace-grade aluminum chassis, a high-inertia Delrin platter and an independently housed motor to provide a stable foundation for high-fidelity vinyl playback.

Developed and hand-assembled in the United Kingdom, the Revolv incorporates technologies from Michell's latest engineering program, including a precision inverted bearing, advanced Sorbothane isolation and a shielded motor and power supply system. Its upgrade-ready architecture makes it a compelling foundation for a carefully configured high-end analog system.

Precision-Machined Aluminum Chassis

The Revolv is built around a solid 19mm aerospace-grade aluminum tooling-plate chassis. Unlike Michell's suspended Gyro, it uses an unsuspended architecture designed to provide direct mechanical grounding and a rigid foundation for the platter and tonearm.

A precision-machined aluminum arm plate creates a secure mechanical connection between the tonearm and chassis. This construction helps maintain the alignment and stability essential to accurate stylus tracking.

The result is a substantial turntable platform with a relatively compact footprint, combining Michell's distinctive industrial design with a straightforward approach to mechanical stability.

High-Inertia Delrin Platter with Brass Weights

The Revolv features a precision-engineered Delrin platter incorporating 10mm peripheral brass weights.

Positioning additional mass around the platter's outer circumference increases rotational inertia, helping resist small variations in rotational speed. Delrin provides a precisely machinable platter material, while the brass weights contribute to the turntable's distinctive appearance.

This combination brings an important element of Michell's established platter engineering to the Revolv, supporting consistent rotation and stable vinyl playback.

Inverted Bearing with Mono-Helix Oil Circulation

At the center of the Revolv is an inverted main bearing incorporating a mono-helix oil-circulation system.

The bearing's internal geometry is designed to circulate lubricant during operation, maintaining lubrication at the mechanical interface between the bearing components.

By combining a precision bearing with the high-inertia platter, Michell provides the mechanical foundation required for smooth, consistent rotation and low-noise playback.

Six-Node Sorbothane Isolation

Rather than using the spring suspension found on the Gyro, the Revolv employs advanced Sorbothane isolation feet with six damping nodes.

These feet are designed to reduce the transmission of unwanted vibration from the supporting furniture into the turntable. Their damping properties complement the rigid aluminum chassis, helping isolate the platter and tonearm from external mechanical interference.

This approach gives the Revolv a simpler installation arrangement than a fully suspended turntable while retaining Michell's emphasis on vibration management.

Independently Housed Motor and Electronic Speed Control

The Revolv features a heavy, freestanding motor pod that is physically separate from the turntable chassis. Its only mechanical connection to the platter is the drive belt, reducing the direct transmission of motor vibration into the playback assembly.

Both the motor housing and matching power supply are machined from solid aerospace-grade aluminum. Their rigid, grounded enclosures and shielded interconnection are designed to minimize unwanted radio-frequency interference.

Electronic speed selection provides convenient operation without requiring manual repositioning of the drive belt.

Upgrade-Ready Analog Design

The Revolv is designed as a long-term analog platform rather than a fixed, all-in-one record player.

Its rigid tonearm mounting system, precision bearing and separate motor assembly provide a foundation for a carefully selected tonearm and cartridge combination. Michell also emphasizes the turntable's upgrade-ready architecture, allowing owners to develop their systems over time.

For listeners who appreciate the engineering of the Gyro but prefer a minimalist, unsuspended design, the Revolv offers a different approach to high-performance vinyl playback.
