Overview

HiFi+ Editors Choice 2020

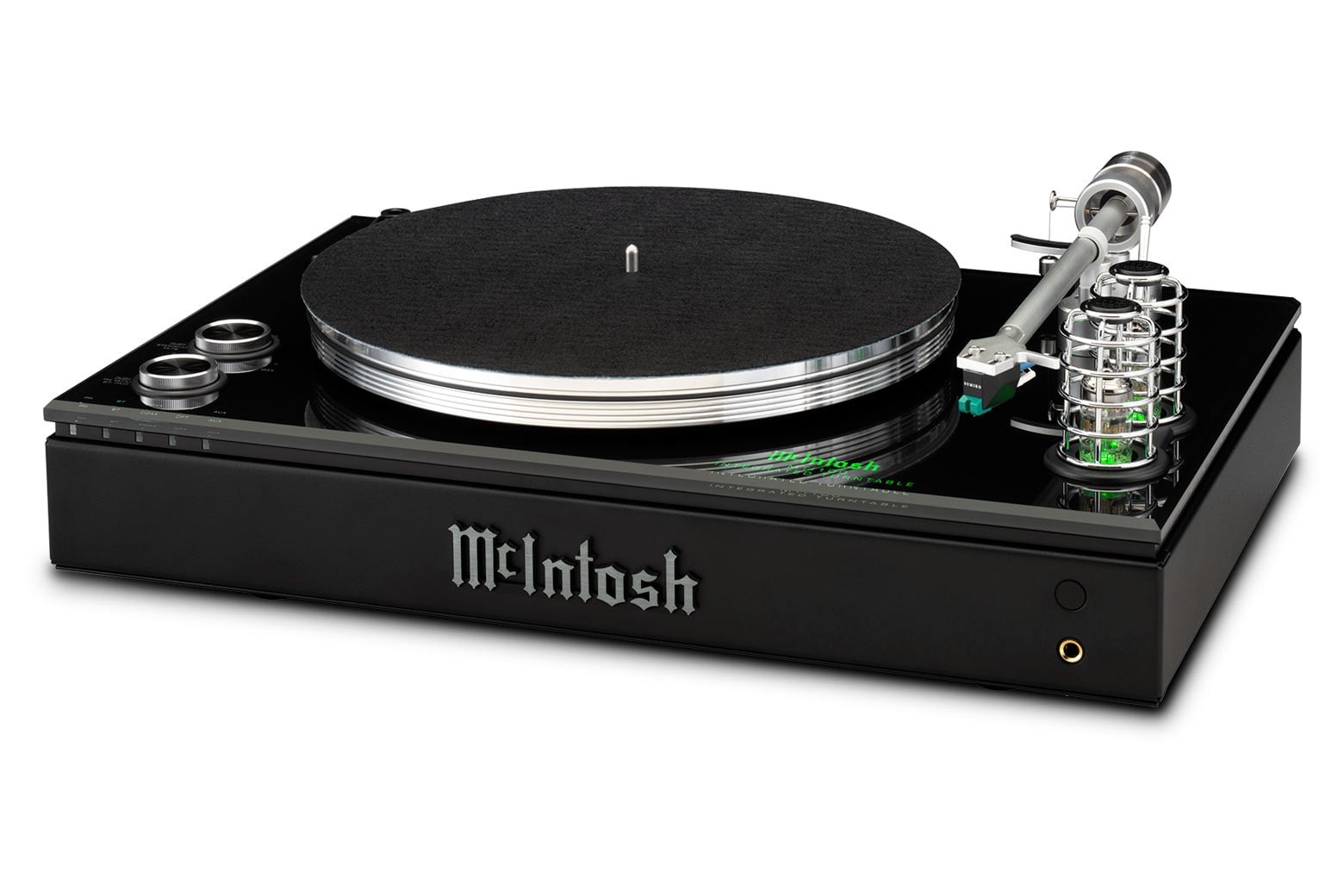

McIntosh MTI100 Integrated Turntable

Turntable? ✔ Amplifier? ✔ Vacuum tube preamplifier? ✔ Phono preamplifier? ✔ Analog input? ✔ Digital inputs? ✔ Bluetooth® receiver? ✔ Speaker outputs? ✔ Subwoofer output? ✔ Headphone jack? ✔ McIntosh engineering? ✔ What else do I need? Just add your music and speakers.

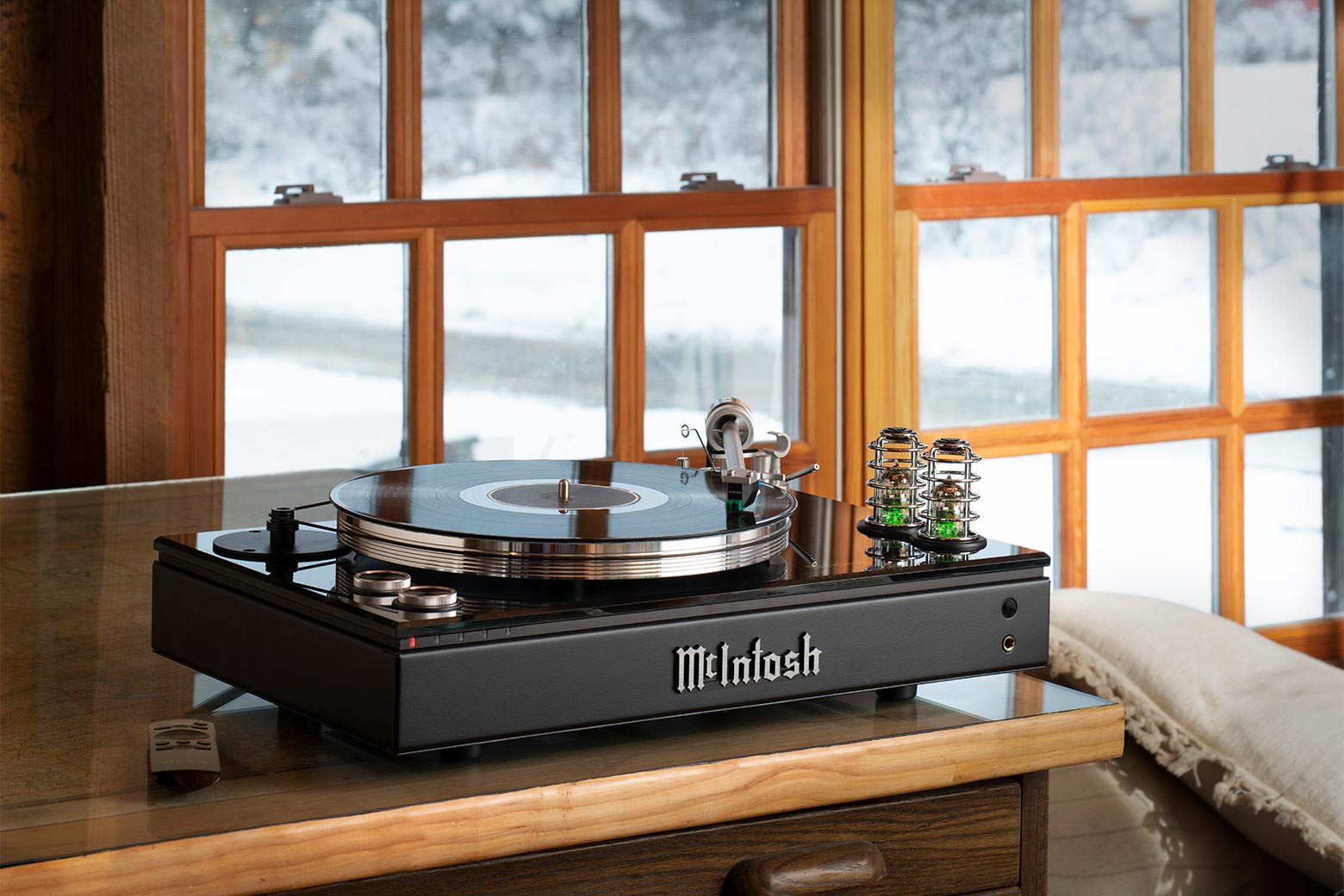

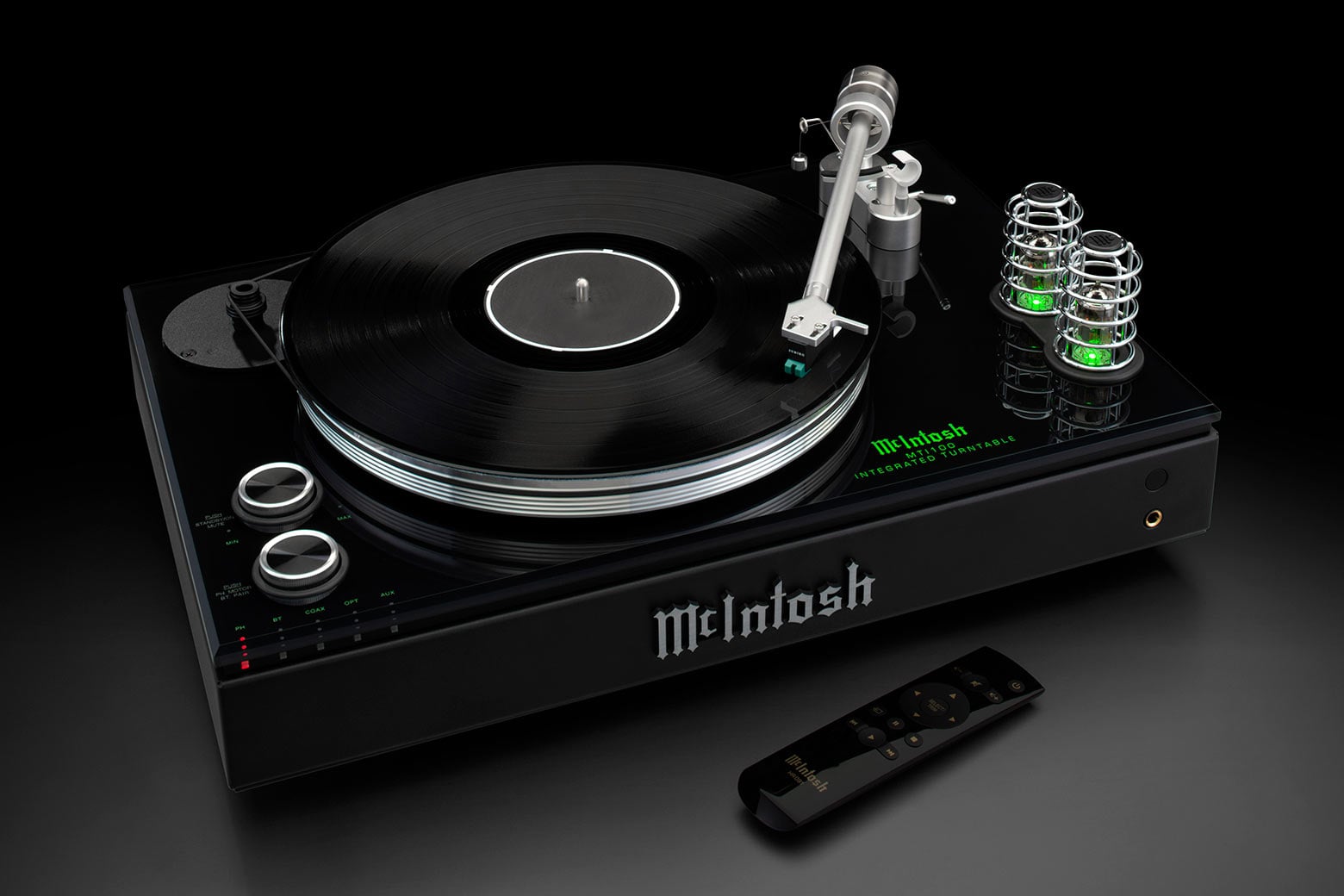

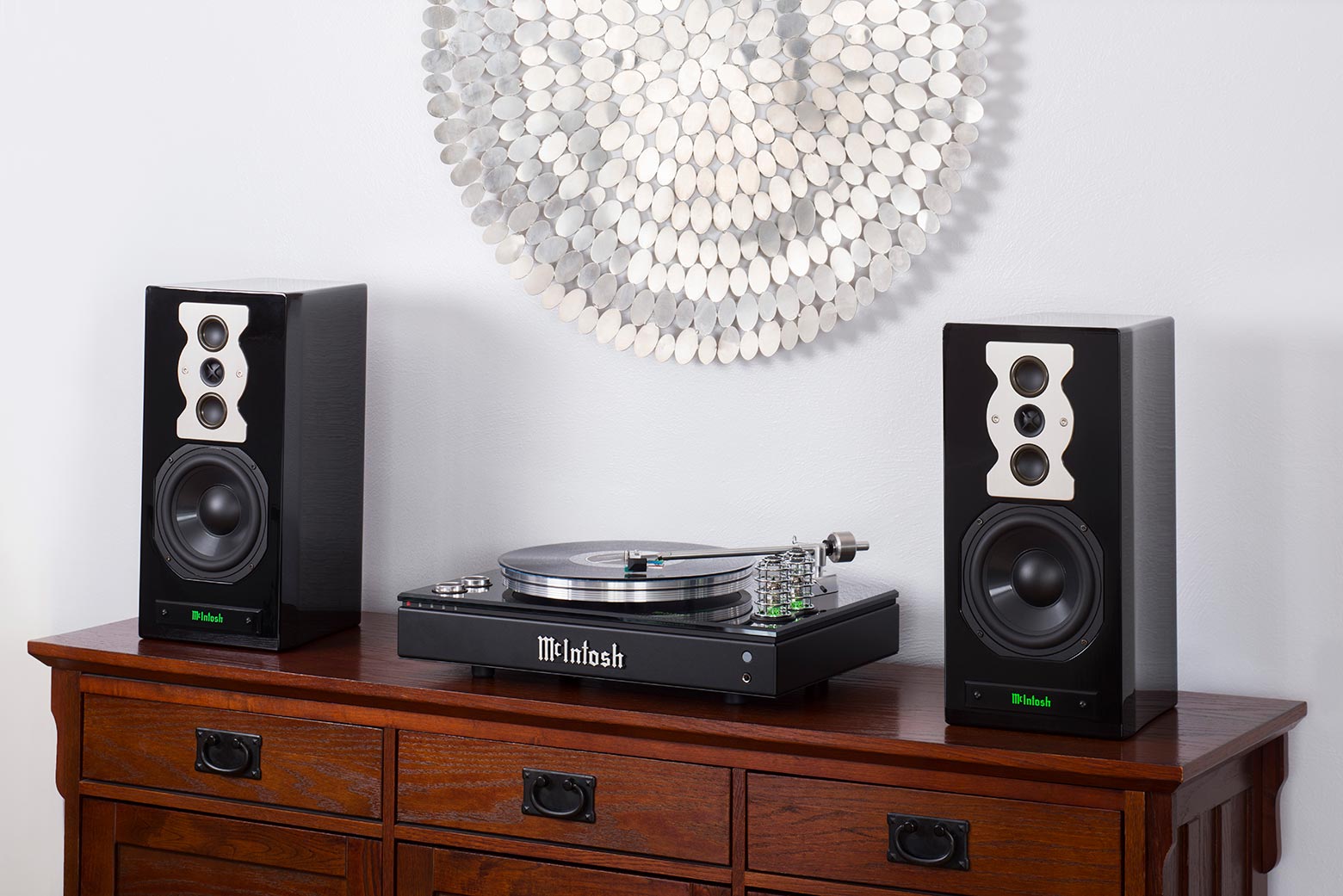

At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.

The MTI100 "manages to deliver on almost everything vinyl enthusiasts prize about the format." The amount of detail it delivers "without sounding in any way prissy or analytical is no easy task," and the "mastery of low-level harmonic dynamics on display here is considerable." Winner of a HiFi+ Editor's Choice 2020 Award. - HiFi+

McIntosh MTI100 Integrated Turntable

"There is no audible noise in any section of the MTI100. Phono and digital sections are free of playback artifacts, even with highly sensitive speakers... a piece of sonic artistry, that provides high-end sound from all the sources you can imagine, and looks great doing it... The level of quality, functionality, and audio performance makes it the perfect purchase for anyone wanting a high quality, all-inclusive music system." Named The Audiophile Apartment’s Product of the Year 2019. - The Audiophile Apartment

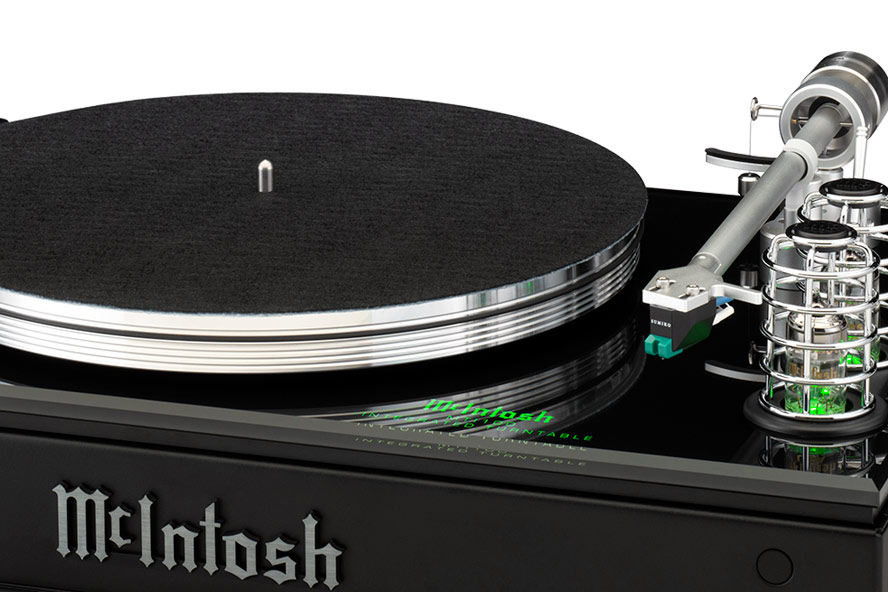

McIntosh MTI100 Integrated Turntable

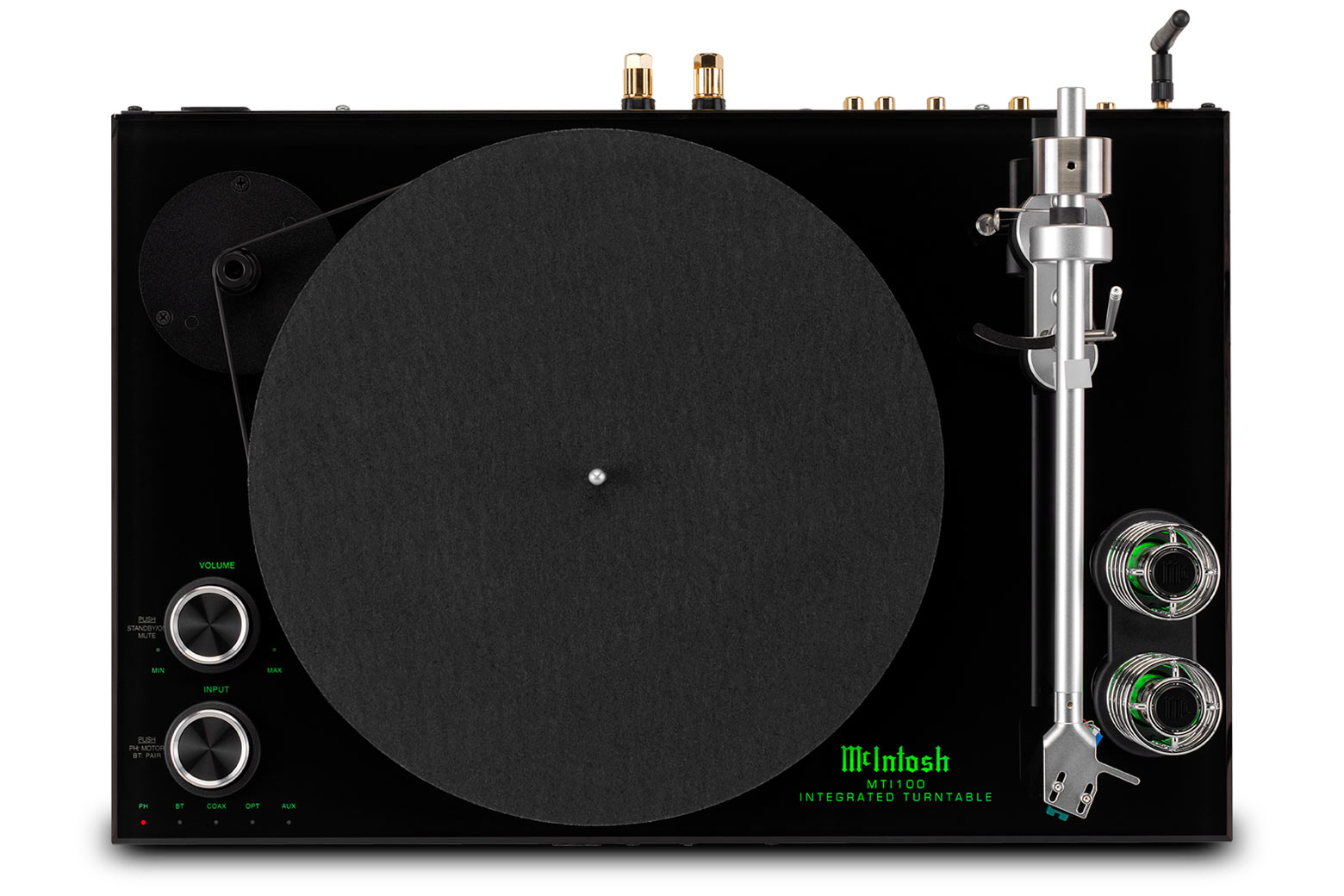

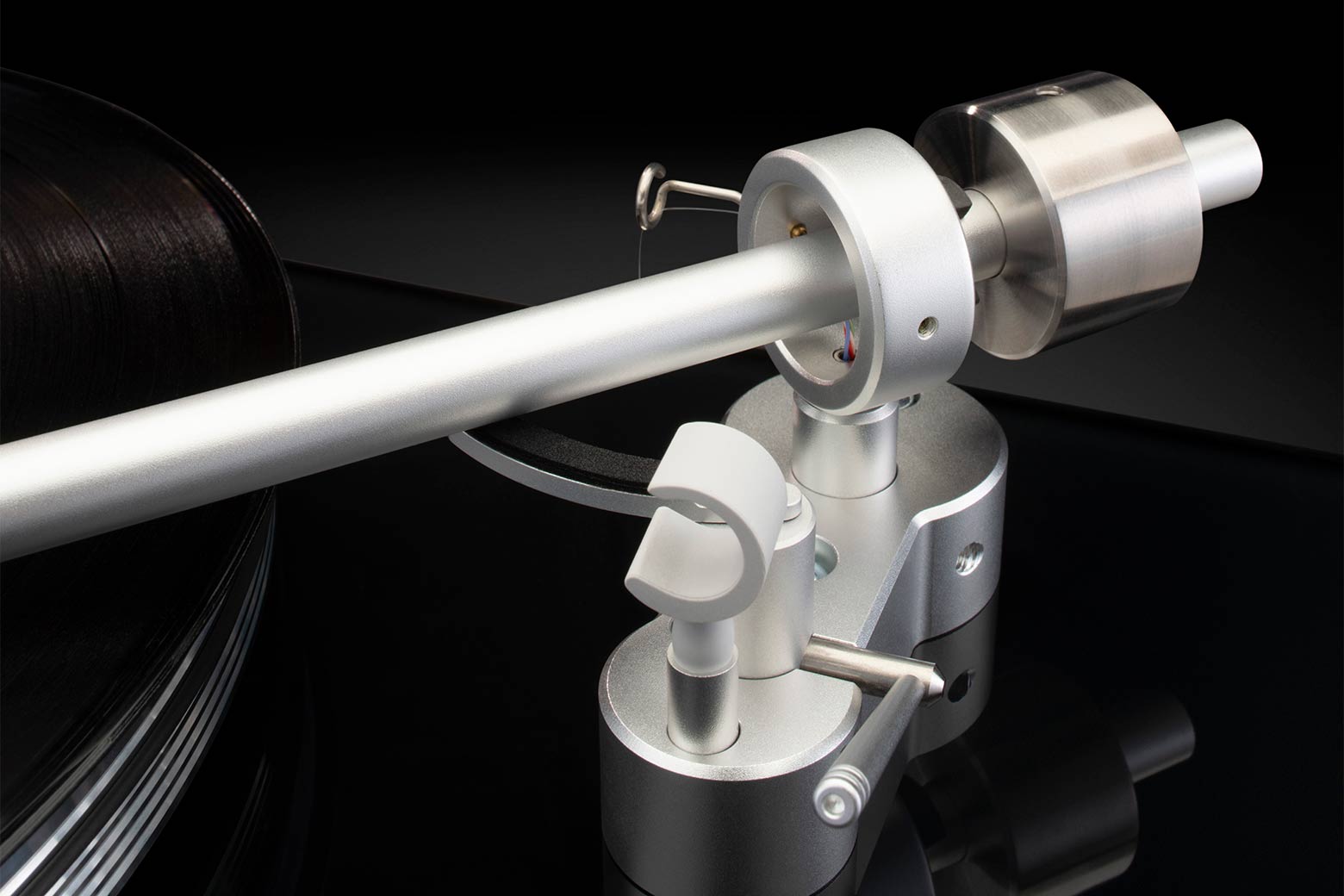

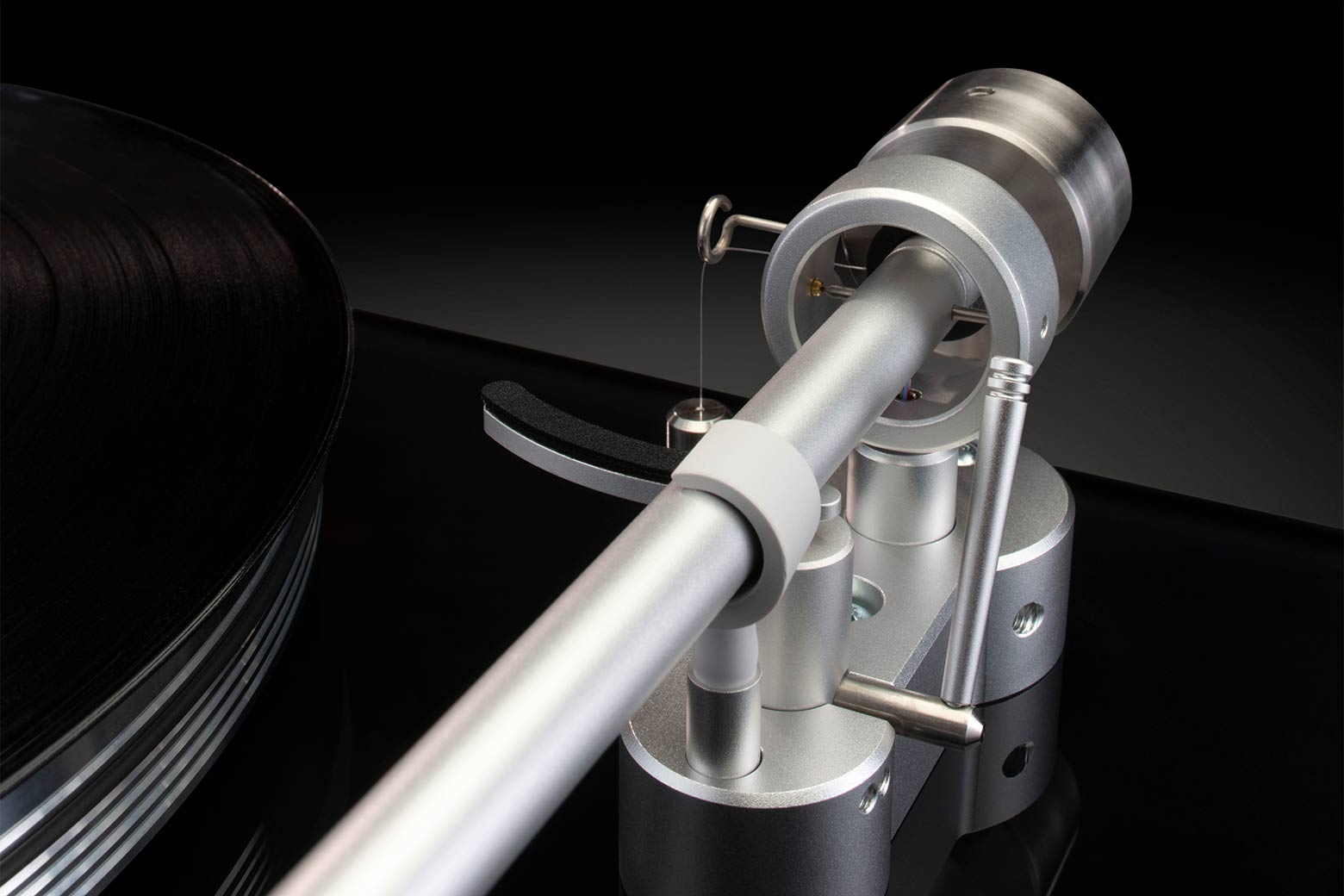

The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.

The MTI100 "oozes class and luxury..." no other product Brockhouse has reviewed "elicited more oohs and ahs than the MTI100..." its "big, spacious sound" made "listening to music an event." - SoundStage

McIntosh MTI100 Integrated Turntable

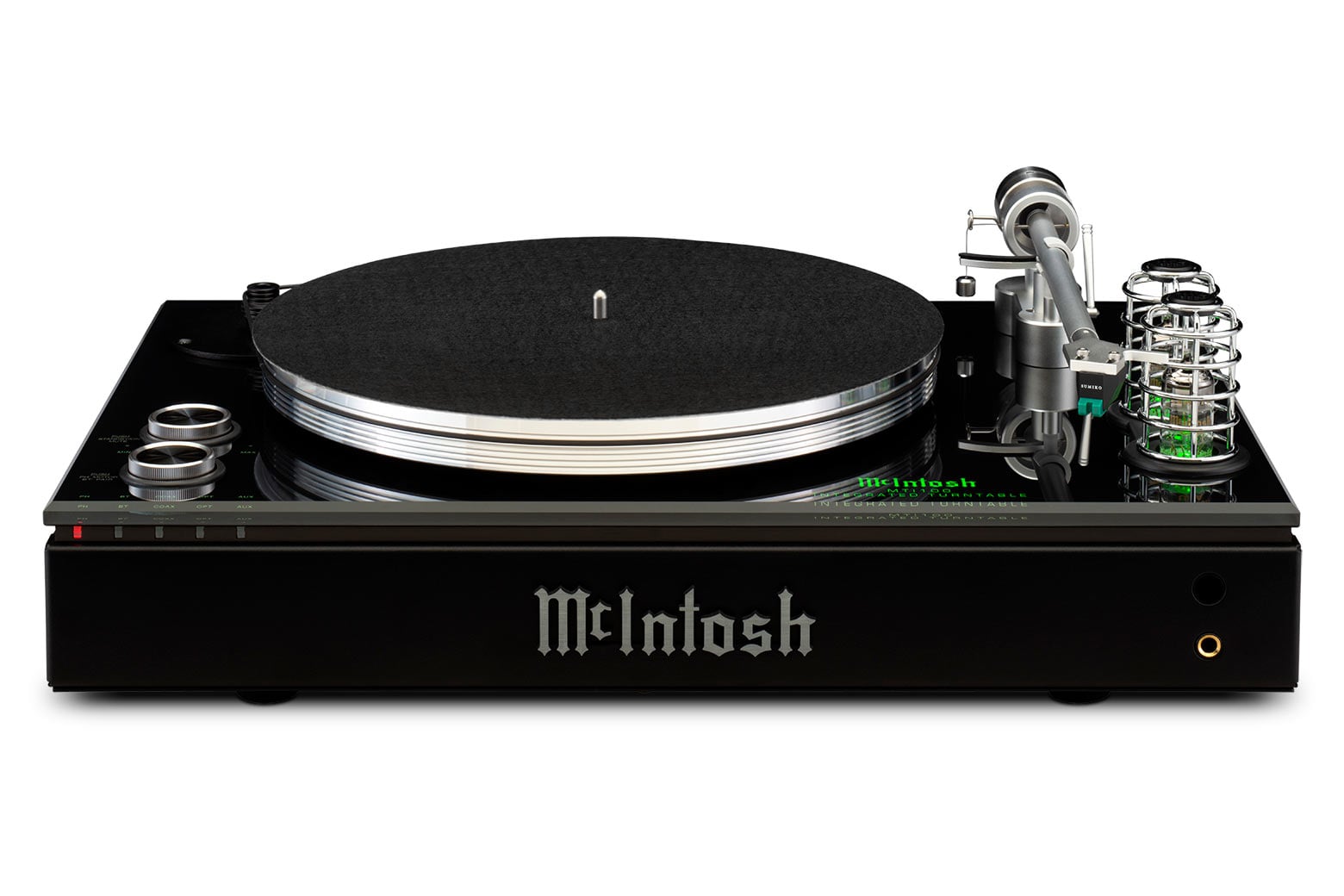

McIntosh MTI100 Integrated Turntable

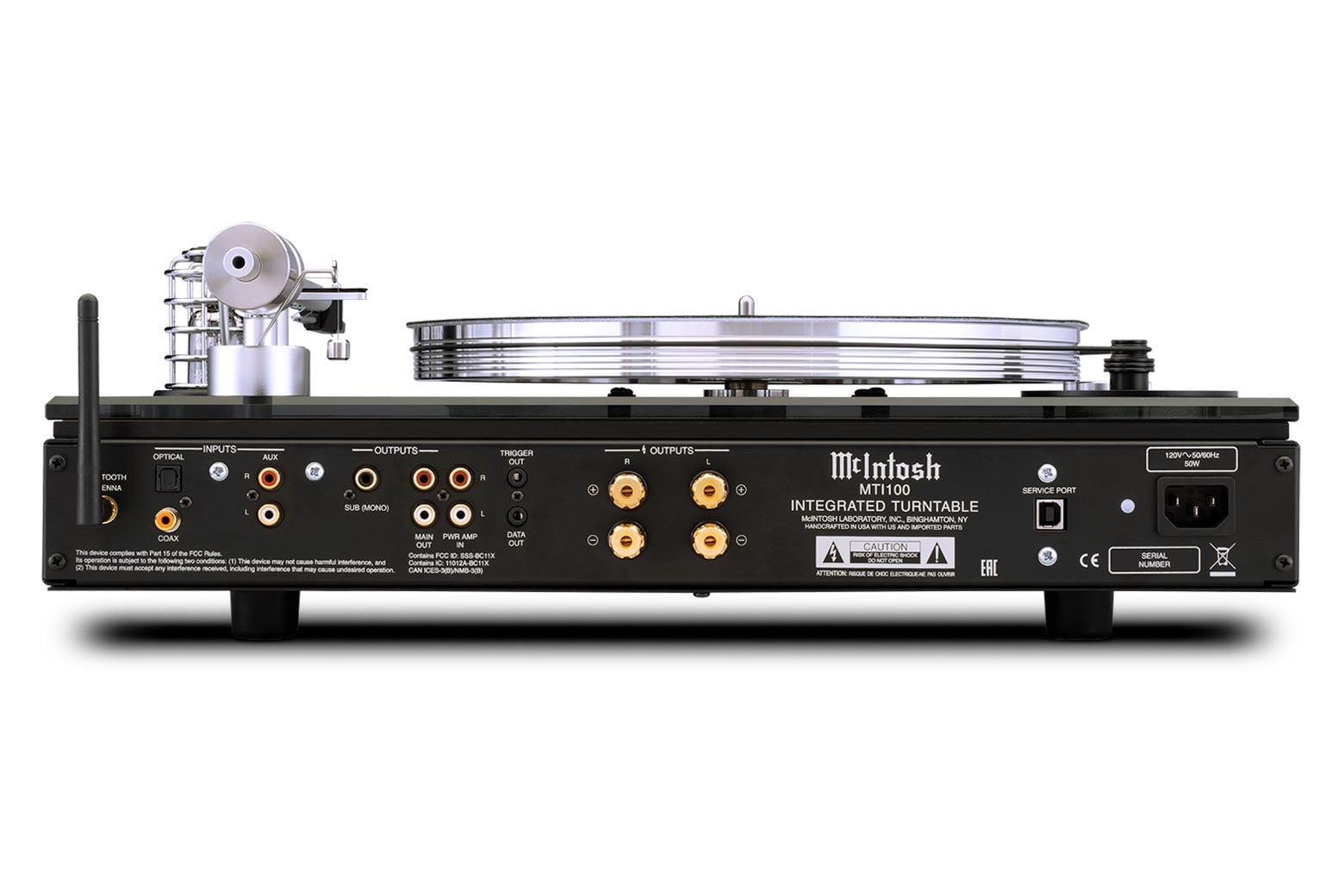

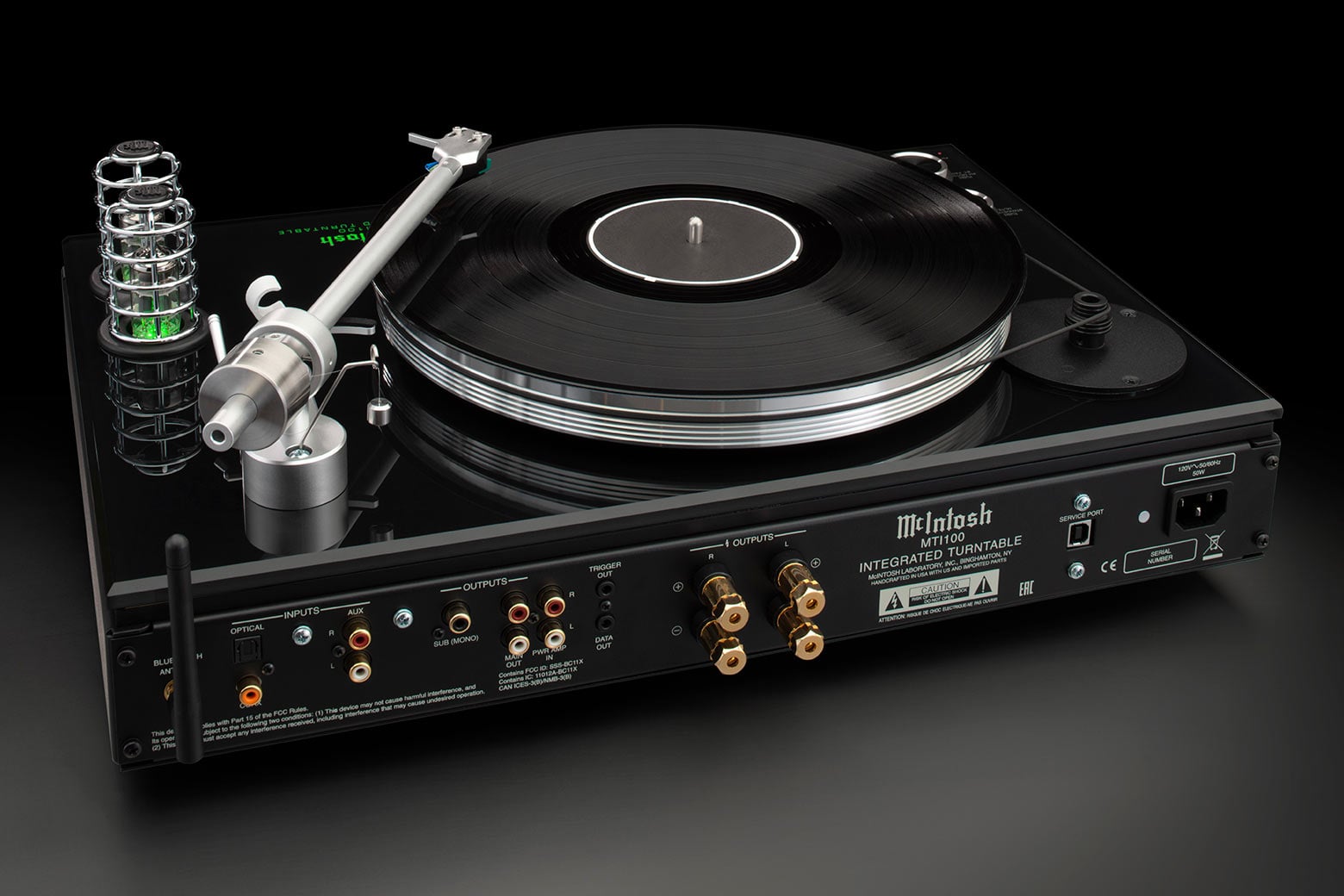

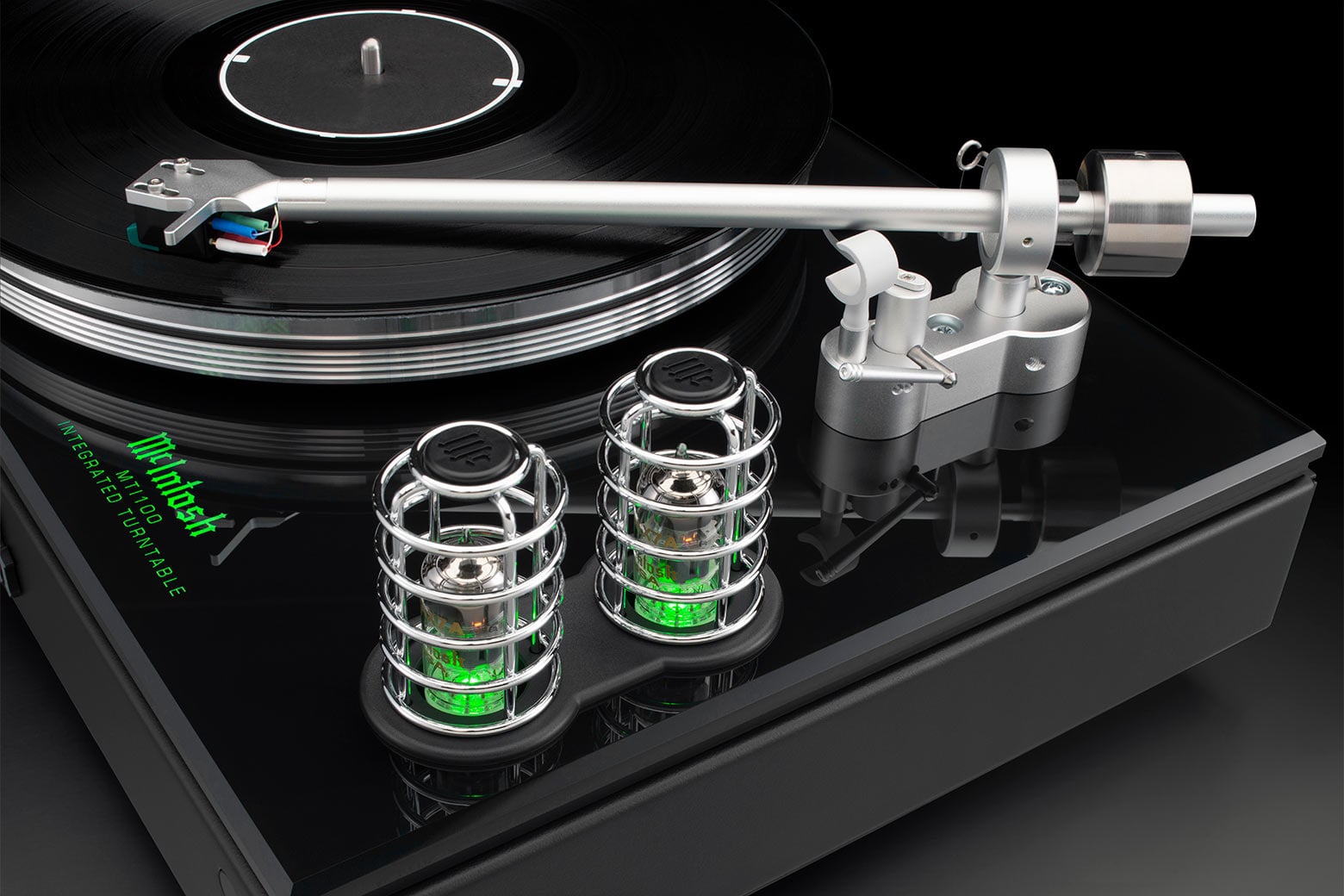

A Class D amplifier that’s rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms is used to drive a pair of speakers (sold separately) that are connected via the back panel speaker binding posts. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier are a perfect choice to help make your vinyl albums sound their best.

"For an all-in-one device, the MTI100 rocks!" With all its connectivity options, "it can comfortably function as the heart of a more extensive system... sure to appeal to today’s millennials who have a vinyl collection and high expectations for sound quality, as well as to audiophiles who may be down/right-sizing or looking for a simple second system with minimal compromise." - SoundStage Australia

McIntosh MTI100 Integrated Turntable
Specifications

Cartridge Specifications

Cartridge Type

Moving Magnet

Output Level

4mV at 1kHz

Load Impedance

47k Ohms

Frequency Response

12Hz to 30kHz

Channel Separation

30dB at 1kHz

Compliance

12 x 10-6 cm/dyne

Recommended Tracking Force

2.0 g

Channel Difference

Less than 1dB at 1kHz

Total Mass

6.5 g

Stylus

Elliptical

Cantilever Material

Aluminum

Tonearm Specifications

Bearing

Cardan bearing arrangement with ball bearings used for lateral and Sapphire/Tungsten for vertical bearing

Arm Tube

Machined aluminum

Counterweight

Concentric

Adjustments

None

Turntable Specifications

Playback Speeds

33-1/3 and 45 rpm

Motor Type

Permanent magnet AC synchronous

Speed Control

Manual speed change via a 2 speed pulley

Platter

Aluminum

Platter Bearing

Inverted hardened steel shaft and axial ball arrangement with bronze bushing

Signal To Noise Ratio

35dB - 40dB

Wow & Flutter

0.1%

Connectivity

Stereo Outputs Unbalanced

1 (bridged to AMP IN)

Stereo Inputs Unbalanced

1

Digital Coaxial Inputs

1

Digital Optical Inputs

1

Subwoofer Outputs

1

Wireless Input

High Definition Bluetooth 4.2

Control

Power Control Inputs

0

Power Control Outputs

1

Platter Light

N/A

Speed Control Fine Adjustment

No

Electronic Specifications

Power Output per Channel

50 Watts into 8 Ohms

80 Watts into 4 Ohms

Number of Channels

2

Speaker Impedance

4 or 8 Ohms

Rated Power Band

20Hz to 20kHz

Total Harmonic Distortion

Amplifier: 0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz;

0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz

Preamplifier: 0.2% from 20Hz to 20kHz

Dynamic Headroom

1.0dB (8 Ohms)

1.3dB (4 Ohms)

Frequency Response +0,-0.7dB

20Hz to 20kHz

Signal To Noise Ratio (Moving Magnet)

75dB

Signal To Noise Ratio (High Level)

90dB

Damping Factor

8 Ohms: >200

4 Ohms: >100

Maximum Output (Balanced / Unbalanced)

9V Unbalanced

General Specifications

Dust Cover Included

No

Weights & Dimensions

Unit Dimensions (W x H x D)

19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)

Unit Weight

33.5 lbs (15.2 kg)

Shipping Weight

40.5 lbs (18.4 kg)
