McIntosh
MI502 2-Channel Power Amplifier
- Type: Digital
- 500 Watts x 2-Channels into 8 Ohms
- 800 Watts x 2-Channels into 4 Ohms
- Power Guard®, Sentry Monitor™, On/Off signal sensing
- 2U rack mountable
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Overview
The MI502 2-Channel Digital Amplifier is a flexible component and welcome addition to a custom installed home audio or home theater system. It delivers world renowned McIntosh sound quality at a rate of 500 Watts into 8 Ohm speakers or 800 Watts into 4 Ohm speakers. It uses highly high-tech closed loop digital switching amplifiers and resilient power supplies that produce performance levels seldom heard in custom install audio.
The applications are nearly limitless for how to use the versatile MI502 in your home entertainment system. It can be used to power the front left and right speakers in a home theater; to drive two in-wall subwoofers; a pair of MI502s could drive the three front channels of your in-home cinema plus one subwoofer; or to power a pair of outdoor speakers for when the party makes it way outside. Additionally, a stack of multiple MI502s could be used to power the distributed audio speakers installed throughout your home.

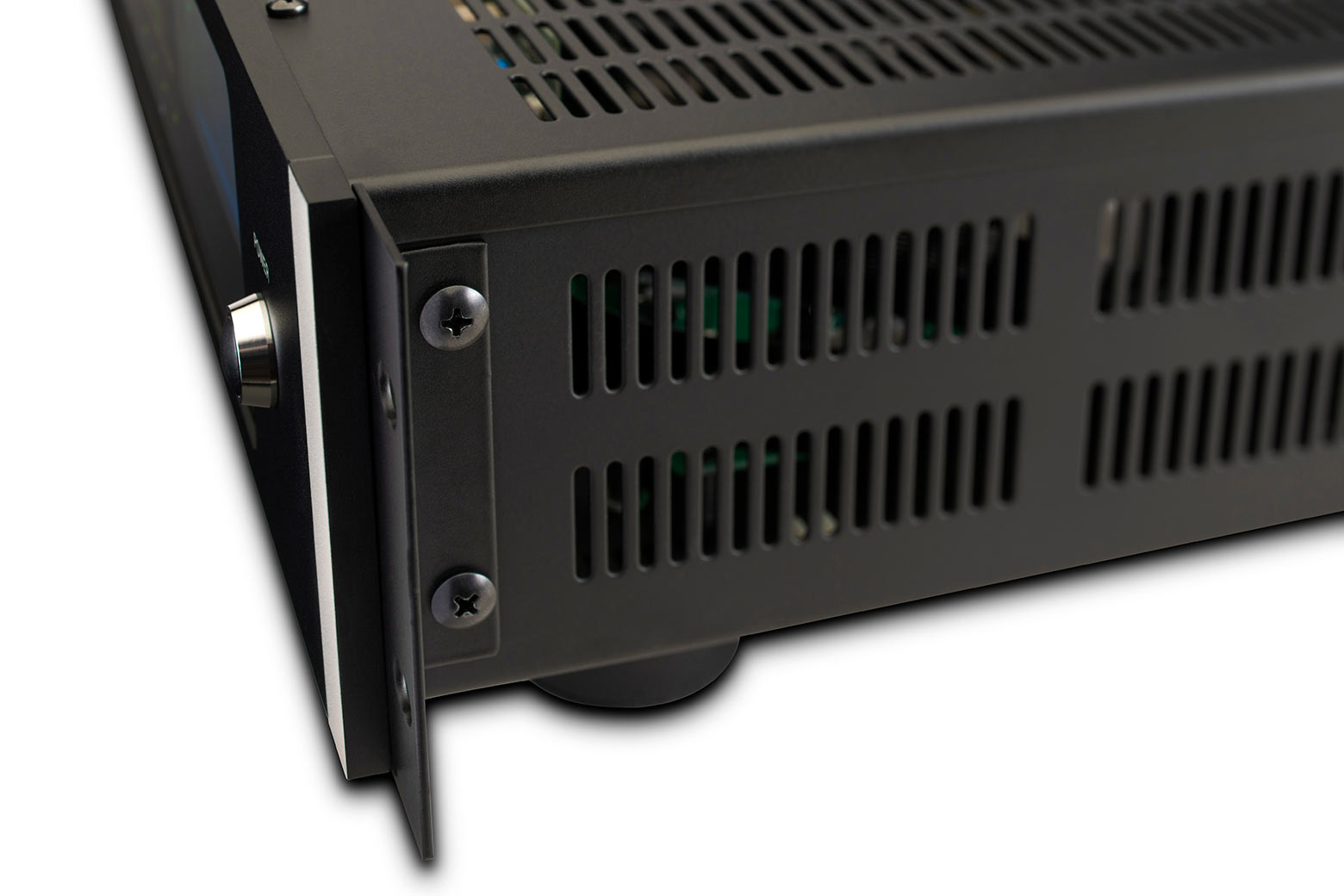

The MI502 is rack mountable and has a mounting height of 2U making it easy to install in an equipment rack via the included mounting brackets (the mounting brackets are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature so the only thing you'll hear coming from it is amazing sounding audio that will impress yourself and your guests.

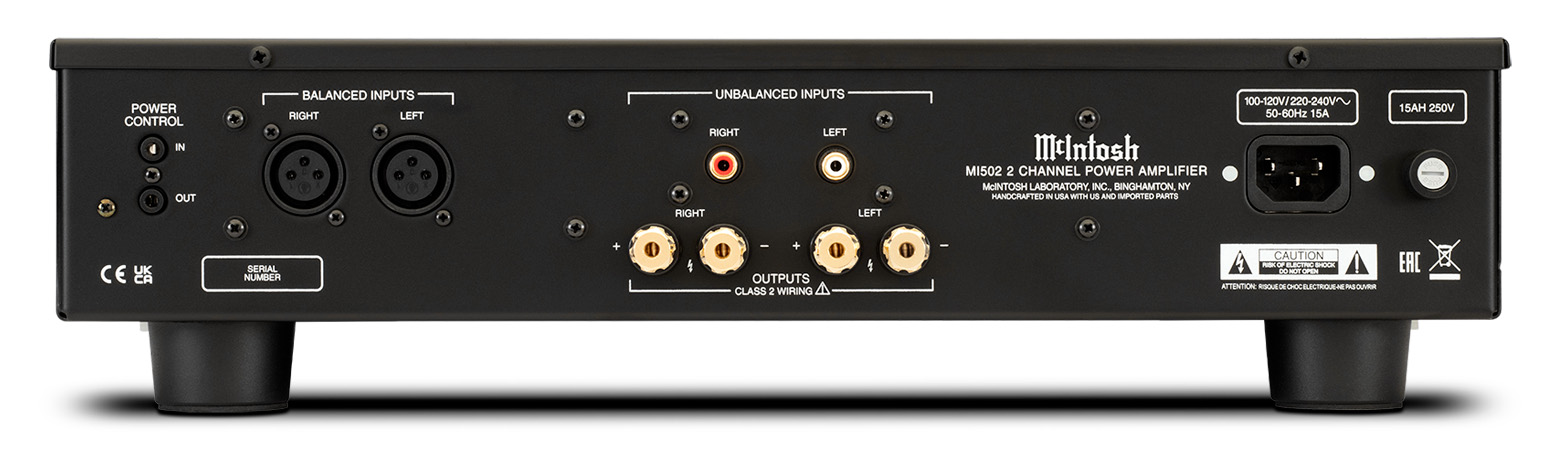

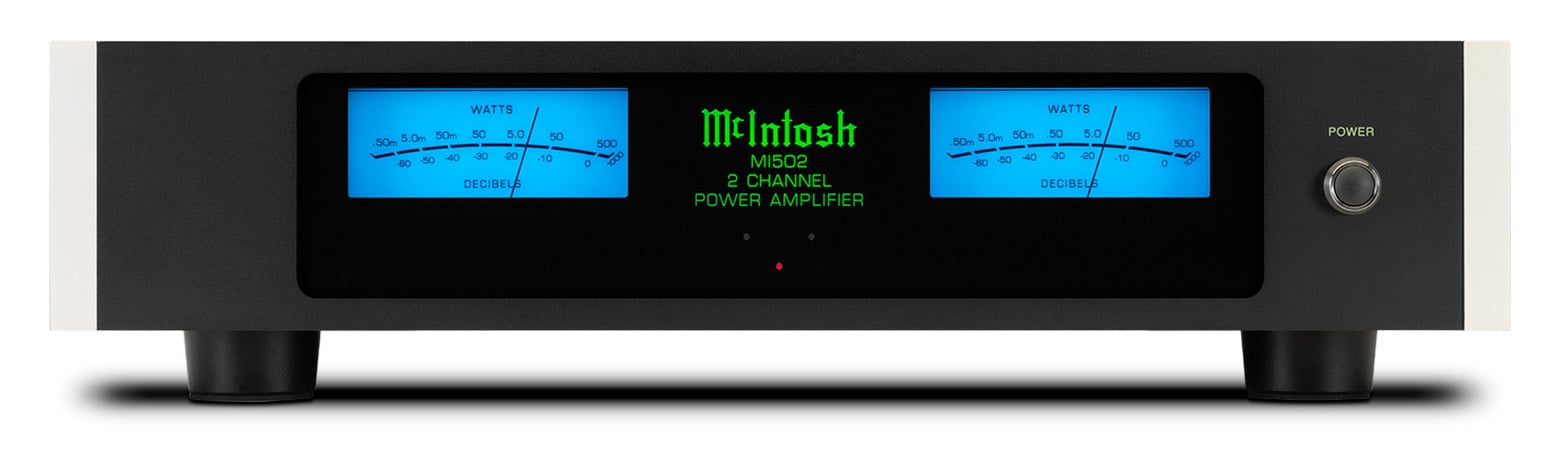

On the front panel are two blue McIntosh Watt Meters that display the power output of each channel, while multi-color LED indicators display the status of each channel. The back panel includes a pair of balanced and unbalanced inputs to connect the MI502 to your preamplifier. A pair of our standard 5-way speaker binding posts are included to connect your speakers.
Other features that come with the MI502 are:
The MI502 includes many McIntosh design cues including a black glass front panel, our coveted blue Watt meters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim. Contact your local dealer or integratorto learn more about adding the MI502 to your custom audio installation.
Specifications
Electronic Specifications
FTC Power Output Rating
500 W
Power Output per Channel
500 W into 8 ohms
800 W into 4 ohms
Number of Channels
2
Total Harmonic Distortion
0.05%
S/N below rated output
98dB
Dynamic Headroom
8 ohms: 2.7dB
4 ohms: 3.7dB
Damping Factor
8 ohms: >85
4 ohms: >45
Rated Power Band
20Hz to 20kHz
Frequency Response
+0, -0.9dB from 20Hz to 20kHz
Control
Remote Power Control
Yes
Multi-Channel DB25 Cable
N/A
Connectivity
Speaker Binding Post Type
Standard
General Specifications
Circuit Configuration
Closed loop digital switching
Circuit Design
Digital
Mono Bridge
N/A
Mono Parallel
N/A
Output Type
Direct Coupled
Meters
Yes
Meter Light Switch
No
Balanced Input
1
Front Panel
Glass with removable rack mounting ears
Illumination
Direct LED
Chassis Style
Black painted steel
Weights & Dimensions
Unit Dimensions (W x H x D)
17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Unit Weight
21.5 lbs (9.8 kg)
Shipping Weight
37.9 lbs (17.2 kg)
