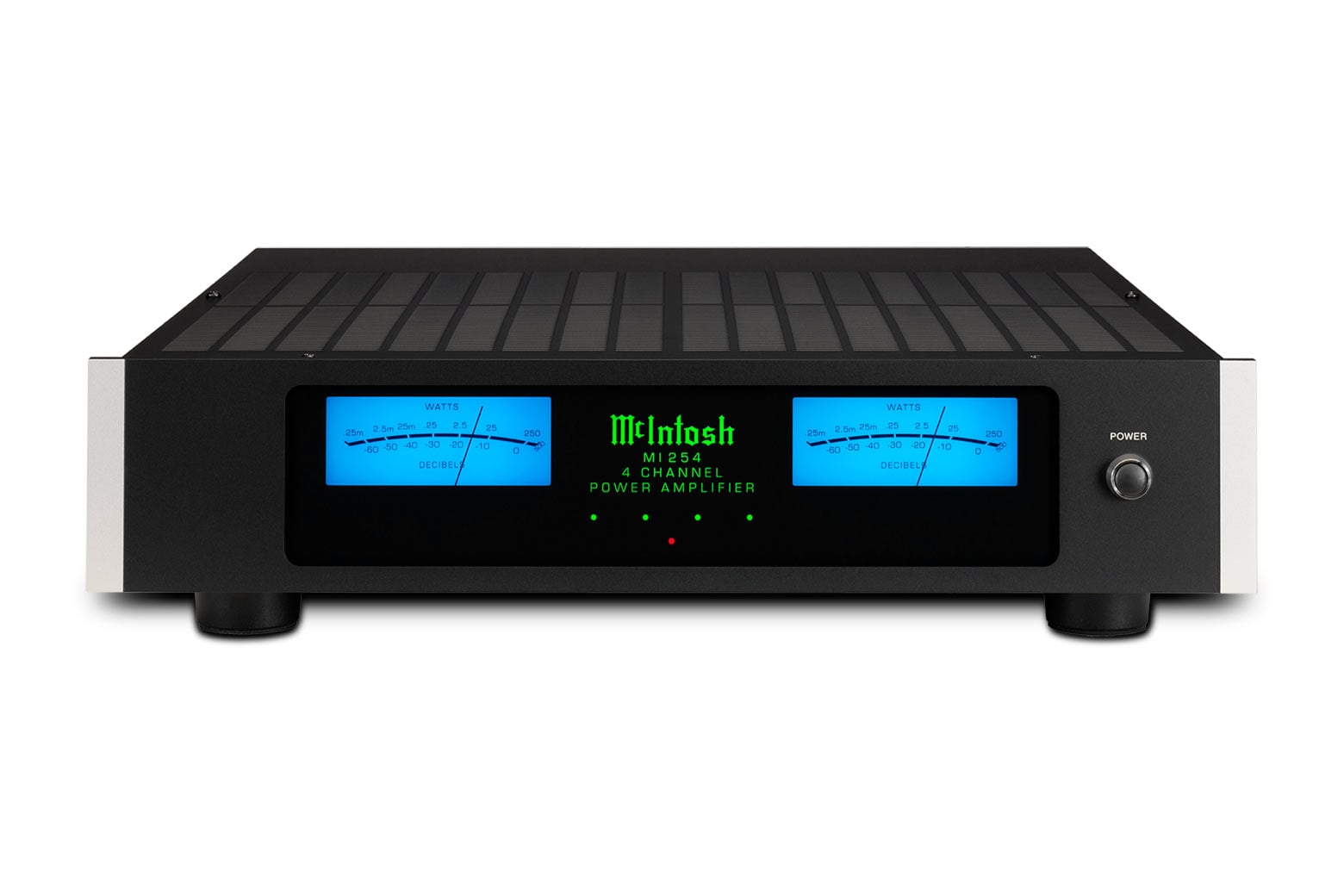

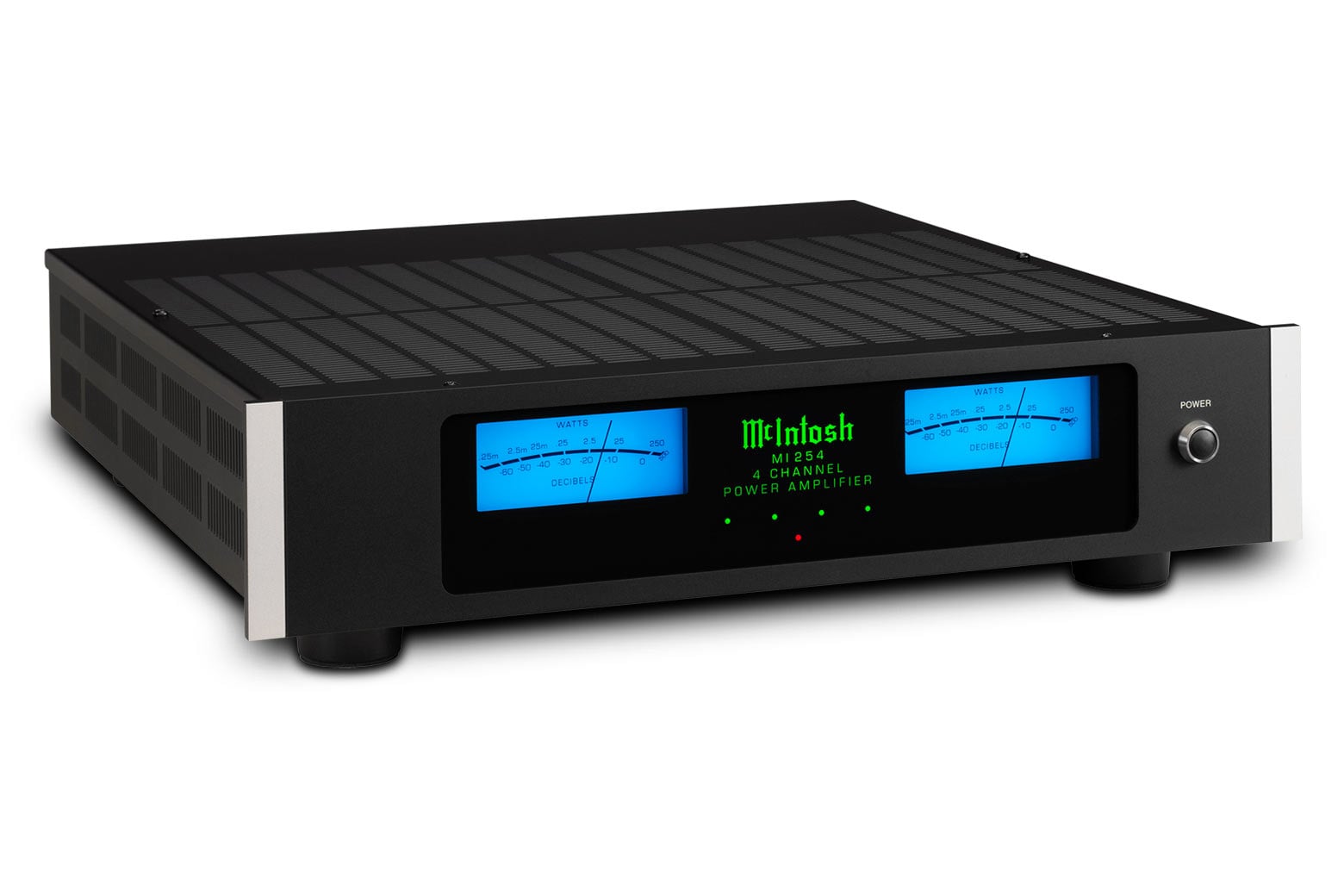

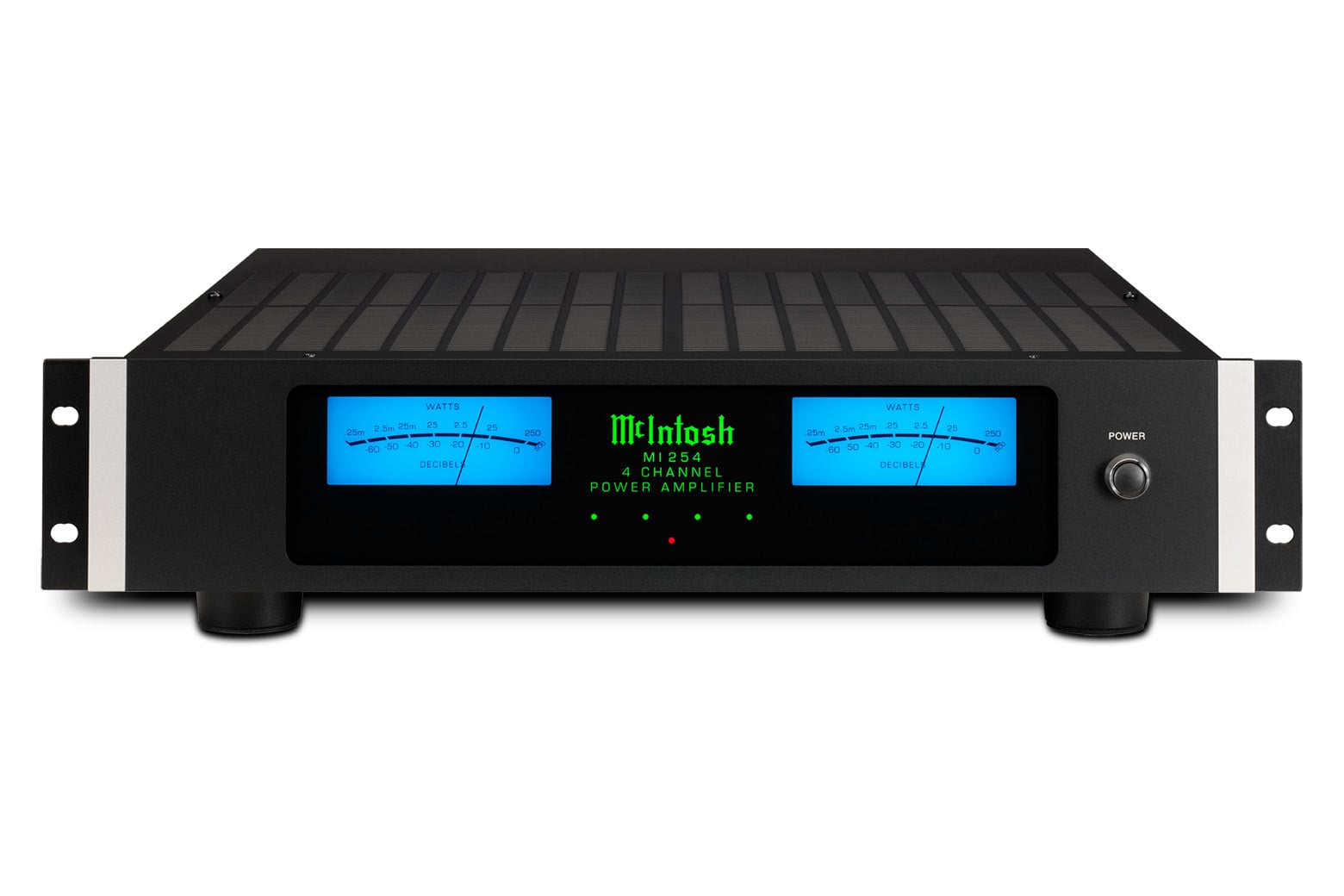

McIntosh MI254 4-Channel Digital Amplifier

Four Channels. 300 Watts. Multiple Ways to Use It.

The McIntosh MI254 4-Channel Digital Amplifier packs serious amplification into a compact 2U chassis. Delivering 250 watts per channel into 8 Ohms or 300 watts per channel into 4 Ohms, it can serve equally well in a high-performance home theater, distributed audio system, or even a dedicated two-channel setup.

Its combination of substantial output power, balanced connectivity, Class D efficiency, and flexible signal routing makes the MI254 particularly useful when a system needs high-quality amplification without consuming an entire equipment rack.

High-Power Class D Amplification

Each of the MI254's four channels uses McIntosh's sophisticated closed-loop digital switching amplifier design, supported by robust power supplies engineered to maintain control during demanding musical and cinematic passages.

With up to 300 watts available per channel into 4 Ohms, the MI254 has enough output to work with considerably more demanding loudspeakers than a conventional distributed-audio amplifier.

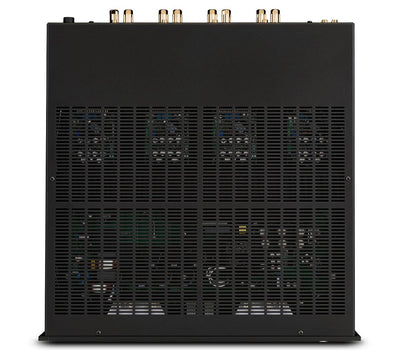

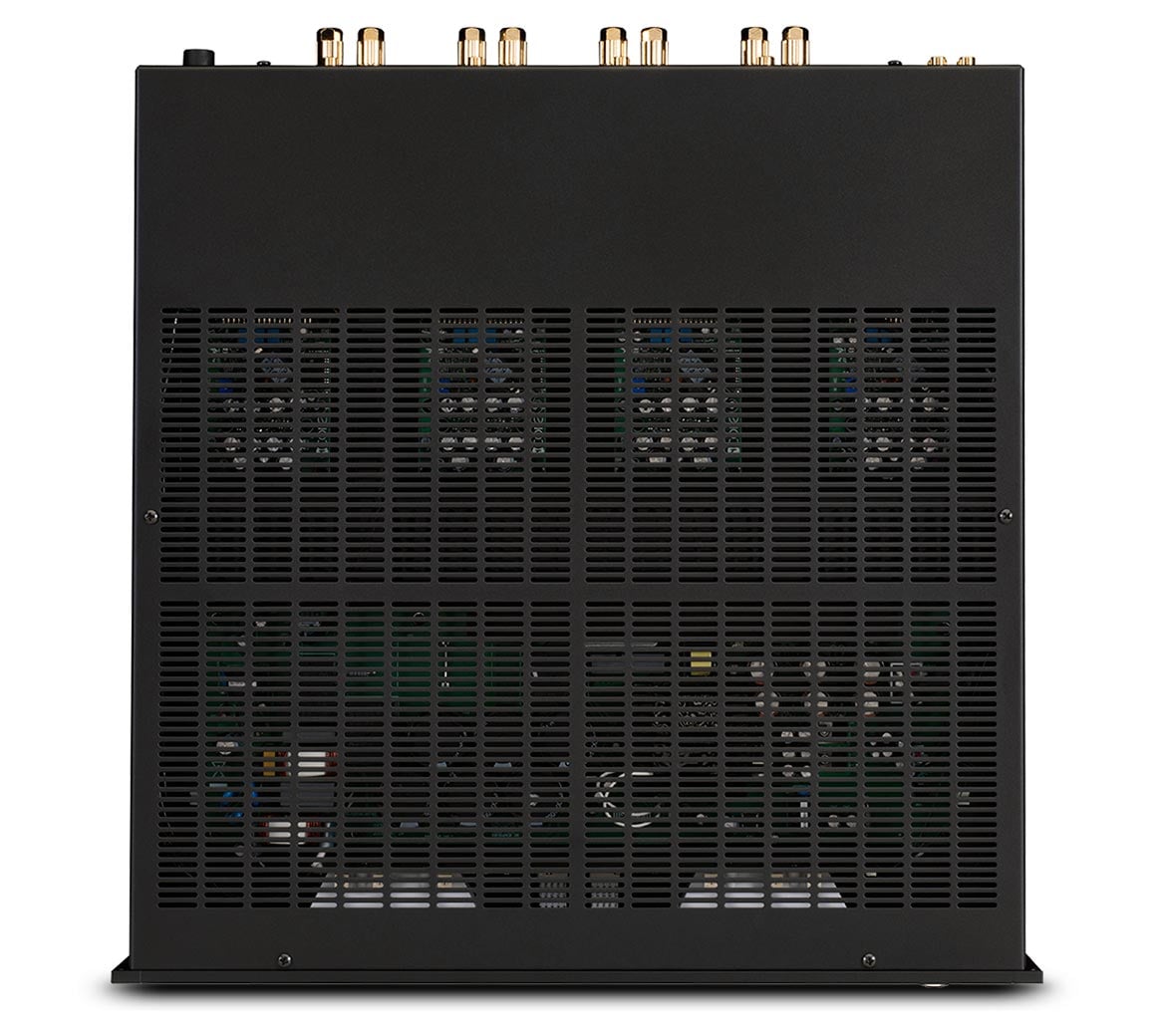

The efficient Class D architecture also means there are no cooling fans required during normal operation. That's an important advantage for both listening rooms and centralized equipment racks where excess heat and mechanical noise are undesirable.

From Home Theater to High-End Stereo

The MI254's four-channel architecture opens up several possibilities.

In a home theater, it can provide substantial power for surround, height, or other channels while a larger amplifier handles the front soundstage. It can also be combined with other McIntosh multi-channel amplifiers when building a larger Dolby Atmos or DTS:X system.

For distributed audio, four channels can power two high-performance stereo zones from a single 2U chassis.

And because every channel delivers the same substantial output, the MI254 can also be used in more specialized two-channel systems, including configurations requiring multiple amplifier channels.

Balanced and Unbalanced Connectivity

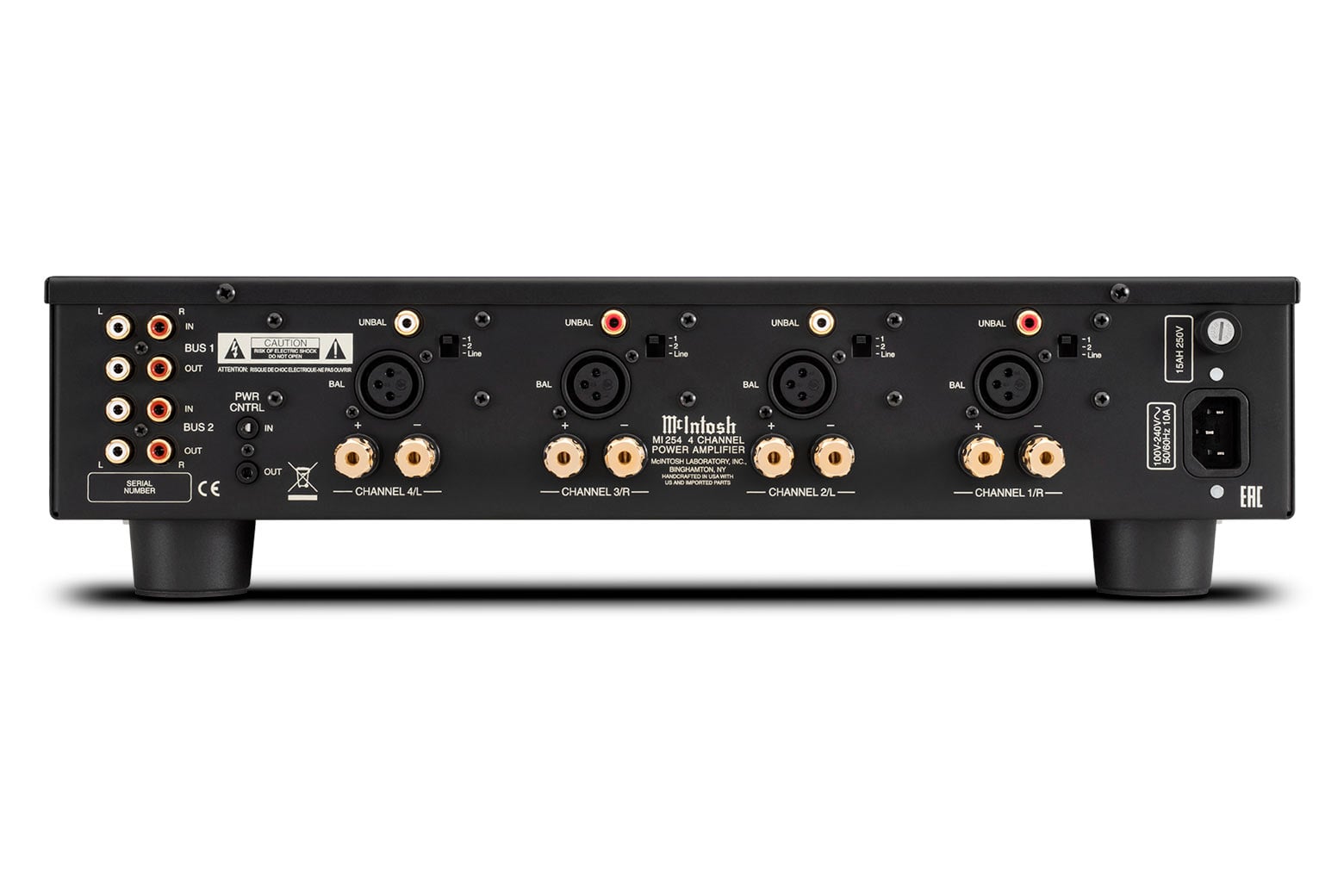

Every channel includes both balanced XLR and unbalanced RCA inputs, making the MI254 easy to integrate with a wide range of preamplifiers, A/V processors, and control systems.

Balanced connectivity is particularly valuable in professionally installed systems where amplifiers and source equipment may be separated by longer cable runs.

McIntosh's traditional 5-way binding posts provide secure speaker connections, while 12-volt triggering and automatic signal sensing make power management easy to integrate into a larger system.

BUS Connections for Larger Systems

The MI254 also incorporates BUS inputs and outputs, allowing a stereo signal to be distributed across multiple amplifier channels or passed to additional amplifiers.

This can simplify installations where several channels or zones need to reproduce the same source without relying on additional external distribution hardware.

Individual channel inputs remain available when independent signals are required.

Power Guard and Sentry Monitor Protection

Like McIntosh's larger amplifiers, the MI254 includes Power Guard and Sentry Monitor protection technologies.

Power Guard monitors the amplifier signal and helps prevent clipping from reaching the speakers when the amplifier is pushed beyond its limits.

Sentry Monitor provides short-circuit protection, disengaging the output stage if current exceeds safe operating levels and automatically resetting once normal conditions return.

These systems are especially valuable in custom installations where the amplifier may be operating for extended periods without someone constantly monitoring it.

Blue Watt Meters in a 2U Chassis

Unlike many installation amplifiers designed to disappear completely into the rack, the MI254 retains one of McIntosh's most recognizable features: blue Watt meters.

The two meters display the combined output of channels 1 + 2 and channels 3 + 4, while individual multi-color LEDs indicate the operating status of each channel.

Add the black-glass front panel, illuminated McIntosh logo, and silver trim, and the MI254 looks every bit like a McIntosh—even if it spends most of its life inside an equipment rack.

The Grid's Take on the McIntosh MI254

The MI254 may be one of the most useful amplifiers in McIntosh's custom-install lineup because it combines real power with a very manageable footprint.

At 250 watts per channel into 8 Ohms, this isn't limited to background music or easy-to-drive architectural speakers. It has the output to become meaningful amplification in a serious theater or two-channel system.

For home theater, we especially like it as an expansion amplifier when additional surround or Atmos channels need more power. For whole-home audio, it gives two stereo zones considerably more capability than a typical multi-room amplifier.

And it does all of that in just 2U of rack space without cooling fans.

At The Grid HiFi & Home Theater, we can integrate the MI254 into a complete home theater, distributed audio, or two-channel system with the appropriate McIntosh electronics, speakers, system control, equipment rack, wiring, and professional installation.
