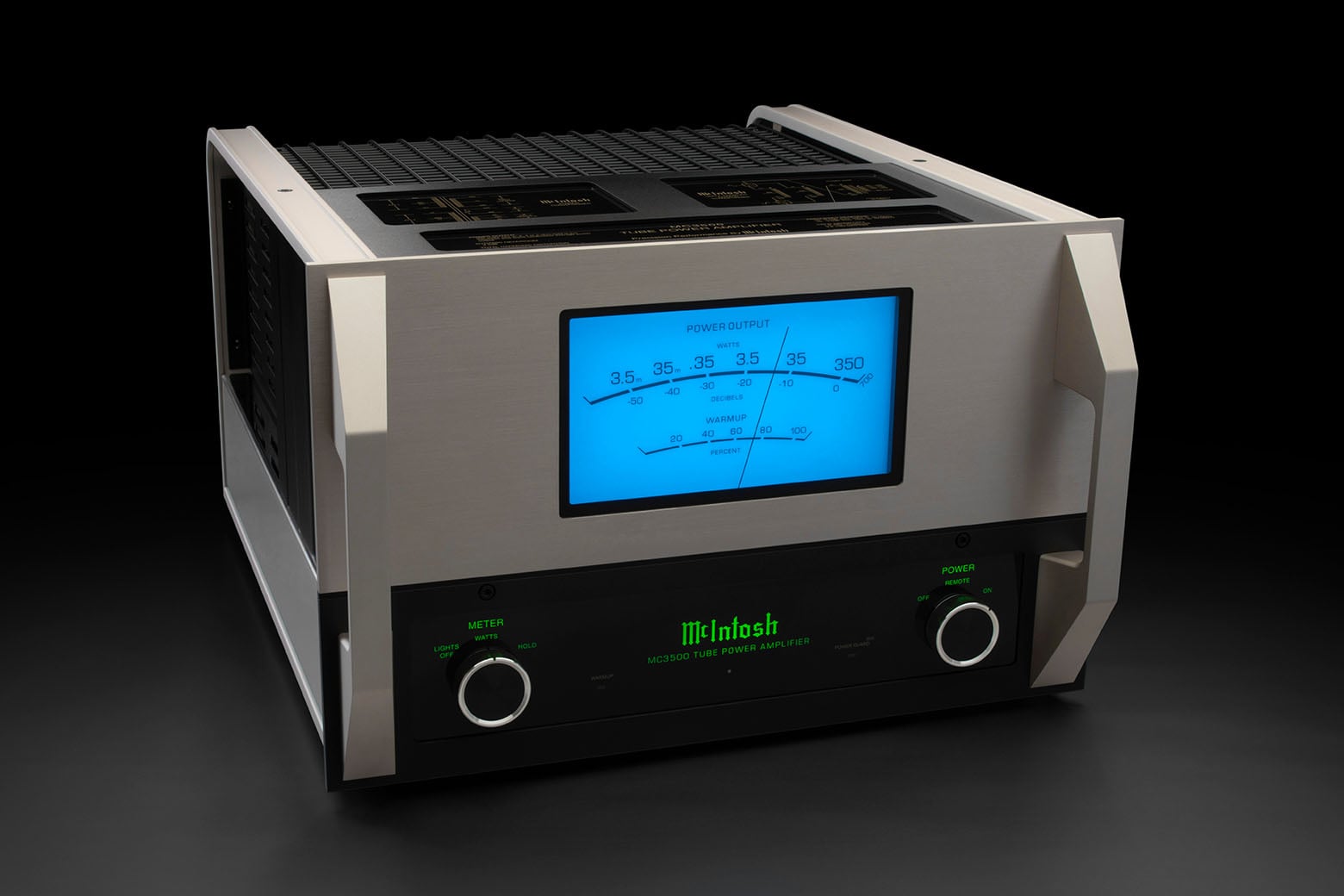

McIntosh MC3500 Mk II Vacuum Tube Monoblock Amplifier

A Legend from Woodstock, Reborn for the Modern Reference System

Few amplifiers can claim a history like the McIntosh MC3500 Mk II Vacuum Tube Amplifier.

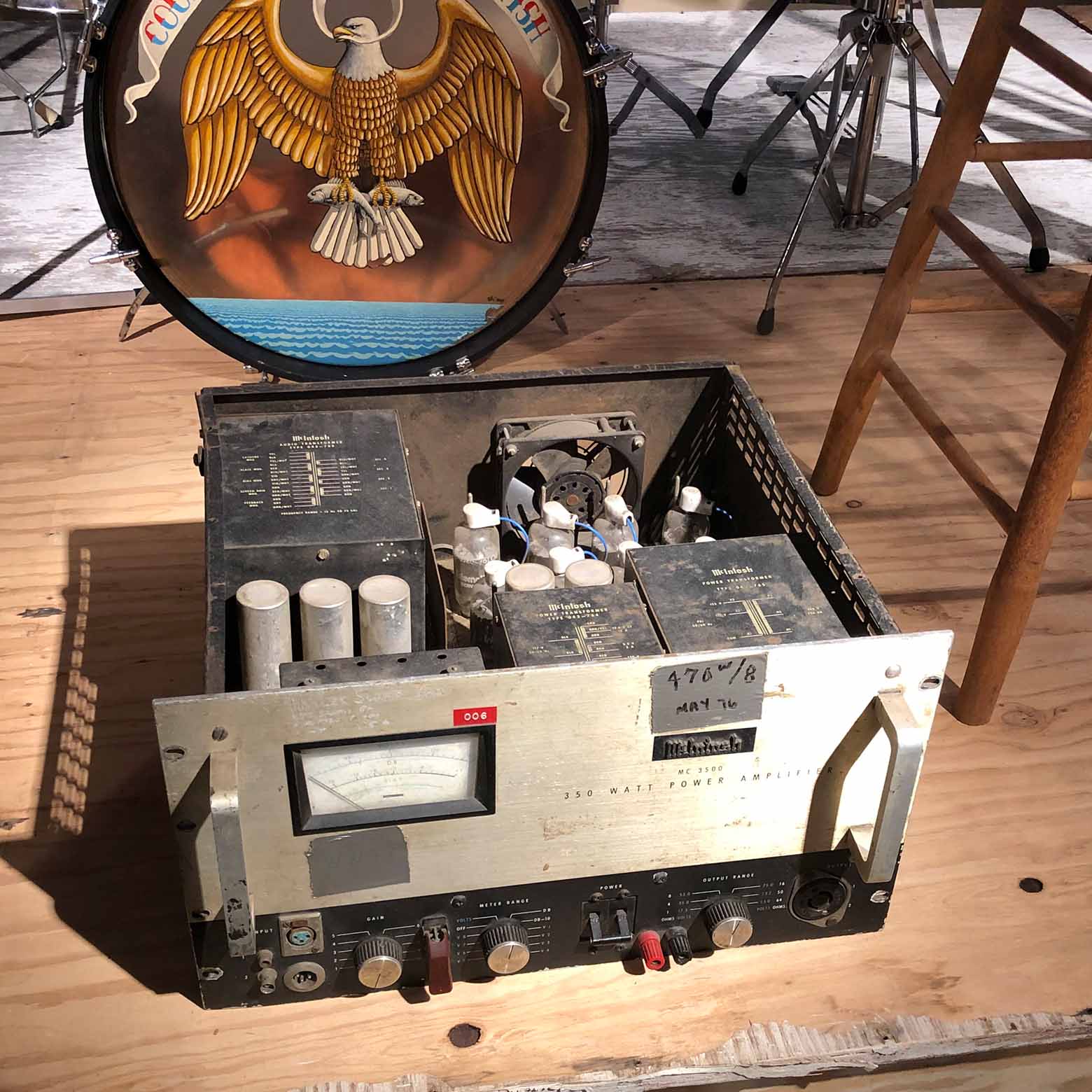

The original MC3500 helped power the sound system at the 1969 Woodstock Music and Art Fair, putting McIntosh amplification behind one of the most famous live music events in history. More than five decades later, McIntosh returned to that design—not simply to reproduce it, but to create a modern reference amplifier that preserves the engineering philosophy and unmistakable character of the original.

The result is the MC3500 Mk II, a 350-watt vacuum tube monoblock amplifier built for today's most ambitious high-end audio systems.

A stereo system requires two MC3500 Mk II amplifiers, with each monoblock dedicated entirely to one loudspeaker.

350 Watts of Tube Power

Three hundred and fifty watts is extraordinary output for a vacuum tube amplifier.

McIntosh's Unity Coupled Circuit output transformer allows the MC3500 Mk II to deliver its full rated 350 watts into 2, 4, or 8 Ohm speakers.

That means this isn't a tube amplifier restricted to highly efficient or easy-to-drive loudspeakers. The MC3500 Mk II has the power and output architecture to be considered for large, demanding reference speakers that might otherwise be paired exclusively with high-powered solid-state monoblocks.

It gives the listener the scale and authority expected from a massive amplifier while remaining completely rooted in McIntosh vacuum tube technology.

Eight EL509S Output Tubes

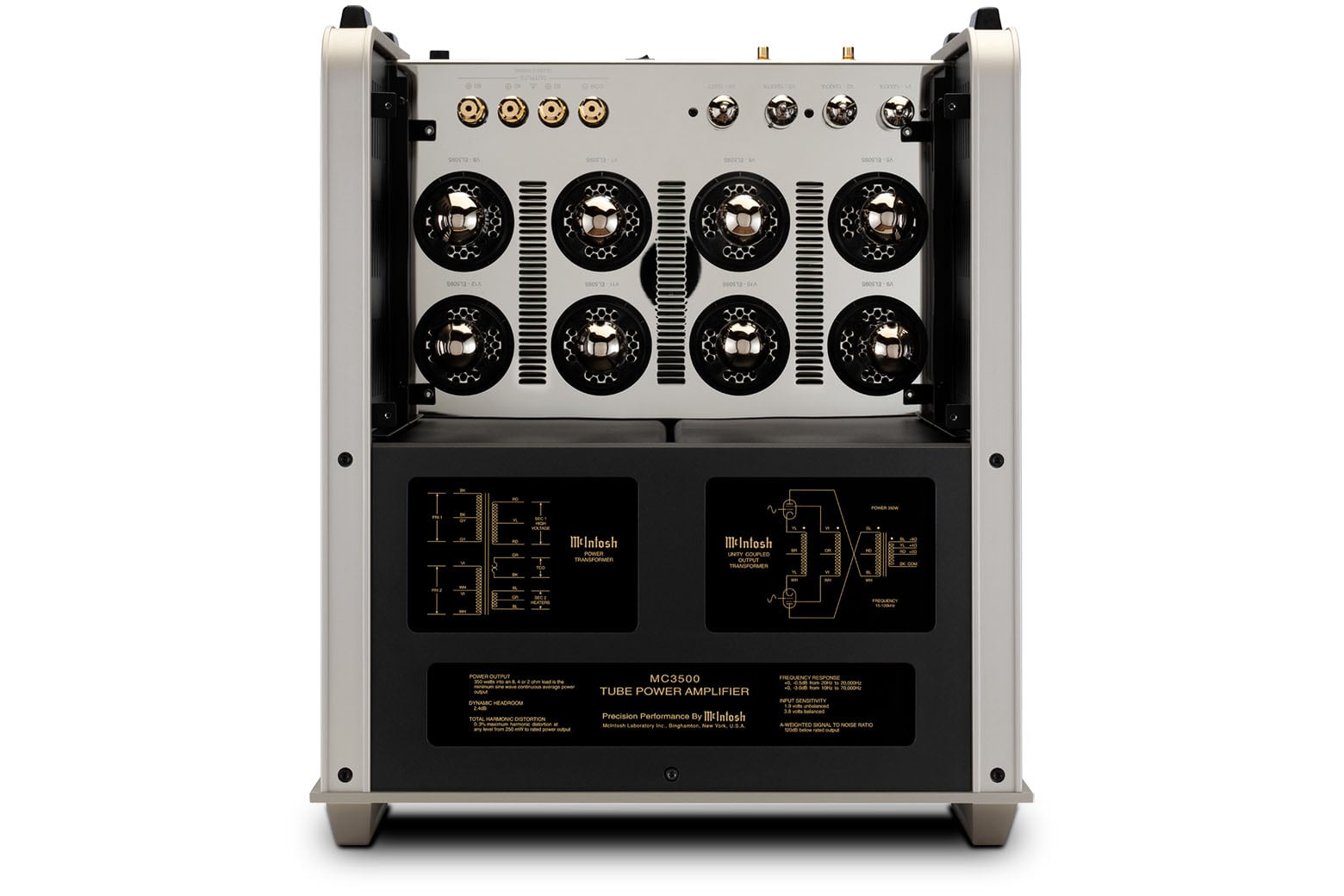

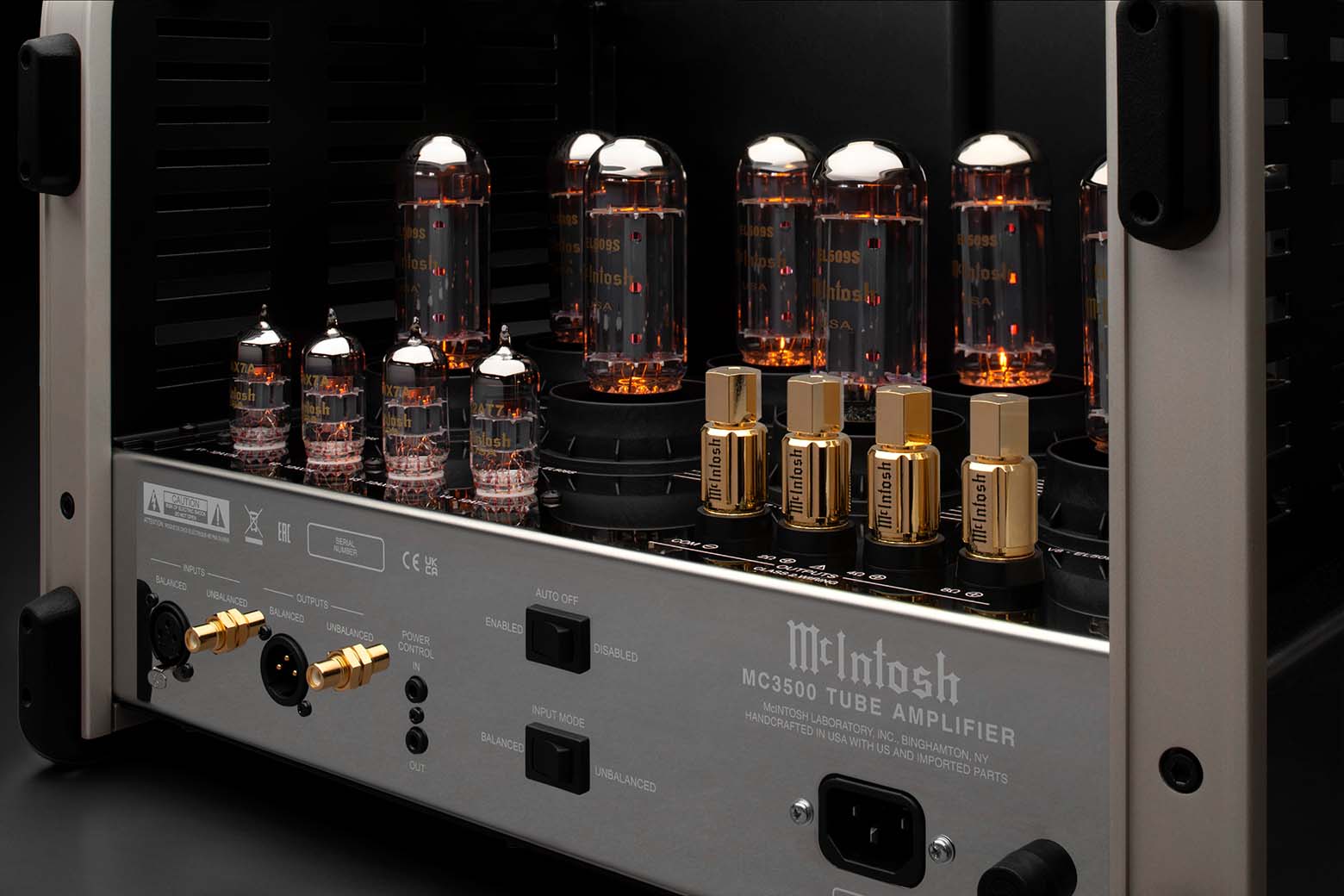

Each MC3500 Mk II uses eight EL509S high-power output vacuum tubes.

McIntosh selected the EL509S because its characteristics are similar to the rugged 6LQ6 "sweep tubes" used in the original MC3500. Those tubes were originally developed for the demanding power requirements of television picture-tube circuitry, and McIntosh engineers found an innovative second life for them in high-powered audio amplification.

The modern EL509S allows the MC3500 Mk II to remain faithful to that philosophy while using components appropriate for a current-production amplifier.

McIntosh also retains an additional feedback loop similar to the original design to improve output-tube linearity.

Fully Balanced Tube Architecture

The output stage is supported by a fully balanced driver section utilizing three 12AX7A tubes and one 12AT7.

Together, these tubes perform the differential input, buffer, voltage amplification, and output-tube driver functions.

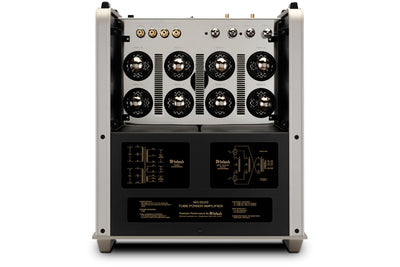

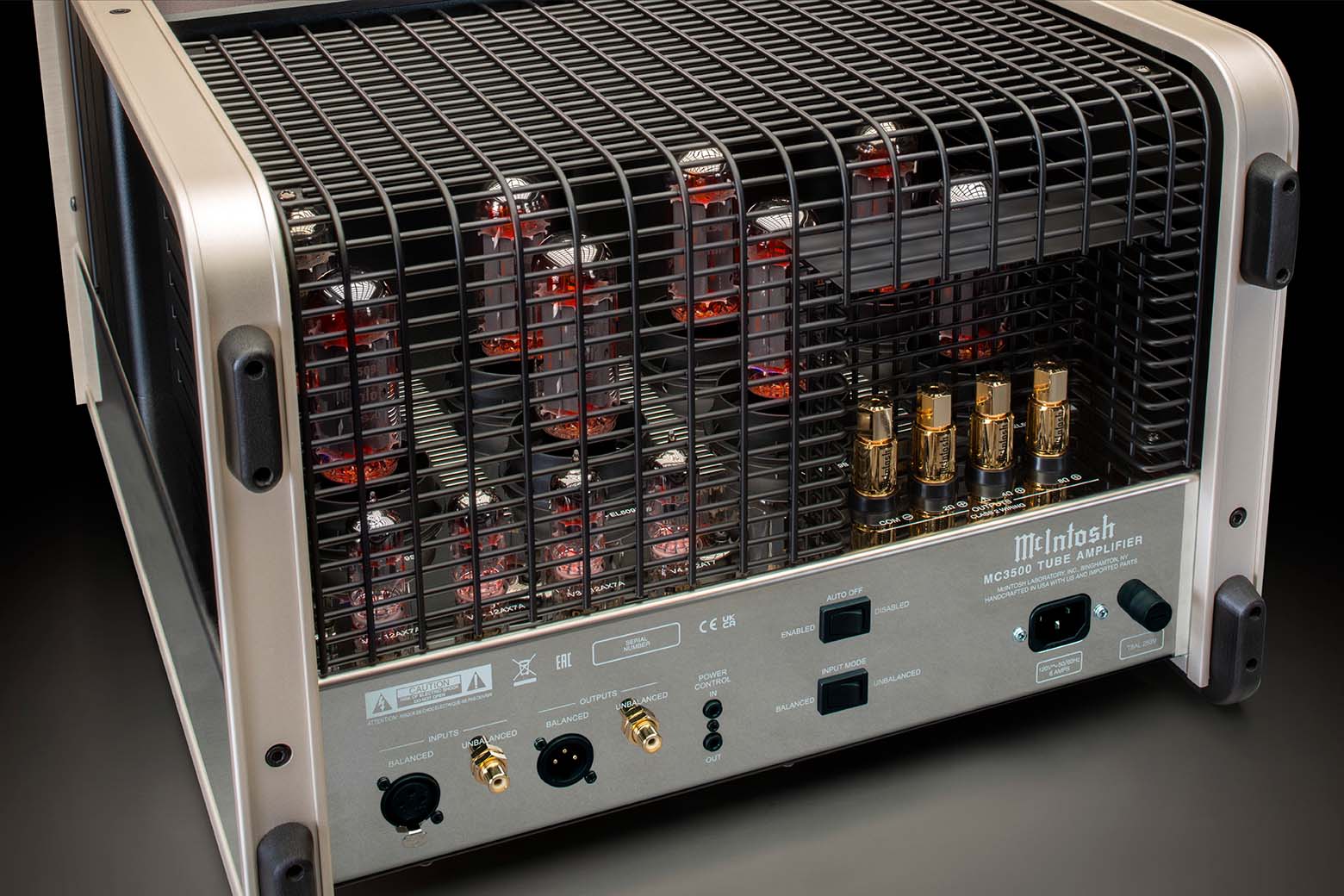

All 12 tubes are positioned behind the substantial power and output transformers and protected by a removable 12-gauge stainless steel wire cage with a black powder-coated finish.

The cage is carefully shaped to maintain easy access to the McIntosh Solid Cinch speaker binding posts, so protection doesn't come at the expense of practical installation.

Modern Protection for a Serious Tube Amplifier

The MC3500 Mk II may look back to the late 1960s for inspiration, but its protection systems are thoroughly modern.

McIntosh Power Guard Screen Grid Sensor (SGS) continuously monitors screen-grid current in the output tubes. If current becomes excessive, the system dynamically attenuates the input signal to help keep the tubes operating within safe limits.

This is joined by Sentry Monitor, which monitors output current and shuts the amplifier down if operating conditions exceed safe limits.

These technologies are particularly valuable in an amplifier using eight high-power output tubes and capable of delivering 350 watts continuously.

Built for Reference-Level Systems

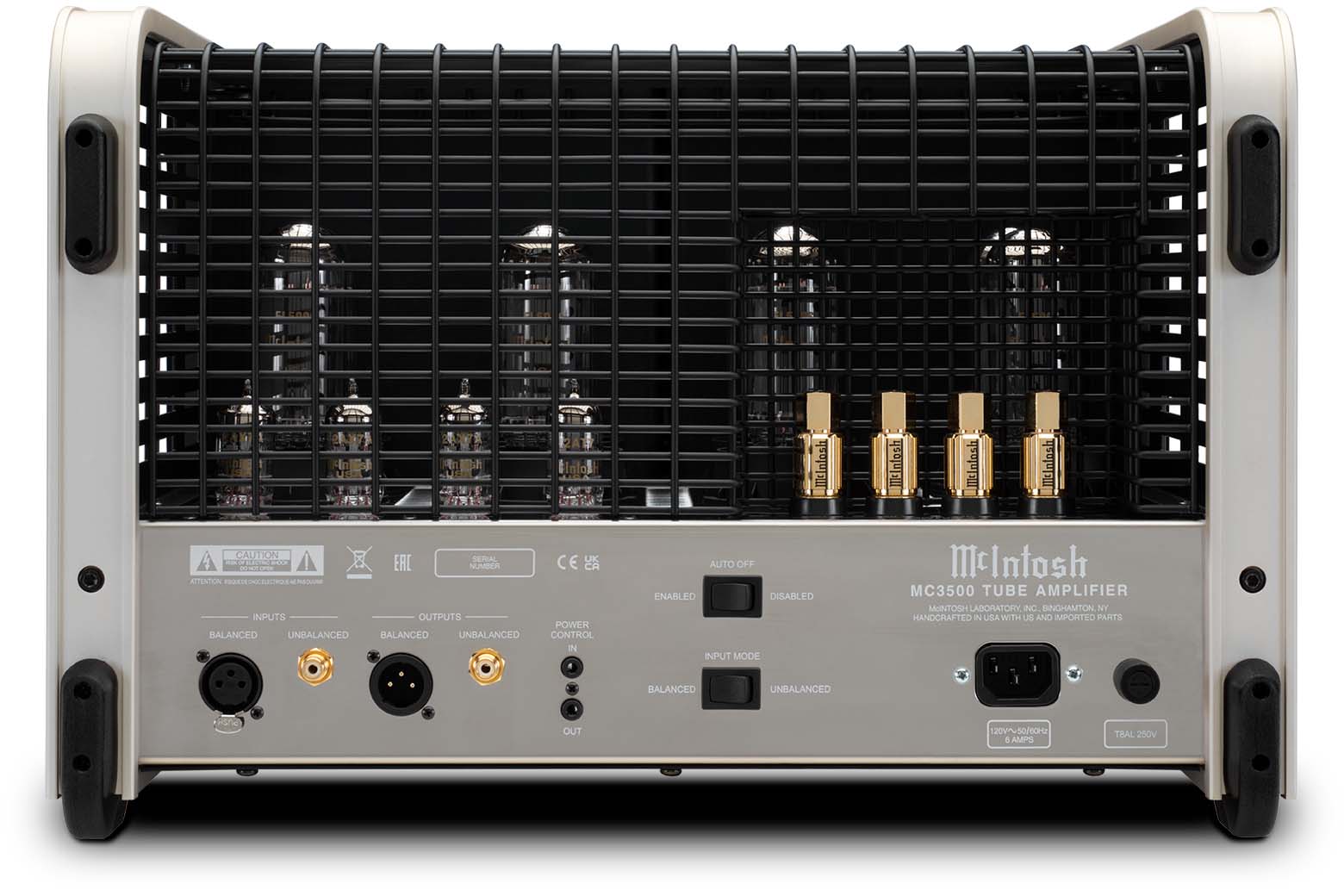

Balanced and unbalanced inputs allow the MC3500 Mk II to work with a wide variety of preamplifiers.

It also provides balanced and unbalanced outputs, making more advanced multi-amplifier systems possible. For compatible loudspeakers, the MC3500 Mk II can become part of a bi-amped or tri-amped configuration where separate amplification is dedicated to different frequency sections.

For a conventional stereo system, a pair provides 350 watts of dedicated tube amplification to each loudspeaker.

The DualView Meter Does More Than Show Power

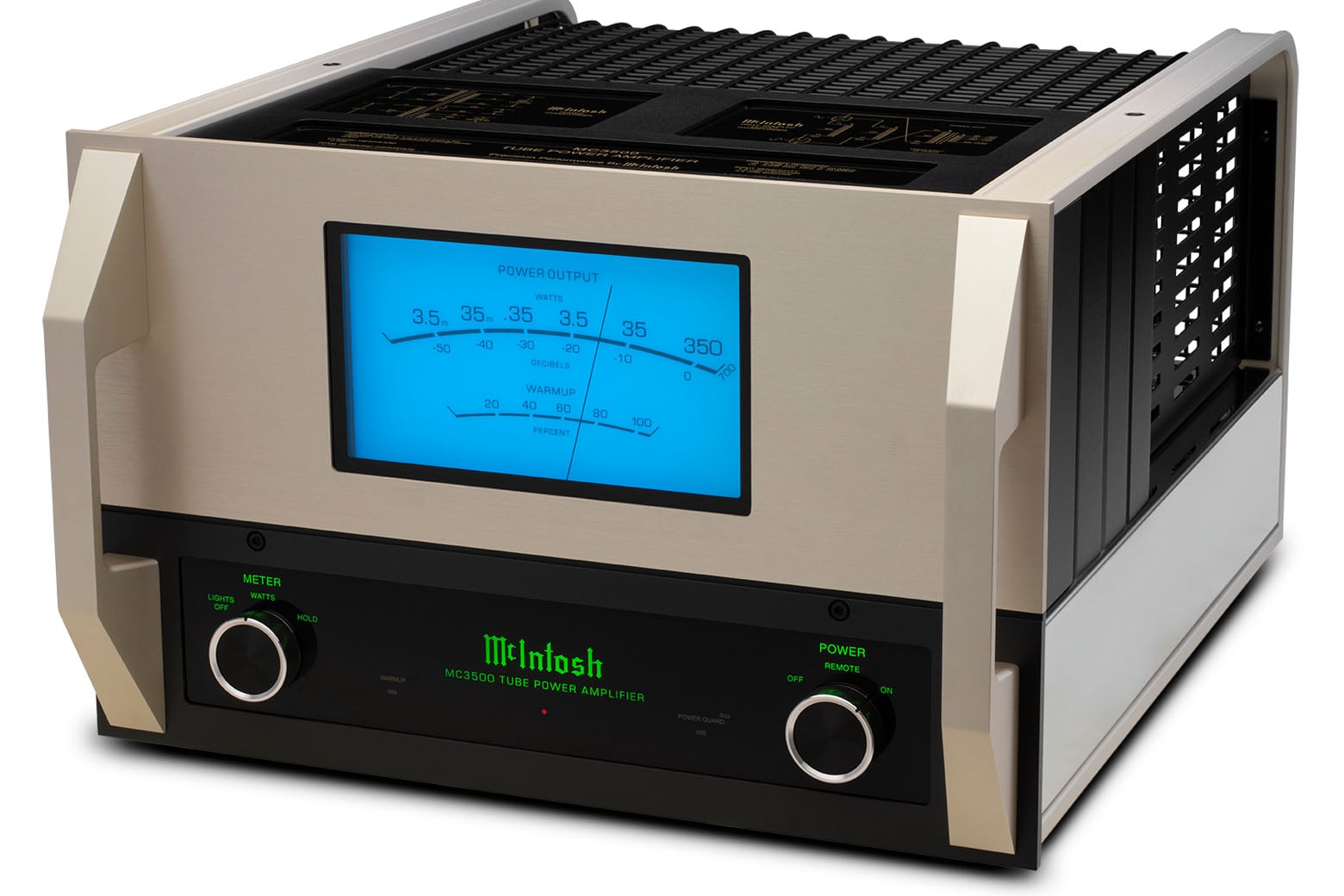

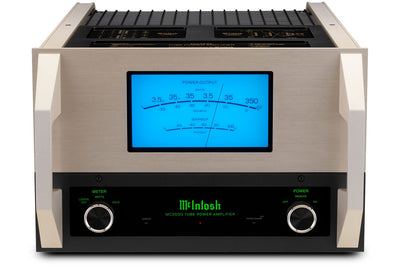

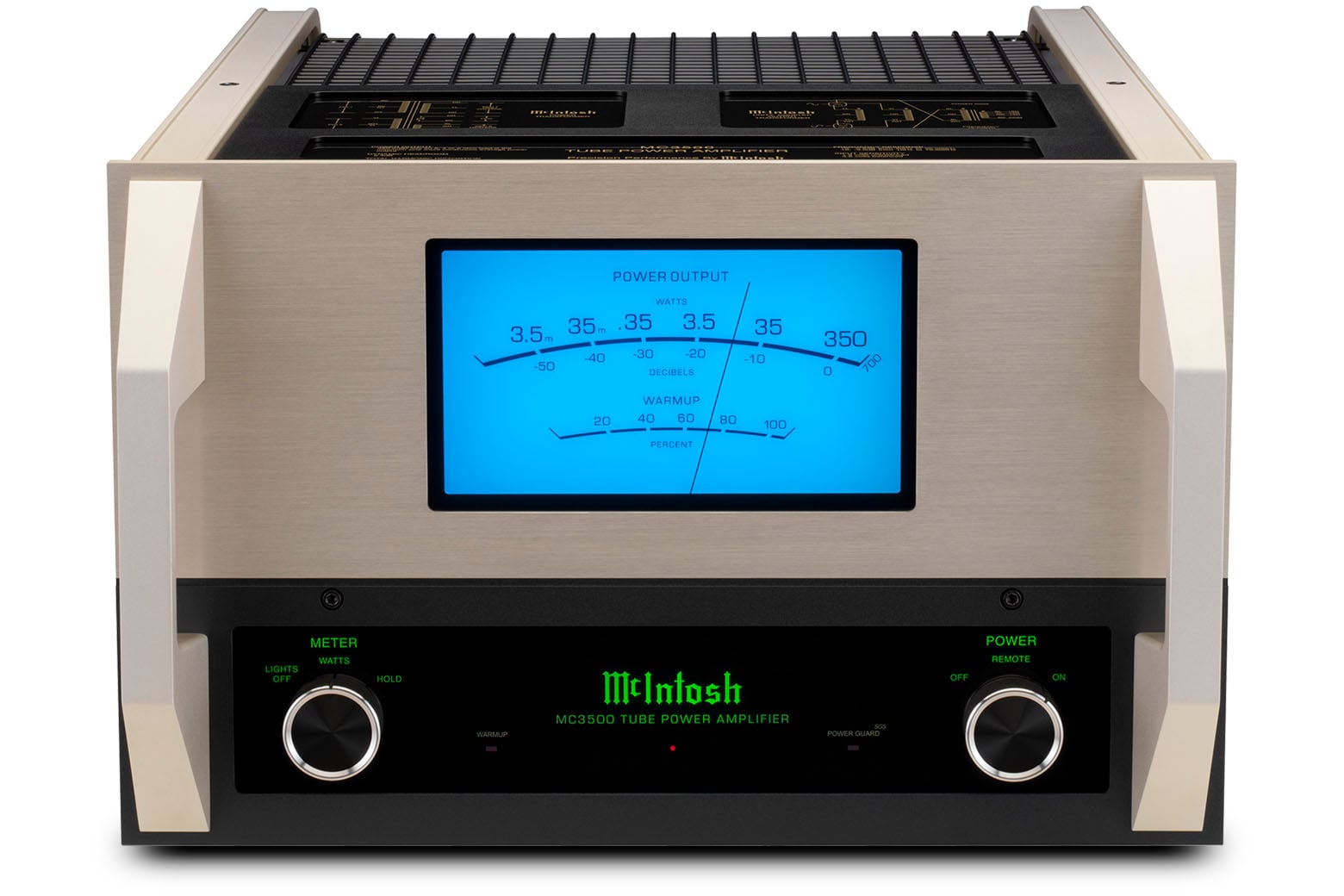

The large center-mounted meter is one of the defining visual features of the MC3500 Mk II.

Based on McIntosh's DualView Power Output Meter concept, its upper scale displays amplifier output in both watts and decibels.

The lower scale serves an entirely different purpose: it displays the amplifier's warm-up progress. When the MC3500 Mk II is switched on, the meter gradually rises toward 100%. Once warm-up is complete, it returns to zero and the amplifier is ready for music.

It's a clever modern function presented through a design element that looks entirely appropriate on a vintage-inspired McIntosh amplifier.

1960s Character, Modern McIntosh Construction

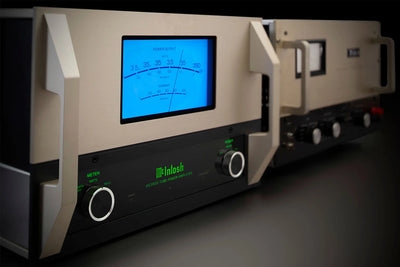

McIntosh went much further than simply adding vintage colors to a modern chassis.

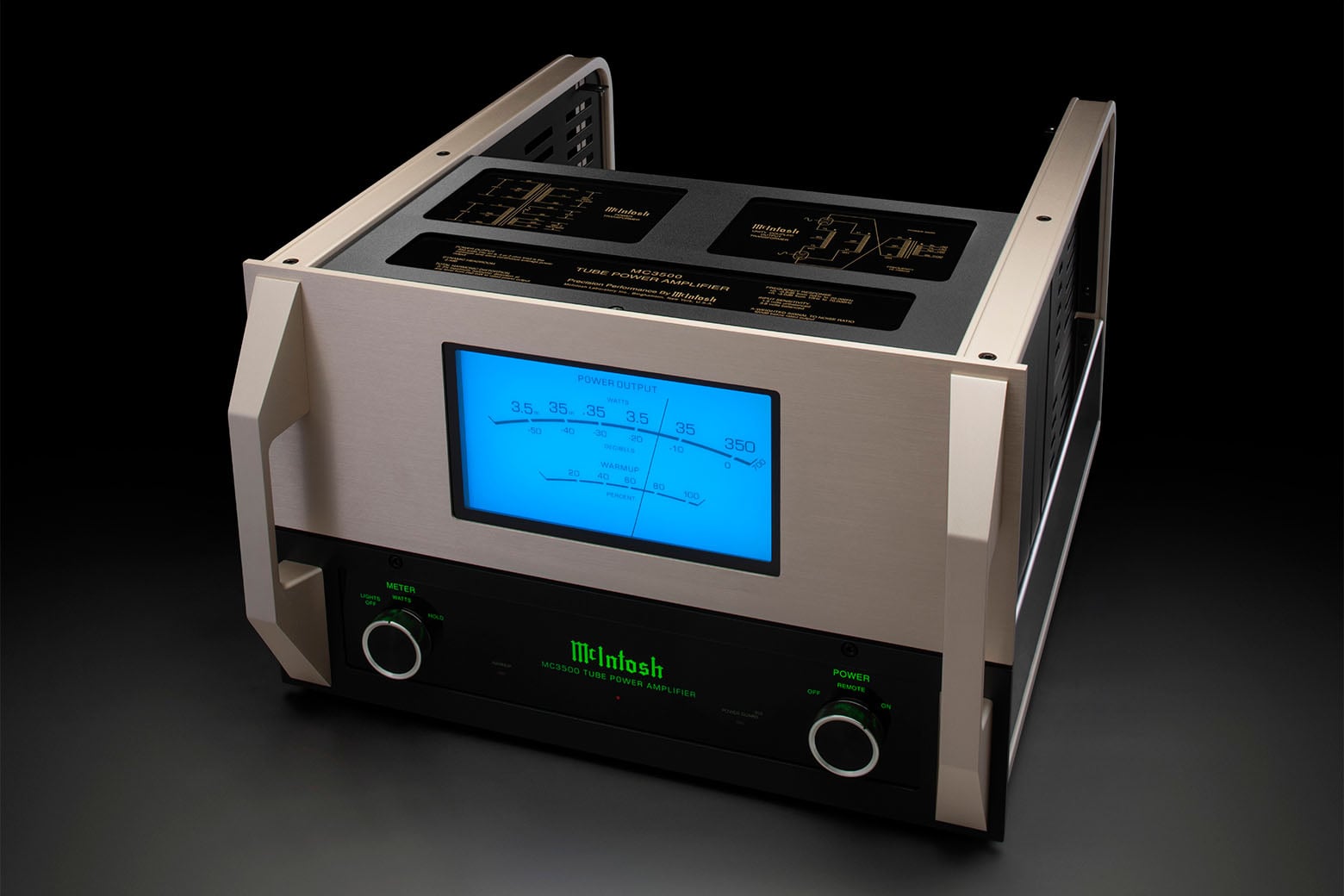

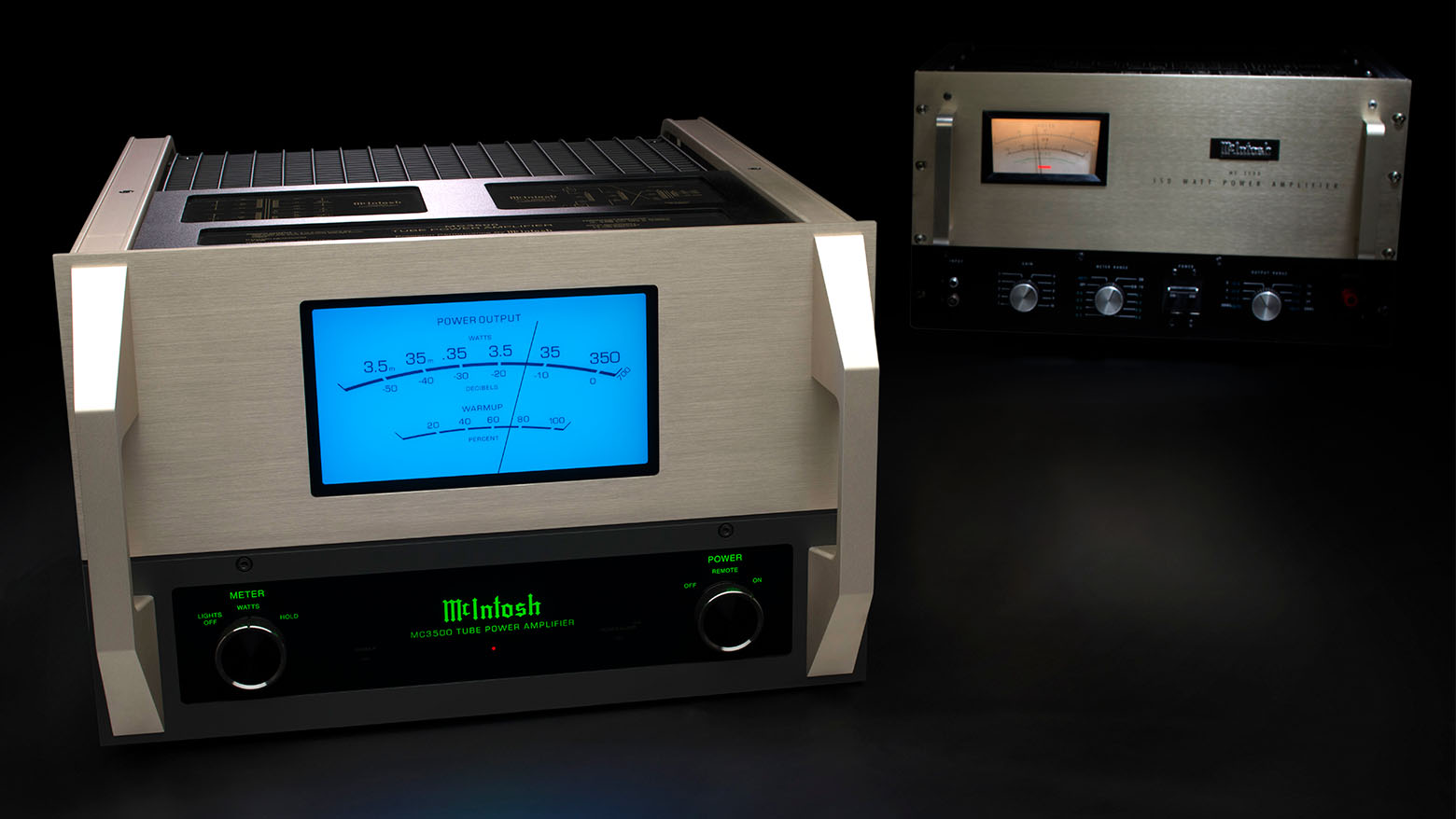

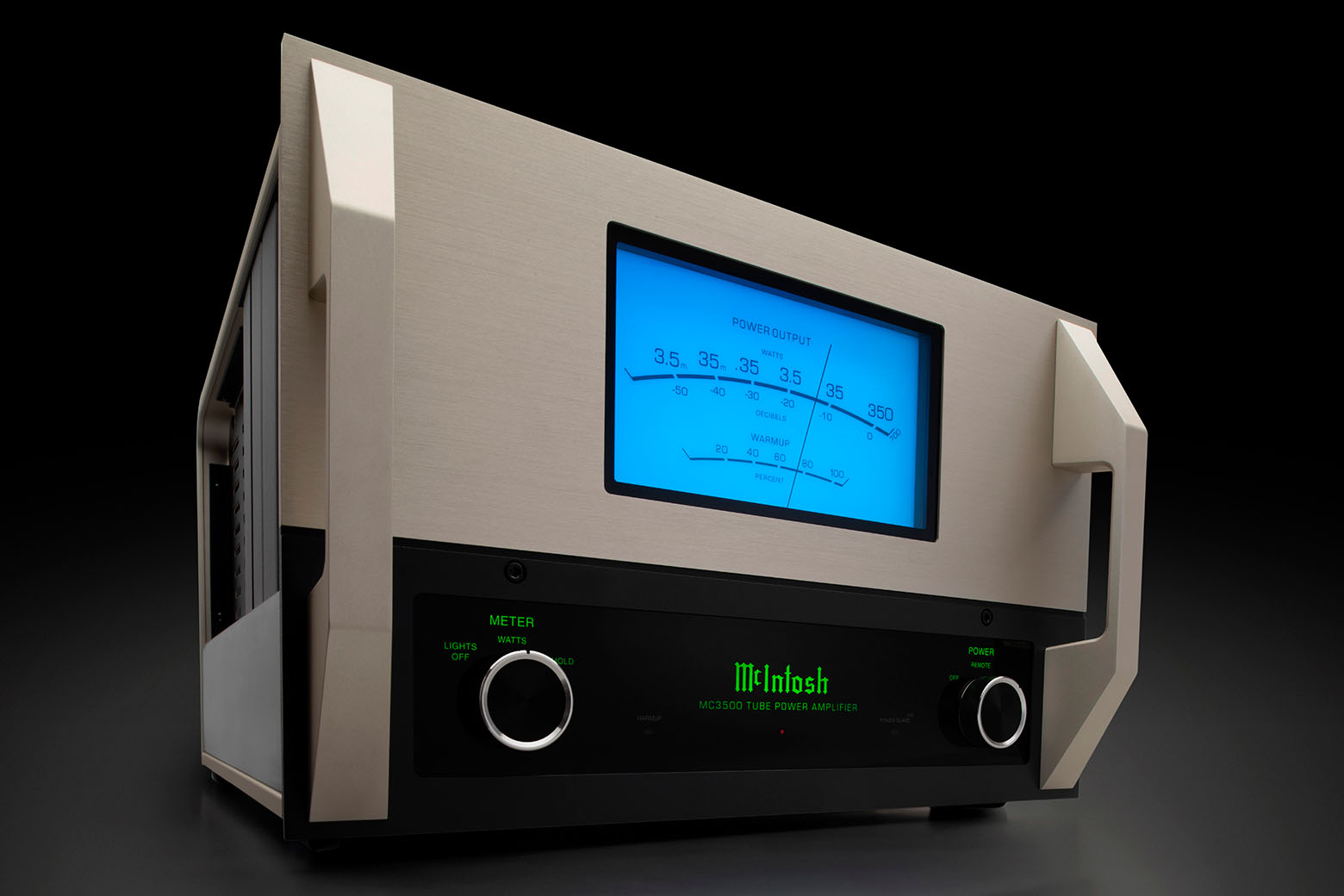

The gold-anodized machined aluminum front panel recalls the appearance of the original MC3500, while a clear glass insert covers the meter and black glass surrounds the controls and illuminated lettering.

Distinctive U-shaped side rails reproduce another functional detail from the original amplifier. On the vintage MC3500, these rails added durability for amplifiers frequently transported for professional use. Even the rear rubber bumpers that allowed the original amplifiers to be temporarily stood upright have been recreated.

Underneath the retro detailing is a mirror-polished stainless steel chassis and the construction expected from a modern McIntosh reference component.

The Grid's Take on the McIntosh MC3500 Mk II

The MC3500 Mk II is one of those rare products where the history actually matters.

The Woodstock connection gives the original MC3500 an extraordinary place in audio history, but that alone wouldn't justify bringing it back more than 50 years later. What makes the Mk II interesting is that McIntosh used that history as the foundation for a genuinely serious modern amplifier.

And 350 watts from a tube monoblock is serious.

A pair gives you 350 watts dedicated to each loudspeaker, with full rated output available into 2, 4, or 8 Ohms. That puts many large reference speakers on the table without abandoning vacuum tube amplification.

We also appreciate that McIntosh didn't turn the MC3500 Mk II into a generic modern amplifier wearing retro styling. From the EL509S output tubes and Unity Coupled Circuit to the gold front panel, side rails, transformer layout, and even the rear bumpers, the connection to the original is integral to the product.

For someone building a reference-level McIntosh tube system and wanting an amplifier with both extraordinary capability and genuine historical significance, a pair of MC3500 Mk IIs is about as special as it gets.

At The Grid HiFi & Home Theater, we can help pair the MC3500 Mk II with the appropriate McIntosh preamplifier, source components, and reference loudspeakers to create a complete system around these remarkable monoblocks.
