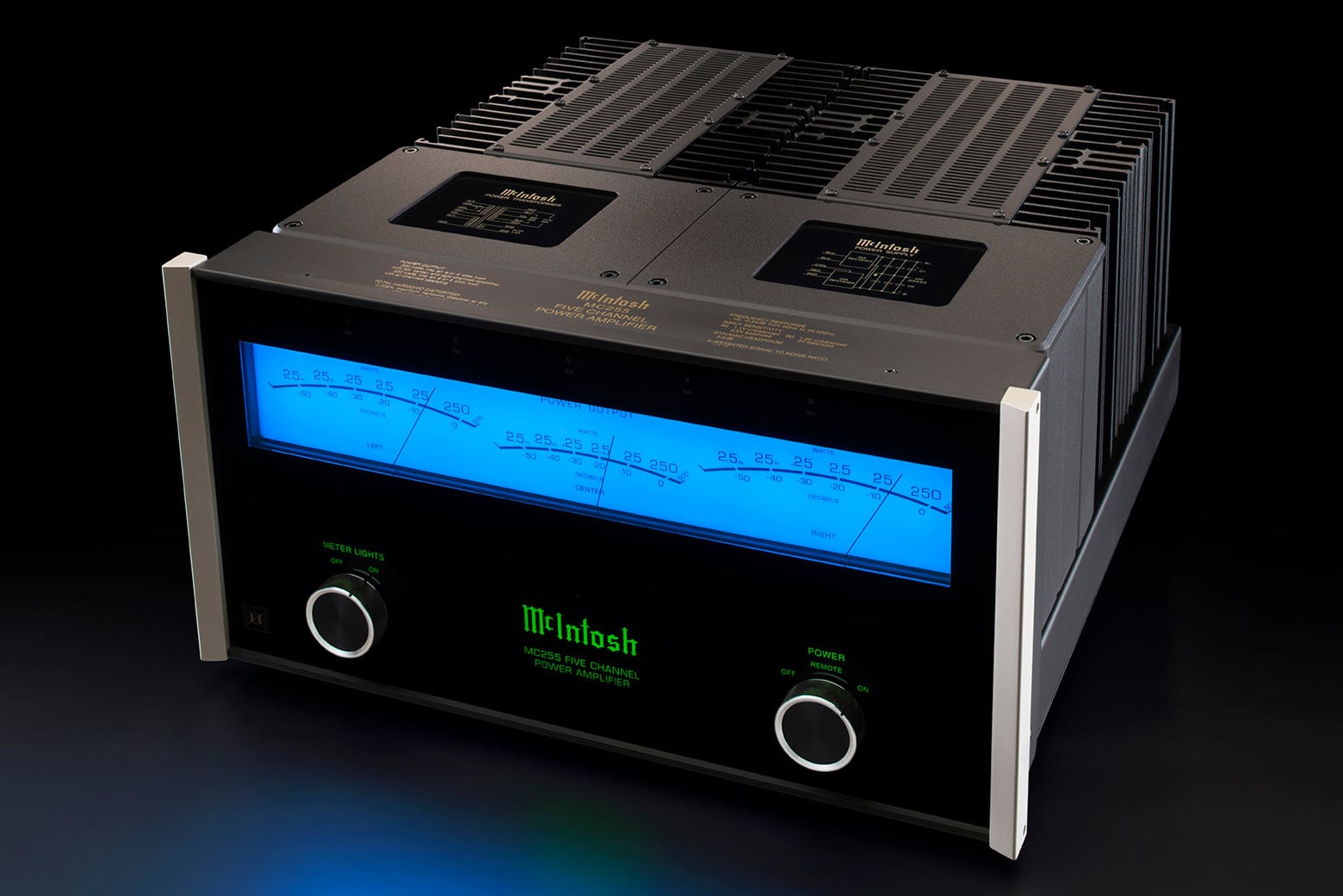

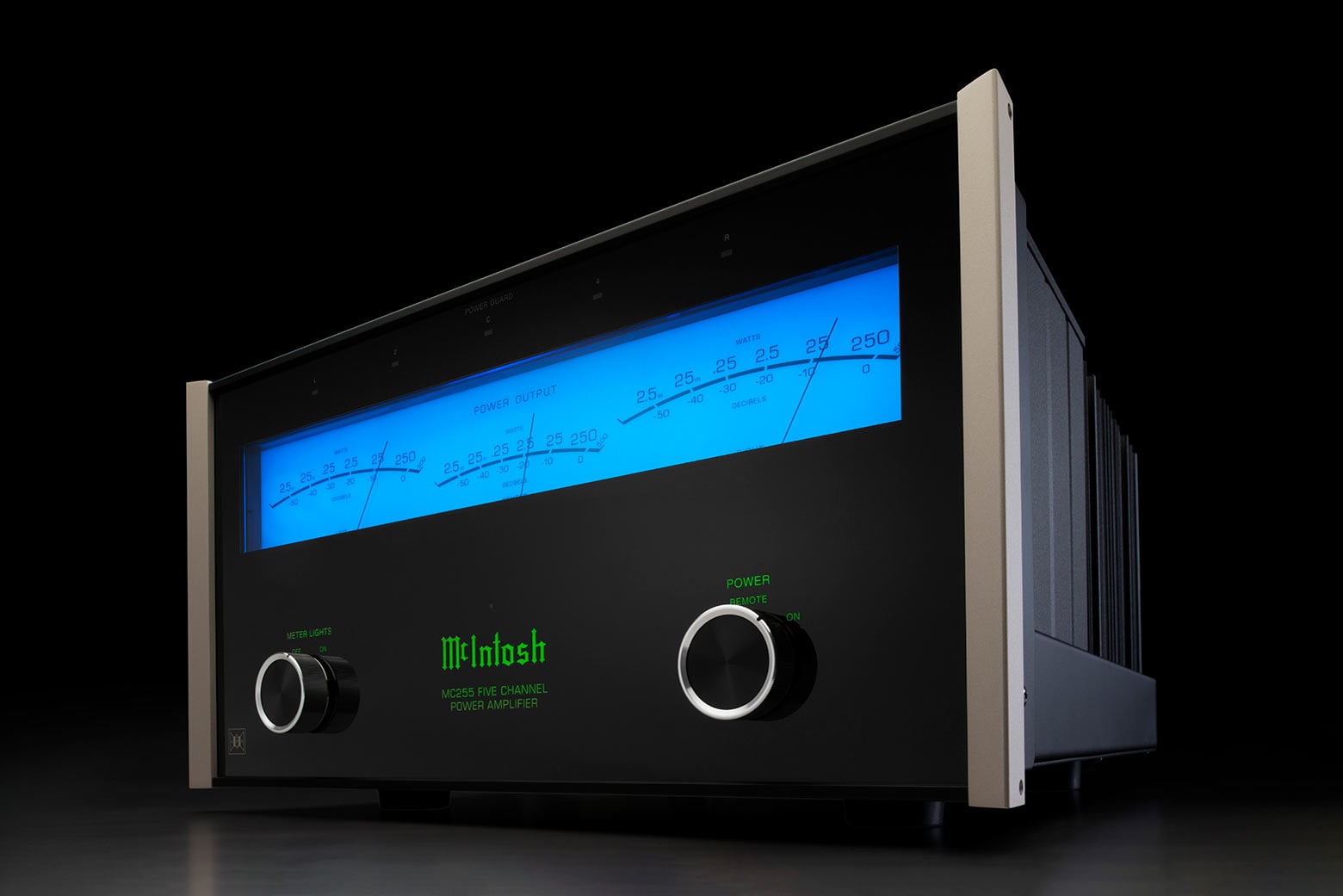

McIntosh MC255 5-Channel Home Theater Power Amplifier

Five Channels of McIntosh Power Built for the Cinema

The McIntosh MC255 5-Channel Home Theater Power Amplifier brings the power, dynamics, and unmistakable presentation of McIntosh to a serious home cinema.

Delivering 200 watts per channel when all five channels are driven, the MC255 can power a complete traditional 5-channel theater from a single chassis. When used for the critical front left, center, and right speakers, output increases to 250 watts per channel, giving the front soundstage additional headroom for dialogue, music, and high-impact effects.

McIntosh's Dynamic Power Manager (DPM) ensures that full rated power is available into either 4 or 8 Ohm speakers, giving system designers far more flexibility when matching the amplifier to a theater speaker system.

More Power Where a Theater Needs It

Movie soundtracks place enormous demands on the front three speakers. That's where much of the dialogue, music, and on-screen action originates, and the MC255 is designed accordingly.

With all five channels operating, the amplifier provides 200 watts per channel. Configure it around the front three channels and output rises to 250 watts each.

But raw wattage is only part of the story.

McIntosh increased filter capacity by 50%, more than doubling dynamic headroom from 1.7dB to 3.6dB. That additional reserve is particularly valuable during the sudden peaks common to modern movie soundtracks while also contributing to stronger low-frequency performance.

The result is an amplifier designed to stay composed when a soundtrack goes from a quiet conversation to full-scale action in an instant.

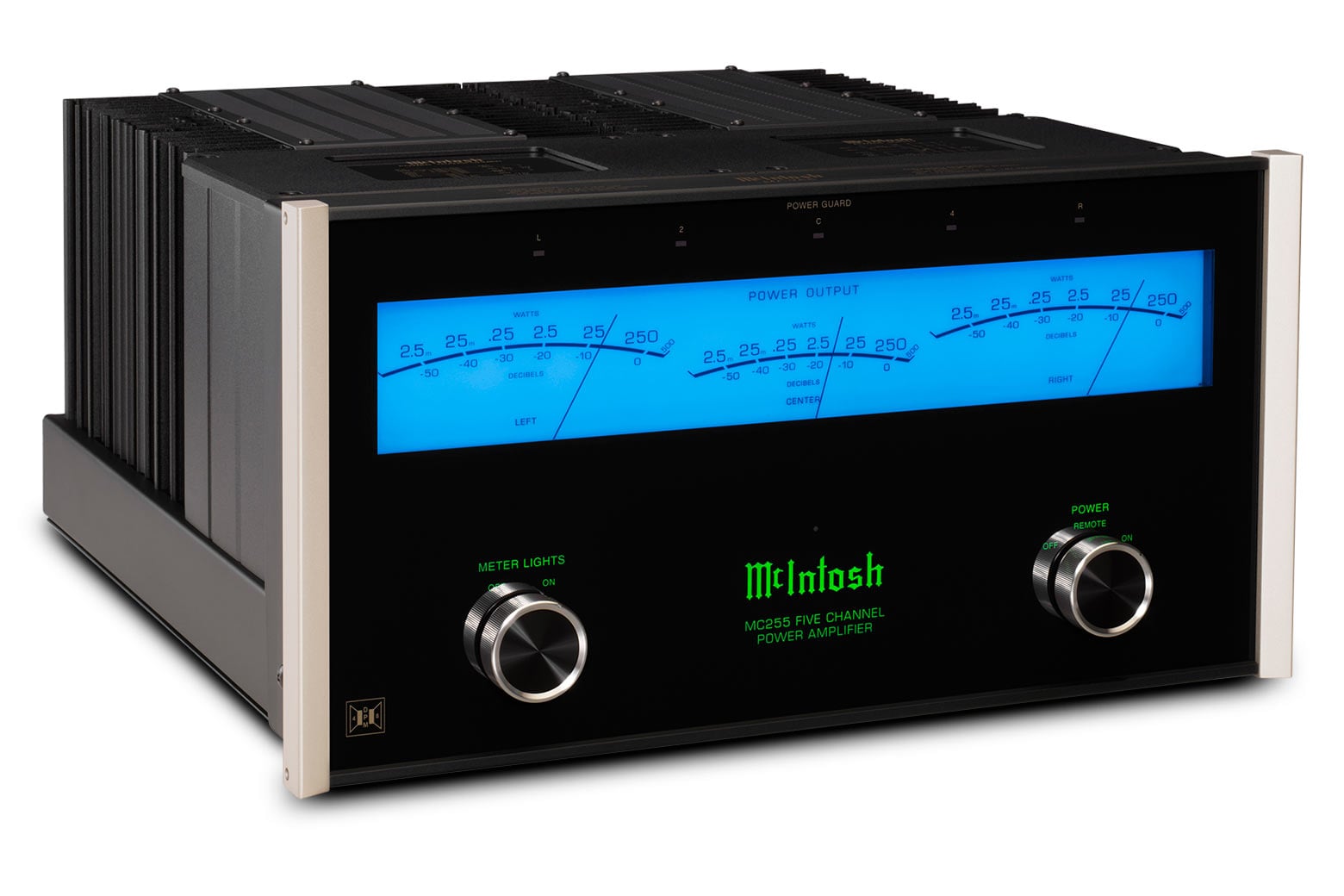

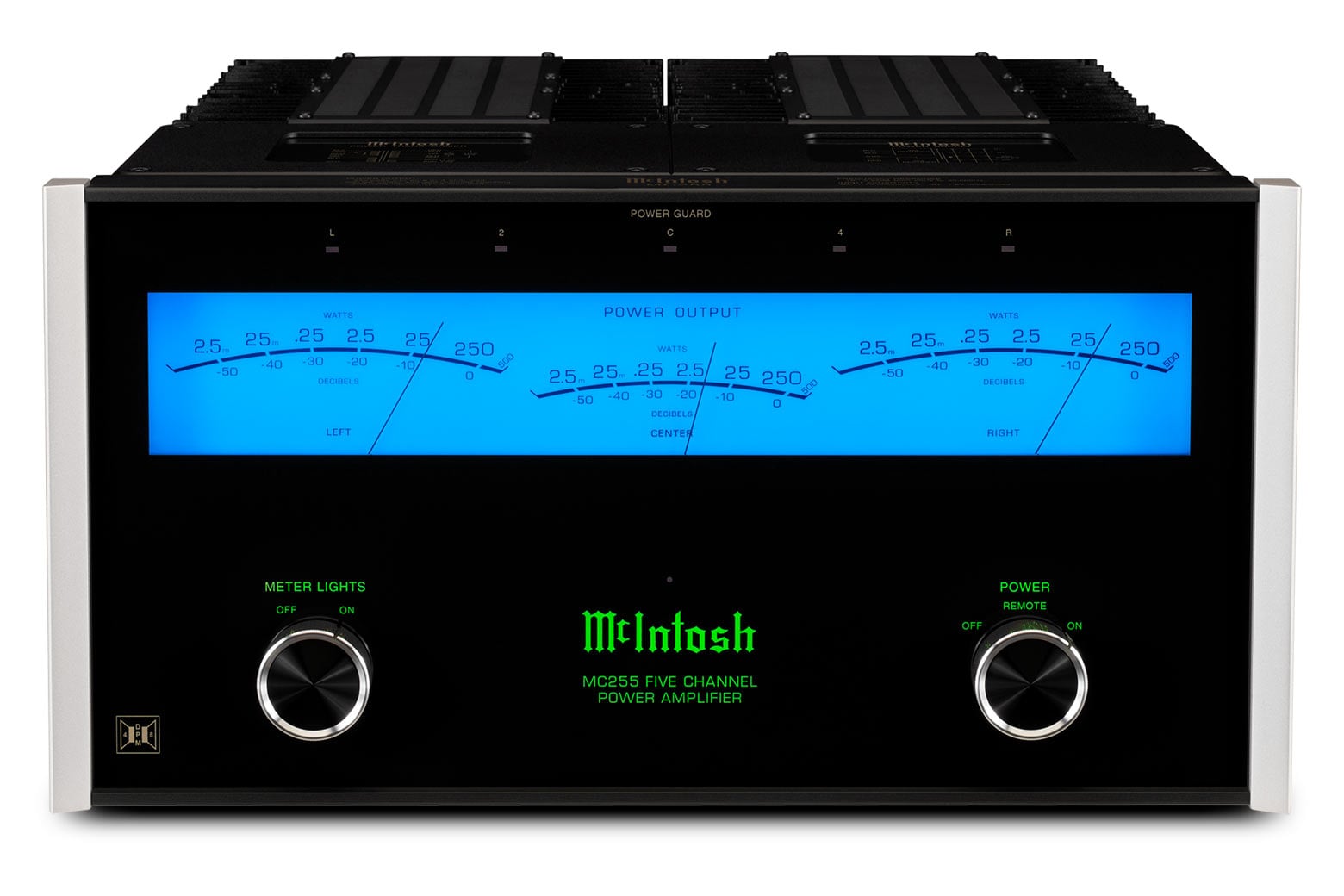

TripleView Power Output Meter

The MC255 makes its home theater focus obvious with McIntosh's TripleView Power Output Meter.

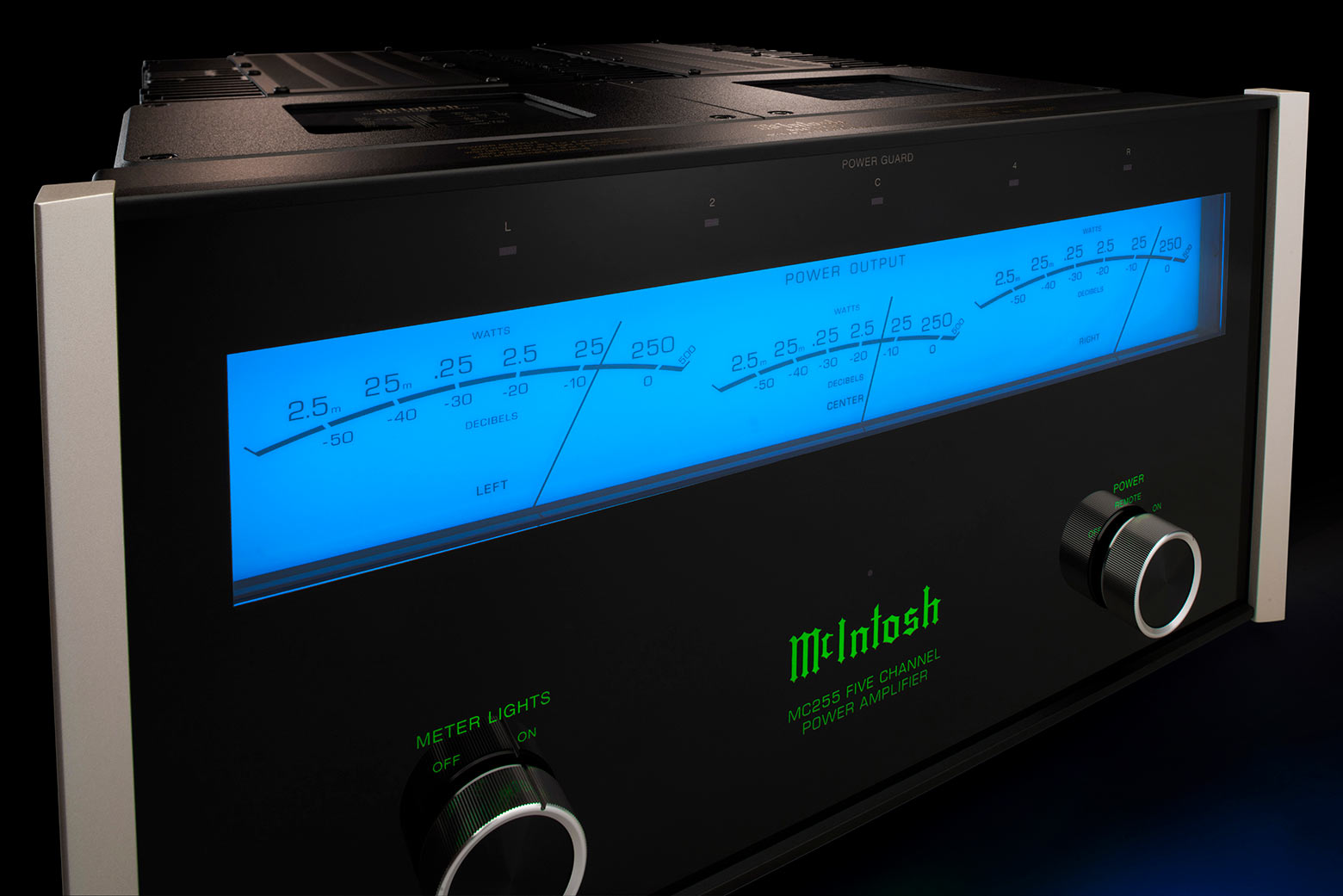

Three traditional peak-responding mechanical McIntosh meters are housed inside a single 15-inch-wide enclosure, independently displaying real-time output from the front left, center, and right channels.

It creates one of the most distinctive front panels in McIntosh's home theater lineup while retaining the familiar movement and blue illumination of the company's classic Watt meters.

For a completely dark theater, the meter lighting can be switched off so it doesn't distract from the screen.

Cool and Quiet Without Fans

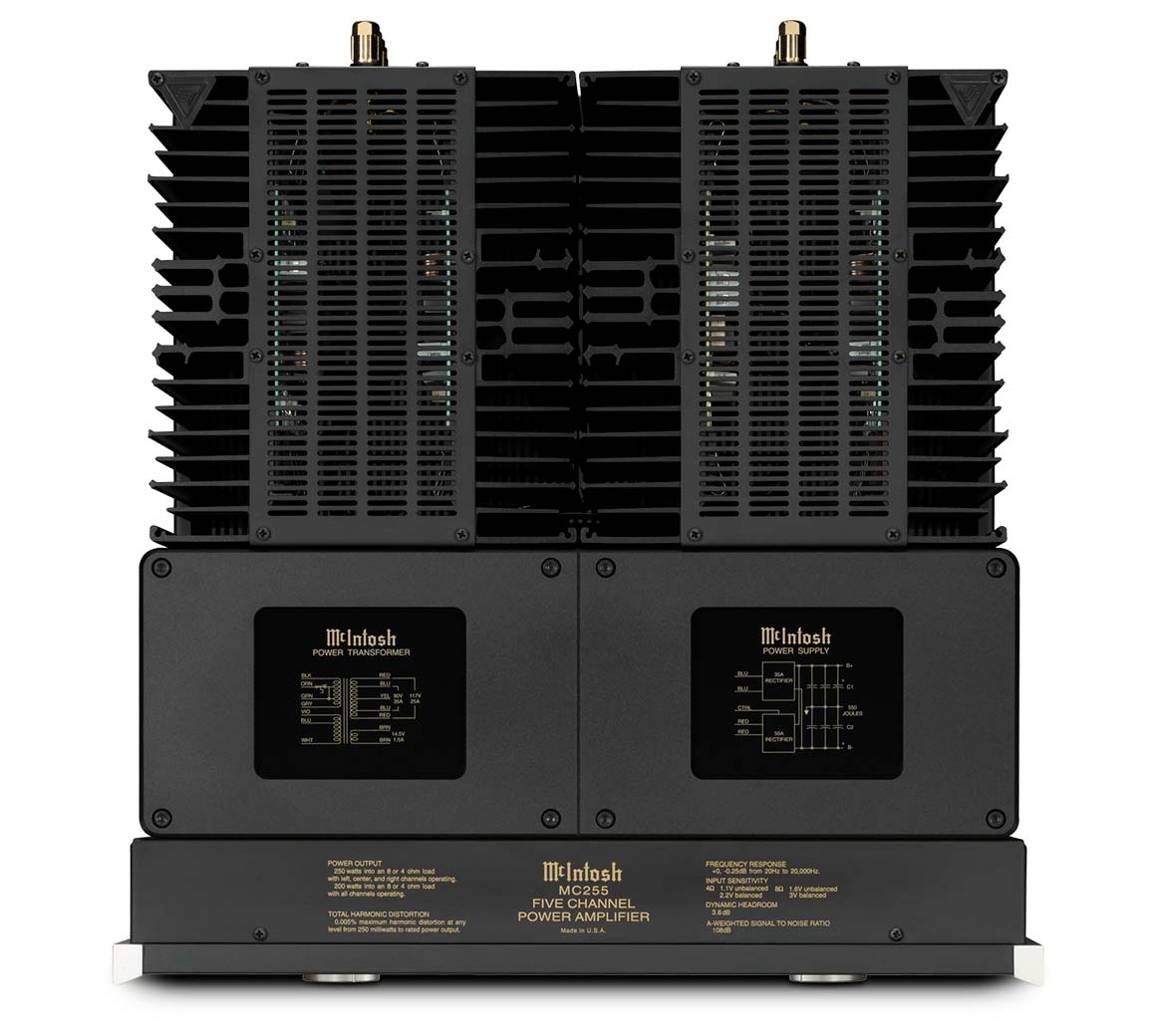

Four McIntosh Monogrammed Heatsinks are connected to high-current output transistors to dissipate heat efficiently and silently.

The MC255 therefore requires no cooling fans, eliminating another potential source of noise during quiet scenes.

A specially wound toroidal isolation power transformer further helps keep unwanted noise to a minimum—exactly what you want from electronics operating in or near a dedicated theater.

Power Guard and Sentry Monitor Protection

The MC255 incorporates two of McIntosh's best-known protection technologies.

Power Guard monitors the amplifier's output and helps prevent clipping from reaching the speakers when the amplifier is pushed beyond its limits.

Sentry Monitor protects against short-circuit conditions by disengaging the output stage if current exceeds safe levels, then automatically resets when normal operating conditions return.

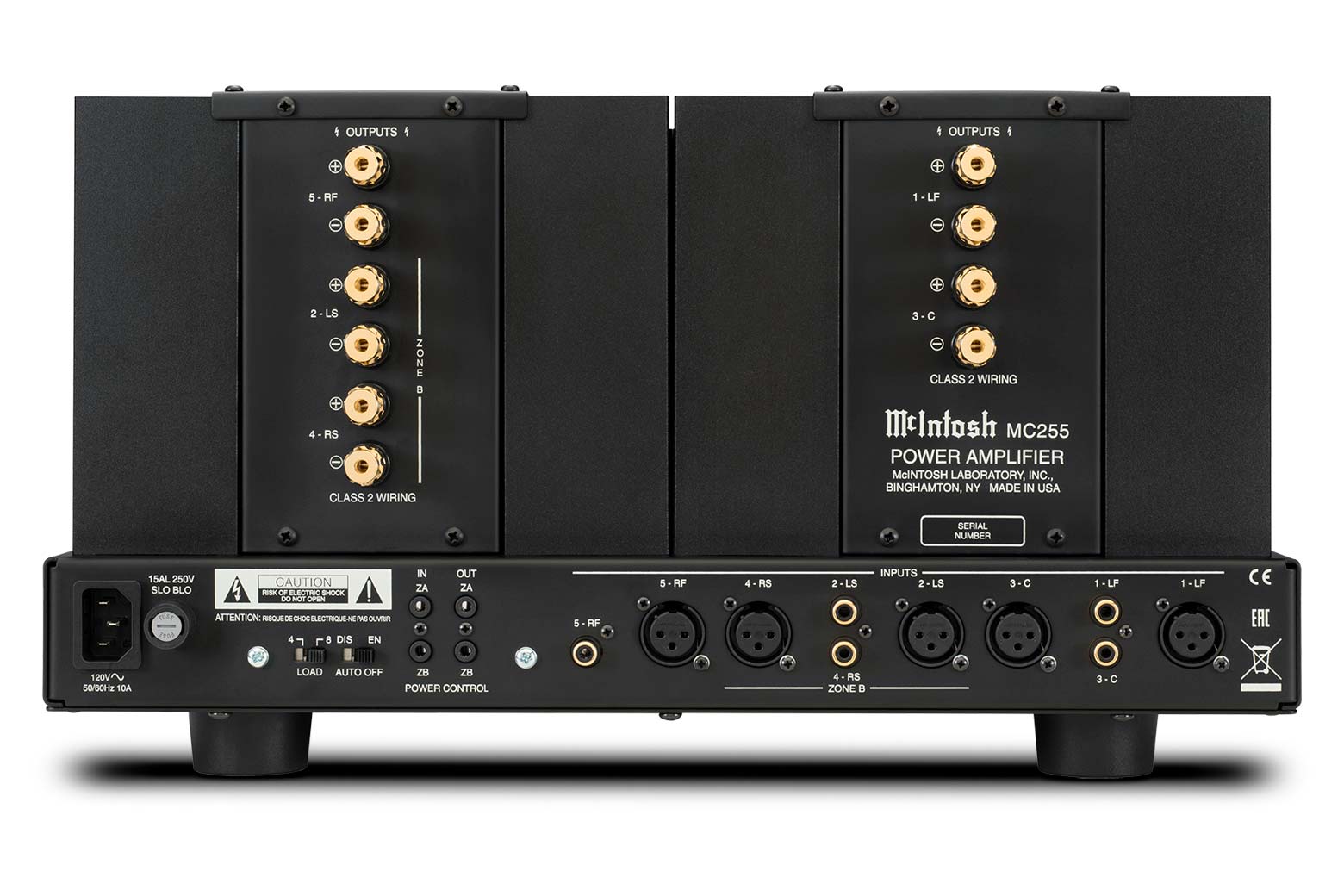

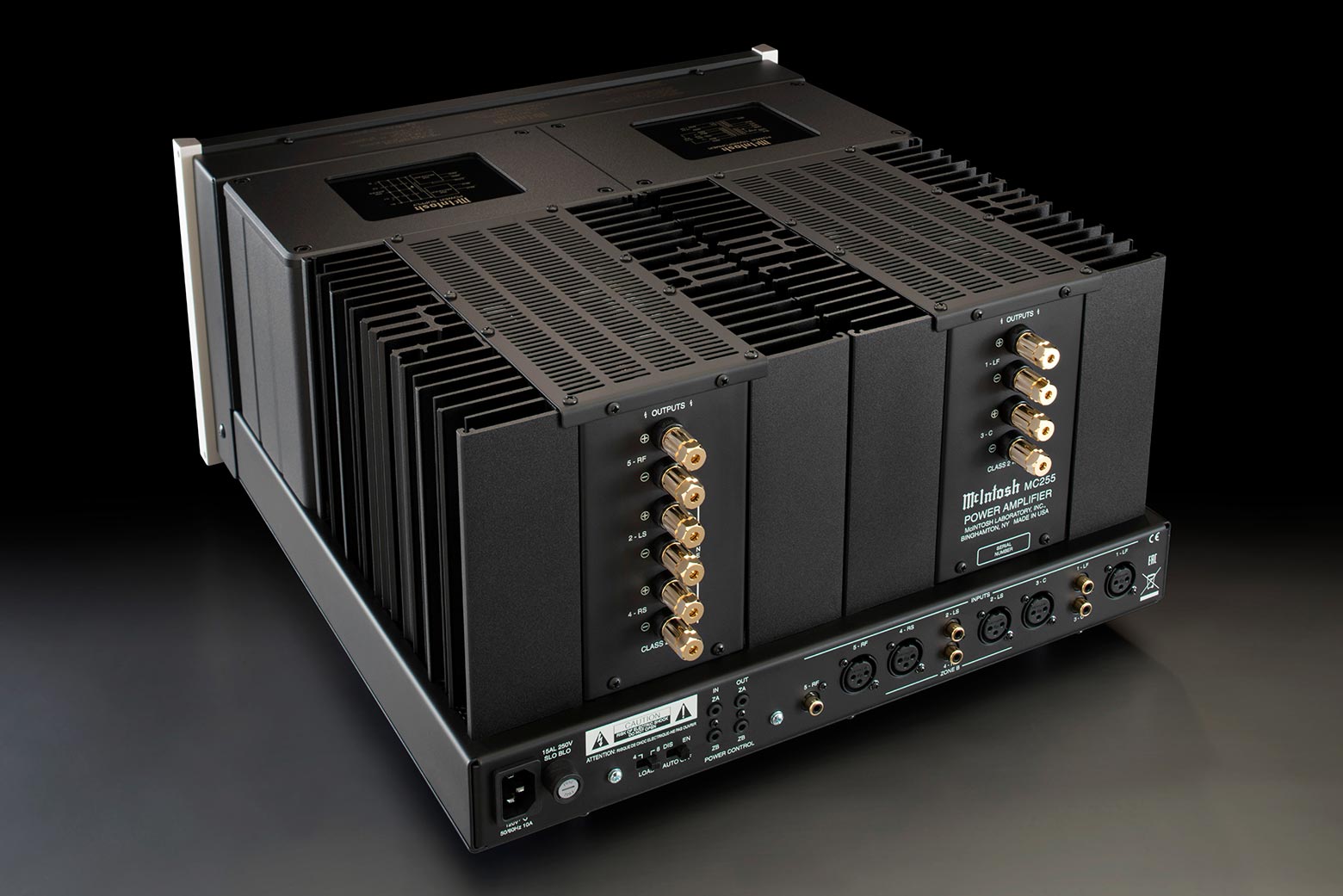

Gold-plated McIntosh binding posts provide secure speaker connections and resist corrosion, while both balanced XLR and unbalanced RCA inputs make the MC255 easy to integrate with a wide range of A/V processors.

From 5-Channel Theater to Dolby Atmos

The MC255 can power a complete conventional 5-channel home theater, but that's only one way to use it.

In a larger Dolby Atmos, DTS:X, or Auro-3D theater, the MC255 can handle the primary channels while additional multi-channel amplification powers the extra surround and overhead speakers.

There's also an interesting two-zone configuration: use the front three amplifier channels at 250 watts per channel for one system and the remaining two channels at 200 watts per channel for a second stereo zone.

That flexibility makes the MC255 useful well beyond a basic five-speaker theater.

Classic McIntosh Design

The MC255 is unmistakably McIntosh.

A black-glass front panel, TripleView meter, illuminated McIntosh logo, traditional control knobs, aluminum end caps, and direct LED backlighting give the amplifier the visual presence expected from McIntosh.

This is one home theater amplifier you may not want to hide in the equipment rack.

The Grid's Take on the McIntosh MC255

The MC255 is a great fit for someone building a theater around five serious full-range speakers rather than treating the surrounds as an afterthought.

Having 200 watts available across all five channels gives the system substantial capability, while the ability to deliver 250 watts to the front three channels makes even more sense when those speakers are doing the majority of the work.

The 3.6dB of dynamic headroom is also important. Home theater is about instantaneous dynamics as much as continuous power, and having that additional reserve helps the amplifier handle the sudden peaks that make a great movie soundtrack feel convincing.

For larger immersive theaters, we'd use the MC255 to handle the primary speakers and add amplification specifically for the additional Atmos or surround channels. That gives the most important speakers substantial McIntosh power without unnecessarily complicating the system.

At The Grid HiFi & Home Theater, we can design the entire theater around the MC255—from the processor and speaker layout to subwoofers, acoustic treatment, projection, system control, equipment racks, and professional installation.
