McIntosh MC2301 Vacuum Tube Monoblock Amplifier

300 Watts of McIntosh Tube Power for One Loudspeaker

The McIntosh MC2301 Vacuum Tube Amplifier takes tube amplification into territory normally associated with massive solid-state designs. Delivering 300 watts from a single monoblock, the MC2301 provides the power and control needed for large, demanding loudspeakers while preserving the character that makes McIntosh vacuum tube amplification so desirable.

Each MC2301 powers one loudspeaker, so a stereo system requires a pair. With 300 watts available to each speaker—and full rated power into 2, 4, or 8 Ohms—the MC2301 is designed for serious high-end systems where conventional tube-amplifier power may simply not be enough.

300 Watts Into 2, 4 or 8 Ohms

At the heart of the MC2301 is McIntosh's patented Unity Coupled Circuit output transformer technology, an engineering principle directly connected to the company's origins in 1949.

The output transformer allows the MC2301 to deliver its full 300 watts into 2, 4, or 8 Ohm loudspeakers.

That's especially important with a high-powered tube amplifier. Instead of restricting the MC2301 to a narrow group of efficient, tube-friendly speakers, its output architecture makes it suitable for a much broader range of reference loudspeakers—including designs that demand substantial amplifier power.

Whether reproducing the scale of a full orchestra, the complexity of choral music, or the impact of rock at realistic levels, the MC2301 has the output capability to do it without giving up the experience of vacuum tube amplification.

McIntosh's First Quad Balanced Tube Amplifier

The MC2301 marked an important engineering milestone as the first McIntosh vacuum tube amplifier to incorporate a Quad Balanced design.

Quad Balanced architecture is designed to cancel noise and distortion within the audio signal. By combining the outputs of complementary amplifier sections, unwanted artifacts are substantially reduced while the musical signal is preserved.

The result is particularly meaningful in an amplifier this powerful. The goal isn't simply to produce 300 watts from vacuum tubes—it's to deliver that output with the low noise, low distortion, and clarity expected from a reference McIntosh amplifier.

Monoblock Architecture

A dedicated monoblock configuration means each loudspeaker receives its own amplifier chassis.

In a stereo system using two MC2301s, the left and right channels therefore have completely separate amplification. Each amplifier is responsible for only one speaker rather than sharing its resources between two channels.

This architecture is particularly attractive in large reference systems, where maintaining maximum separation and providing each speaker with substantial dedicated power can be advantageous.

It also allows the amplifiers to be positioned closer to their respective loudspeakers if desired, potentially keeping speaker cable runs shorter in more elaborate installations.

Protection Without Traditional Output Fuses

McIntosh Sentry Monitor provides fuse-less short-circuit protection for the MC2301.

The system continuously monitors operating conditions and disengages the amplifier's output stage before current can exceed safe levels. Once normal operating conditions return, the protection circuit automatically resets.

For an amplifier capable of producing 300 watts from its vacuum tube output stage, that protection provides additional peace of mind without placing conventional output fuses in the signal path.

Balanced and Unbalanced Connectivity

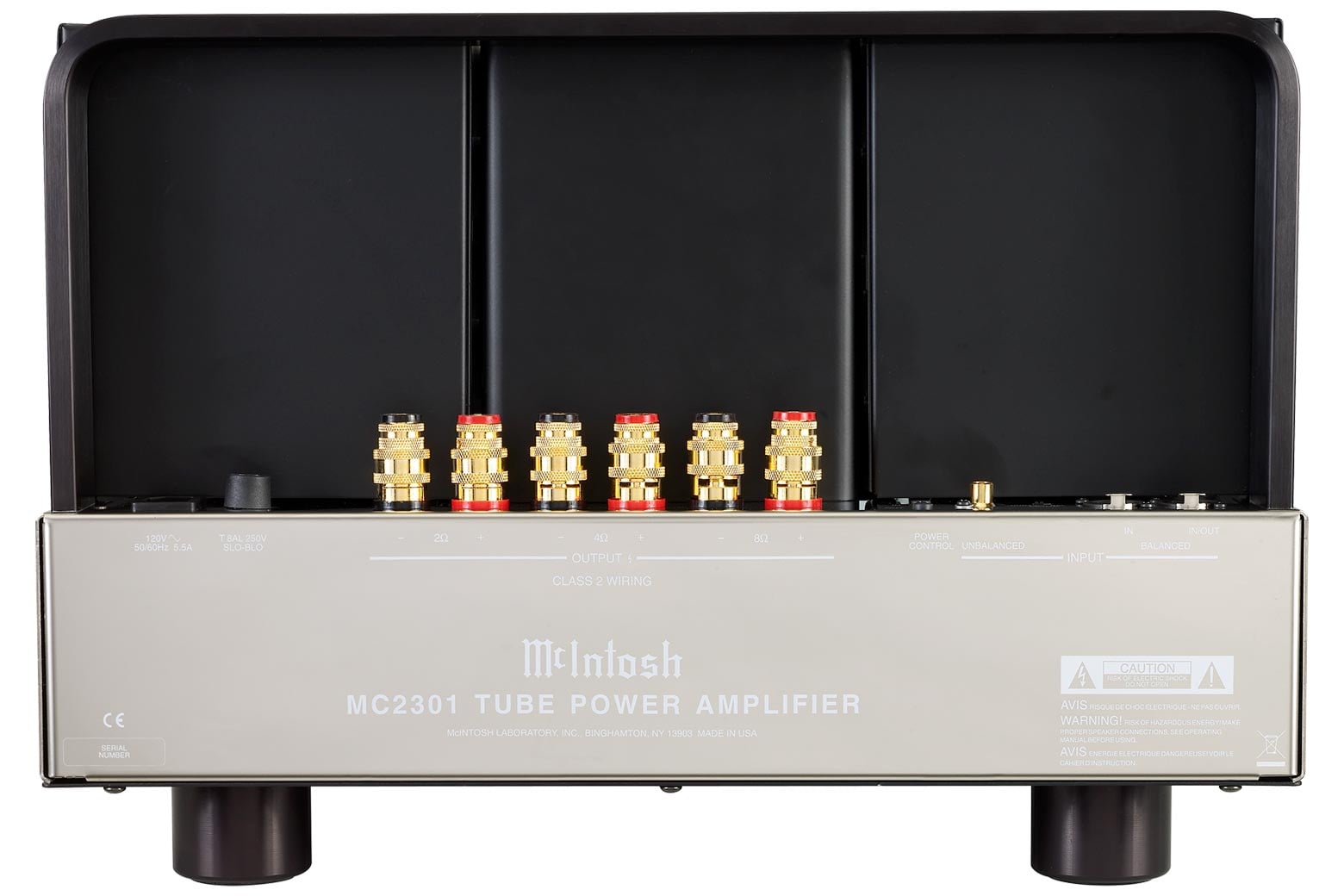

The MC2301 includes both balanced XLR and unbalanced RCA inputs, allowing it to integrate with a wide variety of preamplifiers and system configurations.

In a reference-level system—particularly one where monoblocks may be located some distance from the preamplifier—the balanced connection can be especially useful for longer interconnect runs.

This flexibility also makes the MC2301 easy to incorporate into an existing McIntosh system or pair with other high-end source and control components.

A Tube Amplifier That Puts the Tubes on Display

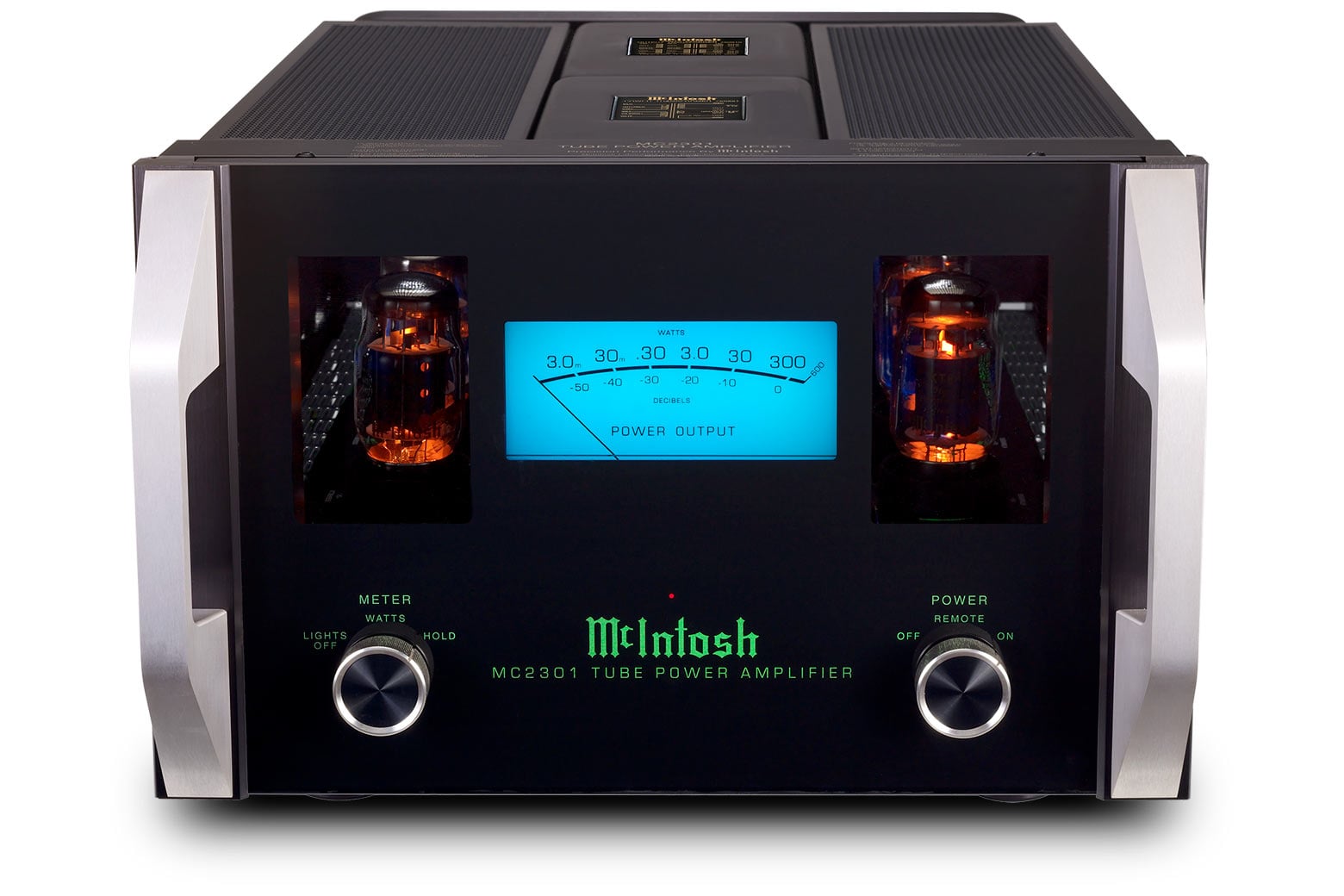

Visually, the MC2301 makes no attempt to hide what it is.

Rows of output tubes flank the large, illuminated McIntosh blue Watt meter, creating a front panel that looks dramatically different from the company's traditional solid-state monoblocks.

The meter provides a real-time indication of amplifier output, while the exposed tubes make the amplifier's operation part of the listening-room experience.

A polished stainless steel chassis, black-glass detailing, traditional McIntosh controls, and substantial brushed-aluminum handles complete a design that combines classic McIntosh cues with the visual drama expected from a reference tube amplifier.

The Grid's Take on the McIntosh MC2301

The MC2301 is for the listener who wants the scale and authority of a high-powered monoblock without giving up vacuum tubes.

Three hundred watts from a tube amplifier is already serious. Being able to deliver the full 300 watts into 2, 4, or 8 Ohms is what makes the MC2301 particularly interesting for modern reference loudspeakers.

The Quad Balanced architecture is equally important. McIntosh isn't using tubes as an excuse for added noise or distortion; the engineering is specifically designed to minimize both while retaining the qualities that draw listeners to tube amplification in the first place.

A pair of MC2301s creates a formidable stereo setup: one 300-watt tube amplifier dedicated to each loudspeaker, with enough output to consider speakers that might normally push us toward large solid-state amplification.

For someone building a true reference McIntosh tube system around demanding full-range speakers, the MC2301 occupies a very special place.

At The Grid HiFi & Home Theater, we can help match a pair of MC2301 monoblocks with the appropriate preamplifier, source components, and loudspeakers to create a complete reference-level system.
