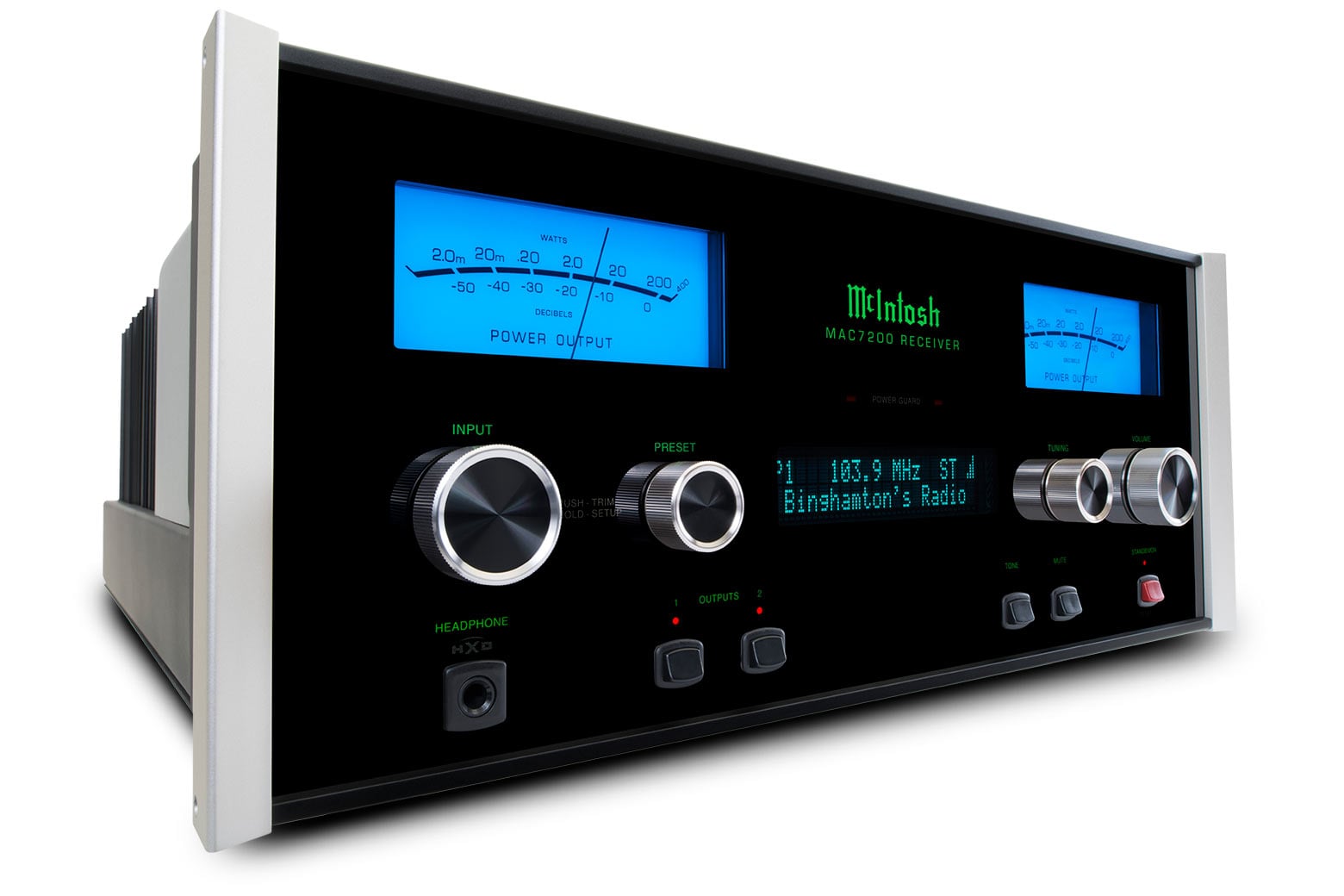

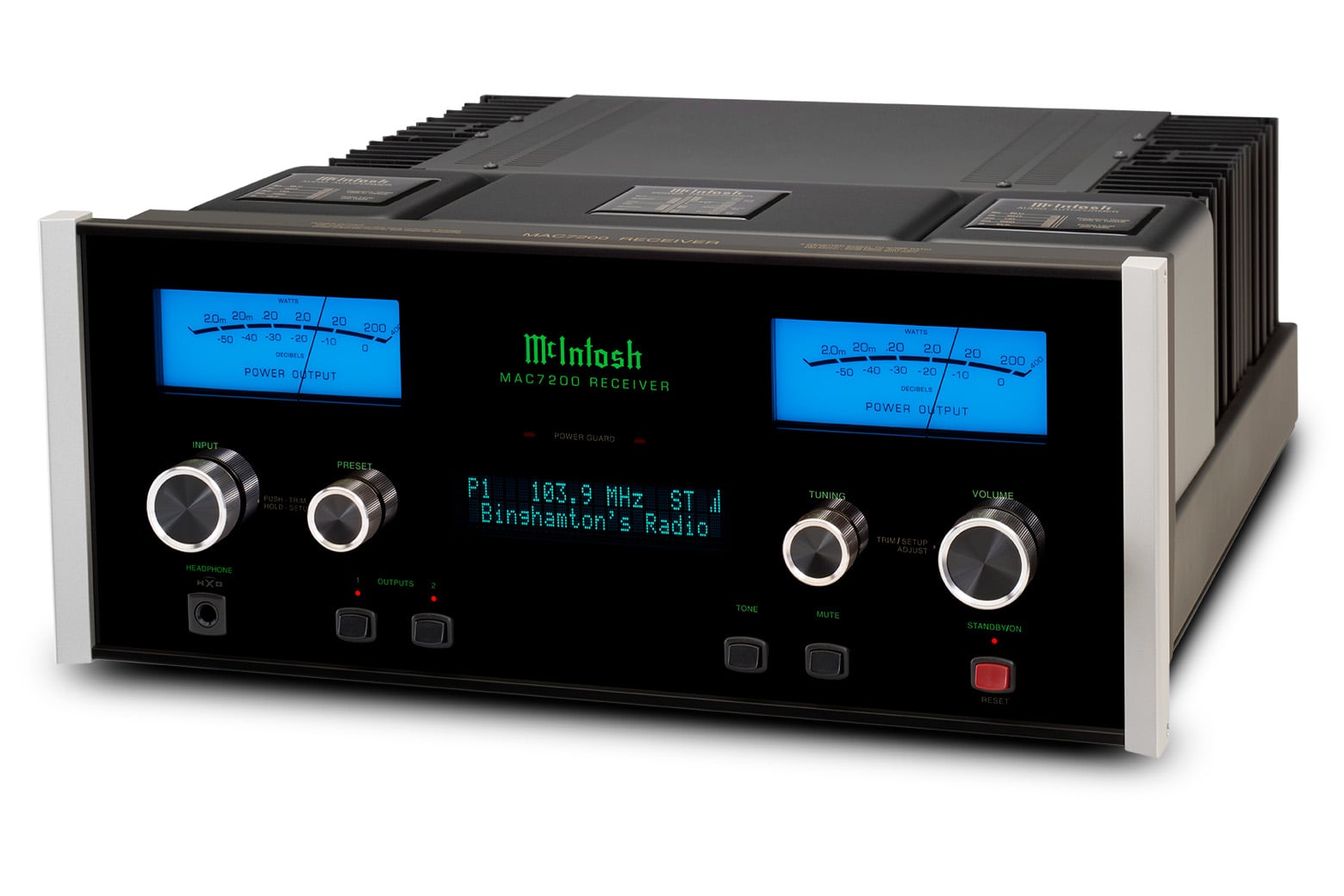

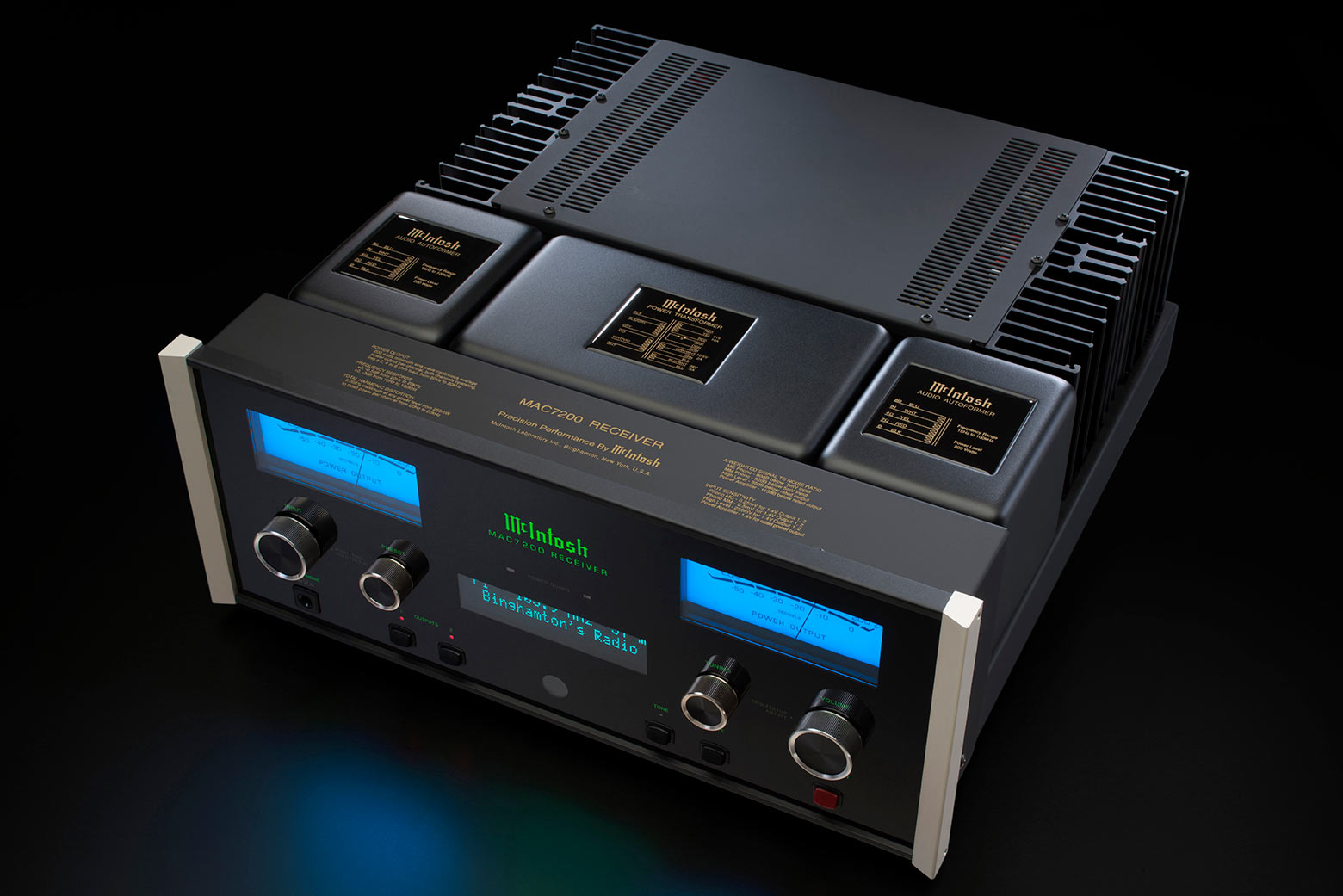

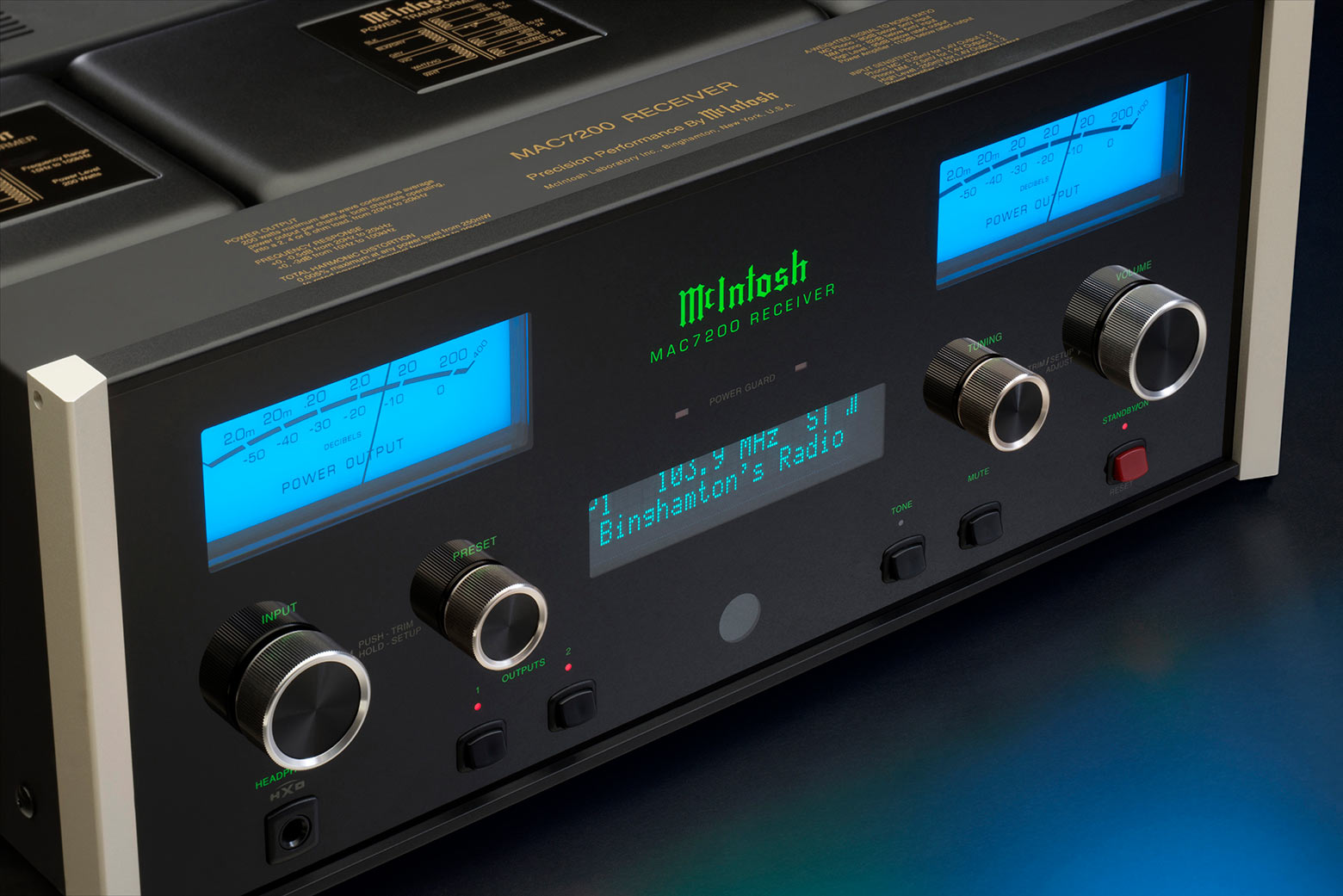

McIntosh MAC7200 Stereo Receiver

Classic McIntosh Radio Meets a 200-Watt Integrated Amplifier

The McIntosh MAC7200 Stereo Receiver combines three serious components into one chassis: a powerful McIntosh integrated amplifier, a high-resolution digital audio section, and a sophisticated AM/FM tuner descended from McIntosh's long history in broadcast-quality radio.

Delivering 200 watts per channel, offering 15 total inputs, dedicated Moving Magnet and Moving Coil phono stages, and the upgradeable DA2 Digital Audio Module, the MAC7200 can become the centerpiece of an exceptionally complete two-channel system.

For the listener who still appreciates great FM radio but also wants vinyl, digital music, television audio, and serious loudspeaker-driving capability, the MAC7200 covers an enormous amount of ground.

200 Watts per Channel—Regardless of Speaker Impedance

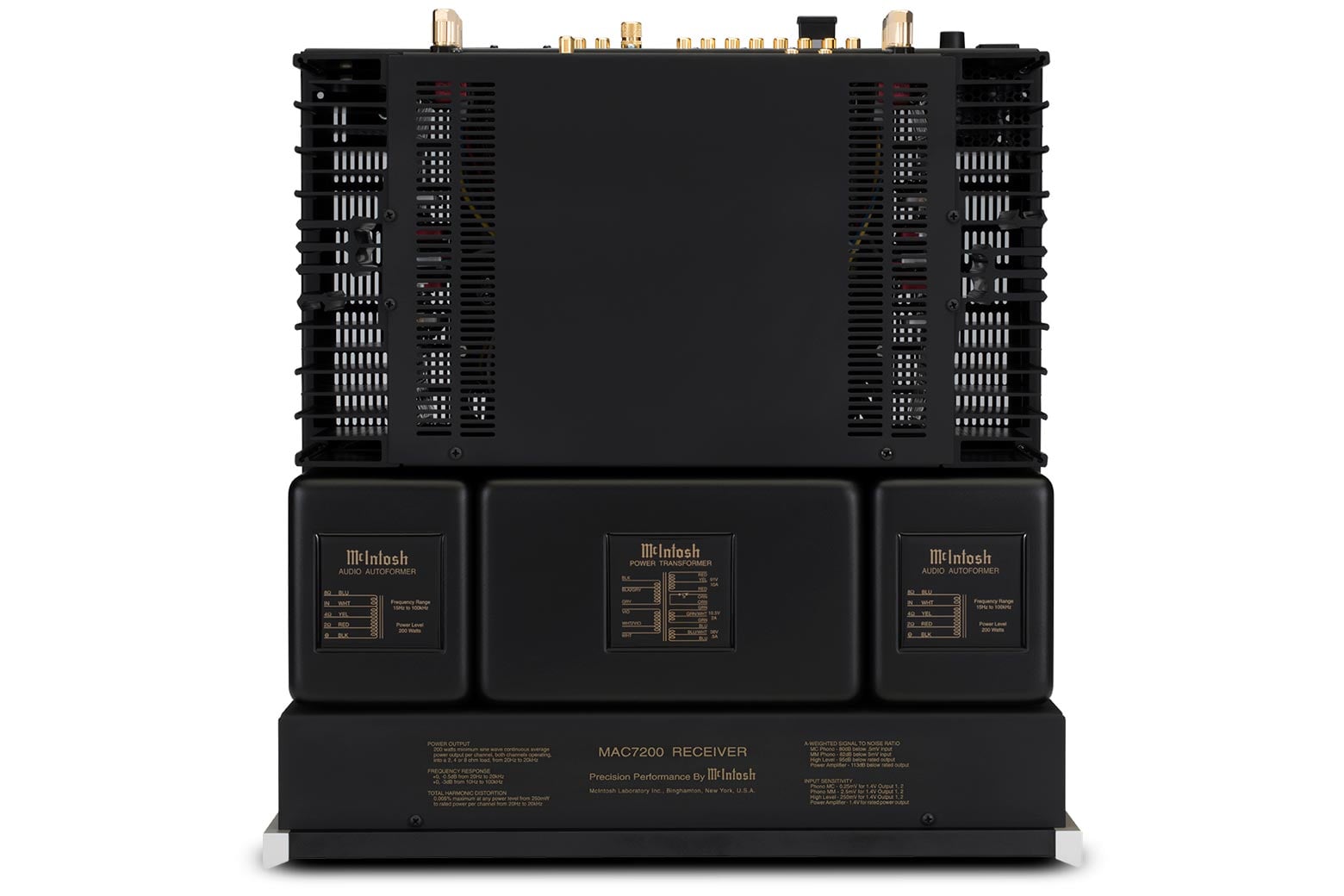

The MAC7200 delivers 200 watts per channel through McIntosh's renowned Autoformer technology.

Unlike conventional amplifier designs whose maximum output changes significantly with speaker impedance, the Autoformers allow the MAC7200 to deliver its full rated power into compatible 2, 4, or 8 ohm speakers.

This gives the MAC7200 the flexibility to drive a wide variety of high-performance loudspeakers while maintaining the power and control McIntosh owners expect.

Whether you're driving substantial floorstanders or a more compact pair of reference speakers, you've got 200 watts per channel available.

A Serious AM/FM Tuner

Calling the MAC7200 a "receiver" doesn't quite tell the whole story.

McIntosh has been designing tuners since the 1950s, including legendary models such as the MR78 FM Tuner, and the MAC7200 carries that heritage into a modern integrated component.

Its advanced tuner section is designed for excellent sensitivity, selectivity, clarity, and low noise.

An integrated signal quality monitor can display multipath and noise levels from the incoming RF signal, helping optimize antenna positioning for the best possible reception.

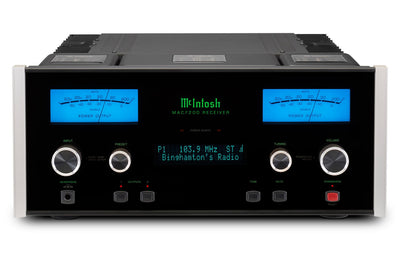

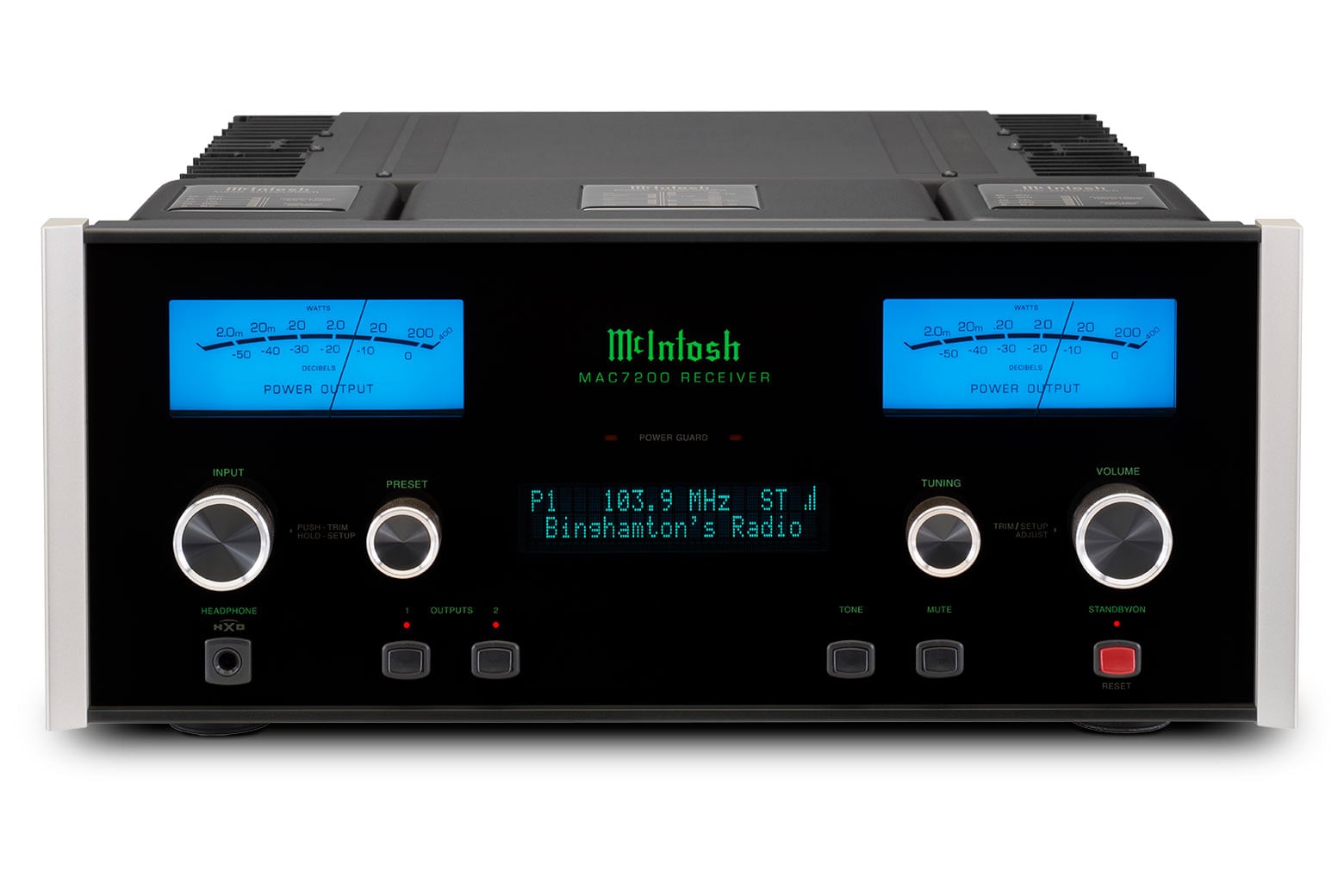

Dedicated front-panel Preset and Tuning controls make conventional radio operation refreshingly straightforward.

FM broadcasts with RDS information can display available station, artist, and song information, while 20 presets are available for each radio band.

For someone who still listens to FM regularly, this isn't a tuner added merely to justify calling the MAC7200 a receiver. It's an important part of the component.

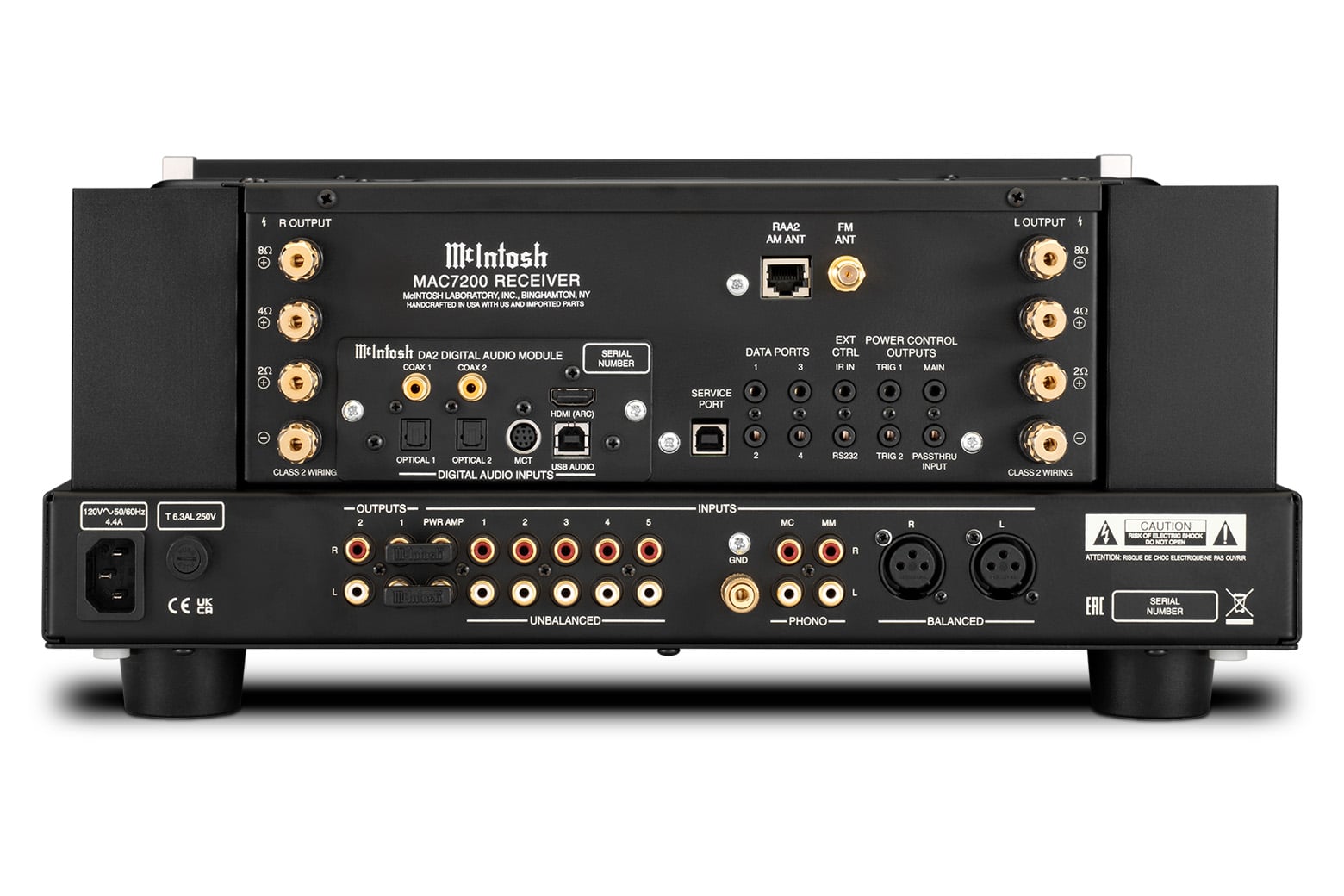

15 Inputs for an Entire Music System

The MAC7200 is built to accommodate an extensive collection of sources.

Its analog section provides balanced and unbalanced connections along with dedicated Moving Magnet and Moving Coil phono inputs.

That means a wide range of turntables and cartridges can be connected without automatically requiring an external phono preamplifier.

On the digital side, the MAC7200 provides USB, coaxial, optical, proprietary MCT, and HDMI ARC connectivity through its DA2 Digital Audio Module.

Each input can also be given a custom name, making a large system considerably easier to operate.

MM and MC Phono Built In

The inclusion of both Moving Magnet and Moving Coil phono inputs makes the MAC7200 particularly appealing for vinyl enthusiasts.

You can build a serious analog front end around the receiver without immediately adding a separate phono stage.

And because both cartridge types are accommodated, there's room to upgrade the turntable and cartridge as the system evolves.

DA2 Digital Audio Module

Digital audio is handled by McIntosh's DA2 Digital Audio Module.

At its heart is an 8-channel, 32-bit DAC operating in Quad Balanced mode, providing high-performance conversion for today's digital sources.

Through USB, the MAC7200 supports PCM playback up to 32-bit/384kHz, along with DSD512 and DXD 384kHz. Coaxial and optical inputs support resolutions up to 24-bit/192kHz.

The proprietary MCT connection can be used with compatible McIntosh SACD/CD transports for high-quality disc playback.

So while the MAC7200 has deep roots in traditional radio and analog audio, its digital capabilities are thoroughly modern.

HDMI ARC Brings the TV Into Your HiFi System

The DA2 also adds an audio-only HDMI ARC input.

Connect a compatible television and the MAC7200 can reproduce TV audio through your main stereo system.

For customers who want exceptional two-channel music performance but don't necessarily need a full multichannel home theater, this is a particularly useful feature.

Movies, sports, concerts, and streaming television can all benefit from the same amplifier and speakers used for serious music listening.

Ready From the Moment You Turn It On

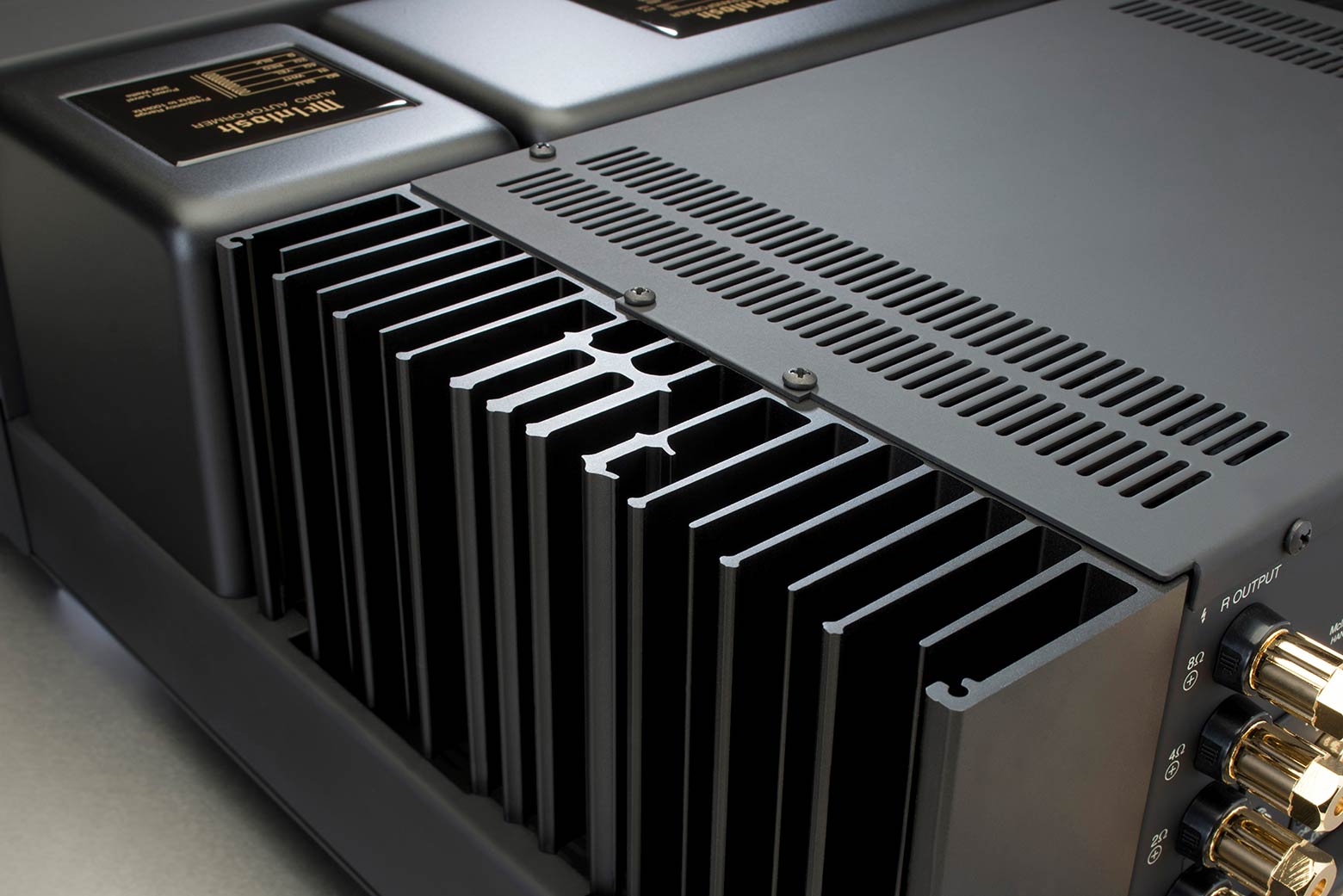

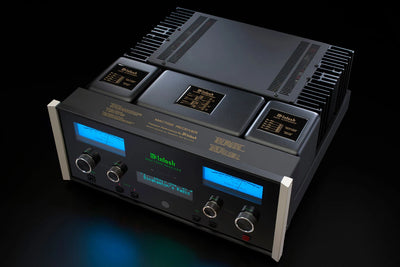

The MAC7200 features McIntosh Monogrammed Heatsinks, which provide efficient thermal management while adding another distinctive visual element to the chassis.

They're connected to advanced high-current output transistors designed to eliminate amplifier warm-up time.

Turn on the MAC7200 and it's ready to perform.

McIntosh Protection and Control

The MAC7200 incorporates many of McIntosh's established amplifier technologies.

Power Guard monitors the output signal and helps prevent harsh clipping that could potentially damage loudspeakers.

Sentry Monitor protects the amplifier against potentially unsafe operating conditions without relying on conventional replacement fuses.

Bass and treble controls provide useful tonal adjustment, while Home Theater PassThru allows the MAC7200 to become part of a combined two-channel and surround-sound system.

High-Quality Headphone Listening

The MAC7200 also includes a High Drive headphone amplifier with McIntosh Headphone Crossfeed Director (HXD).

HXD can create a more speaker-like presentation when listening through headphones by reducing the exaggerated left-right separation that can occur with conventional headphone playback.

That means the MAC7200 can serve speakers, a turntable, digital sources, radio, television, and serious headphones—all from one component.

The Grid's Take on the McIntosh MAC7200

The MAC7200 is almost an entire traditional HiFi system in one chassis.

That's what makes it different.

You have 200 watts per channel, a serious AM/FM tuner, MM and MC phono stages, a high-resolution DAC, HDMI ARC for your television, digital inputs, analog inputs, and a high-quality headphone section.

Add a turntable, connect your digital source and TV, choose a great pair of speakers, and you're essentially finished.

We also think the tuner is an important part of the MAC7200's appeal. McIntosh has a genuine history in tuner design, so for someone who still enjoys discovering music, live performances, sports, or local programming over FM, the radio isn't just an afterthought.

The MAC7200 is a great choice for the listener who wants maximum capability without building a large stack of separate components.

At The Grid HiFi & Home Theater, we can help match the MAC7200 with the right speakers, turntable, digital source, and system accessories to build a complete two-channel system around it.
