McIntosh MA5300 Integrated Amplifier

A More Compact Way Into McIntosh

The McIntosh MA5300 Integrated Amplifier proves that you don't need the largest chassis in the lineup to get the McIntosh experience.

As McIntosh's smallest solid-state integrated amplifier in both physical size and power output, the MA5300 is a natural fit for smaller rooms, refined two-channel systems, offices, secondary listening spaces, or anyone building their first serious McIntosh setup.

It delivers 100 watts per channel into 8 ohms and 160 watts per channel into 4 ohms, giving it plenty of authority for a wide range of bookshelf and floorstanding loudspeakers.

And visually, it is unmistakably McIntosh.

Real Power in a Smaller Chassis

The MA5300 uses a direct-coupled solid-state amplifier design with substantial current capability.

That means the amplifier can respond confidently as speaker impedance changes, while still maintaining the speed, control, and dynamic character expected from a serious integrated amplifier.

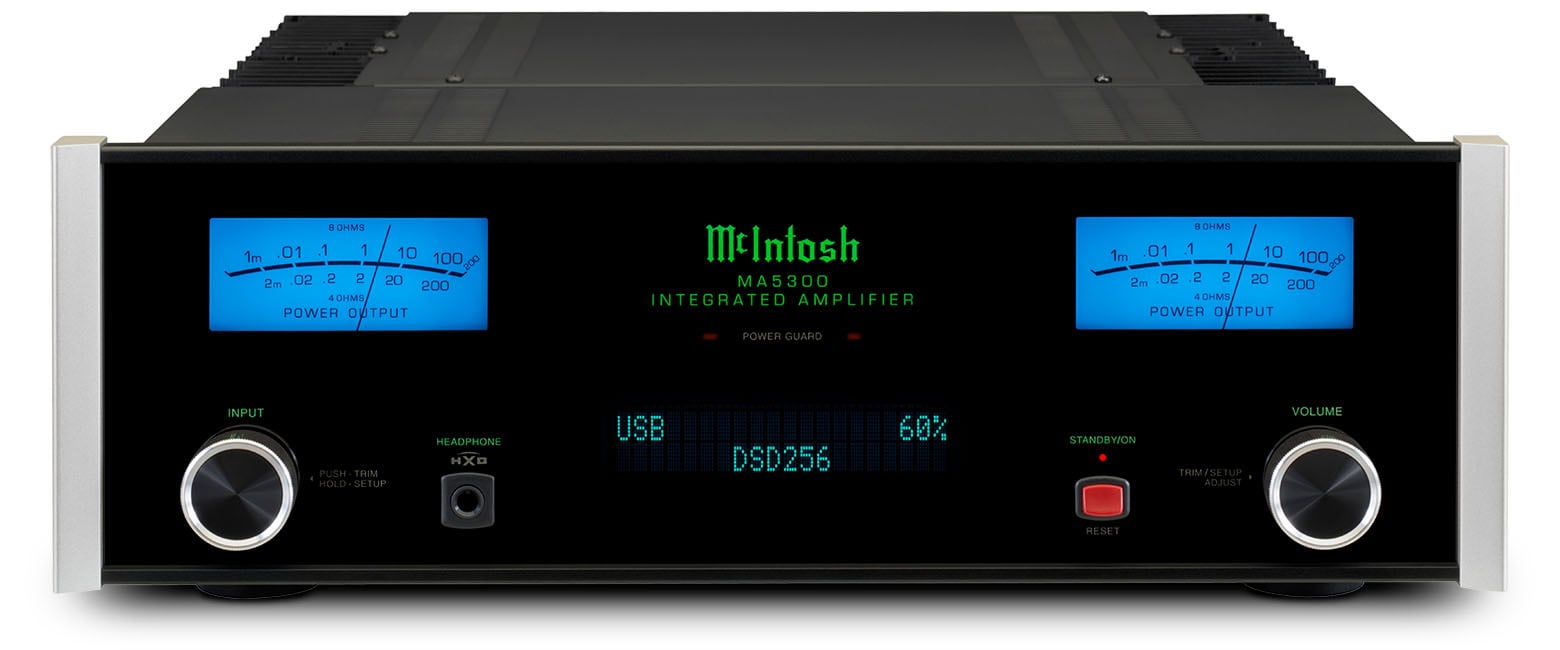

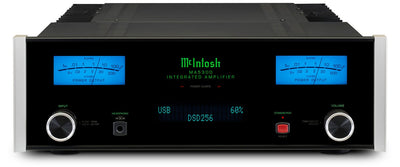

The front-panel dual-scale blue Watt meters display output for both 4-ohm and 8-ohm speaker loads, giving you a clear visual indication of how hard the amplifier is working.

It's classic McIntosh theater, but it's also useful information.

Analog and Digital in One Component

The MA5300 is designed to be the heart of a complete stereo system.

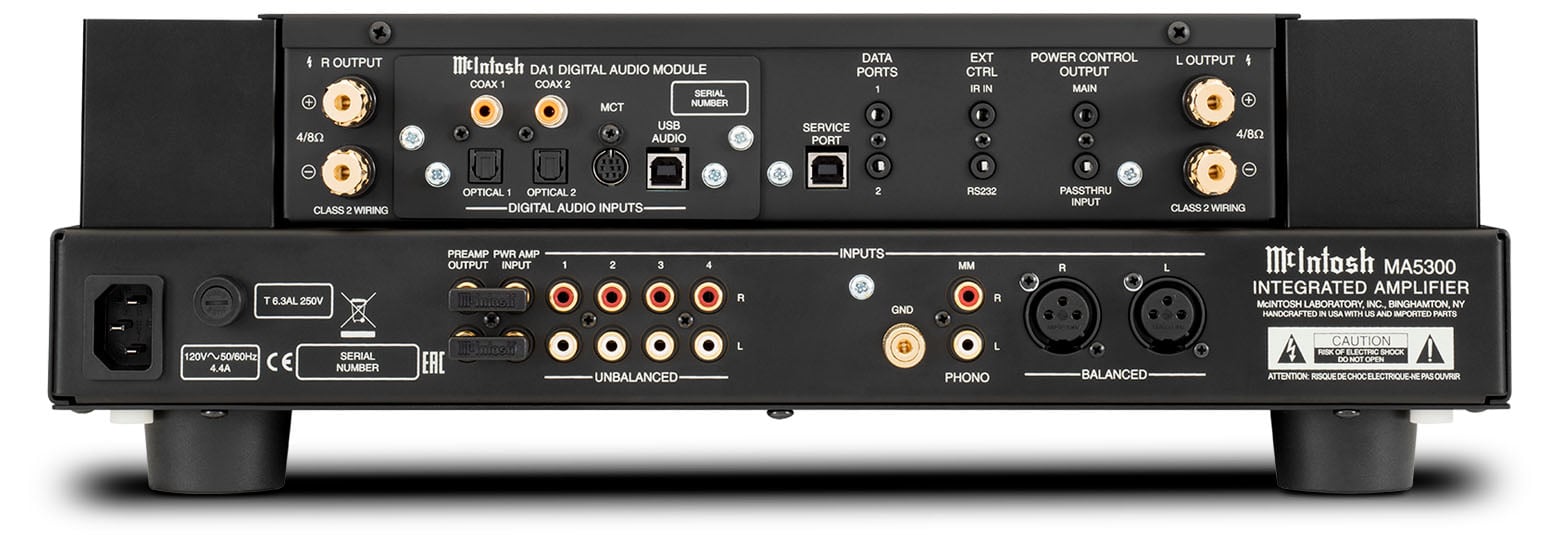

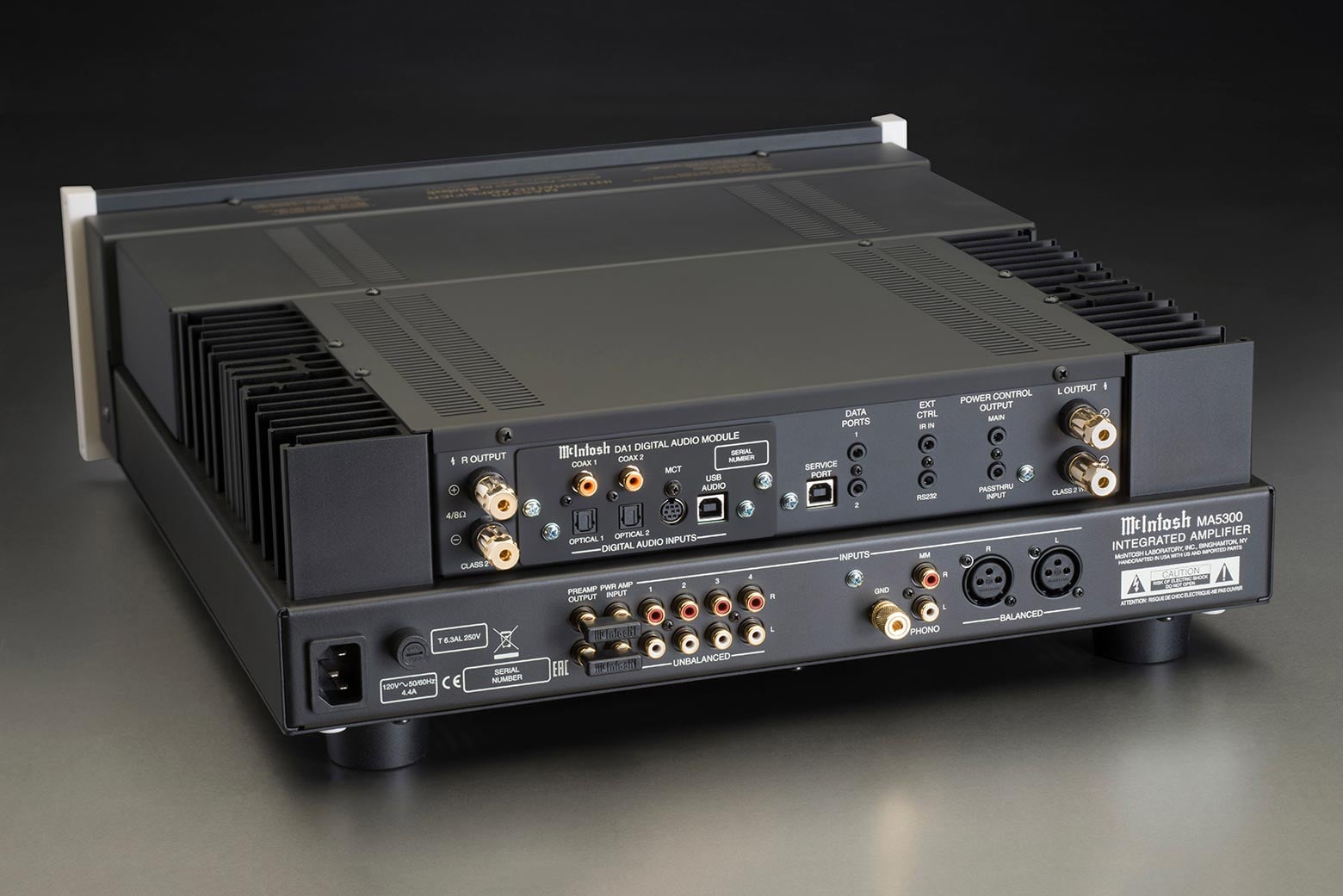

Its analog connectivity includes:

• Multiple unbalanced line-level inputs
• A balanced input
• A dedicated Moving Magnet phono input

That means a turntable can connect directly without requiring a separate phono preamplifier.

For digital sources, the MA5300 includes the DA1 Digital Audio Module, which brings coaxial, optical, USB, and proprietary MCT connectivity into the same chassis.

The result is a true integrated system hub for both analog and digital music.

Upgradeable Digital Architecture

One of the most important features of the MA5300 is that the digital section is modular.

The factory-installed DA1 Digital Audio Module can be replaced with newer compatible modules as McIntosh digital technology evolves.

That gives the amplifier a degree of future flexibility that is unusual in an integrated amplifier.

McIntosh also offers a dealer-installed DA2 Digital Audio Module upgrade, giving owners a path to newer digital connectivity and conversion capabilities without replacing the amplifier itself.

For a component designed to remain in a system for many years, that matters.

High-Resolution Digital Playback

The factory DA1 module uses an 8-channel, 32-bit DAC operating in Quad Balanced mode.

It supports high-resolution playback including DSD256 and DXD up to 384kHz through compatible inputs.

So although the MA5300 may be compact by McIntosh standards, its digital section is anything but basic.

It can serve as the digital front end for a computer-based music system, disc transport, streamer, or other digital source while keeping the overall system remarkably simple.

Built-In Moving Magnet Phono Stage

Vinyl listeners don't need to add a separate phono preamp just to get started.

The MA5300 includes a dedicated Moving Magnet phono input, allowing a compatible turntable to connect directly to the amplifier.

For someone building a clean system around a turntable, digital source, and pair of speakers, that can eliminate another component and another set of cables.

No Warm-Up Waiting

The MA5300 uses McIntosh Monogrammed Heatsinks connected to advanced high-current output transistors.

The design eliminates the need for a prolonged warm-up period before the amplifier reaches its intended operating performance.

Turn it on, choose your source, and listen.

Tune the System to Your Preference

Not every recording, room, or speaker combination is identical.

The MA5300 includes bass and treble tone controls, allowing you to make sensible adjustments when the system or recording calls for it.

Purists can leave them neutral.

Everyone else can use them.

Serious Headphone Listening

The MA5300 is also designed to work as a high-quality headphone amplifier.

Its High Drive headphone amplifier provides increased output capability for a wide range of headphones.

McIntosh's Headphone Crossfeed Director, or HXD, can be engaged to create a more speaker-like listening presentation by reducing the extreme left-right separation that can occur with conventional headphone playback.

That makes the MA5300 especially useful in rooms where headphone listening is part of the system rather than an afterthought.

Roon Tested

The MA5300 has received Roon Tested designation.

That means McIntosh worked with Roon to verify compatibility with supported computer and operating-system configurations when using the amplifier's digital interface.

For listeners building a Roon-based digital system, that provides additional confidence in integration.

McIntosh Protection Built In

The MA5300 includes several of McIntosh's proven protection and system technologies.

Power Guard monitors the output signal and helps prevent clipping from damaging loudspeakers.

Sentry Monitor provides fuse-less protection against potentially damaging operating conditions and automatically resets once conditions return to normal.

These aren't features you think about every time you listen.

That's exactly the point.

Home Theater PassThru

The MA5300 can also become part of a combined two-channel and home theater system through Home Theater PassThru.

This allows the front speakers and power amplifier section of the MA5300 to be incorporated into a surround system while preserving a dedicated high-quality stereo path for music.

For customers who want one pair of serious front speakers to serve both music and movies, that can be an especially useful feature.

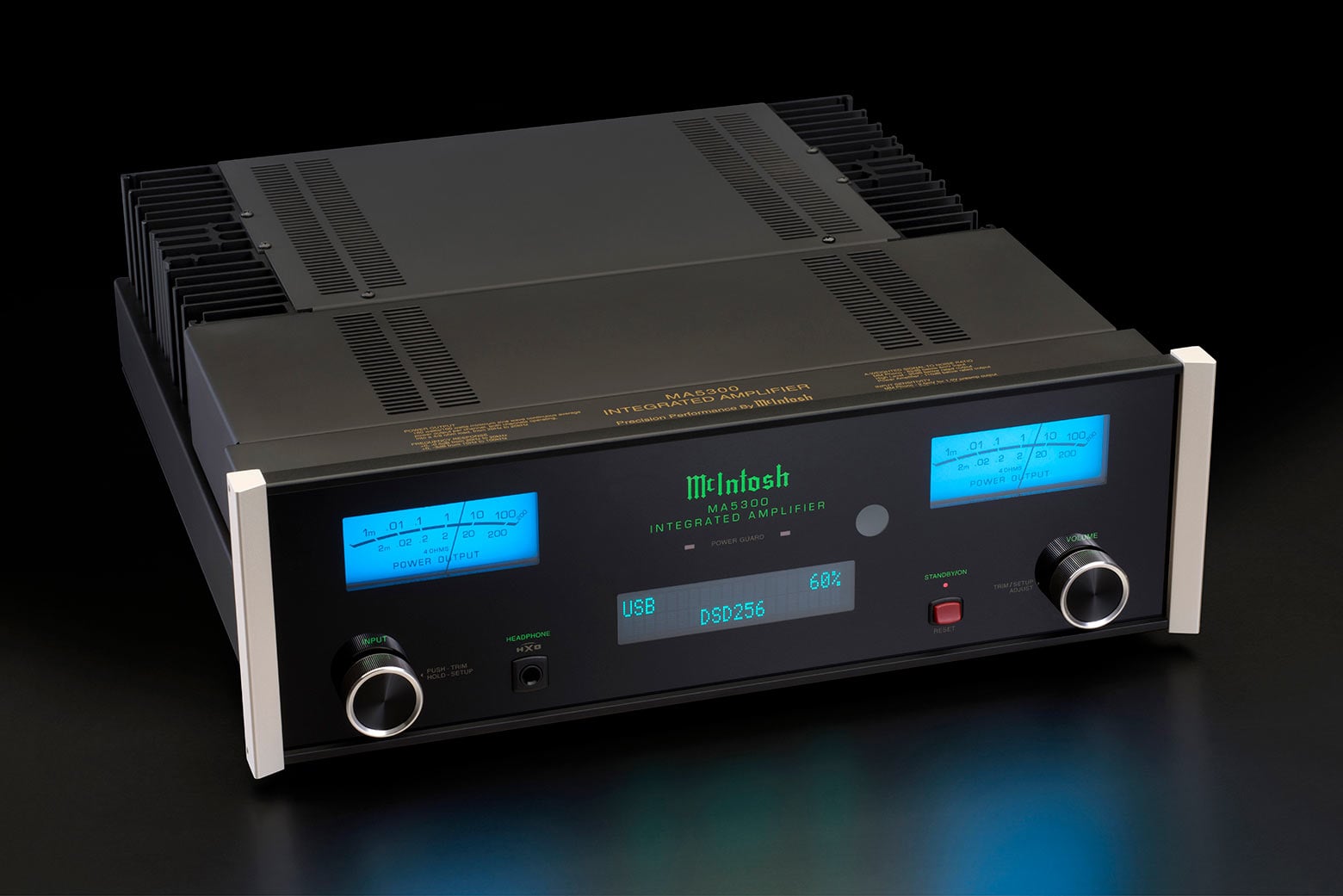

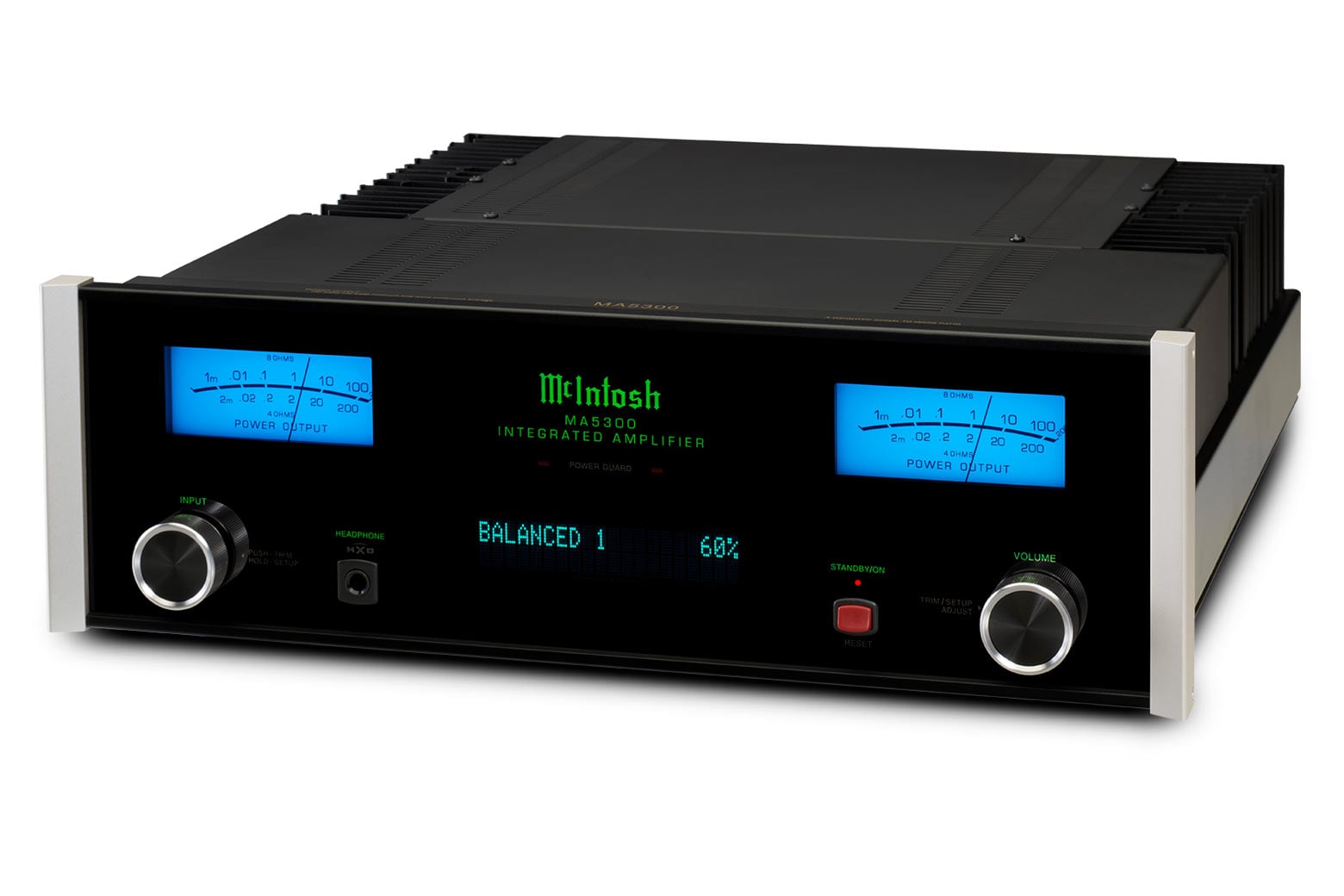

Classic McIntosh Design

Despite its more compact proportions, the MA5300 looks every bit like a McIntosh.

The black-glass front panel, blue Watt meters, illuminated logo, aluminum end caps, rotary controls, and gold-plated speaker binding posts give it the same visual identity as the larger amplifiers in the line.

It may be smaller.

It doesn't look inexpensive.

The Grid's Take on the McIntosh MA5300

The MA5300 is one of the easiest McIntosh integrated amplifiers to recommend when someone wants a serious system without going physically huge.

You get real McIntosh power, blue meters, MM phono, high-resolution digital inputs, headphone capability, Home Theater PassThru, and the ability to upgrade the digital section later.

That makes it a very complete amplifier.

For a customer who wants to build a system around one integrated amplifier, one good source, and a great pair of speakers, the MA5300 can keep the setup clean while still giving you room to grow.

At The Grid HiFi & Home Theater, we can help match the MA5300 with the right speakers, turntable, streamer, or digital source for your room and listening goals.
