Overview

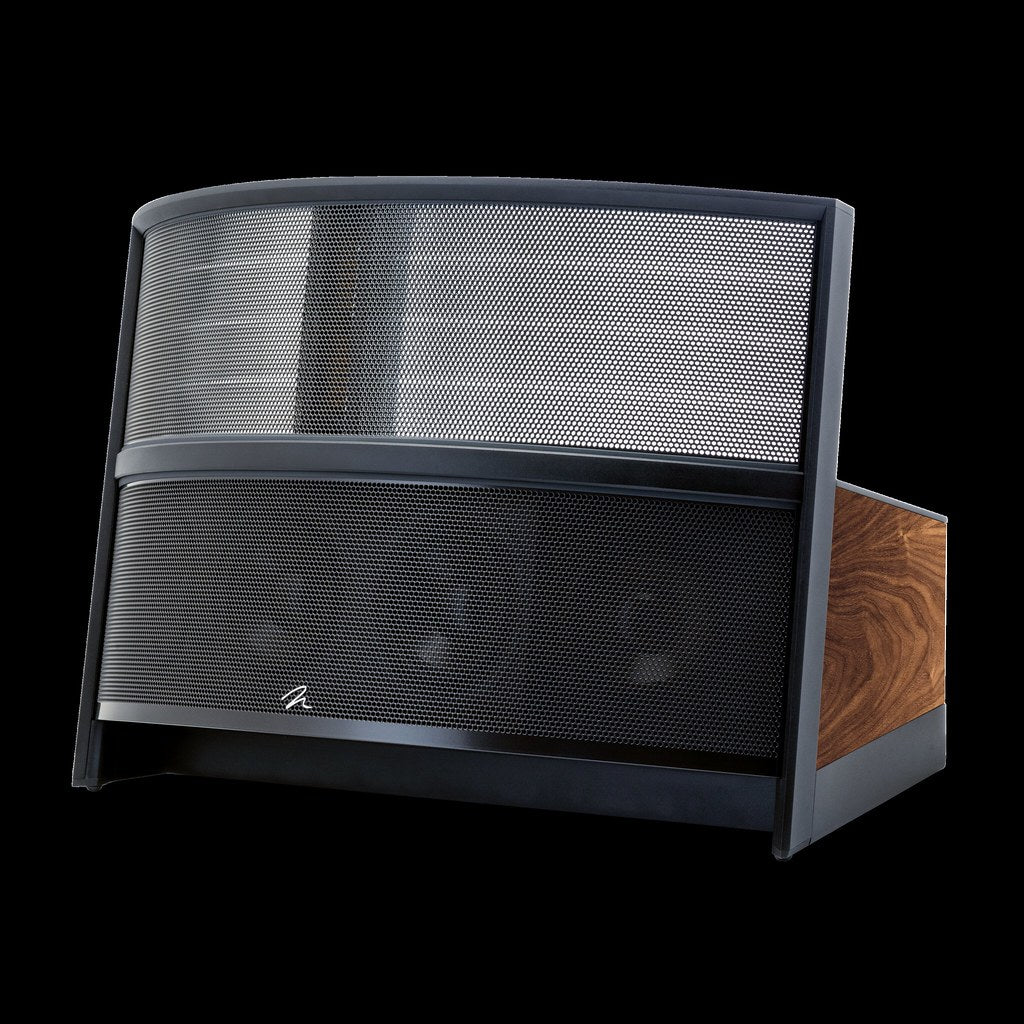

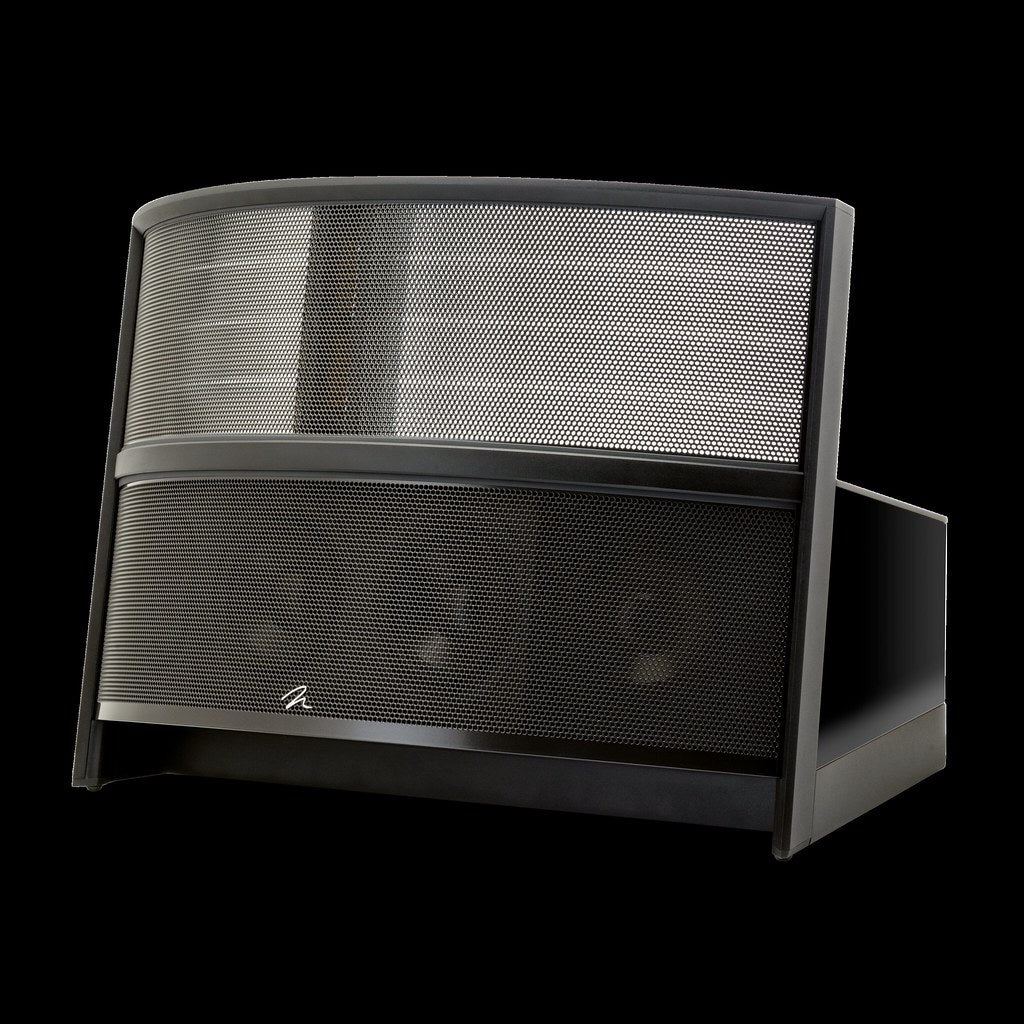

MartinLogan Illusion ESL C34A Electrostatic Center Channel Loudspeaker
Complimentary White Glove Delivery • Travel Reimbursement*

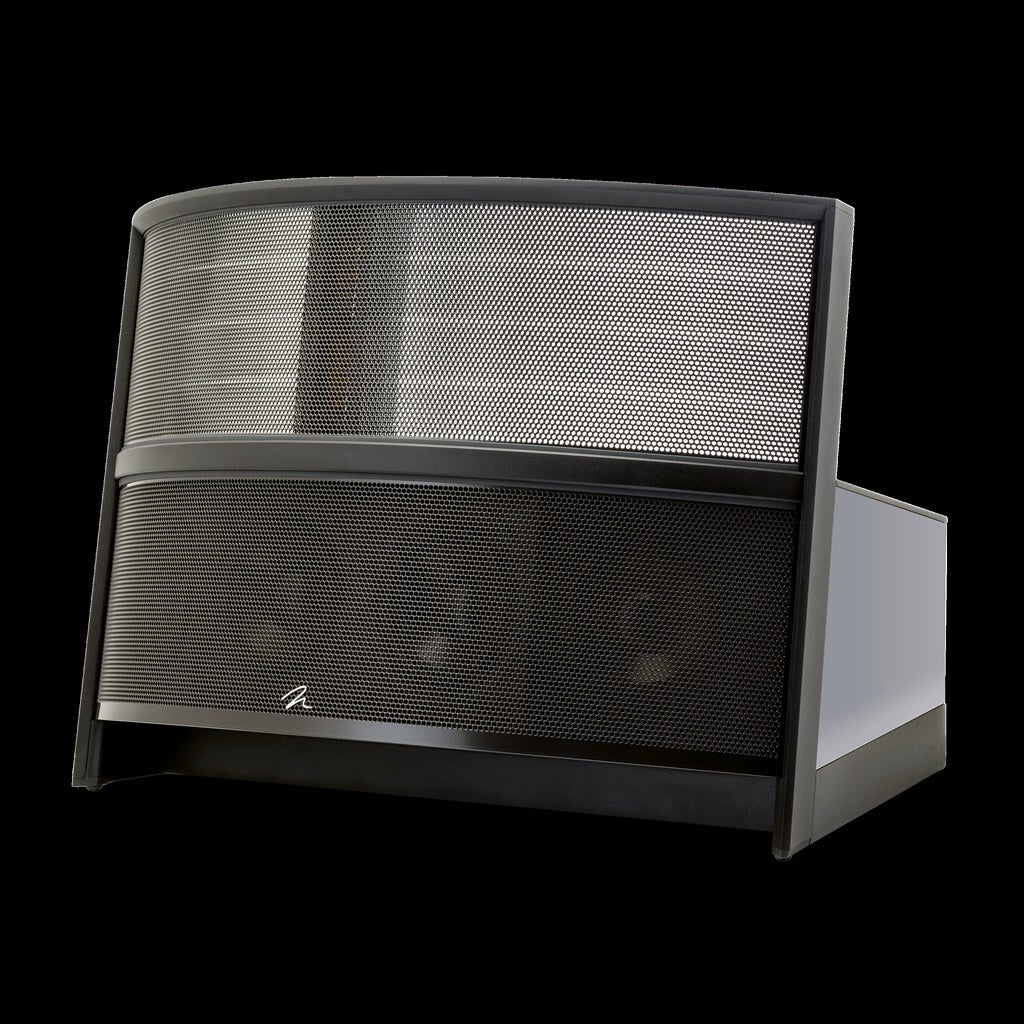

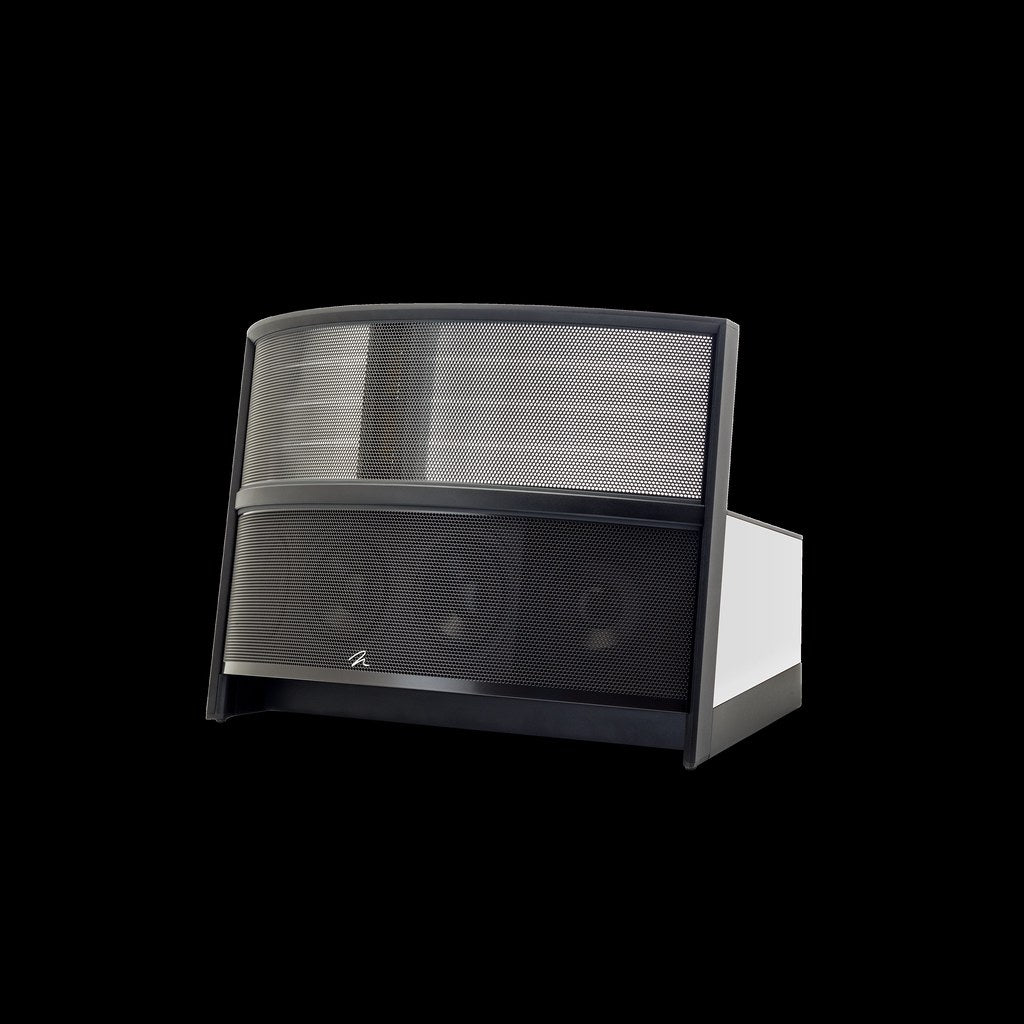

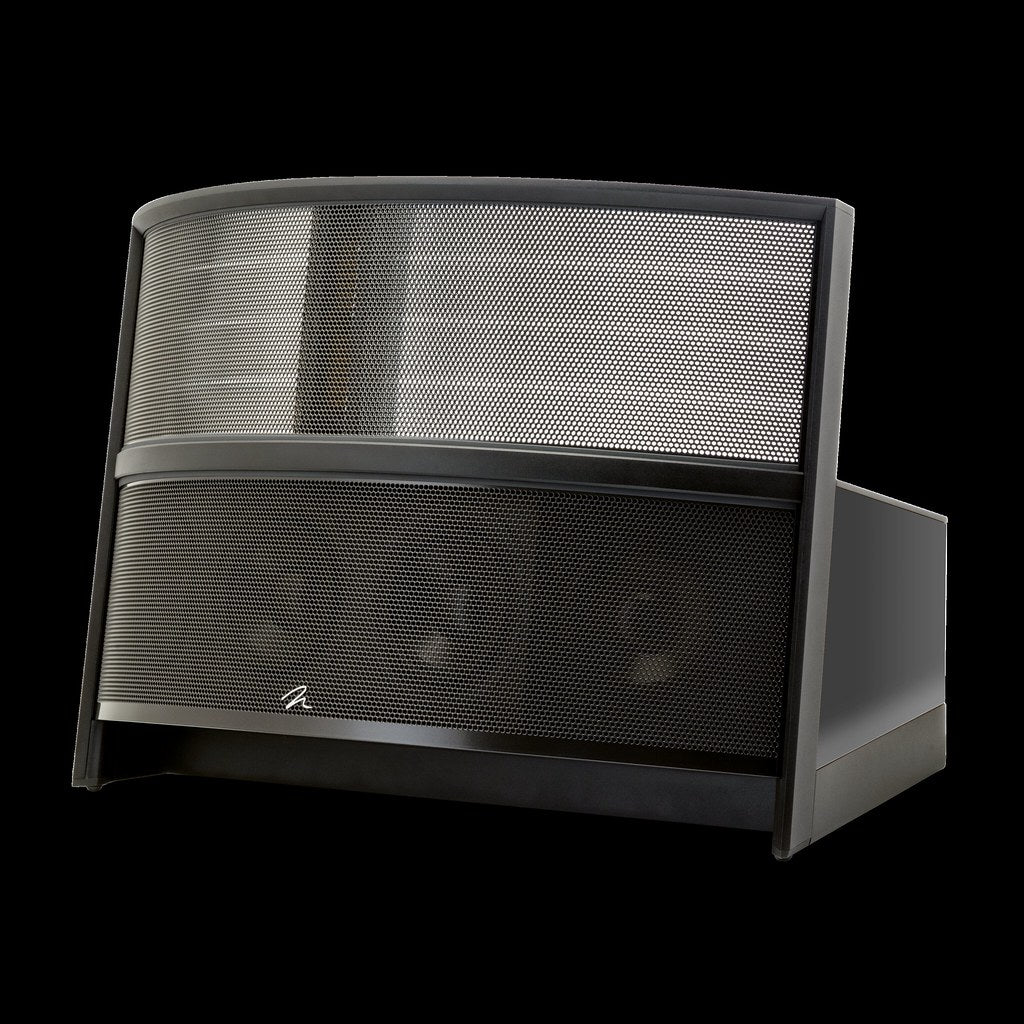

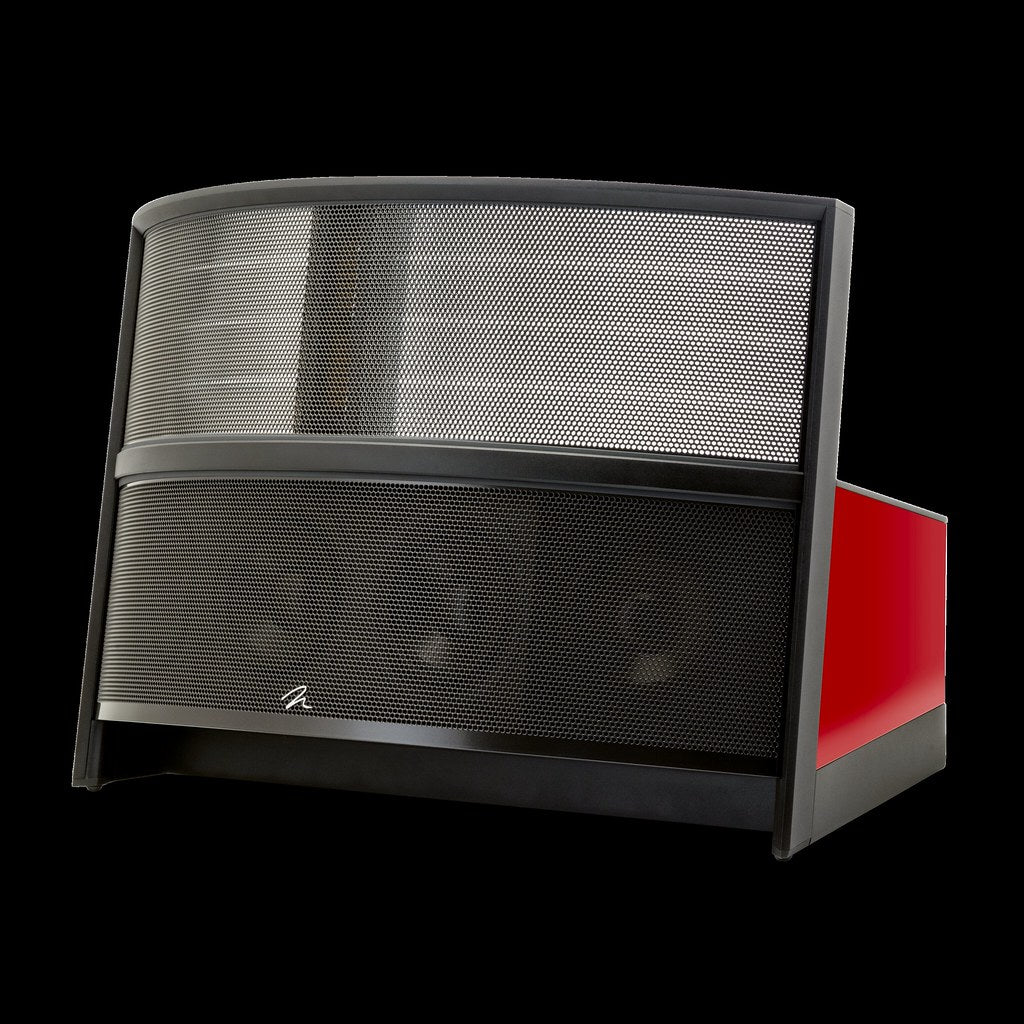

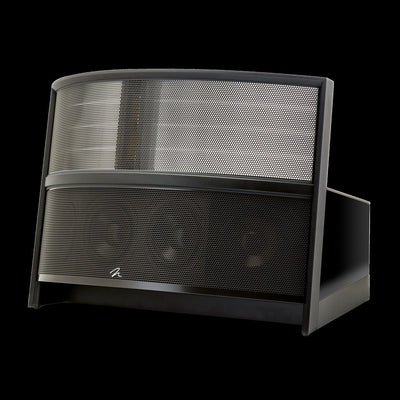

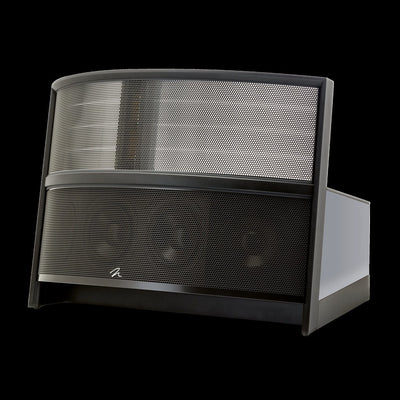

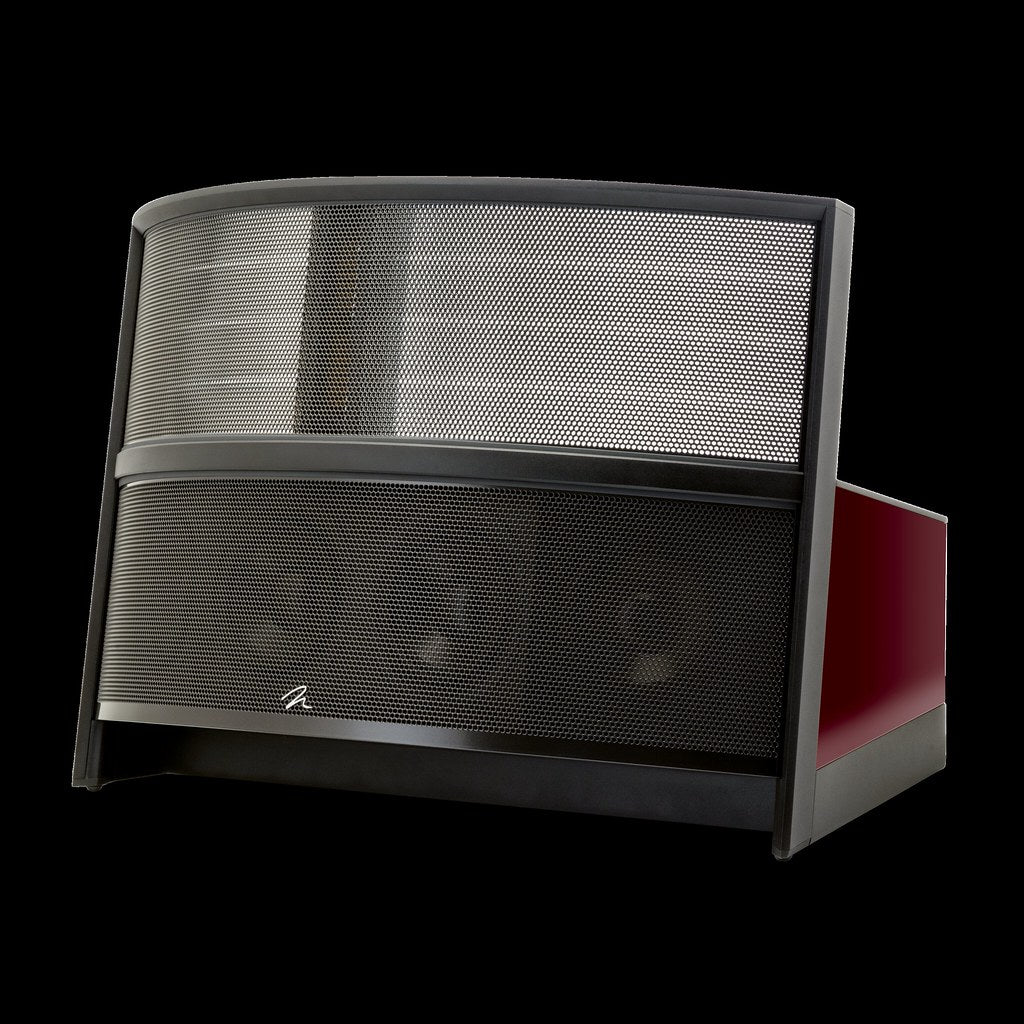

The MartinLogan Illusion ESL C34A is the flagship center channel of the Masterpiece Series, combining a 34.5 × 8-inch XStat CLS electrostatic transducer, dual Folded Motion XT tweeters, and four powered 6.5-inch aluminum-cone woofers. A built-in 250-watt Class D amplifier, 24-bit Vojtko DSP, PoweredForce bass technology, and Anthem Room Correction give the C34A the scale and control required for reference-level home theater. MartinLogan, Ltd.

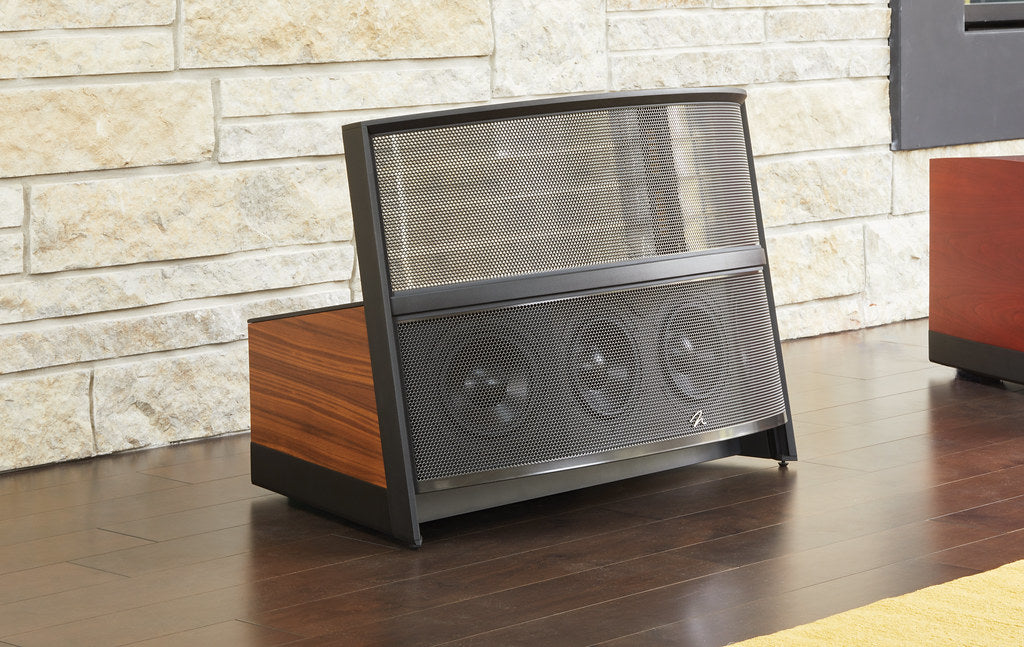

Unlike a conventional horizontal center speaker, the Illusion ESL C34A is a substantial floorstanding center channel, engineered to reproduce dialogue, effects, music, and the critical center portion of the front soundstage while remaining timbre-matched to MartinLogan Masterpiece Series electrostatic loudspeakers. MartinLogan, Ltd.
XStat CLS Electrostatic Midrange
The Illusion ESL C34A uses MartinLogan's XStat Curvilinear Line Source electrostatic transducer as its midrange driver. The panel measures 34.5 inches wide × 8 inches high, providing the low-mass diaphragm and controlled radiation fundamental to MartinLogan's electrostatic designs. MartinLogan, Ltd.

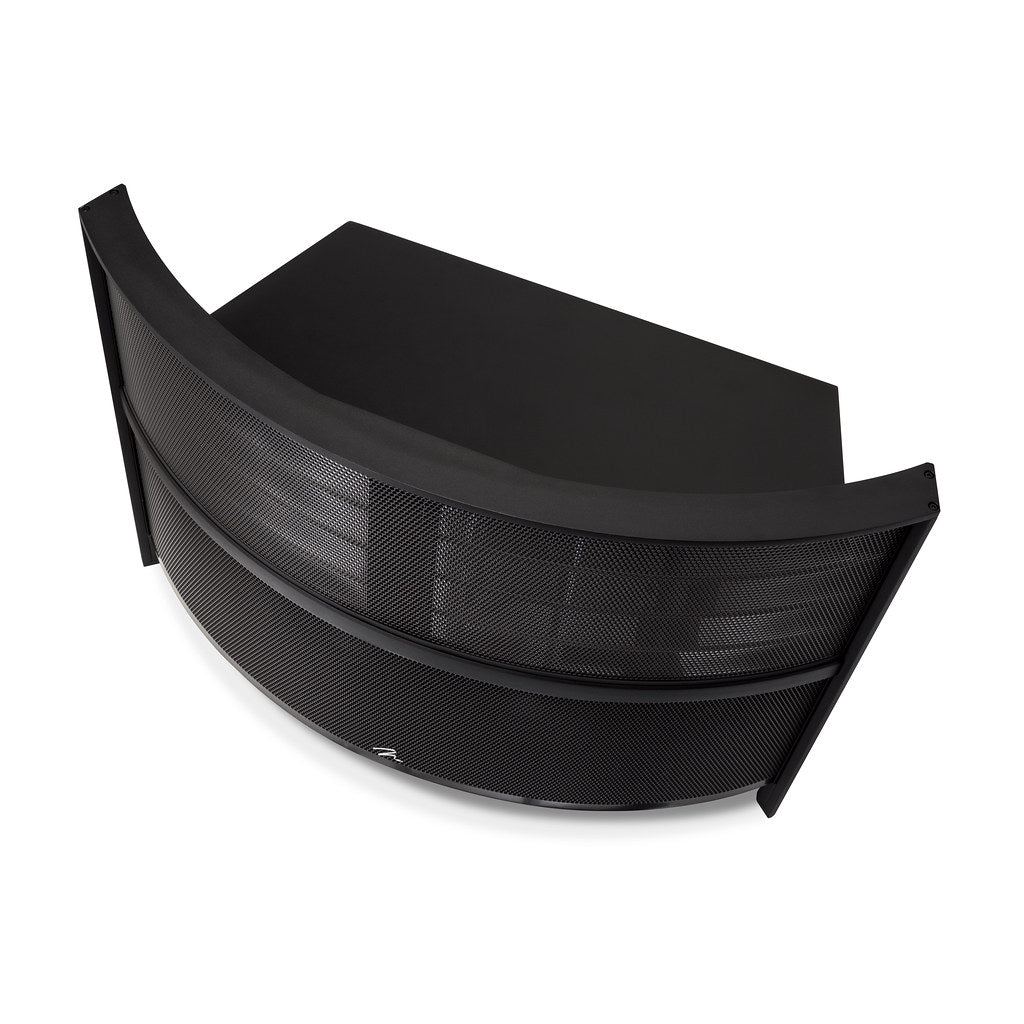

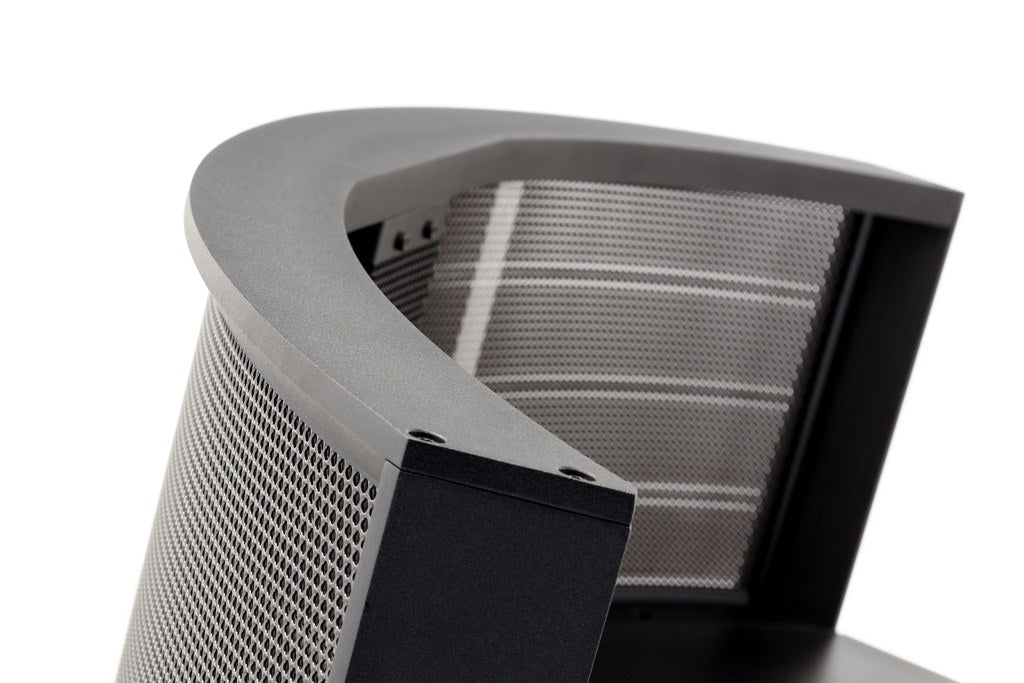

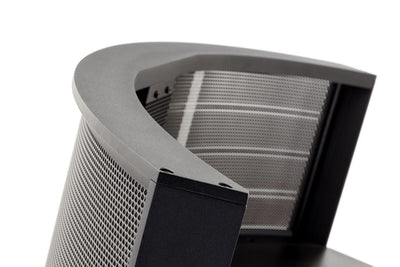

Its CLS curvature provides 30° horizontal dispersion, while MicroPerf stator construction maximizes exposed diaphragm area. The panel is supported by MartinLogan's rigid aluminum AirFrame Blade, minimizing structural obstruction and resonance. MartinLogan, Ltd.
Dual Folded Motion XT Tweeters
Because a center channel requires broader high-frequency coverage than a conventional vertically oriented electrostatic speaker, MartinLogan pairs the XStat panel with two 1.25 × 2.4-inch Folded Motion XT tweeters positioned behind the electrostatic panel. MartinLogan, Ltd.
Their folded, low-mass diaphragms require substantially less excursion than conventional dome tweeters. Positioning them behind the XStat panel also minimizes high-frequency diffraction while improving phase coherence and time alignment between the midrange and treble sections. MartinLogan, Ltd.
Four 6.5-Inch Powered Aluminum Woofers
Low frequencies are reproduced by four 6.5-inch cast-basket, high-excursion aluminum-cone woofers arranged in non-resonant asymmetrical chambers.
MartinLogan's PoweredForce bass technology works with the woofer arrangement to reduce undesirable room interaction and maintain controlled bass reproduction. The complete C34A is specified from 45 Hz to 23 kHz ±3 dB. MartinLogan, Ltd.
250-Watt Amplification & 24-Bit Vojtko DSP
The four woofers are powered by an integrated 250-watt Class D amplifier with 500-watt peak capability. A 24-bit Vojtko DSP engine controls the active bass section, including low-pass filtering, woofer equalization, and limiting. MartinLogan, Ltd.
This active architecture allows MartinLogan to optimize the bass system independently while the connected home-theater amplifier drives the electrostatic and Folded Motion XT sections.
Anthem Room Correction
The Illusion ESL C34A is Anthem Room Correction (ARC) ready, allowing its powered bass section to be calibrated for the room.
ARC measures low-frequency behavior at the listening position and applies correction to the active woofer system, addressing room-induced peaks and cancellations without requiring digital processing of the electrostatic panel. An ARC or compatible PBK microphone kit is required and sold separately. MartinLogan, Ltd.
Manual adjustment is also provided for ±10 dB bass control below 75 Hz, –2/0/+2 dB mid-bass adjustment, and ARC on/off. MartinLogan, Ltd.
Vojtko Crossover & WBT nextgen Connections
MartinLogan's advanced Vojtko crossover integrates three distinct transducer systems—the electrostatic panel, Folded Motion XT tweeters, and powered aluminum woofers—at 500 Hz and 2,000 Hz.

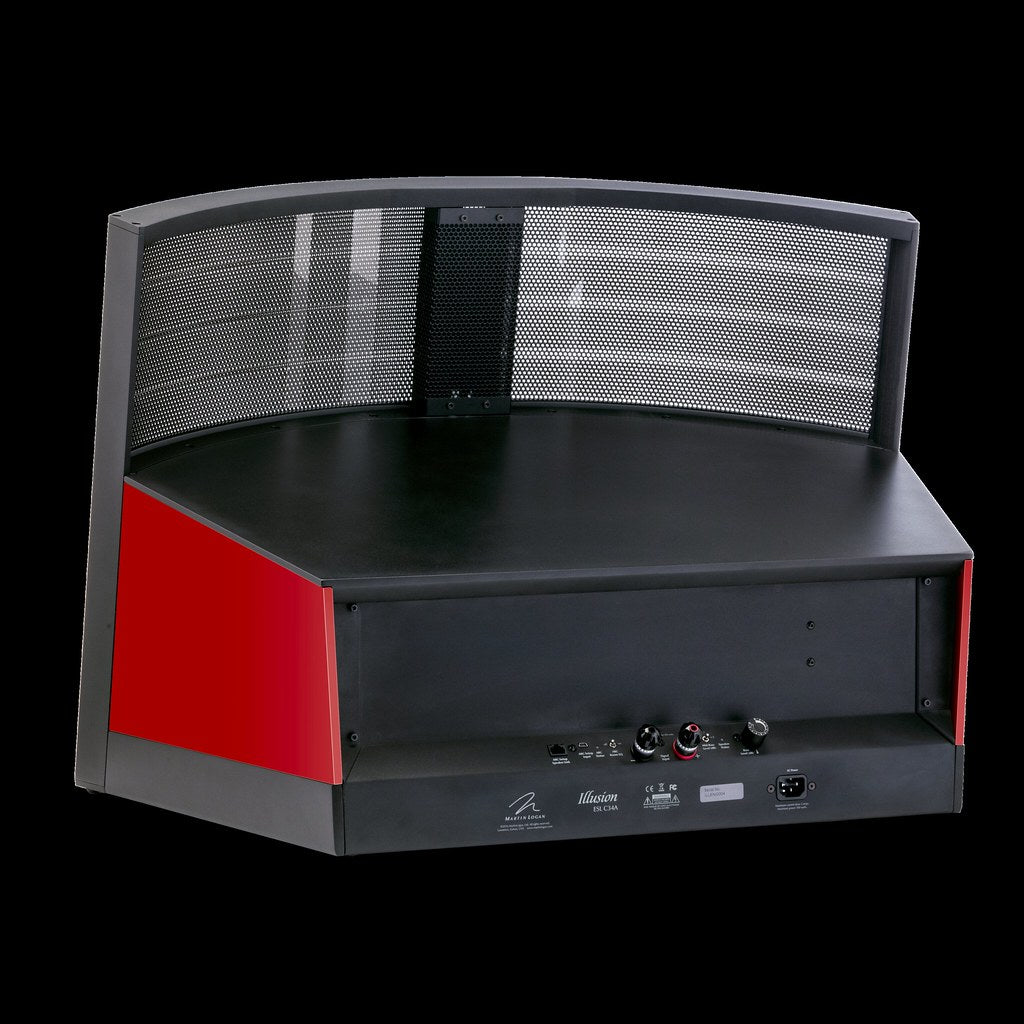

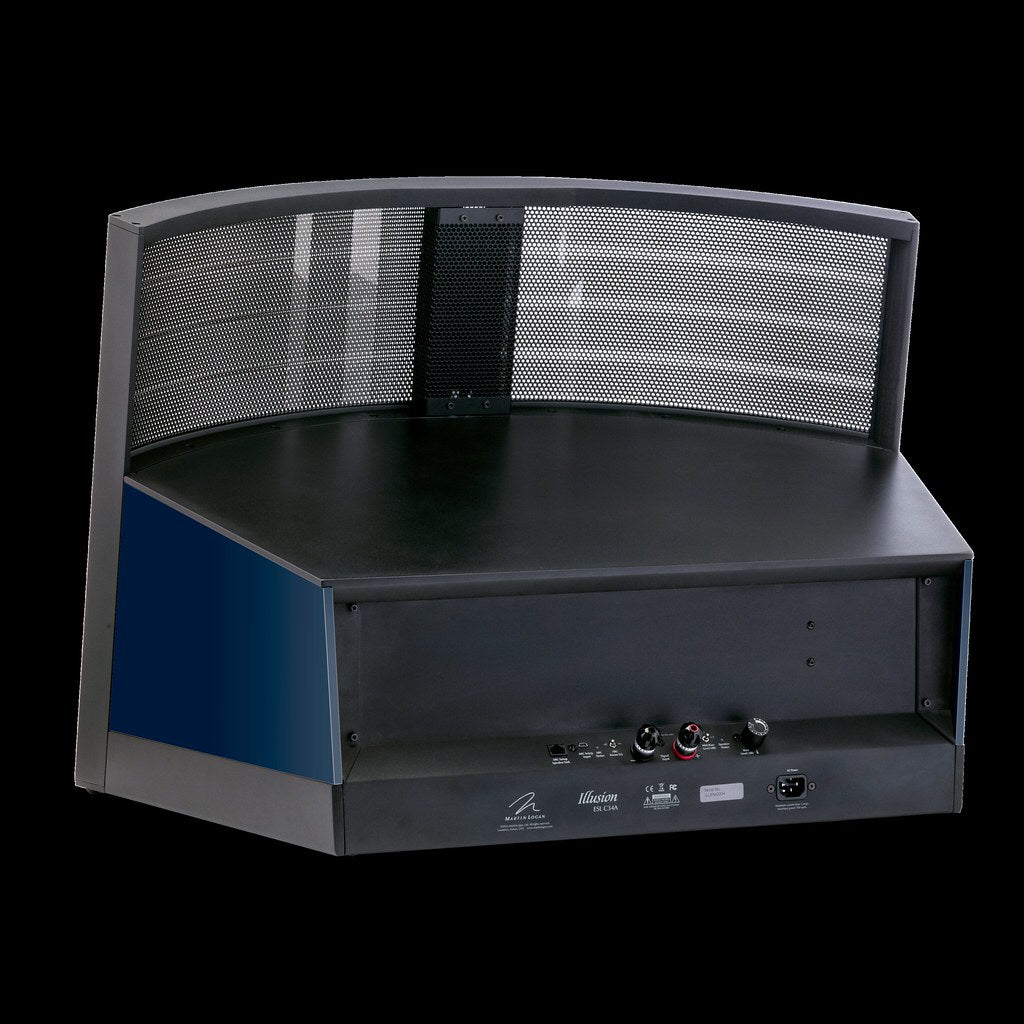

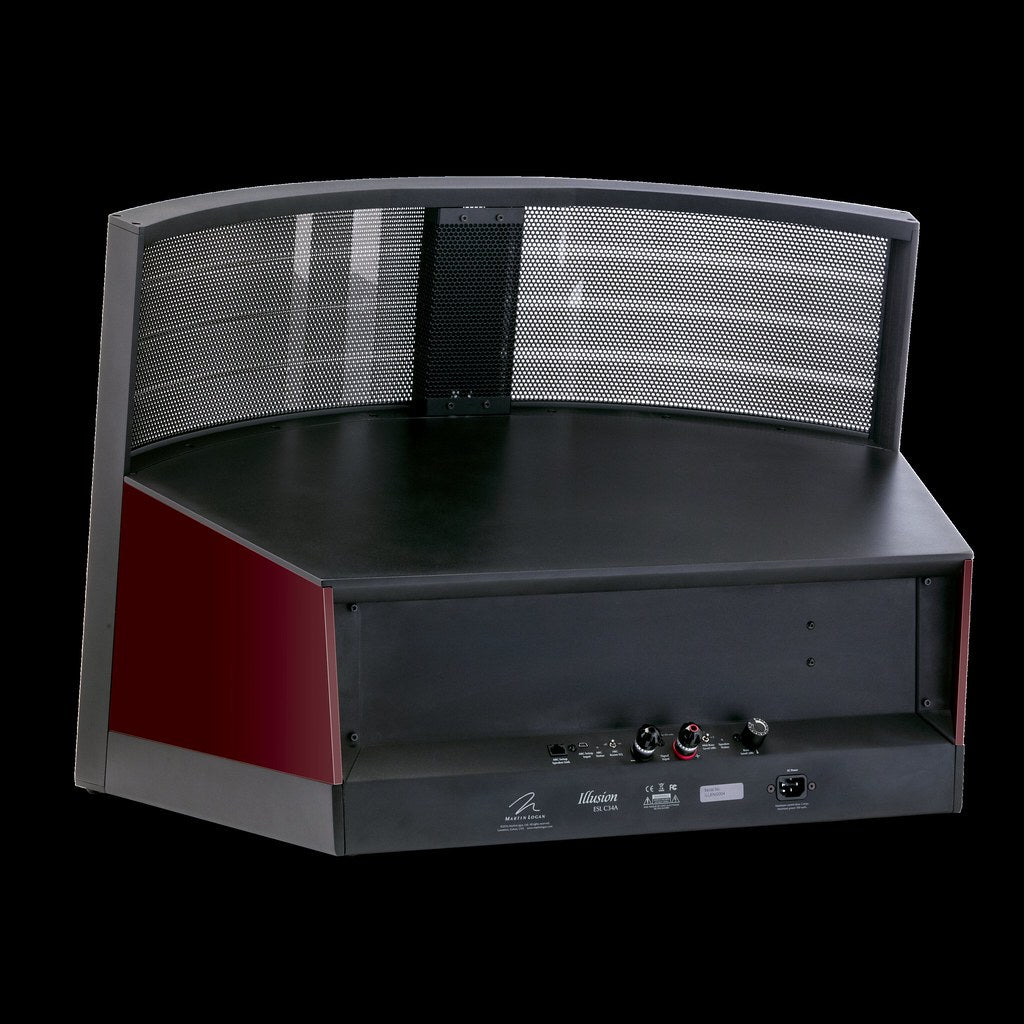

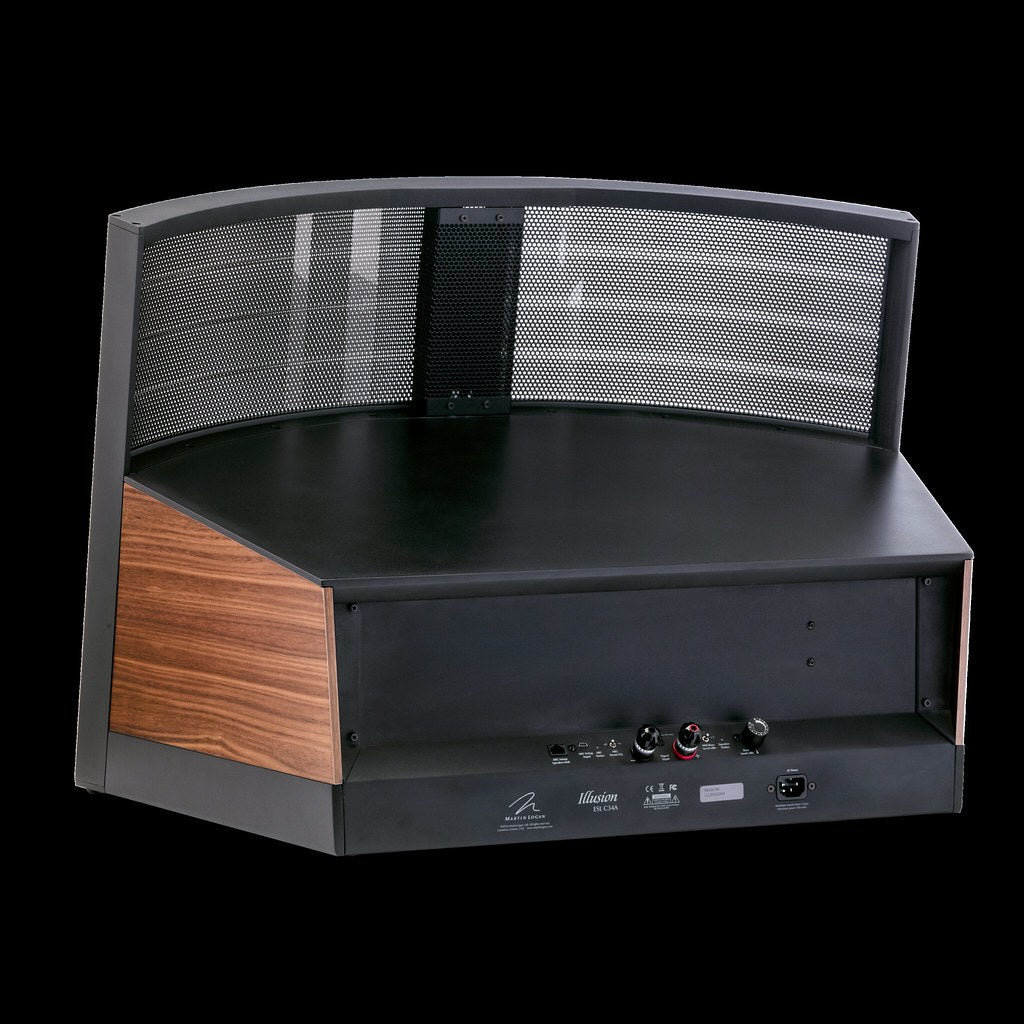

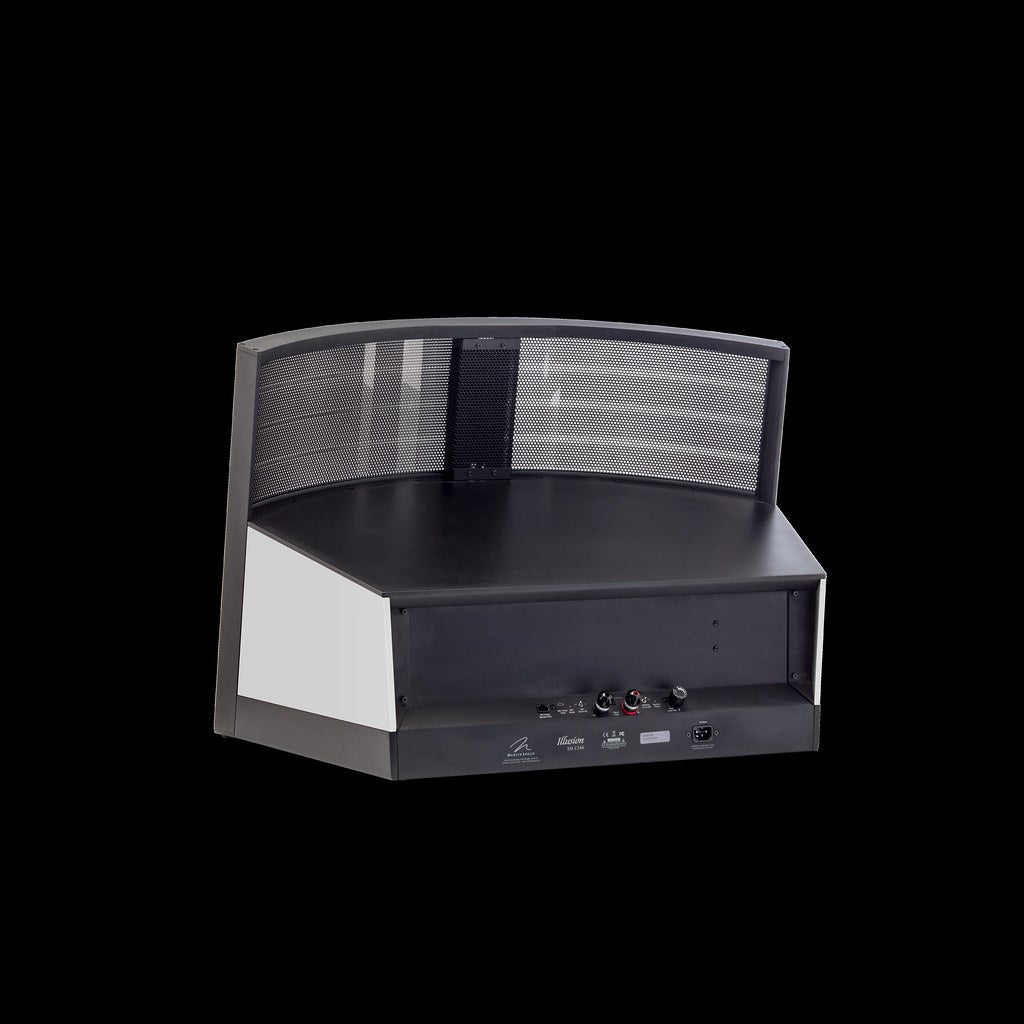

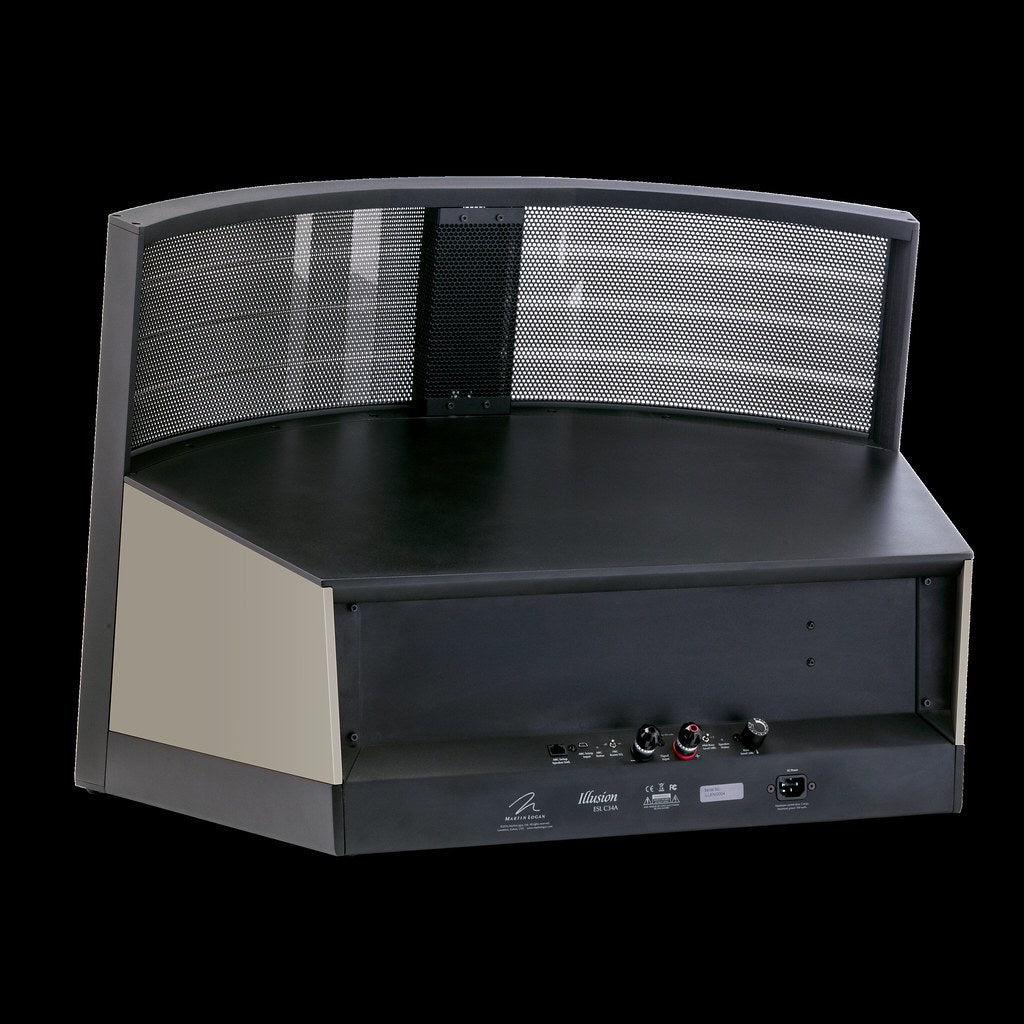

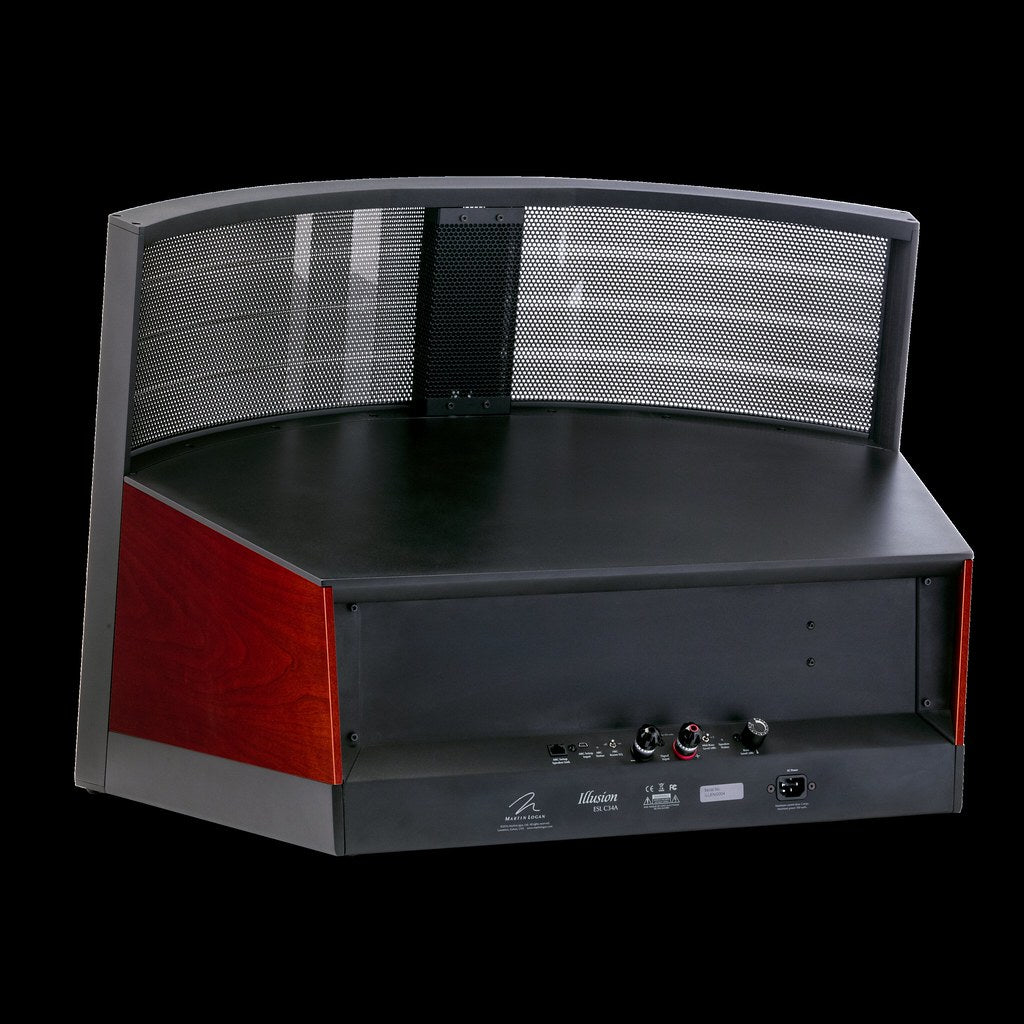

The network incorporates a custom-wound audio transformer, air-core inductors, polypropylene capacitors, and DSP-based active bass electronics. Signal connection is through premium WBT-0703Cu nextgen 5-way binding posts using gold-plated, nickel-free, non-ferromagnetic pure-copper conductors. MartinLogan, Ltd.
Designed for Masterpiece Series Home Theater

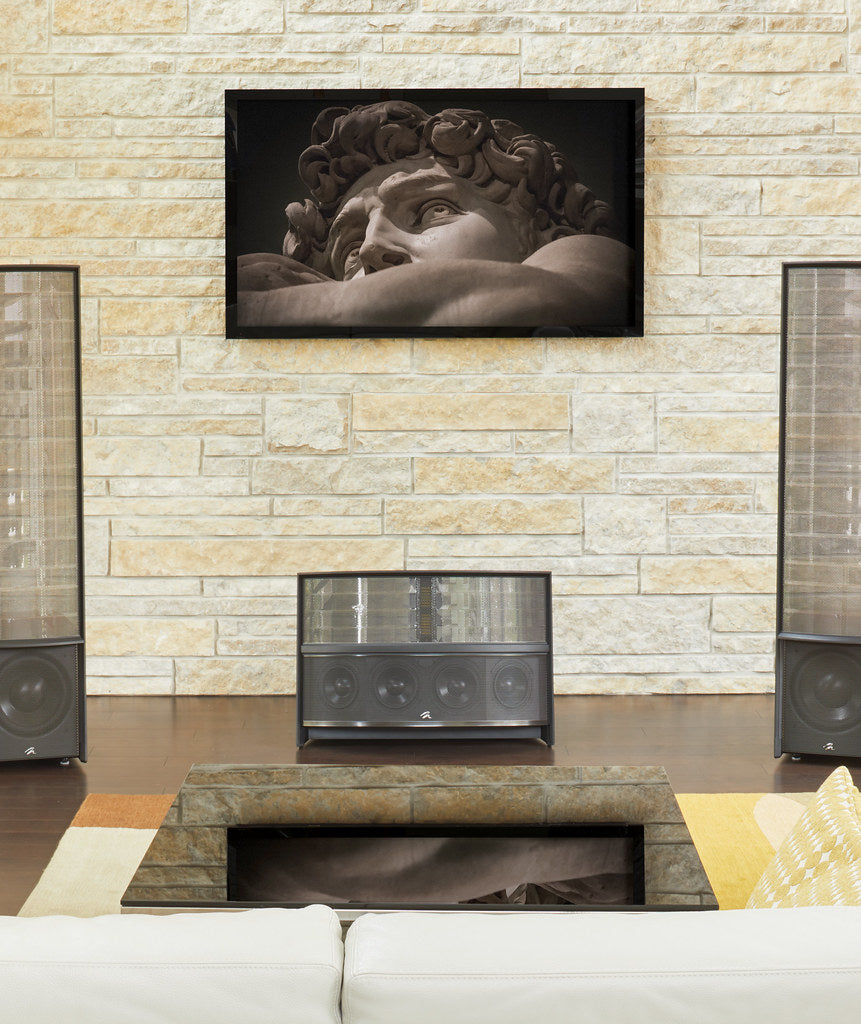

The Illusion ESL C34A is specifically timbre-matched to MartinLogan Masterpiece Series loudspeakers, making it the natural center channel for systems built around the Renaissance ESL 15A, Expression ESL 13A, Impression ESL 11A, or Classic ESL 9. MartinLogan, Ltd.
Its electrostatic midrange is particularly important for maintaining tonal continuity as voices and effects move across an electrostatic front soundstage, while the Folded Motion XT tweeters provide the wider high-frequency dispersion required across multiple theater seats.
Technical Details
| Specification | MartinLogan Illusion ESL C34A |
|---|---|
| Series | Masterpiece Series |
| Type | Powered Hybrid Electrostatic Center Channel Loudspeaker |
| Frequency Response | 45 Hz–23 kHz ±3 dB |
| Midrange Transducer | XStat CLS Electrostatic |
| Panel Dimensions | 34.5 × 8 in / 87.6 × 20.3 cm |
| Horizontal Dispersion | 30° |
| High-Frequency Drivers | 2 × 1.25 × 2.4 in Folded Motion XT |
| Tweeter Diaphragm Area | 4.5 × 2.75 in each |
| Bass Drivers | 4 × 6.5 in / 16.5 cm |
| Woofer Construction | Cast-basket, high-excursion aluminum cone |
| Bass Technology | PoweredForce |
| Internal Amplification | 250 W Class D |
| Peak Amplification | 500 W |
| Bass Processing | 24-bit Vojtko DSP |
| Crossover Frequencies | 500 Hz / 2,000 Hz |
| Room Correction | Anthem Room Correction Ready |
| Bass Adjustment | ±10 dB below 75 Hz |
| Mid-Bass Adjustment | –2 / 0 / +2 dB |
| Sensitivity | 90 dB / 2.83 V / 1 m |
| Nominal Impedance | 6 Ω |
| Recommended Amplification | 20–600 W/channel |
| Binding Posts | WBT-0703Cu nextgen 5-way |
| ARC Connections | RJ45 / Mini USB |
| Maximum Power Draw | 300 W |
| Standby Power | <1 W |
| Dimensions (H × W × D) | 23.75 × 32.35 × 23.1 in |
| Weight | 90 lb / 40.9 kg |
MartinLogan's current product page specifies 20–600 watts per channel, while its downloadable manual lists 50–600 watts per channel at 6 ohms. For the Shopify listing, I would use the current manufacturer's web specification of 20–600 watts/channel. MartinLogan, Ltd.
One other manufacturer discrepancy is worth avoiding: MartinLogan's current web specifications state 276 in² of electrostatic radiating area, while the downloadable manual and Masterpiece brochure state 256 in². Rather than introduce questionable data into the listing, I would omit the radiating-area figure and retain the verified 34.5 × 8-inch panel dimensions. MartinLogan, Ltd.
MartinLogan Illusion ESL C34A at The Grid HiFi
The Grid HiFi in Houston specializes in MartinLogan electrostatic loudspeakers and reference-level private cinema systems.
A center channel of this caliber deserves to be treated as part of the complete front soundstage. The Grid can match the Illusion ESL C34A with Masterpiece Series mains, appropriate amplification and processing, optimize ARC and bass integration, and engineer the complete theater around speaker placement, acoustics, projection, seating, lighting, control, and system calibration.
Complimentary White Glove Delivery • Travel Reimbursement*
Qualifying purchasers may receive airfare reimbursement for a private audition.
Building a MartinLogan Masterpiece theater? Experience the Illusion ESL C34A properly before you decide. Call The Grid HiFi at (713) 218-8120 to arrange your private consultation.
*Restrictions apply. Contact us for details.
