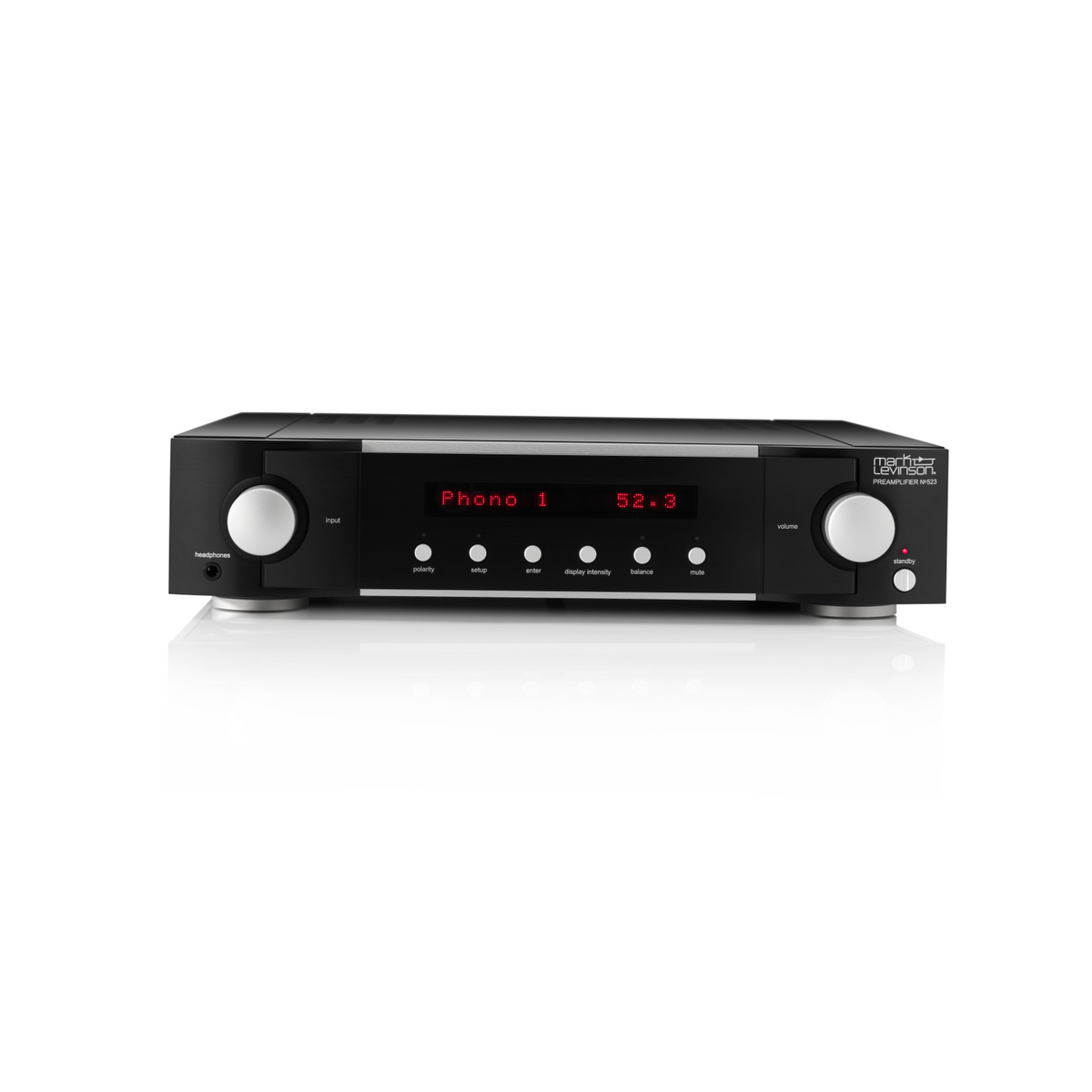

Mark Levinson Nº 523 – Dual-Monaural Analog Preamplifier with Pure Phono

Pure Analog. Nothing Between You and the Music.

For listeners who have carefully chosen their turntable, phono cartridge, DAC, and other source components, the preamplifier should preserve everything those components deliver.

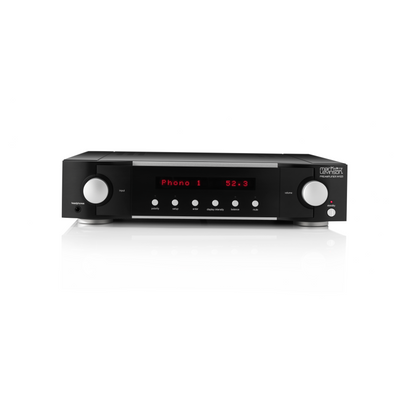

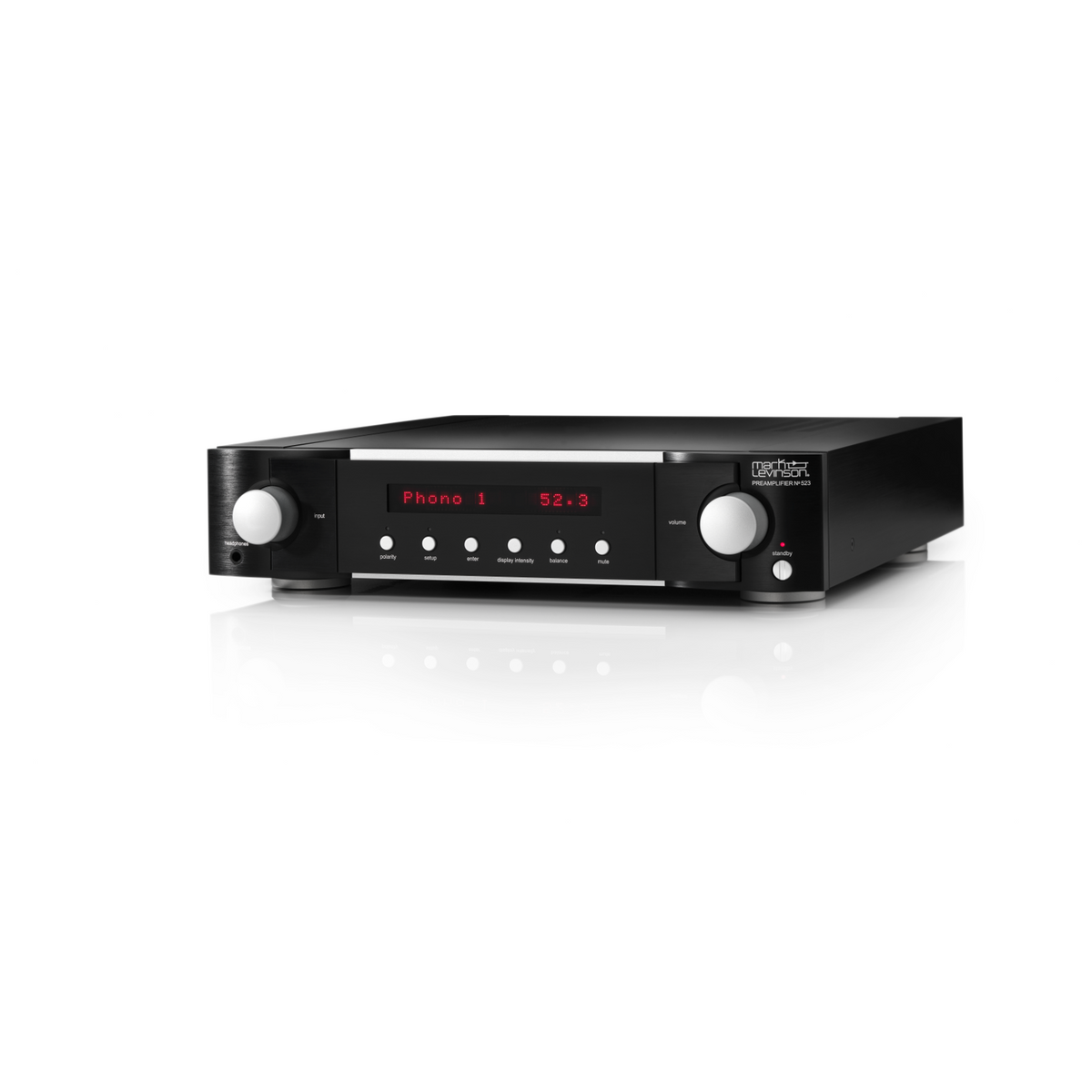

The Mark Levinson Nº 523 is a reference-class, fully analog preamplifier built around that philosophy. Its dual-monaural Pure Path circuitry provides a discrete, direct-coupled, fully balanced signal path designed to maintain the integrity of your music.

With six analog inputs, a sophisticated Class A Pure Phono stage, precision R-2R ladder volume control, and a dedicated Class A headphone output, the Nº 523 brings exceptional versatility to a purist two-channel system.

Designed and handcrafted in the United States, it combines traditional high-end audio engineering with the flexibility required for a modern reference listening room.



Key Features

• Dual-Monaural Pure Path Circuitry: Fully discrete, direct-coupled, balanced analog signal architecture.

• Six Analog Inputs: Two balanced XLR, three RCA line-level, and one dedicated phono input.

• Class A Pure Phono Stage: Supports both moving-magnet and moving-coil cartridges.

• Adjustable Cartridge Loading: Optimize the phono stage for your cartridge's electrical requirements.

• R-2R Ladder Volume Control: Discrete, balanced attenuation for precise volume adjustment.

• Class A Main Drive Headphone Output: Dedicated front-panel connection for private listening.

• Balanced and Unbalanced Outputs: Connect compatible stereo power amplifiers through XLR or RCA.

• Subwoofer Integration: Selectable fourth-order, 80Hz high-pass filter.

• Home Theater Integration: SSP mode allows use with a compatible surround processor.

• Custom Installation Ready: Ethernet, RS-232, IR, USB service connections, and 12V triggers.

• Premium Construction: Precision aluminum chassis and machined-metal remote.

• American Craftsmanship: Designed and handcrafted in the USA.



Pure Path: A Direct Connection to Your Music

Every component in an audio signal path has the potential to influence the final sound.

The Nº 523 uses Mark Levinson's proprietary Pure Path circuit architecture to preserve the musical information delivered by your source components.

Its fully discrete, direct-coupled, balanced dual-monaural design maintains separate left- and right-channel signal paths while avoiding unnecessary circuitry.

The architecture incorporates folded-cascode gain stages and carefully selected components chosen for their electrical performance.

The result is a preamplifier engineered for low distortion, wide bandwidth, and precise reproduction of the original signal.

Whether you're listening to a favorite record or feeding the Nº 523 from a reference DAC, its purpose remains the same: preserve the detail, dynamics, and spatial information already present in the recording.

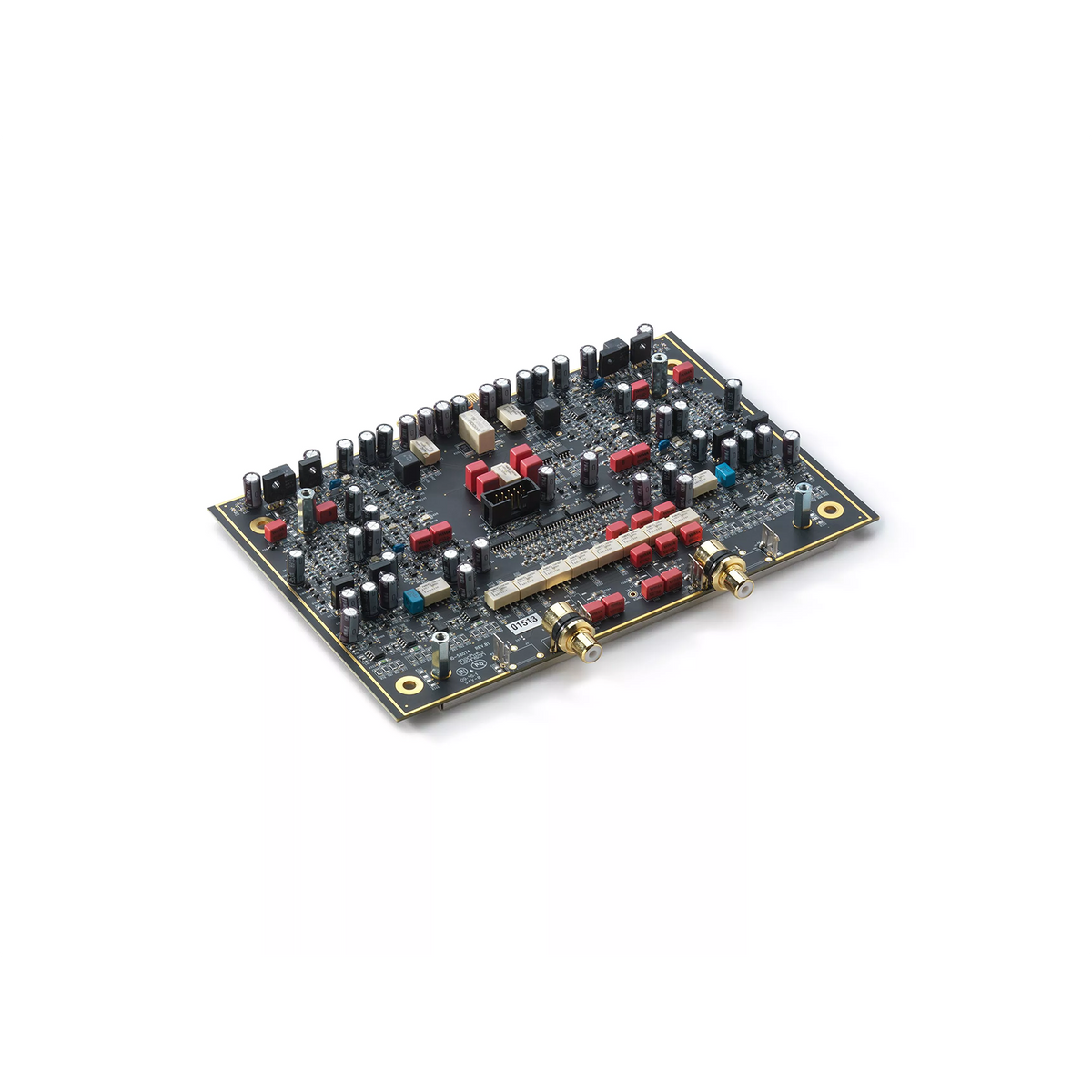

Pure Phono: Built for Serious Vinyl Listening

The Nº 523's built-in Pure Phono stage is a substantial part of its design, not an afterthought.

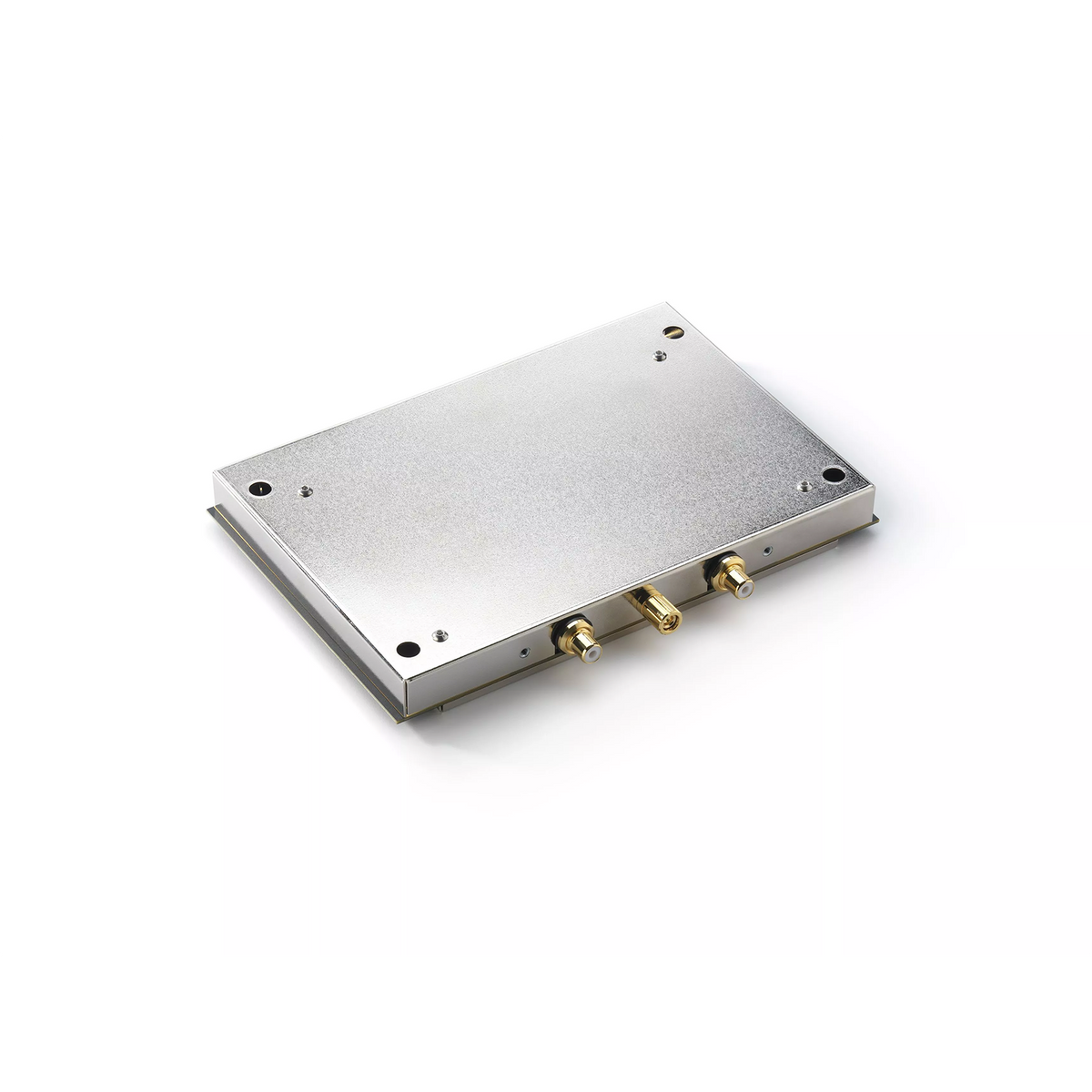

Housed in its own steel enclosure to help reduce noise, the phono circuitry uses discrete Class A amplification with physically separated channels.

It supports both moving-magnet and moving-coil cartridges, with adjustable settings that allow you to tailor its electrical characteristics to your turntable system.

Moving-Magnet Cartridge Support

The MM stage provides 40dB of gain with a standard 47kΩ input resistance.

Five selectable capacitance settings—50, 100, 150, 200, and 680pF—allow you to optimize loading for compatible cartridges.

Moving-Coil Cartridge Support

For MC cartridges, the Nº 523 provides selectable gain settings of 50, 60, or 70dB.

Ten resistance settings, ranging from 20Ω to 47kΩ, offer additional flexibility when matching cartridges with different electrical requirements.

A defeatable 15Hz infrasonic filter helps manage unwanted low-frequency energy associated with record warps and turntable rumble.

For vinyl enthusiasts, this level of adjustment makes the Nº 523 a versatile foundation for a serious analog playback system.



Precision R-2R Ladder Volume Control

Volume control is one of the most important functions of any preamplifier.

The Nº 523 employs a discrete, balanced R-2R ladder volume control rather than a conventional potentiometer.

This architecture uses precision resistor networks and electronic switching to provide consistent attenuation and accurate channel balance.

The design is intended to preserve signal integrity throughout the listening range, from quiet late-night sessions to more demanding playback levels.

For listeners investing in carefully matched source components and amplification, this attention to volume control is an important part of the Nº 523's engineering.

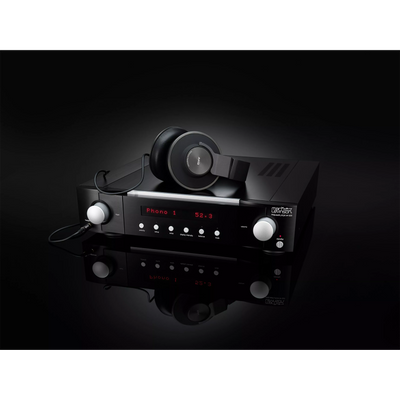

Class A Main Drive Headphone Amplification

A reference listening experience doesn't always require loudspeakers.

The Nº 523 incorporates Mark Levinson's Main Drive headphone circuitry, providing a dedicated Class A headphone output through a front-panel ¼-inch connection.

Rather than relying on an unrelated secondary audio path, Main Drive uses the preamplifier's primary output circuitry for headphone listening.

Selectable output impedance settings provide additional flexibility when pairing compatible headphones.

Whether you're enjoying a quiet listening session or exploring the details of a favorite recording, the Nº 523 brings its analog engineering philosophy to personal audio.

Six Analog Inputs. One Reference System.

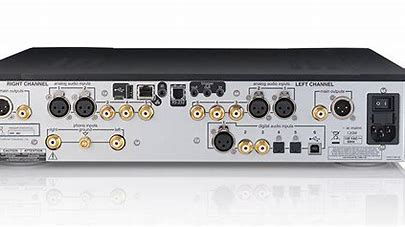

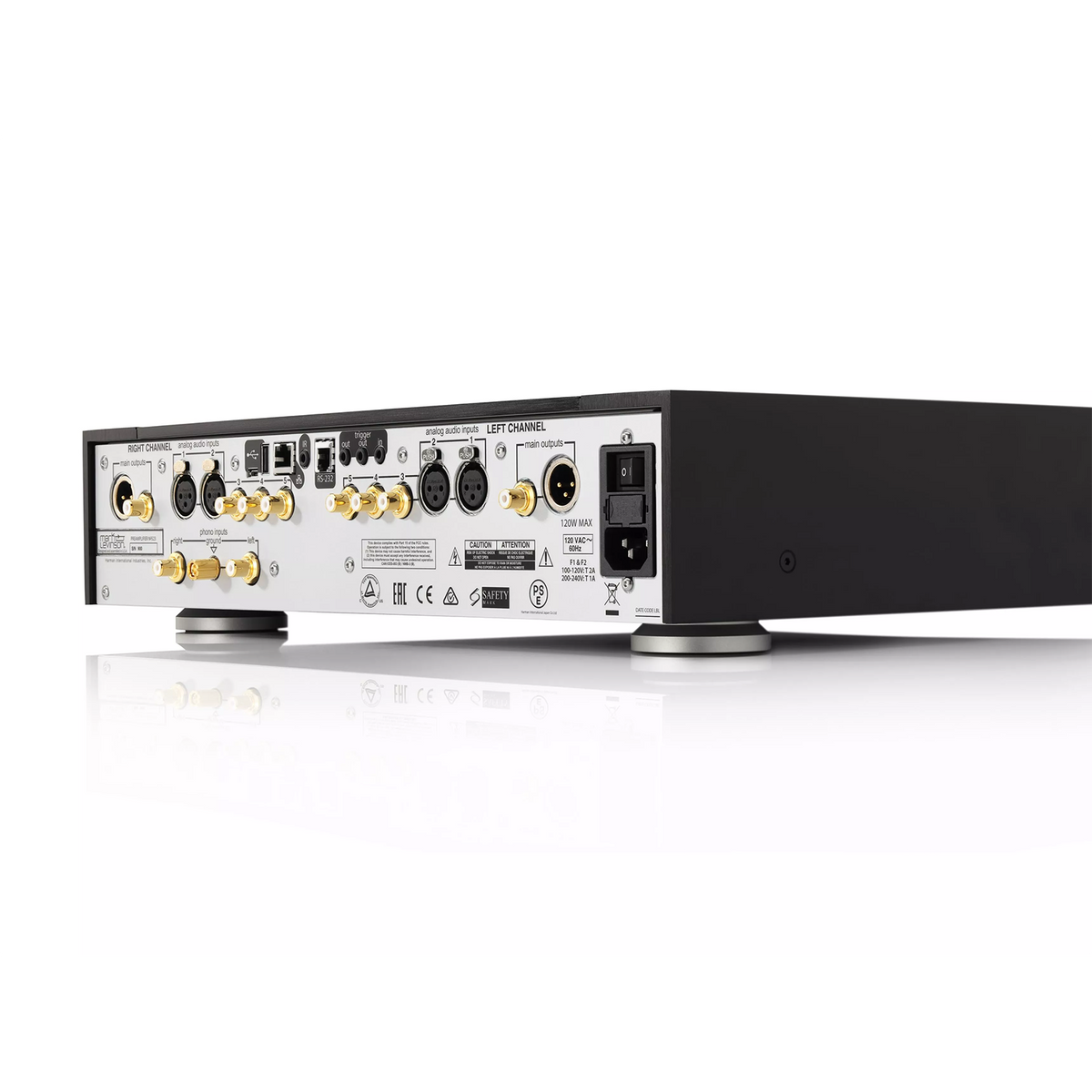

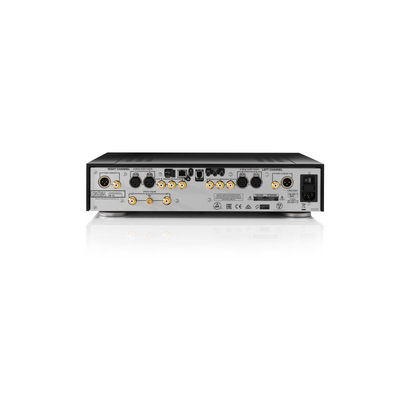

The Nº 523 provides the connectivity needed to bring multiple high-performance analog sources together.

Two balanced XLR inputs accommodate compatible balanced source components, while three RCA line-level inputs provide connections for conventional analog sources.

A dedicated phono input, complete with a grounding terminal, connects your turntable directly to the built-in Pure Phono stage.

This makes the Nº 523 an excellent control center for a system combining a turntable, external DAC, CD player, and other analog-output components.

Because the Nº 523 is analog-only, network streamers and digital transports must provide analog output or connect through an external DAC.

For listeners who prefer to select their own digital conversion components, this architecture keeps the preamplifier focused entirely on analog signal handling.



Integrate Subwoofers into Your Stereo System

A properly integrated subwoofer can extend a two-channel system's low-frequency performance while allowing the main loudspeakers to operate more comfortably.

The Nº 523 includes a selectable fourth-order, 80Hz high-pass filter for its main outputs.

This provides a useful tool when designing a stereo system with one or more separately configured subwoofers.

By reducing low-frequency demands on the main speakers, a high-pass filter can help improve system integration when used with appropriate subwoofer crossover settings and professional calibration.

For listening rooms where full-range performance is a priority, this feature provides additional flexibility without requiring a separate crossover component.

Reference Stereo and Home Theater, Together

A dedicated two-channel system doesn't have to be completely separate from your home theater.

The Nº 523 includes an SSP mode that provides unity-gain operation for integration with a compatible surround sound processor.

During movie playback, the surround processor controls the system's volume. For music listening, the Nº 523 resumes its role as the dedicated stereo preamplifier.

This approach allows a premium pair of front loudspeakers and their power amplifier to serve both a reference music system and a multichannel theater.

For homeowners combining serious two-channel listening with a dedicated cinema, this functionality can simplify the overall system design.

Designed for Professional Integration

The Nº 523 offers extensive control connectivity for custom-installed audio systems.

Ethernet/IP control, RS-232, infrared input, and programmable 12V triggers allow compatible control platforms to manage the preamplifier as part of a larger system.

USB service connections support monitoring and configuration.

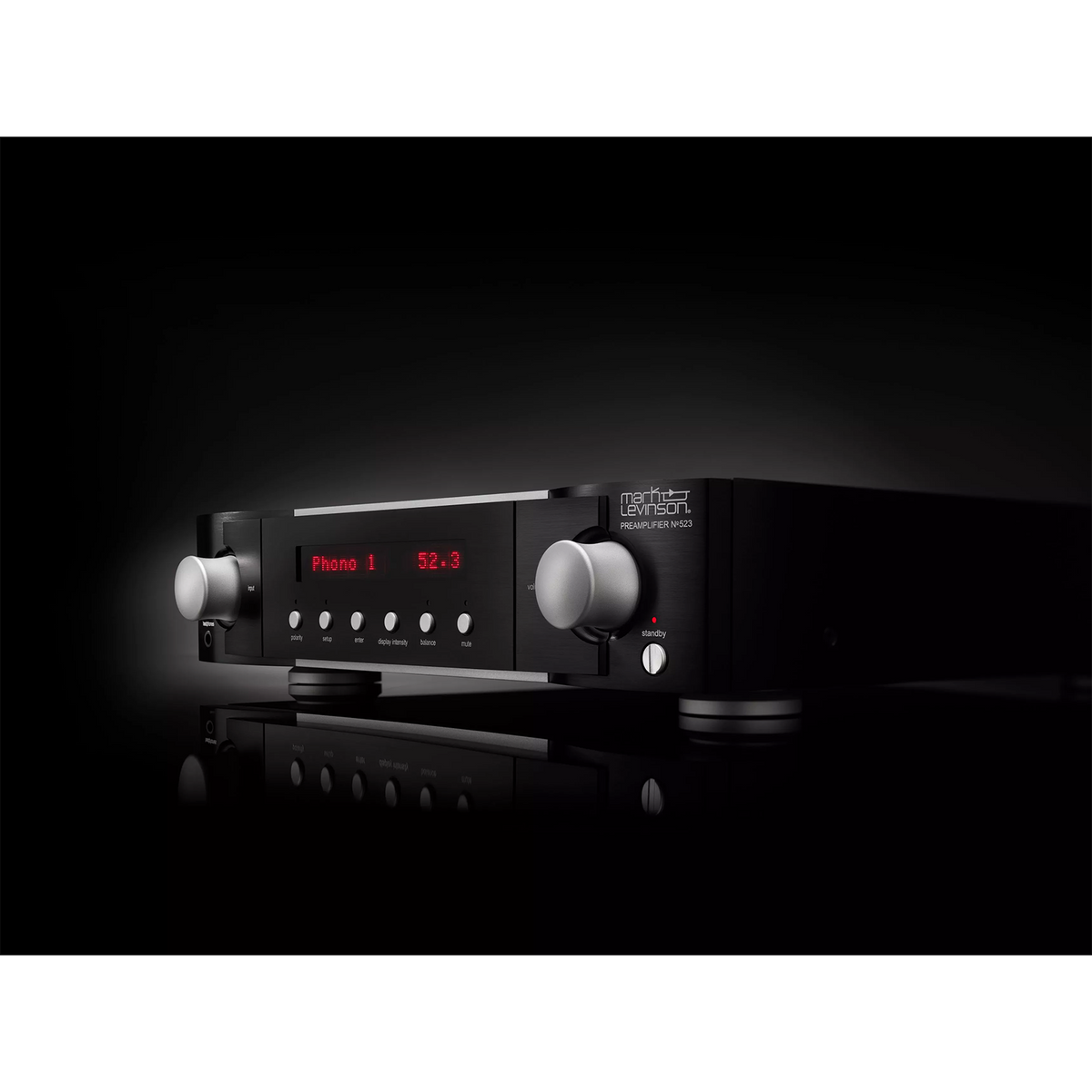

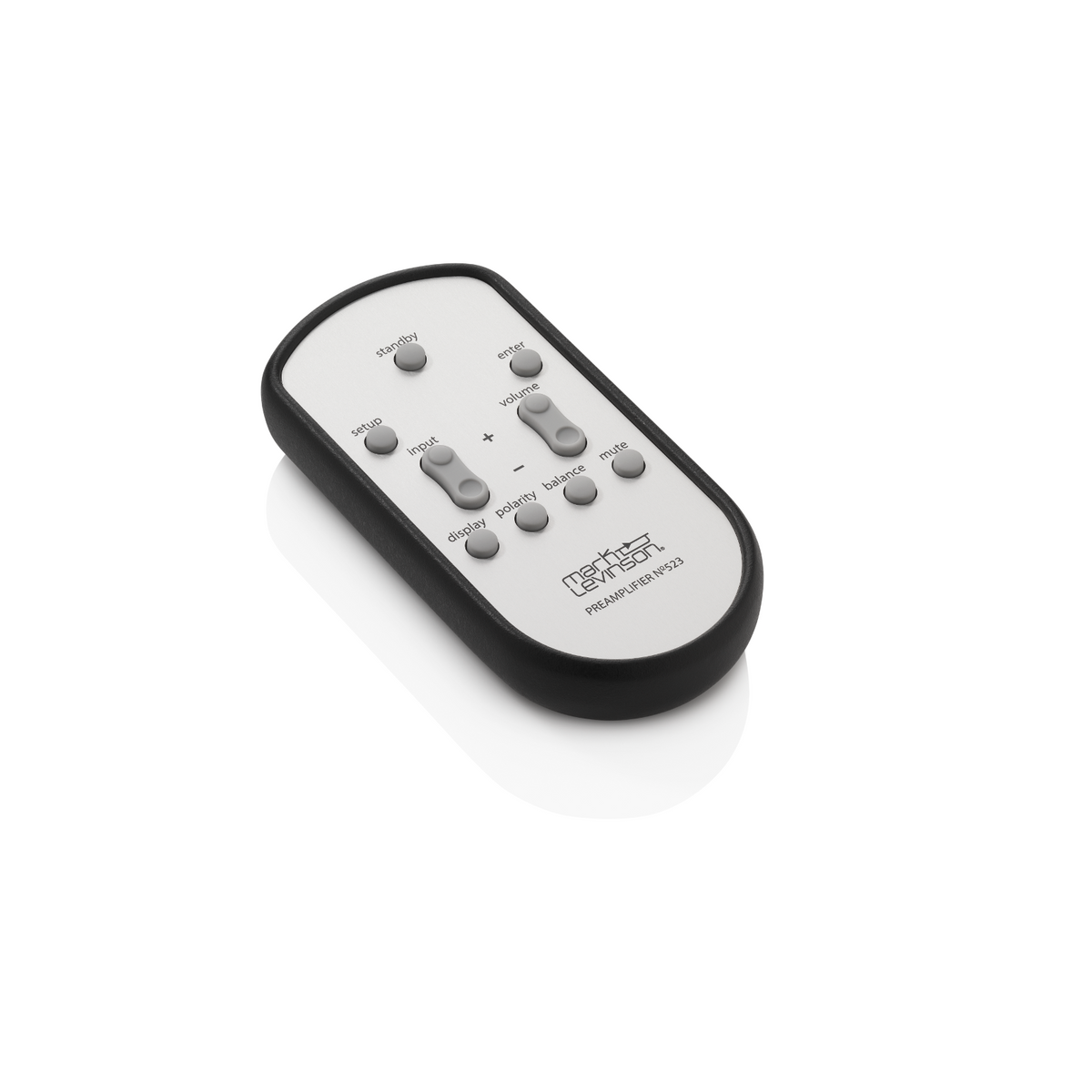

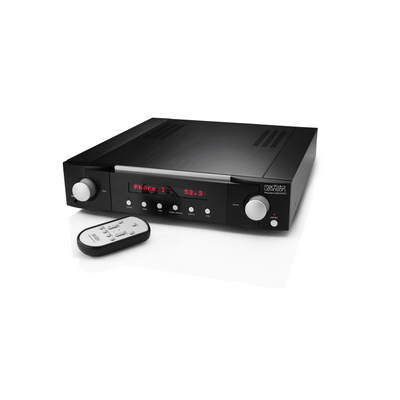

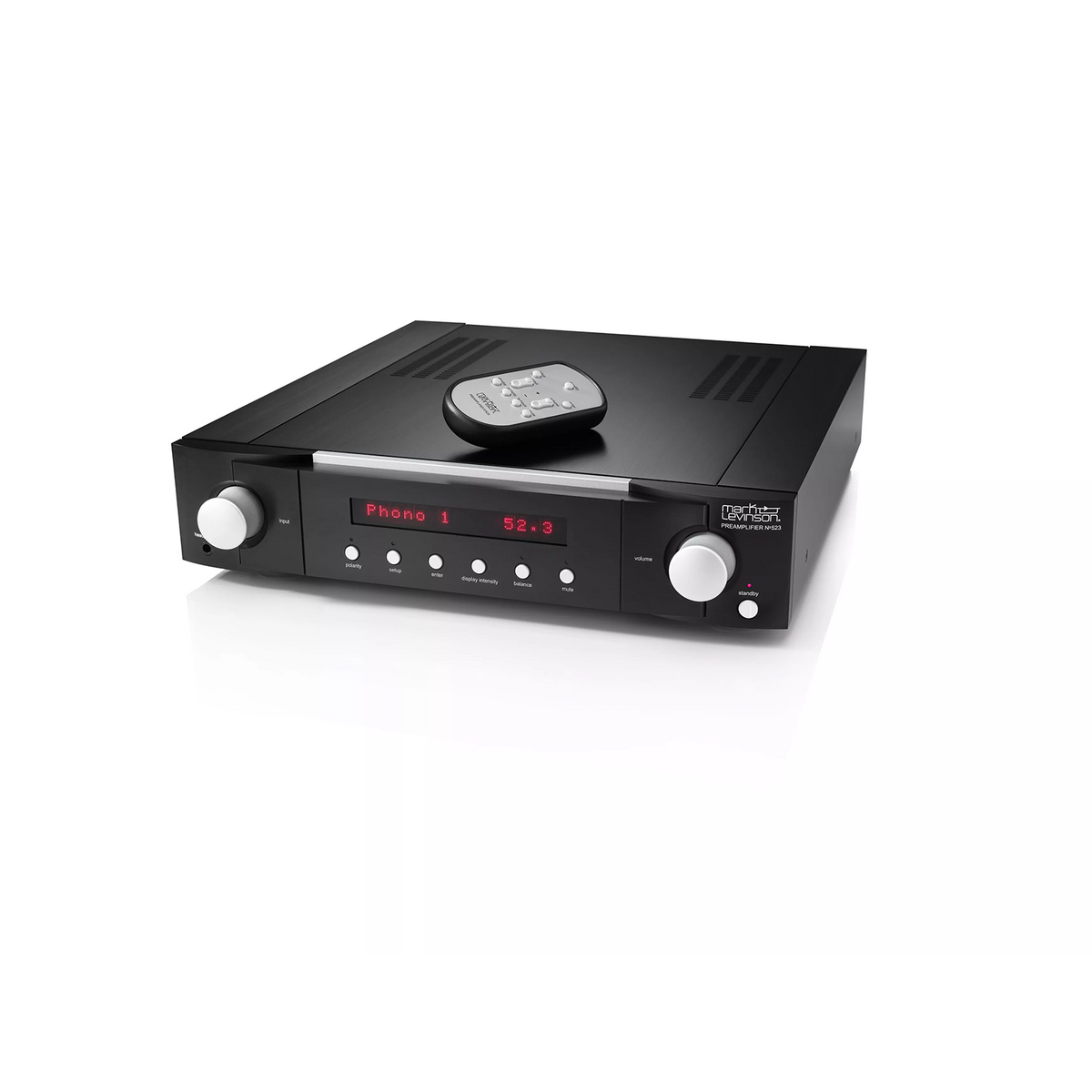

An included machined-metal remote provides tactile everyday control, while the precision aluminum chassis reflects the industrial design associated with Mark Levinson components.

The Nº 523 is designed and handcrafted in the United States, combining meticulous construction with practical integration flexibility.

Technical Specifications

Specifications follow Mark Levinson's published Nº 523 product page and dedicated brochure. The shared Nº 523/Nº 526 owner's manual lists different chassis dimensions and weight, so installation clearances should be confirmed against the physical unit before cabinetry or rack fabrication.

Experience Mark Levinson at The Grid HiFi

The Mark Levinson Nº 523 is designed for listeners who want a dedicated analog control center for a reference two-channel system.

At The Grid HiFi, we specialize in high-performance audio, premium loudspeaker matching, turntable and cartridge selection, power amplification, and professional installation.

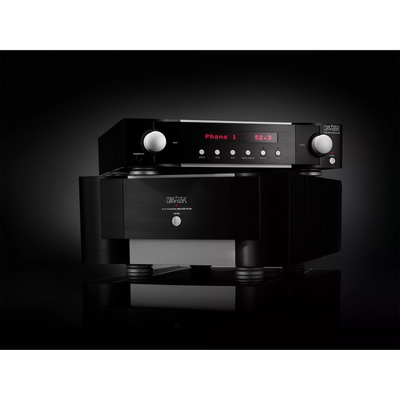

Whether you're pairing the Nº 523 with Mark Levinson monoblock amplifiers, connecting a reference DAC, or building a dedicated vinyl listening room, our team can help you design a complete system around your music and listening preferences.
