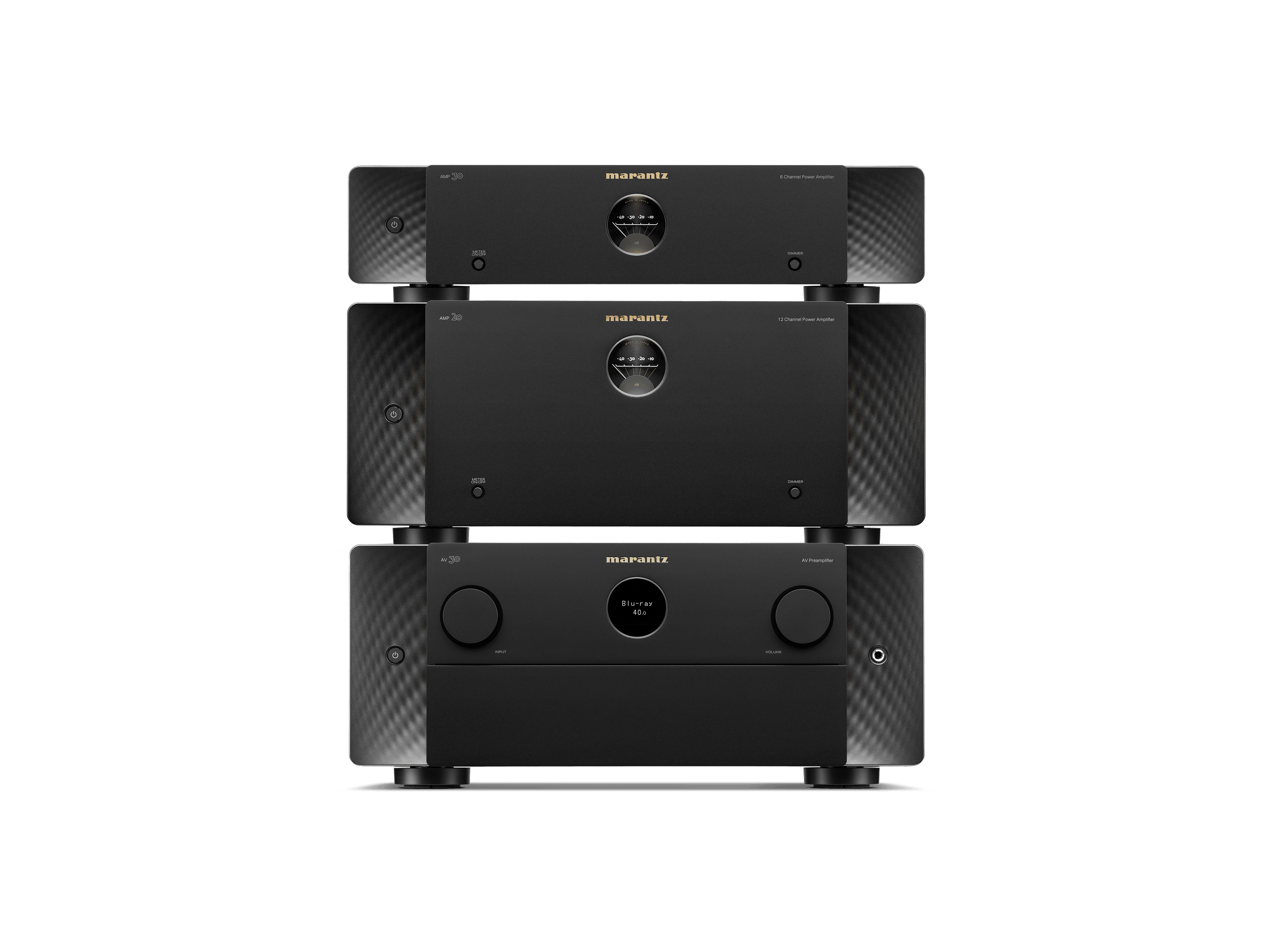

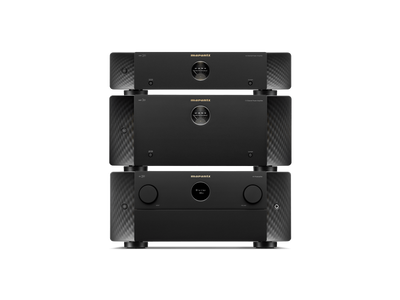

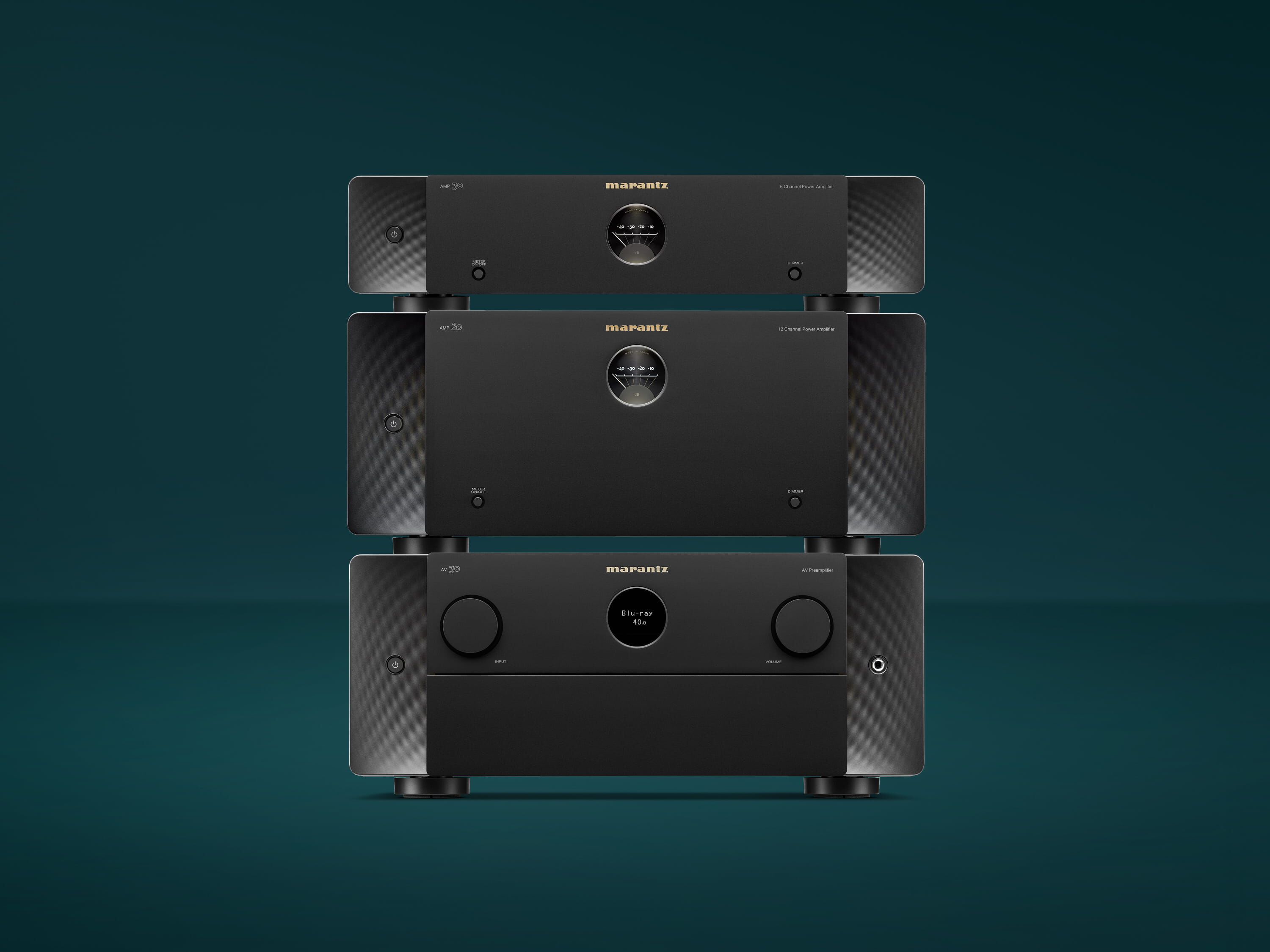

Marantz AV 30, AMP 20 & AMP 30 Reference Home Theater System Bundle

The Marantz AV 30, AMP 20 & AMP 30 Home Theater System combines Marantz's premium 11.4-channel AV preamplifier with 18 channels of high-current amplification, creating an exceptionally flexible foundation for a serious private cinema or high-performance media room.

The system includes the Marantz AV 30, 12-channel AMP 20, and 6-channel AMP 30, delivering sophisticated immersive-audio processing with enormous amplification flexibility.

With 11.4-channel processing, 18 amplifier channels, 200 watts per channel, four independent subwoofer outputs, Dolby Atmos, DTS, Auro-3D, IMAX Enhanced, 8K video, HEOS Built-in, Roon Ready, Audyssey MultEQ XT32, and optional Dirac Live, this package is designed for high-performance theaters where sound quality, flexibility, and system integration all matter.

Marantz AV 30 – 11.4-Channel AV Preamplifier

The AV 30 serves as the control center of the system.

Its 11.4-channel processing architecture supports sophisticated immersive surround configurations while providing four independent subwoofer outputs for advanced low-frequency integration.

Surround formats include Dolby Atmos, DTS, Auro-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H.

Both 11.4-channel balanced XLR and 11.4-channel RCA preamp outputs are provided, making the AV 30 a natural partner for Marantz's AMP 20 and AMP 30 power amplifiers.

Audyssey MultEQ XT32 & Dirac Live

Room correction is critical to achieving the performance a serious theater system is capable of delivering.

The AV 30 includes Audyssey MultEQ XT32, along with Audyssey Dynamic EQ, Dynamic Volume, and LFC.

For more advanced calibration, the AV 30 is also upgradeable to Dirac Live, providing additional tools for optimizing loudspeaker and subwoofer performance within the room.

Four Independent Subwoofer Outputs

The AV 30 provides four independent subwoofer outputs, giving a properly designed theater considerably more flexibility in low-frequency management.

Multiple subwoofers can help create more consistent bass response throughout the seating area, but simply adding more subwoofers isn't enough. Placement, delay, level, phase, crossover configuration, and room correction all need to work together.

That's where professional system design and calibration become especially important.

8K & 4K/120 Video

The AV 30 features seven HDMI inputs and three HDMI outputs, with support for up to 8K/60Hz and 4K/120Hz pass-through at up to 40Gbps.

Video capabilities include:

• 8K/60Hz
• 4K/120Hz
• Dolby Vision
• HDR10+
• Dynamic HDR
• HLG
• eARC
• Variable Refresh Rate
• Quick Frame Transport
• Auto Low Latency Mode
• 8K upscaling
• HDCP 2.3

The result is a platform equally suited to dedicated cinema, premium media rooms, sports, and high-performance gaming.

HEOS Built-In & Roon Ready

The AV 30 is also a capable high-resolution music platform.

HEOS Built-in provides network streaming and multi-room audio, while Roon Ready support allows the AV 30 to integrate into sophisticated Roon-based music systems.

High-resolution playback includes FLAC, ALAC, WAV up to 192kHz/24-bit, and DSD up to 5.6MHz, along with AirPlay 2 and support for major streaming services.

Marantz AMP 20 – 12 Channels of Power

The AMP 20 provides 12 channels of high-performance amplification in a single chassis.

It delivers 200 watts per channel into 8 ohms under Marantz's specified test conditions and provides both balanced XLR and unbalanced RCA inputs for all 12 channels.

The AMP 20 also supports bi-amp and BTL operation, allowing its amplifier channels to be configured differently depending on the needs of the system.

In BTL mode, paired channels can deliver 400 watts into 8 ohms for demanding loudspeakers requiring additional power.

Marantz AMP 30 – Six More Channels

The AMP 30 adds another six channels of 200-watt amplification, bringing the package to a total of 18 amplifier channels.

Like the AMP 20, the AMP 30 provides both balanced and unbalanced inputs and supports bi-amp and BTL configurations.

Its six-channel architecture gives a system designer additional flexibility to allocate power where it matters most—whether that's additional surround channels, height speakers, bi-amplified front speakers, or higher-power BTL operation.

18 Channels Creates Serious Flexibility

The real advantage of combining the AMP 20 and AMP 30 isn't simply having more amplifier channels than the AV 30 requires.

It's the flexibility those 18 channels of amplification provide.

A system can be configured around the room rather than around the limitations of a single amplifier. Channels can be assigned to immersive surround speakers, used to bi-amplify critical loudspeakers, configured in BTL mode for additional output, or retained for future system changes.

For a professionally designed theater, that flexibility can be extremely valuable.

Reference Marantz Construction

The AV 30 features a copper-plated chassis, toroidal power transformer, current-feedback topology, Marantz HDAM-SA2 circuitry, clock-jitter reduction, and gold-plated RCA terminals.

Both the AMP 20 and AMP 30 feature substantial metal construction, copper-plated chassis architecture, Marantz SPKT-1+ speaker terminals, balanced connectivity, and front-panel level meters.

The entire system is crafted in Shirakawa, Japan.

System Specifications & Highlights

• System: Marantz AV 30 + AMP 20 + AMP 30
• AV Processing: 11.4 channels
• Total Amplifier Channels: 18
• AMP 20: 12 channels
• AMP 30: 6 channels
• Amplifier Output: 200W per channel into 8 ohms
• Amplifier Output: 400W per channel into 4 ohms
• BTL Output: 400W into 8 ohms
• Bi-Amp Capability: Yes
• AMP 20 Inputs: 12 balanced XLR / 12 unbalanced RCA
• AMP 30 Inputs: 6 balanced XLR / 6 unbalanced RCA
• AV 30 Preamp Outputs: 11.4 RCA / 11.4 balanced XLR
• Independent Subwoofer Outputs: 4
• Dolby Atmos: Yes
• DTS:X: Yes
• Auro-3D: Yes
• IMAX Enhanced: Yes
• 360 Reality Audio: Yes
• Room Correction: Audyssey MultEQ XT32
• Dirac Live: Upgradeable
• HDMI Inputs: 7
• HDMI Outputs: 3
• 8K/60Hz: Yes
• 4K/120Hz: Yes
• Dolby Vision: Yes
• HDR10+: Yes
• Dynamic HDR: Yes
• eARC: Yes
• VRR / QFT / ALLM: Yes
• Streaming: HEOS Built-in
• Roon Ready: Yes
• AirPlay 2: Yes
• High-Resolution Audio: FLAC, ALAC and WAV up to 192kHz/24-bit; DSD up to 5.6MHz
• Phono Input: MM
• Multi-Room Zones: 3
• AV 30 Dimensions: 17.4" W × 15.6" D × 7.5" H without antennas
• AV 30 Weight: 24.5 lbs
• AMP 20 Dimensions: 17.4" W × 17.4" D × 7.5" H
• AMP 20 Weight: 39.7 lbs
• AMP 30 Dimensions: 17.4" W × 17.4" D × 4.4" H
• AMP 30 Weight: 22 lbs
• Finish: Black
• Crafted: Shirakawa, Japan

Build Your Marantz Theater with The Grid HiFi

The AV 30, AMP 20, and AMP 30 provide an incredibly flexible electronics platform, but a great home theater is a complete system—not a collection of components.

Speaker selection and placement, multiple-subwoofer integration, room acoustics, amplifier configuration, projection, screen selection, lighting, control, networking, equipment racks, and final calibration all contribute to the finished experience.

The Grid HiFi is your Marantz and high-performance home theater expert in Houston. Our team can design the entire system around the AV 30, AMP 20, and AMP 30, determining exactly how those 18 amplifier channels should be deployed for your room and speaker configuration.

From private cinema and media-room design to speakers, subwoofers, projection, screens, acoustic treatment, seating, lighting, automation, networking, installation, and final calibration, The Grid can handle the complete project.

Contact The Grid HiFi for Marantz AV 30, AMP 20 & AMP 30 system pricing, availability, demonstrations, home theater design, installation, and complete private-cinema solutions.
