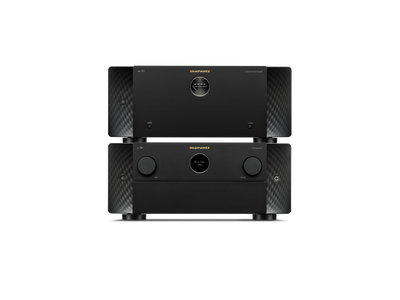

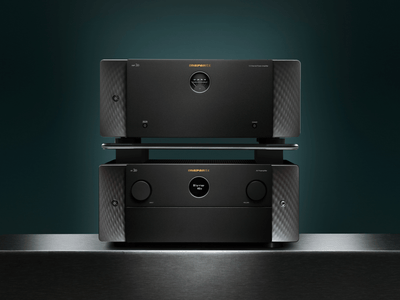

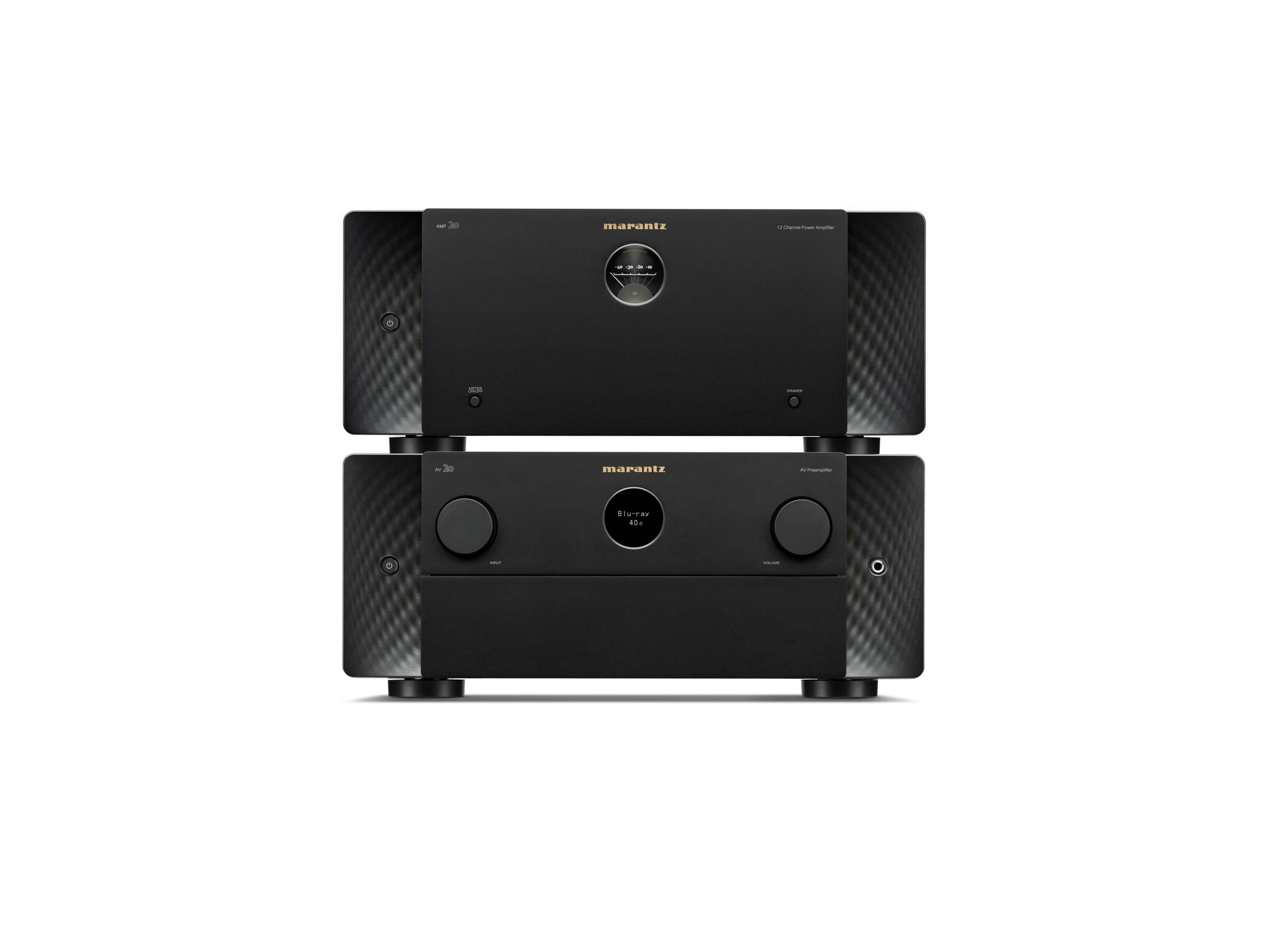

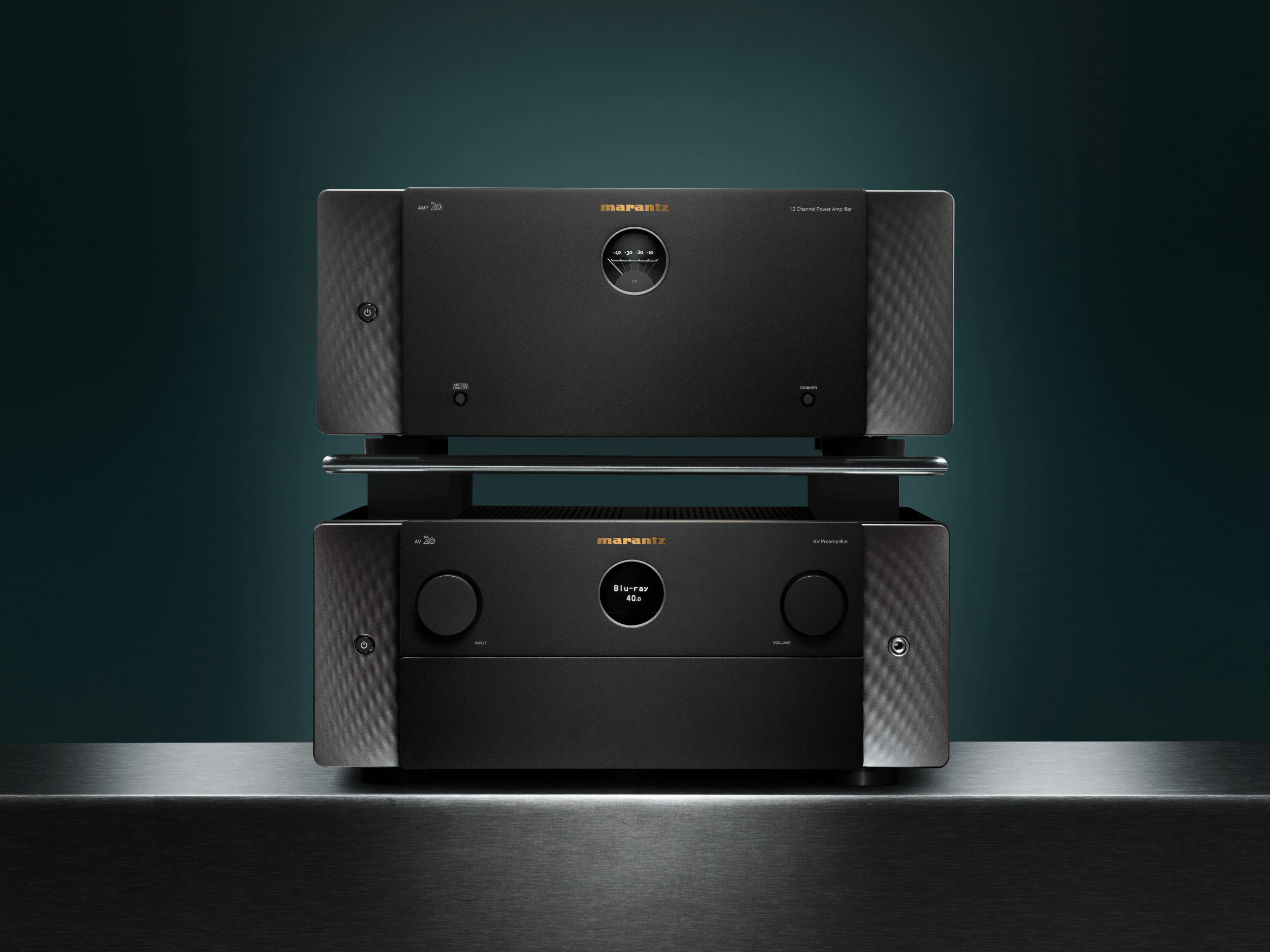

Marantz AV 20 & AMP 20 Reference Home Theater System Bundle

The Marantz AV 20 & AMP 20 Home Theater System combines Marantz's reference 13.4-channel AV preamplifier with a powerful 12-channel amplifier to create the foundation for a serious private cinema or high-performance media room.

With 13.4-channel processing, 12 channels of amplification, 200 watts per channel, four independent subwoofer outputs, Dolby Atmos, DTS Pro, Auro-3D, IMAX Enhanced, 8K video, HEOS Built-in, Roon Ready, Audyssey MultEQ XT32, and Dirac Live upgrade capability, the AV 20 and AMP 20 deliver tremendous flexibility without requiring a rack full of separate components.

Both components are crafted in Shirakawa, Japan and engineered to Marantz's reference standards.

Marantz AV 20 – 13.4-Channel AV Preamplifier

The AV 20 serves as the command center of the system.

With up to 13.4 channels of processing, it can manage sophisticated immersive-audio systems while providing four independent subwoofer outputs for advanced low-frequency integration.

Surround formats include Dolby Atmos, DTS Pro, Auro-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H, giving the AV 20 the flexibility required for today's high-performance theater installations.

Both balanced XLR and unbalanced RCA multichannel preamp outputs are provided for integration with the AMP 20 or other external power amplifiers.

Audyssey MultEQ XT32 & Dirac Live

Room correction and calibration are critical to getting the most from a high-performance theater.

The AV 20 includes Audyssey MultEQ XT32, along with Audyssey Dynamic EQ, Dynamic Volume, and LFC.

For more advanced system calibration, the AV 20 is also upgradeable to Dirac Live, providing additional tools for optimizing speaker and subwoofer performance within the listening room.

8K Video & HDMI 2.1

The AV 20 provides seven HDMI inputs and three HDMI outputs, with support for up to 8K/60Hz and 4K/120Hz pass-through.

Video capabilities include:

• 8K/60Hz and 4K/120Hz
• Dolby Vision
• HDR10+
• Dynamic HDR
• HLG
• eARC
• Variable Refresh Rate
• Quick Frame Transport
• Auto Low Latency Mode
• 8K upscaling
• HDCP 2.3

This makes the system equally suited to a dedicated cinema, luxury media room, or high-performance gaming environment.

HEOS Built-In & Roon Ready

The AV 20 isn't limited to movies.

HEOS Built-in provides network streaming and multi-room audio capability, while Roon Ready support allows the AV 20 to integrate into sophisticated Roon-based music systems.

High-resolution playback includes FLAC, ALAC, WAV, and DSD, along with AirPlay 2 and support for major streaming services.

That makes the AV 20 equally capable as the center of a serious music and home-theater system.

Marantz AMP 20 – 12 Channels of Power

The AMP 20 provides 12 channels of high-performance amplification from a single chassis.

It delivers 200 watts per channel into 8 ohms and up to 400 watts per channel into 4 ohms under Marantz's specified test conditions.

With 12 amplifier channels available, a single AMP 20 can power sophisticated immersive theater configurations while keeping equipment-rack complexity under control.

Bi-Amp & BTL Flexibility

The AMP 20 gives system designers considerable flexibility in how its 12 amplifier channels are deployed.

Channels can be configured for bi-amp or BTL operation, allowing additional amplifier resources to be dedicated to critical speakers when required.

In BTL configuration, the AMP 20 can deliver 400 watts into 8 ohms.

That flexibility makes the AMP 20 useful not only for conventional multichannel systems, but also for theaters where additional power is needed for the front soundstage.

Balanced & Unbalanced Connectivity

All 12 AMP 20 amplifier channels provide both balanced XLR and unbalanced RCA inputs, selectable by channel.

Combined with the AV 20's balanced XLR outputs, this allows the processor and amplifier to be connected using a balanced signal path—particularly useful in professionally designed theaters where the equipment rack may be located away from the listening space.

Reference-Level Construction

Both components are engineered with the substantial construction expected from Marantz's reference separates.

The AV 20 features a copper-plated chassis, toroidal power transformer, current-feedback topology, Marantz HDAM circuitry, clock-jitter reduction, and gold-plated RCA terminals.

The AMP 20 uses a copper-plated chassis, 12 dedicated power-amplifier channels, high-quality Marantz speaker terminals, balanced connectivity, and front-panel level meter.

Together, they provide a true separates-based theater architecture with substantially greater flexibility than a conventional AV receiver.

System Specifications & Highlights

• System: Marantz AV 20 Processor + AMP 20 Power Amplifier
• AV Processing: Up to 13.4 channels
• Amplifier Channels: 12
• AMP 20 Output: 200W per channel into 8 ohms
• AMP 20 Output: 400W per channel into 4 ohms
• BTL Output: 400W into 8 ohms
• AMP 20 Inputs: 12 balanced XLR / 12 unbalanced RCA
• AV 20 Multichannel Outputs: 15.4 RCA / 15.4 balanced XLR
• Independent Subwoofer Outputs: 4, RCA and XLR
• Dolby Atmos: Yes
• DTS / DTS Pro: Yes
• Auro-3D: Yes
• IMAX Enhanced: Yes
• 360 Reality Audio: Yes
• Room Correction: Audyssey MultEQ XT32
• Dirac Live: Upgradeable
• HDMI Inputs: 7
• HDMI Outputs: 3
• 8K/60Hz: Yes
• 4K/120Hz: Yes
• Dolby Vision: Yes
• HDR10+: Yes
• Dynamic HDR: Yes
• eARC: Yes
• VRR / QFT / ALLM: Yes
• Streaming: HEOS Built-in
• Roon Ready: Yes
• AirPlay 2: Yes
• High-Resolution Audio: FLAC, ALAC and WAV up to 192kHz/24-bit; DSD 2.8/5.6MHz
• Phono Input: MM
• Multi-Room Zones: 3
• AV 20 Dimensions: 17.4" W × 17.2" D × 7.5" H without antennas
• AV 20 Weight: 33.1 lbs
• AMP 20 Dimensions: 17.4" W × 17.4" D × 7.5" H
• AMP 20 Weight: 39.7 lbs
• Finish: Black
• Crafted: Shirakawa, Japan

Build Your Marantz Home Theater with The Grid HiFi

The AV 20 and AMP 20 provide the electronics, but the room and system design ultimately determine how good a home theater can be.

Speaker placement, subwoofer integration, acoustic treatment, amplification configuration, projection, screen selection, lighting, control, networking, and final calibration all need to work together.

The Grid HiFi is your Marantz and high-performance home theater expert in Houston, providing complete system design and installation rather than simply selling the equipment.

Our team can design a complete private cinema or media room around the AV 20 and AMP 20—including speakers, subwoofers, projection, screens, acoustic treatment, seating, lighting, automation, networking, equipment racks, installation, and final system calibration.

Whether you're building a new dedicated theater or upgrading an existing system, The Grid can engineer the complete solution around your room, performance goals, and budget.

Contact The Grid HiFi for Marantz AV 20 & AMP 20 pricing, availability, demonstrations, home theater design, installation, and complete private-cinema solutions.
