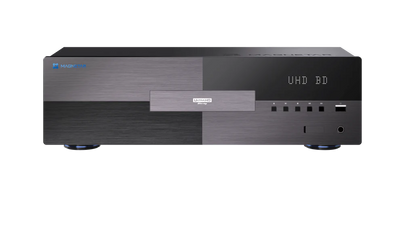

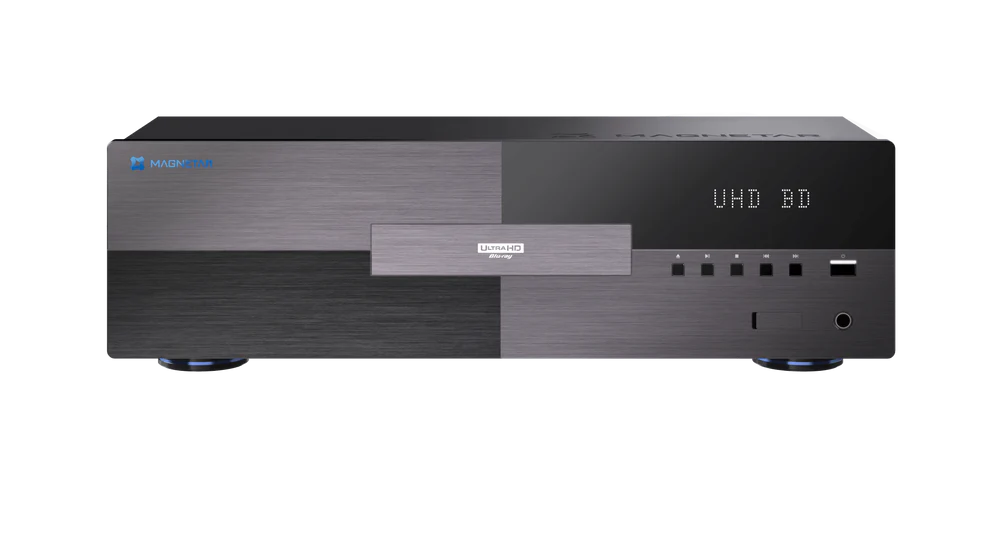

Magnetar UDP 900

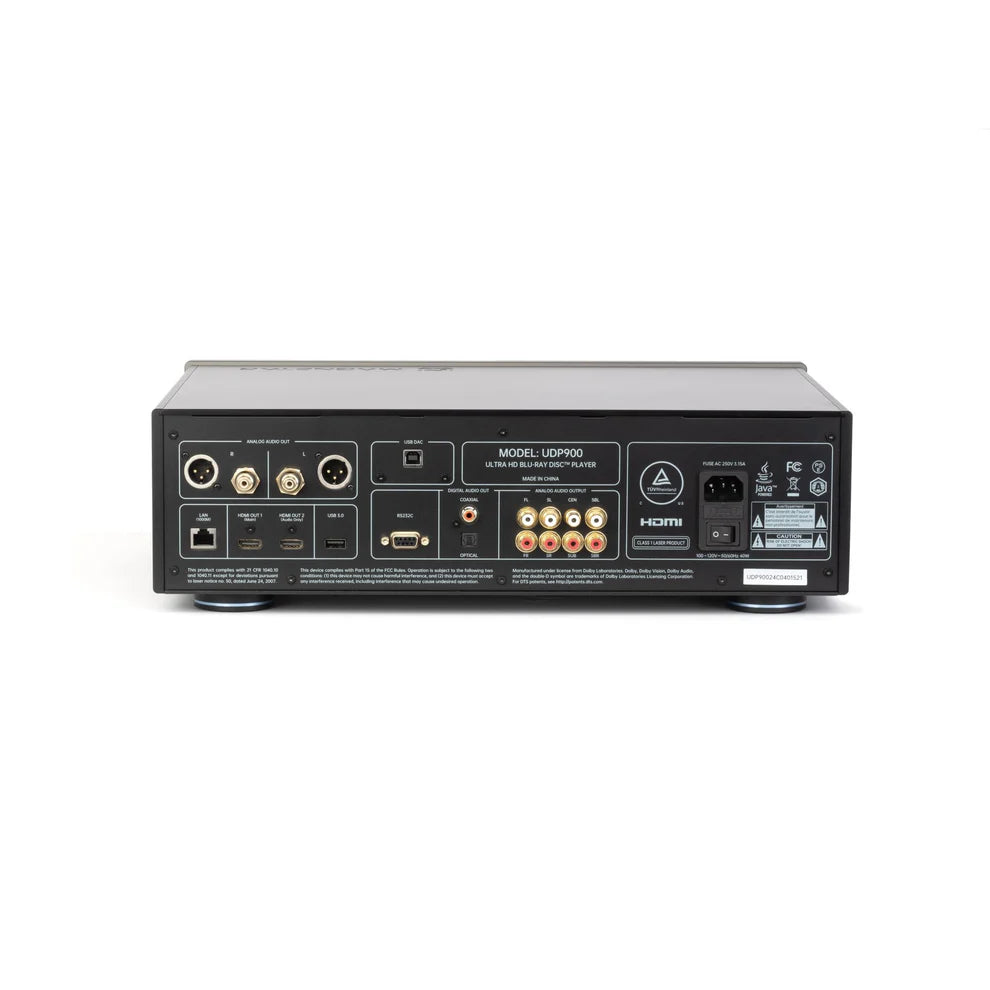

Magnetar UDP 900 The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TCXO temperature compensated crystal oscillator, doubling the high precision LDO power supply processing on the basis of UDP800. Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality. Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring, equipped with high precision, ultra-low phase noise TCXO temperature compensated crystal oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module, Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality. Technical Features Supported Disc Types  UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CDR/RW, DVD±R/RW, DVD±R DL, BD-R/RE Output  Analog Audio Output: 7.1 Chanel RCA, 2-channel RCA and Balanced XLR  Digital Audio Output: Optical, Coaxial, HDMI  HDMI Audio Output: Support up to 7.1 Channel 192kHz PCM, 5.1 Channel DSD  HDMI Video Output: UHD 23.976/25/30/50/59.94/60Hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct Analog Audio Characteristics  Frequency Range: HIFI 2 channel: 20Hz~80kHz (±0.03dB); multichannel: 20Hz~80kHz (±0.05dB)  Signal-to-noise Ratio: ≥120dB (2CH RCA); ≥130dB (2CH XLR)  Distortion Plus Noise: ≤0.0005%  Output Amplitude: (RCA) 2.1±0.2Vrms. (XLR) 4.2±0.4Vrms  Dynamic Range: ≥120dB (2CH RCA); ≥130dB (2CH XLR)  Channel Resolution: ≥110dB (2CH RCA); ≥140dB (2CH XLR) General Specifications  Power Supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz  Power Consumption: <40W, Standby＜0.5W  Operating Temperature: 5°C~ 35°C (41°F ~ 95°F）  Operating Humidity: 15% ~ 75%  Unit Dimensions: 445 x 321 x 133 mm  Unit Weight: 15.4kg
