Overview

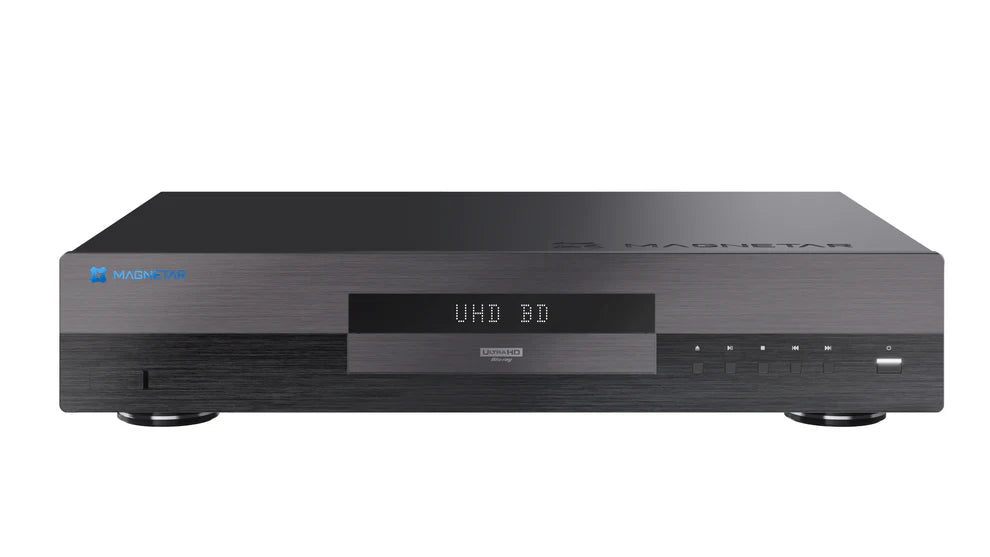

Magnetar UDP 800
Advanced Image/Audio Processing Technology
UDP800 is equipped with a high-powered quad-core MediaTek MT8581 processor, 12Gb Samsung DDR and 4Gb
NAND; adopting a 6-layer PCB design, which shortens the signal path to reduce distortion, while using many
high-precision and quality LDO regulators, in conjunction with Murata MLCC multi-layer ceramic capacitors and
NCC electrolytic capacitors, guaranteeing the stability of signal transmission and power supply, while improving
image and sound quality
Technical Features
Supported Disc Types
• UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CDR/RW, DVD±R/RW, DVD±R DL, BD-R/RE
Output

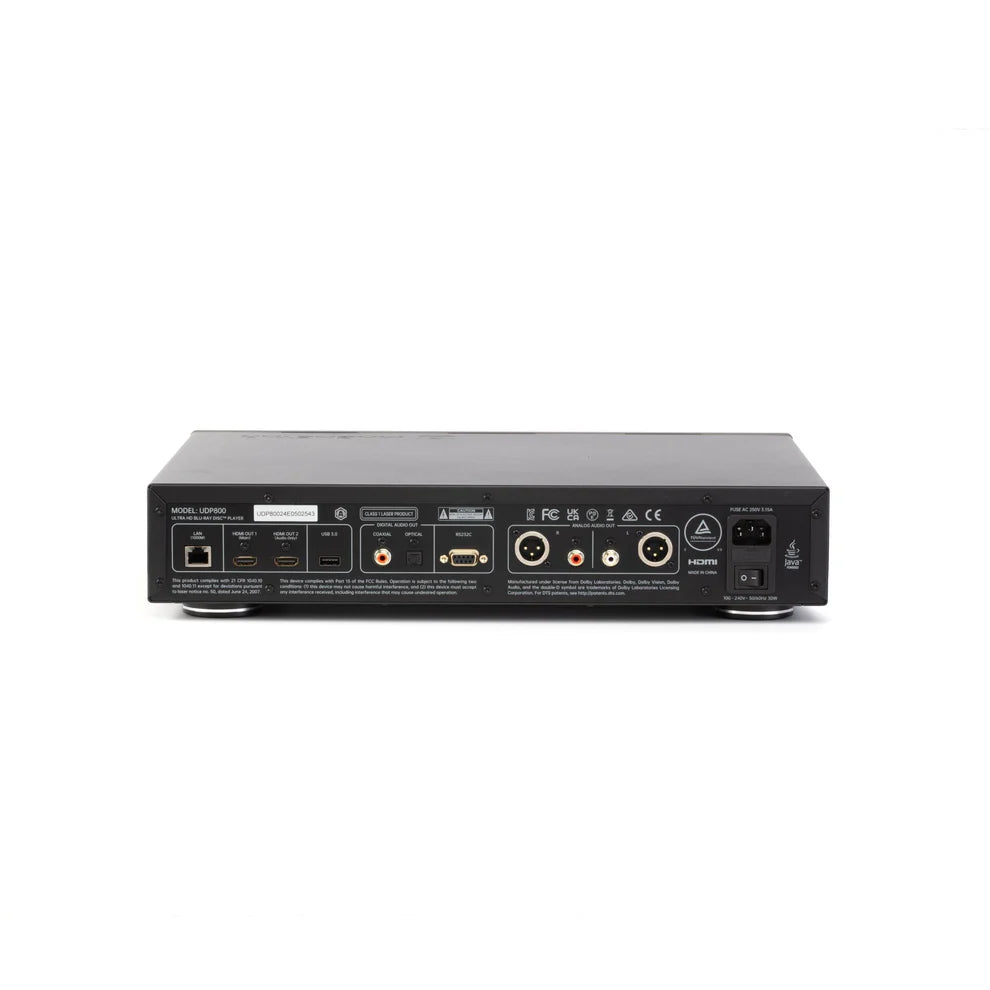

• Analog Audio Output: 2-channel RCA and Balanced XLR
• Digital Audio Output: Optical, Coaxial, HDMI
• HDMI Audio Output: Support up to 7.1 channel 192kHz PCM, 5.1 Channel DSD
• HDMI Video Output: UHD 23.976/25/30/50/59.94/60Hz, 1080I/P, 720P, 576I/P, 480I/P, source direct
Analog Audio Characteristics
• Frequency Range: 20Hz ~ 20kHz (±0.05dB)
• Signal-to-noise Ratio: ≥120dB
• Distortion Plus Noise: ≤0.001%
• Output Level: (RCA) 2. 1±0.2Vrms. (XLR) 4.2±0.4Vrms
• Dynamic range: 120dB
• Channel Separation: ≥120dB
General Specification
• Power Supply: AC 100-240V ~, 50/60Hz
• Power Consumption:＜30W, Standby<0.5W
• Operating Temperature: 5°C~ 35°C (41°F ~ 95°
Unit Dimensions: 430 x 300 x 90 mm
• Unit Weight: 6.8kg
• Unit Packing Dimensions: 516 x 391 x 203mm
• Unit Packing GW: 9.6kg
