Luxman M-10X Reference Stereo Power Amplifier

Luxman's Flagship Power Amplifier

The Luxman M-10X Reference Stereo Power Amplifier represents a new generation of Luxman amplification. Developed as the successor to the M-900u, the M-10X was the first amplifier to introduce Luxman's LIFES 1.0 amplification feedback engine, combining enormous current delivery with the refinement and control expected from the company's flagship electronics.

Rated at 150 watts per channel into 8 ohms and 300 watts per channel into 4 ohms, those numbers only begin to describe what the M-10X is capable of. Its power supply and output stage allow instantaneous output of up to an extraordinary 1,200 watts per channel into 1 ohm in stereo operation.

For systems demanding even greater authority, the M-10X can operate as a 600-watt monoblock into 8 ohms, with instantaneous output reaching 2,400 watts into 2 ohms.

The result is an amplifier engineered not simply for power, but for the ability to maintain control as loudspeaker impedance and musical demands change.

LIFES 1.0: A New Generation of Luxman Amplification

The M-10X marked the debut of LIFES — Luxman Integrated Feedback Engine System.

LIFES evolved from Luxman's ODNF circuitry, which had been central to the company's solid-state amplifier designs since 1999. Rather than simply modifying the existing circuit, Luxman returned to the fundamentals and redesigned the amplification system from the ground up.

The objective was to retain the low-distortion benefits of feedback while maintaining the natural, immediate character associated with non-feedback amplifier designs.

Luxman also reduced the number of parallel circuit elements while achieving approximately half the distortion of the previous amplification circuit.

This LIFES Version 1.0 architecture subsequently became the foundation for Luxman's next generation of reference amplifiers, including the matching C-10X control preamplifier.

150 Watts Doesn't Tell the Whole Story

On paper, 150 watts per channel may not sound extreme for a flagship solid-state amplifier.

The important number is what happens as the loudspeaker demands more current.

The M-10X delivers:

150W + 150W into 8Ω
300W + 300W into 4Ω
Up to 1,200W + 1,200W instantaneously into 1Ω

That exceptional power linearity demonstrates the M-10X's ability to handle difficult loudspeaker loads rather than simply producing a large power rating under ideal test conditions.

The output stage uses a three-stage Darlington, quadruple-paralleled push-pull configuration engineered for high current capability and stability across changing impedance.

Luxman specifies a damping factor of 600, giving the amplifier exceptional electrical control over the connected loudspeakers.

Pure Class A Operation at Lower Output Levels

The M-10X isn't only about brute-force power.

Careful bias-current optimization allows the amplifier to operate in pure Class A up to 12 watts before transitioning into its higher-powered operating range.

That's particularly meaningful in real-world listening because much of normal music playback occurs at relatively modest output levels, with higher power demanded during dynamic peaks.

The M-10X therefore combines the density and refinement associated with Class A operation at lower levels with the enormous reserves required when the music or loudspeaker suddenly asks for considerably more.

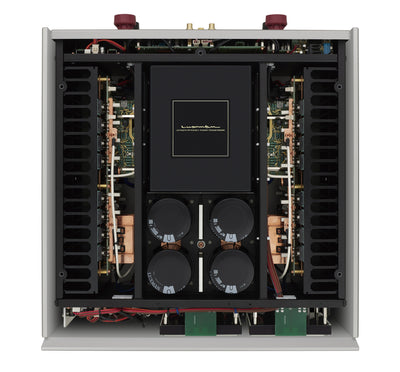

Massive 1,250VA Power Transformer

An amplifier can't deliver current that its power supply doesn't have available.

At the center of the M-10X is a massive 1,250VA EI-type power transformer with an instantaneous maximum capacity of 2,500VA.

Luxman uses tightly wound flat-copper transformer windings to reduce line capacitance, improve coupling, and stabilize the magnetic field.

The power supply is backed by four newly developed 20,000μF filter capacitors, arranged in independent left- and right-channel configurations.

Low-resistance, high-capacity speaker relays use four contacts connected in parallel, while the speaker terminals connect directly to the bus bar to maintain a low-impedance path between the amplifier circuitry and loudspeaker.

This is the infrastructure behind the M-10X's ability to remain composed when driving demanding speakers.

Stereo or 600-Watt Monoblock Operation

The M-10X can be used as an exceptional stereo power amplifier—or taken significantly further.

Switching to BTL monaural operation transforms a single M-10X into a 600-watt monoblock into 8 ohms.

Instantaneous output in monaural operation reaches an enormous 2,400 watts into 2 ohms.

That means a system can begin with one M-10X running in stereo and later move to a pair operating as monoblocks.

For extremely ambitious loudspeaker systems, that provides a genuine upgrade path without replacing the original amplifier.

Luxman even considered monoblock operation when designing the front-panel meters. In BTL mode, the active left-channel meter is positioned centrally in the visual layout, maintaining the amplifier's symmetry when used as a mono power amplifier.

Reference-Level Speaker Control

The M-10X's damping factor of 600 is particularly significant with large, complex loudspeakers.

A loudspeaker driver doesn't simply stop moving the instant the electrical signal disappears. The amplifier must control that movement, particularly with large bass drivers and difficult crossover networks.

High current capability, a low-impedance output path, substantial power reserves, and high damping factor all contribute to the M-10X's ability to maintain control.

This is why the amplifier's performance can't be judged from its 150-watt rating alone.

For demanding high-end loudspeakers, the ability to produce substantial current into low impedance can matter just as much as the nominal 8-ohm power specification.

Built Around Signal Integrity

Luxman uses 100μm-thick, low-resistance PCB traces throughout the M-10X's audio circuitry.

The traces receive a gold-plated, peel-coat treatment designed to eliminate unwanted dielectric effects, while Luxman's characteristic rounded circuit-board traces avoid sharp corners and maintain more consistent conductor width.

The amplifier also incorporates custom-selected capacitors, resistors, wiring materials, and terminals chosen through extensive listening and engineering evaluation.

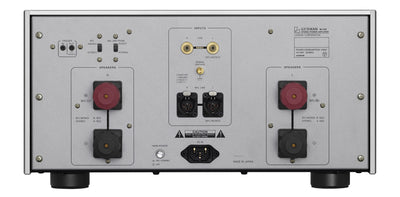

Rear-panel RCA inputs use a copper-alloy material combining high electrical conductivity with the mechanical strength required for repeated cable connections.

The AC inlet is reverse-mounted to provide greater support for heavy audiophile power cables and maintain a more secure connection.

Anti-Vibration, Loop-Less Chassis

At 48.4kg—approximately 106.7 pounds—the M-10X is a seriously substantial amplifier.

Luxman's large density-gradient cast-iron feet support the chassis while helping isolate the circuitry from external vibration and dissipate vibration generated internally.

The enclosure itself uses Luxman's loop-less chassis structure, designed to prevent unwanted chassis ground loops and reduce the influence of magnetic fields and increases in ground impedance caused by chassis currents.

It's another example of Luxman treating the mechanical structure as part of the electrical design rather than simply as a box around the amplifier.

Classic Luxman Analog Meters

The M-10X retains one of the visual elements most closely associated with Luxman's flagship amplifiers: large illuminated analog power meters.

LED illumination makes meter movement easy to see from the listening position while the blasted-white finish, sculpted front panel, and substantial chassis give the amplifier a distinctly modern Luxman appearance.

There's no oversized touchscreen or unnecessary visual technology competing for attention.

The meters move. The amplifier does the rest.

The Grid's Take on the Luxman M-10X

The specification that stands out to us isn't 150 watts into 8 ohms.

It's 1,200 watts into 1 ohm.

That tells you much more about what Luxman was trying to accomplish with the M-10X. This isn't an amplifier designed around winning a wattage comparison at 8 ohms. It's designed to remain stable and deliver serious current when a demanding loudspeaker presents the amplifier with a much more difficult load.

Then you add 12 watts of pure Class A operation, a 1,250VA transformer, 80,000μF of total filter capacitance, a damping factor of 600, and the LIFES 1.0 circuit, and the engineering philosophy becomes clear.

The M-10X is about combining finesse with enormous reserves.

A single M-10X gives you a formidable reference stereo amplifier. A pair takes the system into another category entirely, delivering 600 watts per channel into 8 ohms in BTL monoblock configuration.

And if you're building a complete Luxman reference system, the C-10X is the natural partner. Both components use Luxman's LIFES architecture and were engineered as part of the same generation of flagship electronics.

At The Grid HiFi & Home Theater, we can help match the Luxman M-10X to the right preamplifier, loudspeakers, sources, cabling, and power requirements—and determine whether your system is better served by one M-10X in stereo or a pair operating as reference monoblocks.

Luxman M-10X Complete Specifications

Included Accessories

• Trigger cable (modular / 3.5mm monaural)
• Power cable
