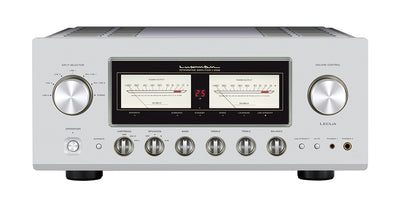

Luxman L-509X Integrated Amplifier
Luxman L-509X Integrated Amplifier
Luxman L-509X Integrated Amplifier

Luxman

Luxman L-509X Integrated Amplifier

$12,495.00

Pairs well with

In stock! Ships within 1-2 business days.

90-day risk-free trial

2-Year Warranty

Complimentary shipping & returns

Overview

Luxman L-509Z Integrated Amplifier Introducing our next-level “single-chassis separates” concept,pursuing the ideal with a new, all-in-one flagship amplifier.Taking our Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use our new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by our new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinacle of LUXMAN integrated amplifier design.

Spec

Rated output 120W + 120W (8Ω) 220W + 220W (4Ω)
Input sensitivity/ input impedance PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ
Output voltage PRE OUT: 1V
Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more
Volume adjustment LECUA-EX
Amplification feedback circuit LIFES 1.0
Output configuration Bipolar 4-parallel push-pull
