Overview

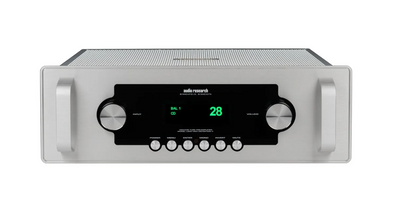

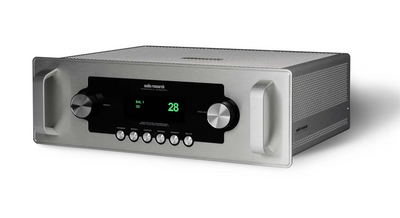

Audio Research LS28SE Line-Stage Preamplifier
Vacuum-Tube Line Stage • Four 6H30P Dual Triodes • Fully Balanced Operation • 8 Analog Inputs • 122 dB Dynamic Range • Home Theater Passthrough
Complimentary White Glove Delivery • Travel Reimbursement*
The Audio Research LS28SE is a high-performance vacuum-tube line-stage preamplifier developed using technology and component knowledge gained from Audio Research's Reference 160-series amplifiers. The SE evolution incorporates upgraded components throughout the signal path and power supply, combining four 6H30P dual-triode tubes, extensive balanced connectivity and exceptionally wide bandwidth. Audio Research
6H30P Vacuum-Tube Line Stage
The LS28SE uses four 6H30P dual triodes with electronically regulated high- and low-voltage power supplies. Frequency response extends from 0.4 Hz to 200 kHz at -3 dB, while rated THD+noise is less than 0.007% at 2V RMS balanced output. Audio Research
Extensive Analog Connectivity

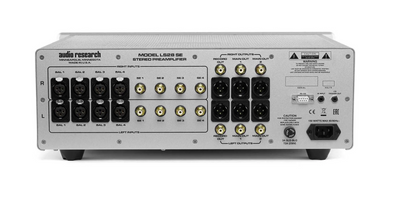

Eight inputs provide four balanced XLR and four single-ended RCA connections. Two main outputs and one record output are provided in both XLR and RCA formats, making the LS28SE easy to integrate into complex two-channel systems. Audio Research
Flexible System Control
A 103-step volume control provides precise level adjustment. User-selectable functions include input naming, tube-hour monitoring, automatic shutdown, home theater passthrough assignment, phase inversion, mono and mute. A 45-second automatic warm-up and brown-out mute protect the system during startup and unstable power conditions. Audio Research
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vacuum-Tube Line-Stage Preamplifier |
| Tube Complement | 4 × 6H30P Dual Triodes |
| Frequency Response | 0.4 Hz to 200 kHz, +0/-3 dB |
| THD + Noise | <0.007% at 2V RMS Balanced Output |
| Noise | <-100 dBV at Maximum Volume |
| Dynamic Range | 122 dB AES17 |
| Crosstalk | -105 dB |
| Balanced Gain | 18.5 dB |
| Single-Ended Gain | 12.5 dB |
| Record Output Gain | 0 dB |
| Balanced Input Impedance | 100kΩ |
| Single-Ended Input Impedance | 50kΩ |
| Inputs | 4 × Balanced XLR + 4 × Single-Ended RCA |
| Balanced Output Impedance | 600Ω |
| Single-Ended Output Impedance | 300Ω |
| Outputs | 2 Main + 1 Record, XLR and RCA |
| Output Polarity | Non-Inverting |
| Maximum Balanced Input | 16V RMS |
| Maximum Single-Ended Input | 8V RMS |
| Rated Balanced Output | 2V RMS |
| Rated Single-Ended Output | 1V RMS |
| Maximum Balanced Output | 17V RMS at <0.5% THD, 1 kHz |
| Volume Control | 103 Steps |
| Functions | Mono, Phase Invert, Mute, Menu, Input Naming |
| Home Theater Integration | Assignable Processor / HT Passthrough |
| Power Supply | Electronically Regulated High + Low Voltage |
| Warm-Up | Automatic 45 Seconds |
| Maximum Power Consumption | 130W |
| Standby Consumption | 2W |
| Dimensions | 19" W × 6.5" H × 13.7" D |
| Net Weight | 16 lb / 7.2 kg |
| Shipping Weight | 24 lb / 10.9 kg |
Audio Research specifies line regulation better than 0.01%, along with a maximum balanced output capability of 17V RMS, giving the LS28SE substantial headroom for demanding amplifier and system configurations. Audio Research
Audio Research LS28SE at The Grid HiFi
The Grid HiFi can build a complete high-end two-channel system around the Audio Research LS28SE, matching the line stage with the appropriate Audio Research power amplifier, source components, loudspeakers, cabling and power management.
For systems combining serious two-channel music with home theater, the LS28SE's assignable processor passthrough also allows it to integrate cleanly with a dedicated surround processor. Audio Research
Complimentary White Glove Delivery • Travel Reimbursement*
Qualifying purchasers may receive airfare reimbursement for a private audition.
Considering the Audio Research LS28SE? Experience it properly before you decide. Call The Grid HiFi at (713) 218-8120 to arrange your private consultation.
*Restrictions apply. Contact us for details.
