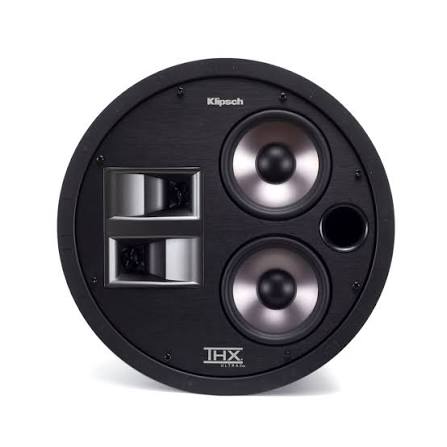

Klipsch THX-5002-S – THX Ultra Certified In-Ceiling Surround Speaker

Product Description

Cinema-quality surround sound with the discreet appearance of an architectural speaker.

The Klipsch THX-5002-S is a THX Ultra Certified in-ceiling surround speaker engineered for dedicated home theaters and premium multichannel audio systems. Featuring dual 5.25-inch Cerametallic woofers, dual 1-inch titanium tweeters and Klipsch Wide Dispersion Surround Technology, it delivers immersive surround effects while maintaining a clean, unobtrusive ceiling installation.

Designed to complement other Klipsch THX-certified loudspeakers, the THX-5002-S combines high-output performance with a fully enclosed, ported cabinet and a paintable, edge-to-edge magnetic grille. It is particularly suited to custom theaters where powerful surround sound and architectural integration are equally important.

THX Ultra Certified Performance

The THX-5002-S is engineered for demanding multichannel movie and music playback. Its THX Ultra certification identifies it as suitable for systems designed to reproduce reference-level sound in rooms of approximately 3,000 cubic feet or larger.

With 93dB sensitivity and power handling of 100 watts continuous and 400 watts peak, the speaker is designed to deliver dynamic surround effects in dedicated home theaters.

Its 45Hz–20kHz frequency response provides broad bandwidth for surround-channel content, allowing the THX-5002-S to reproduce both detailed ambient information and impactful effects.

Dual Cerametallic Woofers

Two 5.25-inch Cerametallic woofers provide the THX-5002-S with substantial output capability for an in-ceiling surround speaker.

Their rigid, lightweight cones are engineered to resist unwanted flexing and resonance during demanding playback. The drivers operate within an enclosed, tuned-port chamber that provides predictable bass performance without depending on the available air volume above the ceiling.

This design allows installers to achieve more consistent results across different ceiling constructions and installation locations.

Dual Titanium Tweeters with Tractrix Horns

The THX-5002-S incorporates two 1-inch titanium tweeters mounted in vertically stacked Tractrix horns.

This arrangement is designed to reproduce detailed high-frequency information while supporting the speaker's wide-dispersion surround presentation. Titanium diaphragms provide the rigidity needed for accurate high-frequency reproduction, while the horn-loaded design helps direct acoustic energy into the listening area.

The result is a speaker capable of reproducing subtle atmospheric details alongside demanding cinematic effects.

Wide Dispersion Surround Technology

Klipsch Wide Dispersion Surround Technology (WDST) is designed to create an enveloping sound field while preserving the localization of individual effects.

Rather than directing all high-frequency energy toward a single listening position, the THX-5002-S uses its multiple drivers and horn arrangement to distribute surround information across a wider listening area.

This approach provides greater placement flexibility in custom theaters with multiple seating positions and helps maintain a convincing surround presentation throughout the room.

Fully Enclosed Architectural Design

Unlike open-back architectural speakers, the THX-5002-S incorporates its own enclosed, bass-reflex cabinet.

A front-facing port works with the dual woofers to provide controlled low-frequency performance, while the enclosed design reduces dependence on the ceiling cavity.

The speaker's circular form factor allows it to be integrated into custom theater ceilings without requiring a conventional wall-mounted surround speaker. Its design also makes it practical for installations where wall space is limited or where the theater's interior design calls for concealed loudspeakers.

Edge-to-Edge Magnetic Grille

A flat, edge-to-edge magnetic grille provides a discreet finished appearance.

The grille can be painted to complement the ceiling, helping the speaker blend into the room. Neodymium magnets provide secure attachment while allowing the grille to be removed for access when needed.

For custom home theaters, this combination of concealed installation and high-output surround performance allows the loudspeakers to remain visually unobtrusive without compromising the system's intended acoustic design.

Complete Your Klipsch Home Theater at The Grid HiFi

The Grid HiFi in Houston, Texas, designs and installs premium home theaters, private cinemas and architectural audio systems.

Our team can integrate the Klipsch THX-5002-S with compatible Klipsch THX front-channel speakers, subwoofers and high-performance AV processors. From speaker placement and amplifier matching to acoustic design and professional calibration, we create complete home theater systems tailored to each room.

Technical Specifications
