Overview

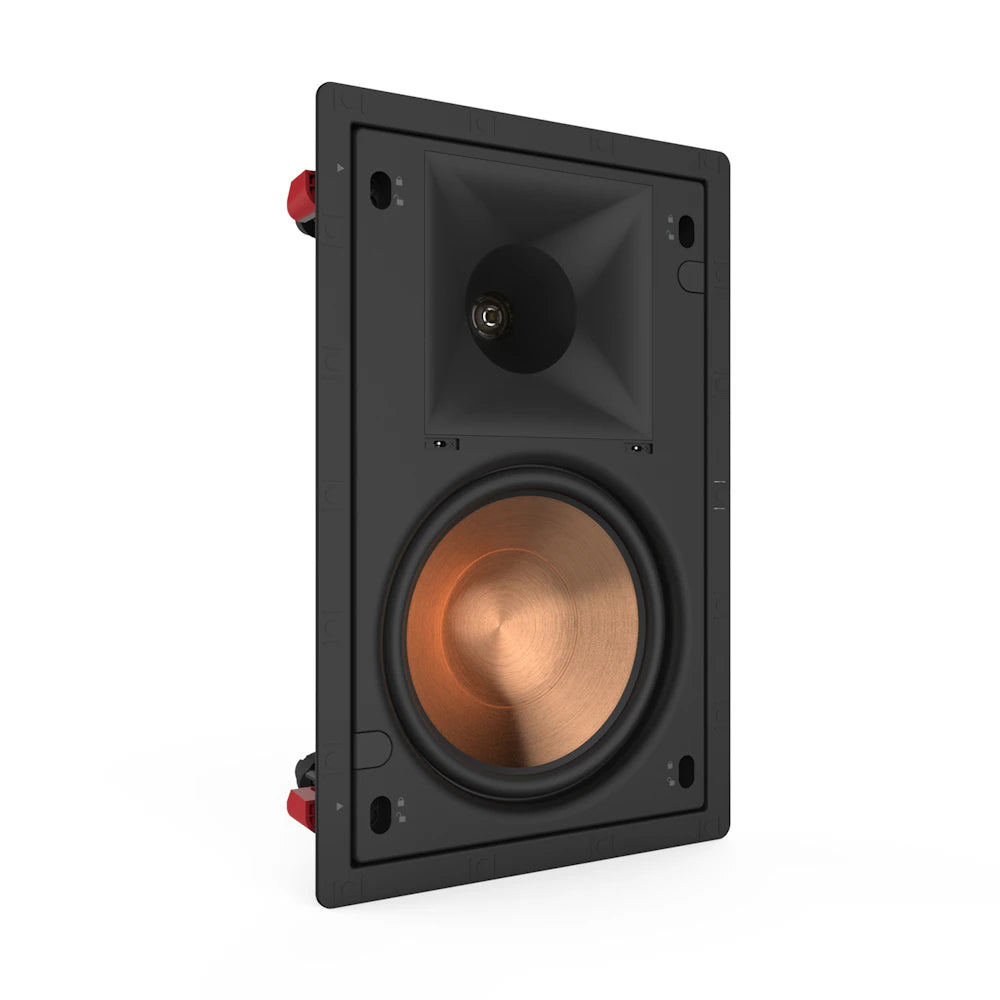

The Klipsch PRO-180RPW is a high-performance 8-inch in-wall speaker engineered for premium home theaters, distributed audio systems, and architectural stereo installations. Combining an 8-inch Cerametallic woofer, 1-inch titanium dome tweeter, and Hybrid Cross Section Tractrix horn, the PRO-180RPW delivers dynamic sound, exceptional clarity, and high sensitivity in a discreet architectural design.
Part of the Klipsch Professional Reference Premiere series, this speaker features the exclusive SecureFit installation system, a bezel-free magnetic grille, and a paintable finish for seamless integration into residential interiors.
Key Features
-
8-Inch Cerametallic Woofer: Lightweight, rigid cone construction delivers controlled bass and detailed midrange reproduction.
-
1-Inch Titanium Dome Tweeter: High-frequency driver engineered for precise detail and dynamic clarity.
-
Hybrid Cross Section Tractrix Horn: Proprietary horn technology provides controlled 90° × 90° sound dispersion.
-
96dB Sensitivity: High-efficiency design delivers substantial output with modest amplifier power.
-
50W RMS / 200W Peak Power Handling: Suitable for a wide range of home theater receivers and separate amplifiers.
-
SecureFit Installation System: Modular mounting system provides controlled clamping pressure and secure drywall installation.
-
Bezel-Free Magnetic Grille: Low-profile, paintable white grille blends into walls.
-
Infinite-Baffle Design: Engineered for installation directly into wall cavities.
-
Paint Shield Included: Protects the speaker during painting and construction.
-
Versatile Applications: Ideal for front left/right channels, surround speakers, architectural stereo, and whole-home audio.
Reference Premiere Sound in an Architectural Speaker
The PRO-180RPW incorporates Klipsch Reference Premiere acoustic technology in a space-saving in-wall configuration.
Its 8-inch Cerametallic woofer provides controlled low-frequency response, while the horn-loaded titanium tweeter delivers detailed highs with consistent coverage throughout the listening area.
With 96dB sensitivity and 8-ohm-compatible impedance, the PRO-180RPW integrates with a wide range of AV receivers and power amplifiers, making it an excellent choice for dedicated media rooms and professionally designed home theaters.
Hybrid Tractrix Horn Technology
The proprietary Hybrid Cross Section Tractrix horn controls high-frequency dispersion across a 90° horizontal and 90° vertical coverage pattern.
This controlled-directivity design helps deliver consistent sound across the listening area while reducing unwanted reflections, supporting clear dialogue, precise imaging, and dynamic movie soundtracks.
SecureFit Installation System
Klipsch's exclusive SecureFit system simplifies installation and provides a mechanically stable connection to the wall.
The modular mounting design allows installers to engage the mounting clamps by hand to a preset clamping force, helping prevent overtightening and drywall damage.
The speaker module then attaches to the mounting frame using machine screws, creating a secure installation for long-term performance.
Bezel-Free Magnetic Grille
The PRO-180RPW includes a flat, magnetic steel grille with a paintable white finish.
Its bezel-free appearance allows the speaker to blend into finished walls, making it suitable for contemporary living spaces, dedicated theaters, and custom architectural audio installations.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Klipsch |
| Model | PRO-180RPW |
| Series | Professional Reference Premiere |
| Speaker Type | 2-Way In-Wall Speaker |
| Woofer | 8-inch Cerametallic |
| Tweeter | 1-inch Titanium Dome |
| Horn | Hybrid Cross Section Tractrix |
| Frequency Response | 52Hz–23kHz ±3dB |
| Sensitivity | 96dB @ 2.83V/1m |
| Power Handling | 50W RMS / 200W Peak |
| Nominal Impedance | 8 Ohms Compatible |
| Coverage Angle | 90° × 90° |
| Enclosure | ABS / Infinite Baffle |
| Installation System | Klipsch SecureFit |
| Grille | Bezel-Free, Magnetic, Paintable |
| Baffle / Frame | Black |
| Grille Finish | White |
| Dimensions (W × H × D) | 10.16 × 15.75 × 4.0 inches |
| Mounting Depth | 3.9 inches |
| Cutout Dimensions (H × W) | 14.8 × 9.25 inches |
| Weight | 7.9 lbs |
| Included Accessories | Magnetic Grille, Paint Shield |
| Optional Installation Kit | IK-800-W, Sold Separately |
| Manufacturer Part Number | 1064064 |
| Packaging | Sold Individually |
Klipsch PRO-180RPW at The Grid HiFi
The Klipsch PRO-180RPW In-Wall Speaker delivers Reference Premiere performance for custom home theaters, architectural stereo systems, and premium whole-home audio installations.
Shop Klipsch architectural speakers at The Grid HiFi, with nationwide delivery and professional home theater design and installation services available in Houston.
Order online or call (713) 218-8120 for assistance designing your Klipsch home theater or distributed audio system.
