Klipsch KA-1000-THX (120V) – 1,000-Watt THX Ultra2 Certified Subwoofer Amplifier

Experience Powerful, Reference-Quality Home Theater Bass

Bring the full impact of cinematic sound into your home with the Klipsch KA-1000-THX 1,000-Watt THX Ultra2 Certified Subwoofer Amplifier. Engineered for exceptional low-frequency performance, this high-efficiency Class D amplifier delivers powerful, controlled bass and remarkable dynamic performance for premium dedicated home theaters.

Designed specifically to power Klipsch KW-120-THX passive subwoofers, the KA-1000-THX provides the amplification needed to reproduce explosive movie soundtracks, deep cinematic effects, and detailed low-frequency musical passages with impressive authority.

As a key component of the legendary Klipsch THX Ultra2 Home Theater System, the KA-1000-THX combines professional cinema-inspired technology, precise bass management, and premium construction for an extraordinary listening experience.

THX Ultra2 Certified Performance

The Klipsch KA-1000-THX is engineered to meet the demanding performance requirements of THX Ultra2 certification, delivering the power and precision needed for high-performance home theater systems.

With 500 watts of continuous power into 8 ohms or 1,000 watts of continuous power into 4 ohms, the amplifier can drive one or two compatible Klipsch KW-120-THX subwoofers.

Its high-efficiency Class D architecture delivers powerful low-frequency reproduction while maintaining excellent control and responsiveness.

The amplifier also provides impressive short-term dynamic power capabilities, allowing it to reproduce demanding cinematic bass passages with outstanding impact.

Whether you're experiencing explosive action scenes, immersive surround soundtracks, or powerful musical performances, the KA-1000-THX delivers the deep, authoritative bass that brings every moment to life.

Advanced Klipsch Subwoofer Amplification Technology

High-Efficiency Class D Amplification

The KA-1000-THX features advanced Class D amplifier technology designed to deliver exceptional power efficiency and strong low-frequency performance.

Its monoblock design provides the power required to drive compatible high-performance passive subwoofers.

1,000 Watts of Continuous Power

Delivering 1,000 watts into a 4-ohm load, the KA-1000-THX provides powerful amplification for demanding home theater applications.

The amplifier is capable of driving:

• One KW-120-THX subwoofer at an 8-ohm load

• Two KW-120-THX subwoofers connected in parallel for a combined 4-ohm load

This flexibility allows home theater enthusiasts to create powerful single- or dual-subwoofer configurations.

THX Ultra2 Certified Performance

THX Ultra2 certification demonstrates the amplifier's ability to meet demanding cinema audio performance standards.

When paired with the appropriate Klipsch THX subwoofers and a properly configured surround processor, the KA-1000-THX delivers exceptional low-frequency impact and cinematic realism.

Adjustable Low-Pass Crossover

The amplifier includes a continuously variable low-pass crossover adjustable from 40 Hz to 120 Hz in non-THX mode.

This allows precise adjustment of the subwoofer's operating range for integration with the main speakers.

For systems utilizing a compatible AV receiver or surround processor with built-in bass management, the internal crossover can be bypassed.

Variable Phase Control

A continuously adjustable phase control from 0° to 180° helps optimize subwoofer integration with the main speakers.

Proper phase adjustment can improve bass coherence and overall system performance.

Boundary Gain Compensation

The KA-1000-THX features selectable Boundary Gain Compensation to help manage excessive low-frequency reinforcement caused by room placement and acoustic boundaries.

This provides additional flexibility when integrating subwoofers into dedicated home theater environments.

Professional SpeakON® Connectivity

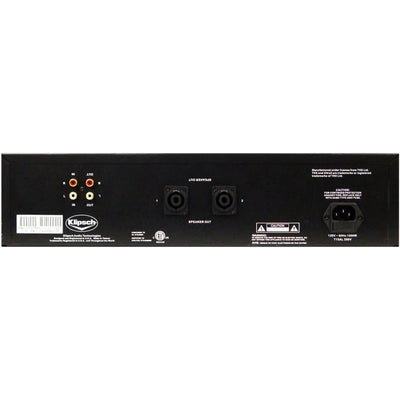

Two professional-grade SpeakON® NL2 speaker outputs provide secure and reliable connections to compatible Klipsch passive subwoofers.

These locking connectors help prevent accidental disconnection while maintaining dependable electrical contact.

Automatic Power Management

A selectable signal-sensing auto-on/off circuit automatically activates the amplifier when an audio signal is detected and places it into standby after a period of inactivity.

This convenient feature simplifies daily operation and system integration.

Premium Construction and Design

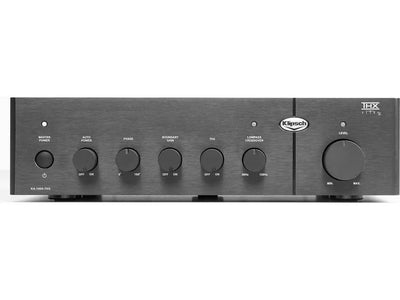

The KA-1000-THX features a sophisticated black-anodized aluminum front panel with machined aluminum control knobs.

Its premium construction complements high-end home theater equipment while providing convenient access to important amplifier settings.

Key Features

• THX Ultra2 Certified subwoofer amplifier

• High-efficiency Class D monoblock amplification

• 1,000 watts continuous power into 4 ohms

• 500 watts continuous power into 8 ohms

• Designed for one or two Klipsch KW-120-THX subwoofers

• High dynamic power capability for demanding cinematic bass

• Adjustable 40 Hz – 120 Hz low-pass crossover

• Selectable crossover bypass for external bass management

• Continuously adjustable 0° – 180° phase control

• Selectable Boundary Gain Compensation

• Dedicated THX On/Off mode

• Two professional SpeakON® NL2 subwoofer outputs

• Gold-plated RCA audio inputs and pass-through outputs

• Signal-sensing automatic power on/off

• Front-panel power switch and LED status indicators

• Premium black-anodized aluminum front panel

• Machined aluminum control knobs

• Designed for premium dedicated home theaters

• 120V North American power configuration

Compatible Klipsch Subwoofers

The KA-1000-THX is specifically engineered for use with Klipsch KW-120-THX passive subwoofer enclosures.

Single-Subwoofer Configuration

• (1) Klipsch KW-120-THX passive subwoofer

• 8-ohm load

• 500 watts continuous amplifier output

Dual-Subwoofer Configuration

• (2) Klipsch KW-120-THX passive subwoofers

• 4-ohm combined load

• 1,000 watts continuous total amplifier output

Both configurations utilize the amplifier's professional SpeakON® connections for secure speaker wiring.

Important: The two SpeakON outputs are parallel connections from a single monoblock amplifier, not two independent amplifier channels.

Technical Specifications

Specification	Details
Product Model	Klipsch KA-1000-THX
Product Type	Dedicated Subwoofer Power Amplifier
Certification	THX Ultra2 Certified
Amplifier Design	High-Efficiency Class D
Amplifier Configuration	Monoblock
Continuous Power @ 8 Ohms	500W
Continuous Power @ 4 Ohms	1,000W
Dynamic Power @ 8 Ohms	2,050W
Dynamic Power @ 4 Ohms	3,025W
FTC Power Rating THD	Less Than 1.5%
Dynamic Power Rating THD	5%
Frequency Response	20 Hz – 1 kHz (+0/-3 dB)
Low-Pass Crossover	Variable 40 Hz – 120 Hz
Crossover Slope	24 dB/Octave
Crossover Bypass	Yes
Phase Adjustment	0° – 180° Continuous
Boundary Gain Compensation	Selectable On/Off
THX Mode	Selectable On/Off
Audio Inputs	2 Gold-Plated RCA
Line-Level Outputs	2 Gold-Plated RCA, Unfiltered
Speaker Outputs	2 SpeakON® NL2, Parallel
Auto Power On	2-Second Delay
Auto Power Off	15-Minute Delay
Compatible Subwoofers	1 or 2 Klipsch KW-120-THX
Dimensions (W × H × D)	17.5" × 4.75" × 12.25"
Weight	27 lbs
Front Panel	Black Anodized Aluminum
Power Requirement	110/120V AC, 60Hz
Finish	Black

What's Included

• (1) Klipsch KA-1000-THX 120V Subwoofer Amplifier

Compatible KW-120-THX subwoofers and subwoofer connection cables are separate items.

Designed for Reference Home Theater Systems

The Klipsch KA-1000-THX is an outstanding choice for dedicated home theater systems that demand powerful, controlled, and accurate bass reproduction.

When paired with one or two compatible Klipsch KW-120-THX subwoofers, the amplifier delivers the power needed to reproduce low-frequency cinematic effects with exceptional impact.

Its advanced crossover controls, phase adjustment, and THX-certified architecture make it an ideal component for professionally designed home theater installations.

Whether you're building a THX Ultra2 home theater or upgrading an existing compatible Klipsch subwoofer system, the KA-1000-THX provides dependable performance and powerful amplification for an immersive cinematic experience.

Important: The KA-1000-THX is a dedicated passive subwoofer amplifier, not a full-range power amplifier or AV receiver. Klipsch specifies it for use with KW-120-THX subwoofer enclosures. Other subwoofer models should not be assumed compatible.

Unleash the Full Power of Cinema – Order Yours Today!

Experience deep, powerful, and precisely controlled bass with the Klipsch KA-1000-THX 1,000-Watt THX Ultra2 Certified Subwoofer Amplifier.

Designed to deliver extraordinary cinematic impact, the KA-1000-THX is the perfect amplification solution for compatible Klipsch THX Ultra2 subwoofer systems.

At The Grid HiFi, we specialize in premium home audio, high-performance home theater systems, and professional custom installation solutions.

Our experienced team can help you select compatible subwoofers, configure your home theater system, and achieve exceptional low-frequency performance.

Ready to bring powerful, theater-quality bass into your home?

Shop the Klipsch KA-1000-THX today or contact The Grid HiFi for pricing, availability, compatible subwoofer recommendations, and professional home theater installation.

Call The Grid HiFi: (713) 218-8120

Feel every impact. Experience every detail. Bring cinema home with Klipsch and The Grid HiFi.
