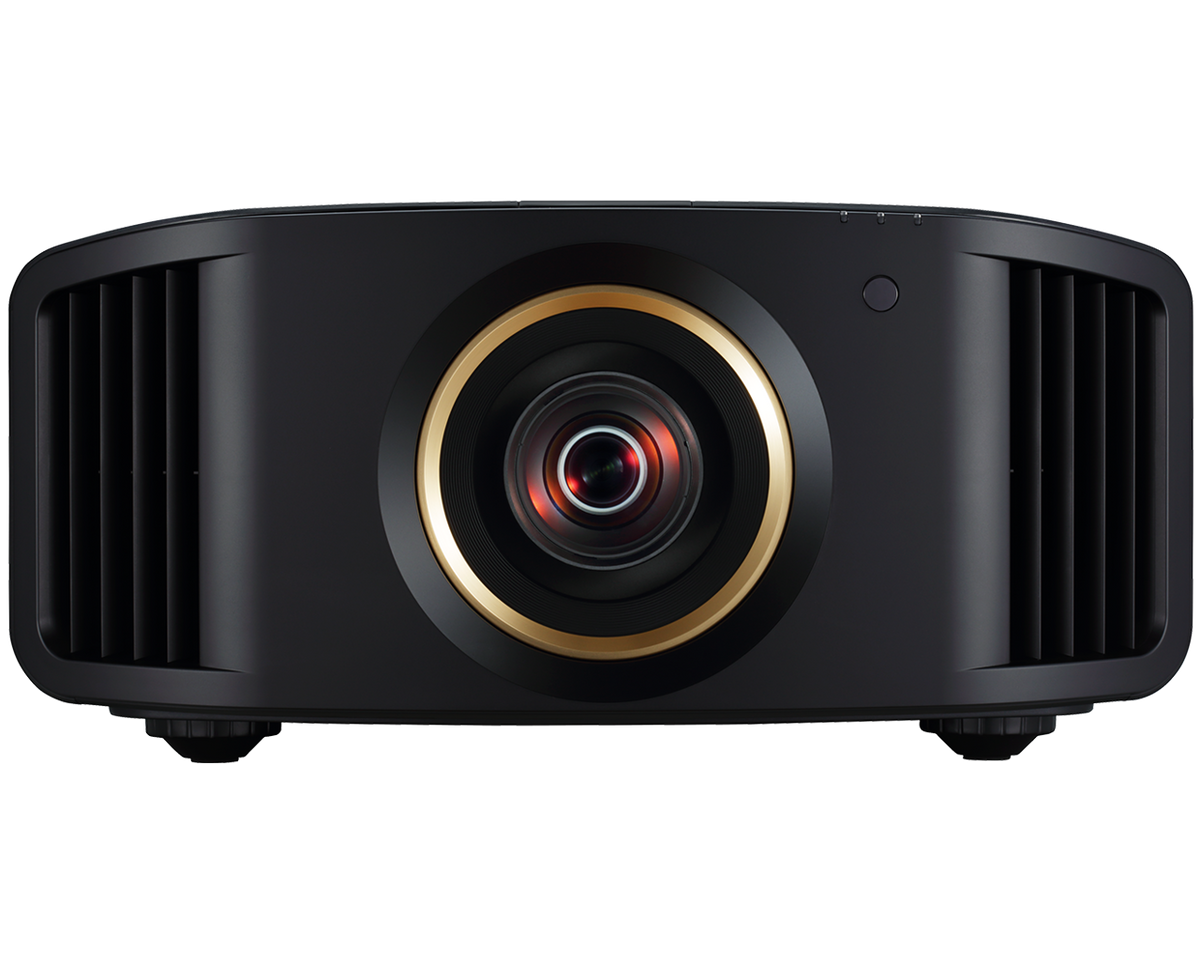

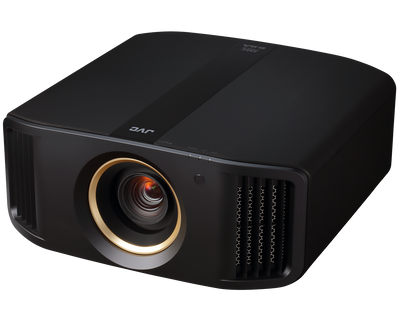

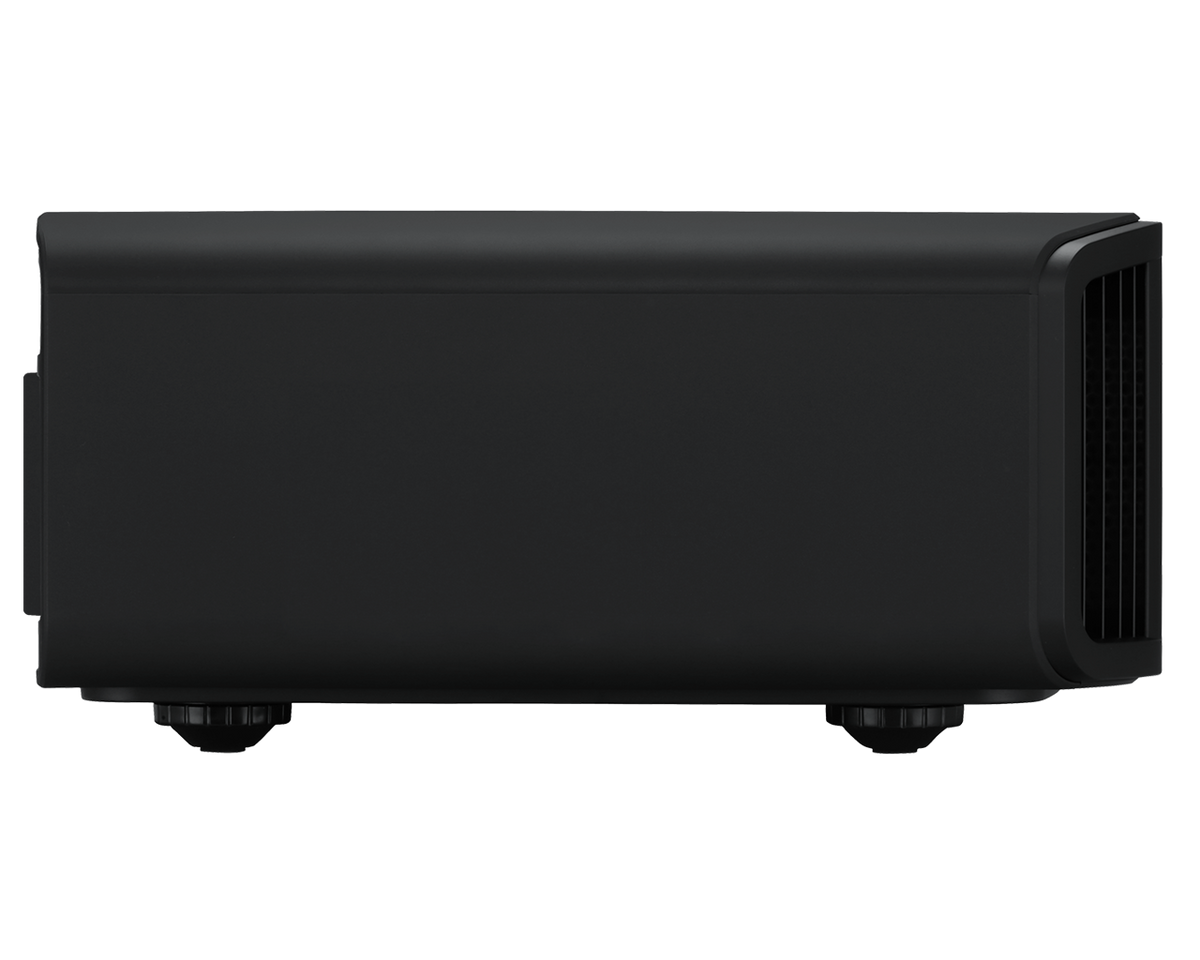

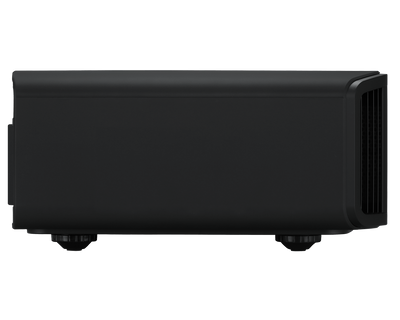

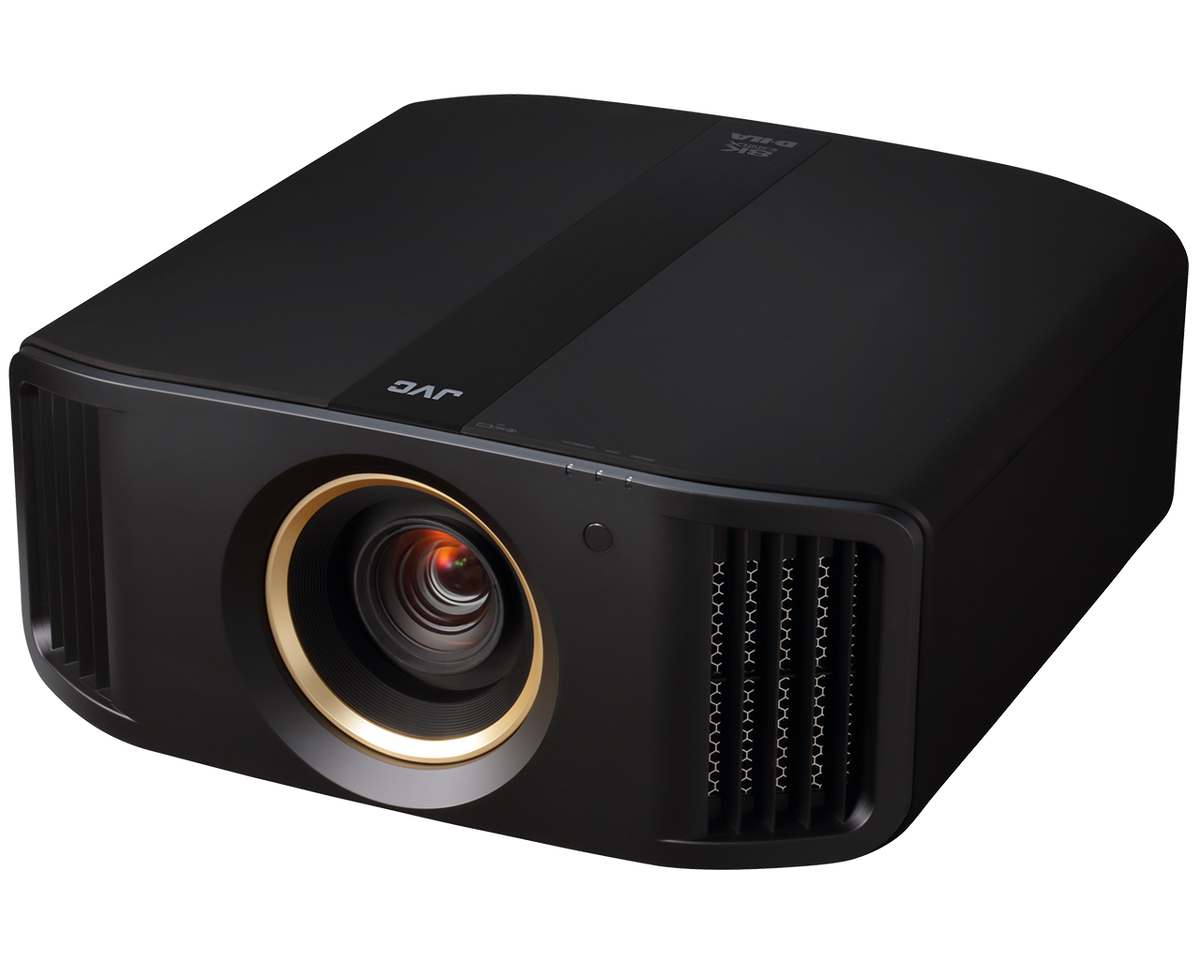

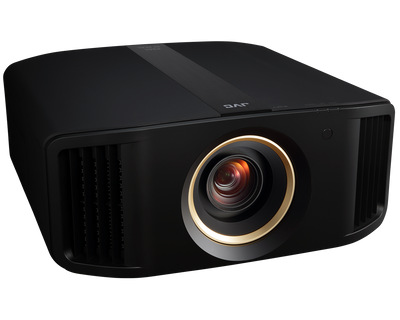

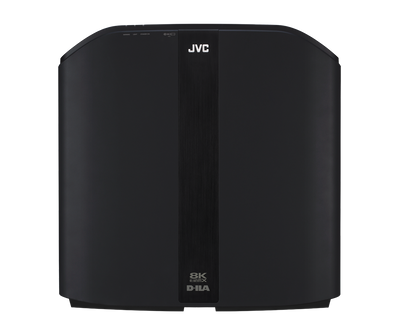

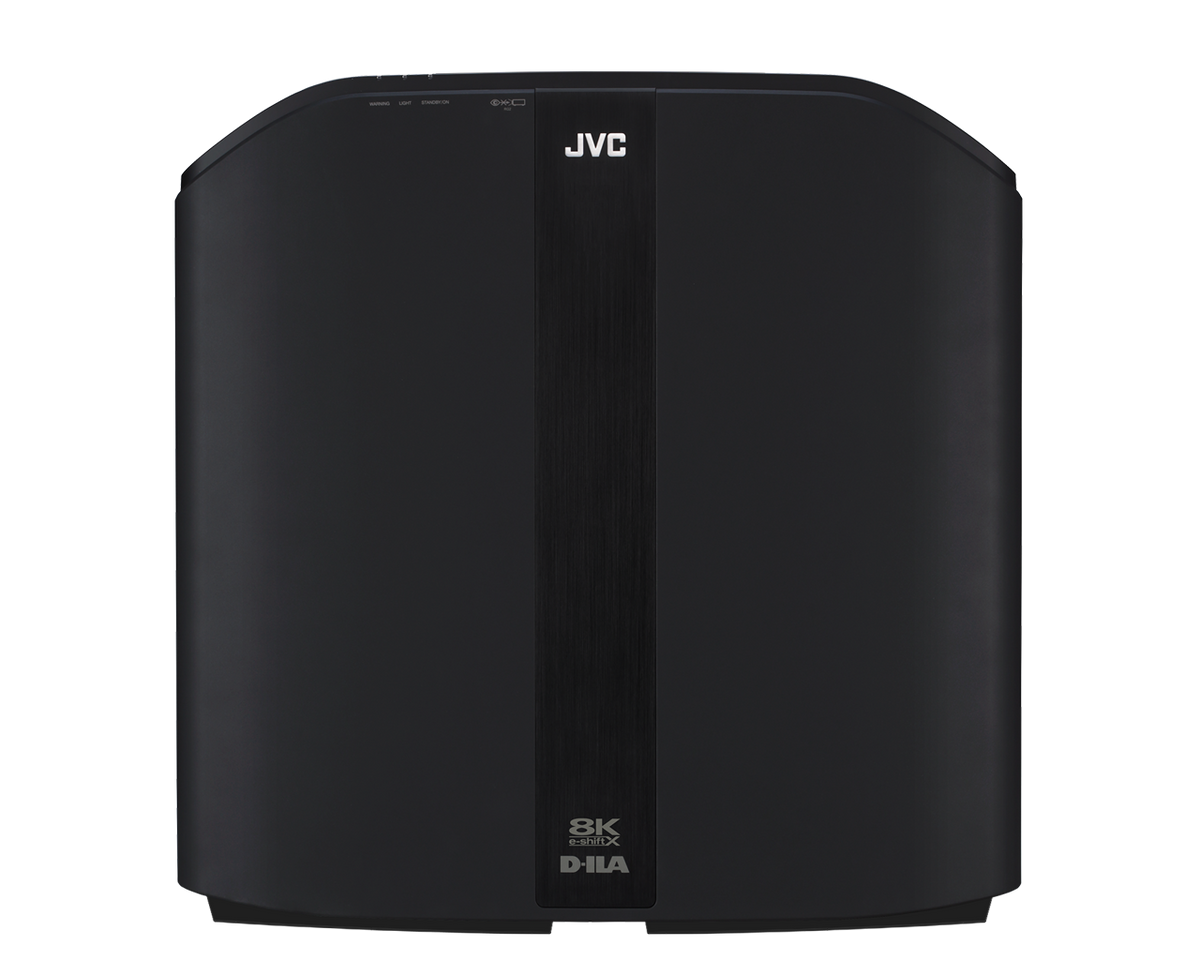

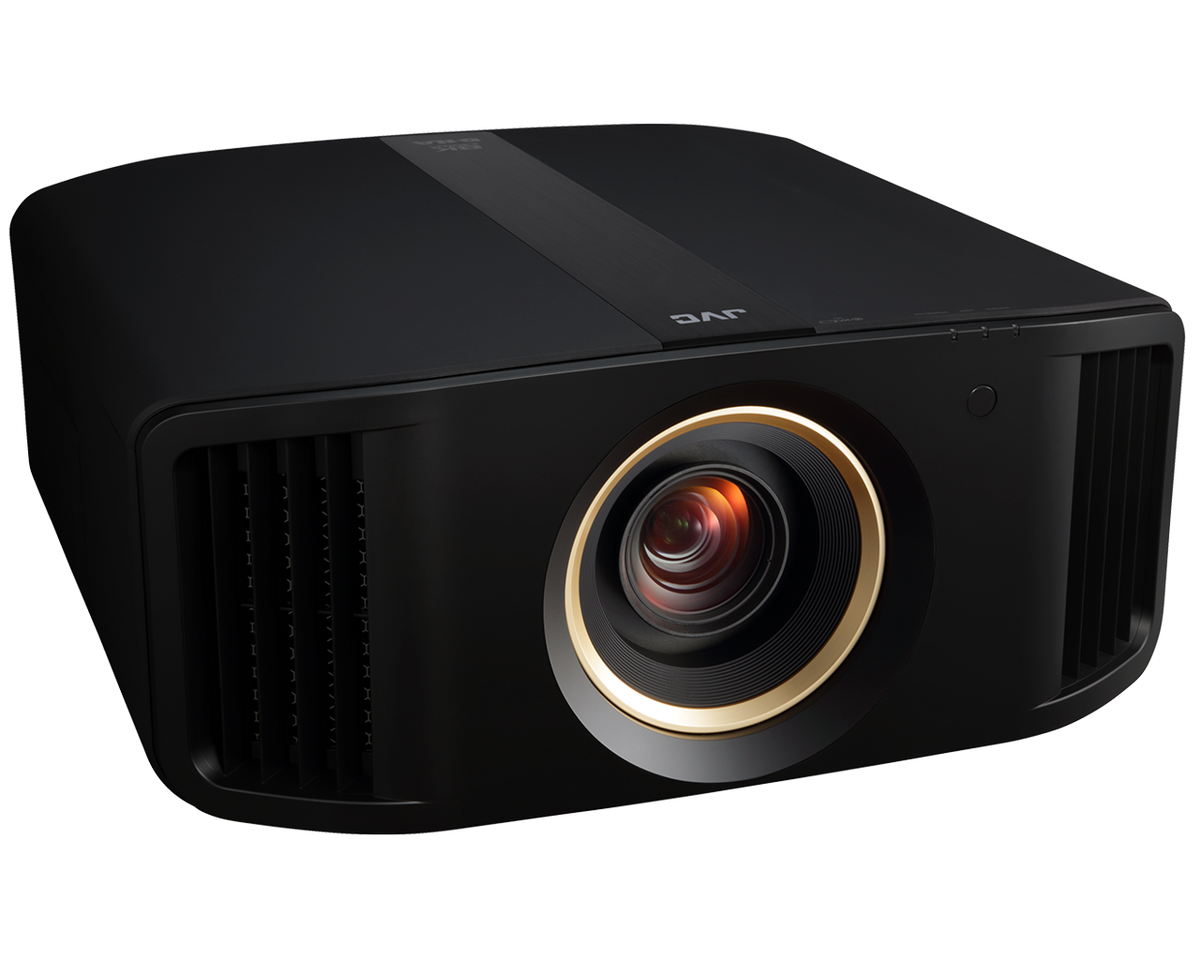

JVC DLA-RS3200 Reference Series 8K/e-shiftX Native 4K Laser Projector

The JVC DLA-RS3200 brings JVC's Reference Series projection technology to serious dedicated home theaters and professionally designed private cinemas.

With third-generation native 4K D-ILA imaging, Gen2 8K/e-shiftX, a 2,700-lumen BLU-Escent laser, 100,000:1 native contrast, 8K60 and 4K120 input capability, and JVC's excellent Gen2 Frame Adapt HDR processing, the RS3200 delivers the kind of black level, contrast and image depth that has made JVC a favorite for high-end projection.

For a dedicated theater where image quality matters more than simply chasing maximum brightness, the RS3200 is an exceptionally capable projector.

Native 4K D-ILA + Gen2 8K/e-shiftX

The RS3200 uses three third-generation 0.69-inch native 4K D-ILA devices with a native resolution of:

4096 × 2160

JVC then adds its second-generation 8K/e-shiftX technology to create an:

8192 × 4320 displayed image

The system rapidly shifts the native 4K image in four directions while JVC's latest 8K scaling engine extracts additional detail from both 4K and 8K source material.

On a large projection screen, that combination produces an exceptionally detailed and cinematic image.

100,000:1 Native Contrast

One of the biggest reasons to choose JVC is black level.

The RS3200 delivers:

100,000:1 native contrast

That's native contrast—not simply a dynamic specification created by adjusting the laser.

JVC's dynamic laser system can further control light output and completely shut down during a full-black image for an Infinity:1 dynamic contrast ratio.

But it's the native contrast during actual movie scenes that matters most.

Deep blacks give the image dimensionality, preserve shadow detail and allow bright objects to stand out against genuinely dark portions of the picture.

In a properly designed dark theater, the difference is significant.

2,700-Lumen BLU-Escent Laser

The RS3200 uses JVC's BLU-Escent laser light source to produce up to:

2,700 lumens

Expected laser life is approximately:

20,000 hours

Laser output can be adjusted across 101 individual steps, allowing the projector to be precisely matched to the screen size, screen gain and target brightness of the room.

That level of control is especially valuable when the projector is professionally calibrated as part of a complete theater.

Gen2 Frame Adapt HDR

HDR is one of the most challenging things for any projector to reproduce correctly.

JVC's Gen2 Frame Adapt HDR analyzes HDR10 material scene-by-scene or frame-by-frame and dynamically adjusts tone mapping around the projector's available dynamic range.

The RS3200 also uses both DML and MaxCLL metadata when determining HDR levels.

Instead of applying one fixed HDR curve to an entire movie, the projector continually adapts to what's happening on screen.

Frame Adapt HDR Vivid

JVC's newer Frame Adapt HDR Vivid mode expands on its dynamic HDR processing.

It improves contrast and color expression by increasing the impact of brighter areas while extracting greater detail from darker portions of the image.

The result is a more dimensional HDR presentation rather than simply making the entire image brighter.

Highlight Color Control

More brightness doesn't necessarily produce a better HDR image if color saturation disappears in the brightest scenes.

JVC's Highlight Color Control works with Frame Adapt HDR to balance brightness and saturation in high-intensity portions of the picture.

Low, Mid and High settings allow the presentation to be adjusted for the specific room, screen and viewer preference.

Deep Black Tone Control

The RS3200's Deep Black Tone Control focuses specifically on the darkest portions of HDR material.

Combined with the projector's 100,000:1 native contrast, it helps preserve subtle shadow gradation while maintaining the deep blacks that make night scenes, space scenes and dark interiors look convincing.

Theater Optimizer

The same projector can behave very differently on a 100-inch screen than it does on a 150-inch screen.

JVC's Theater Optimizer allows screen size and screen gain to be entered into the projector.

Frame Adapt HDR can then use that information when determining how HDR content should be tone-mapped.

It's exactly how a high-end projector should be approached—the projector and screen work together as part of the room.

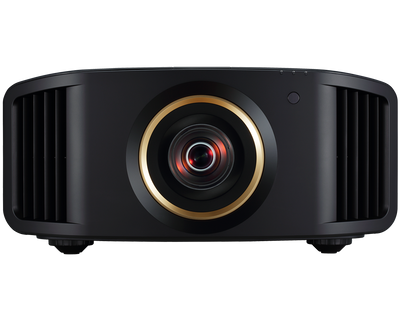

65mm All-Glass Lens

The RS3200 uses a 65mm all-glass lens constructed from:

• 17 elements
• 15 groups
• Full aluminum lens barrel

The optical system is designed to maintain high resolution across the projected image.

That's particularly important with 8K/e-shiftX. Creating additional resolution inside the projector doesn't accomplish much if the lens can't accurately resolve that detail onto the screen.

Fully Motorized 2× Lens

The RS3200 provides a 2× motorized lens with:

• Motorized Zoom
• Motorized Focus
• Motorized Lens Shift

Lens shift reaches:

• ±80% Vertical
• ±34% Horizontal

Throw ratio is:

1.43–2.92:1

That gives a professional theater designer considerable flexibility when determining projector placement.

The RS3200 supports projected image sizes from approximately 60 to 200 inches diagonal, depending on the installation.

10 Installation Memories

The RS3200 can store 10 different installation modes.

Settings can include:

• Lens position
• Pixel adjustment
• Masking
• Anamorphic settings
• Screen settings
• Installation style
• Keystone
• Aspect ratio

This becomes particularly useful with a 2.35:1 or 2.39:1 CinemaScope screen.

Different lens positions and settings can be stored for widescreen films and conventional 16:9 programming and recalled when needed.

8K60 & 4K120 HDMI

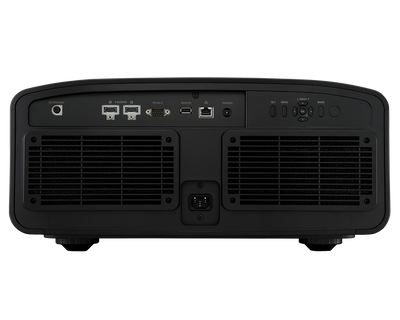

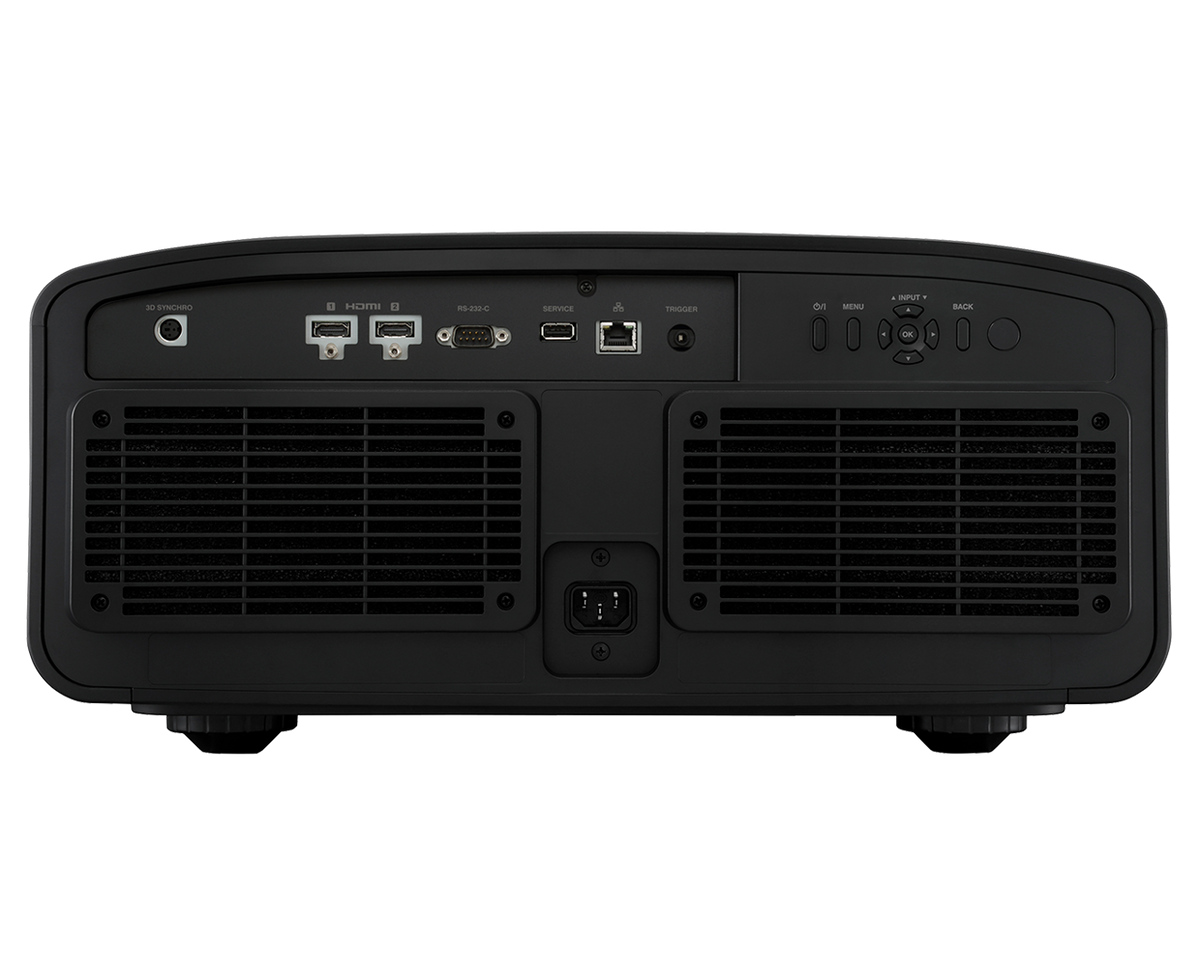

The RS3200 provides two high-bandwidth HDMI inputs supporting:

• 48Gbps HDMI
• 8K/60p
• 4K/120p
• 4K/60p
• HDCP 2.3

That gives the RS3200 the bandwidth needed for high-resolution movie sources as well as modern high-frame-rate gaming.

Auto Low Latency Mode

The RS3200 supports ALLM — Auto Low Latency Mode.

When connected to a compatible gaming source, the projector can automatically switch into its low-latency configuration.

Combine that with 4K/120 input capability, and the RS3200 can deliver a massive gaming experience while remaining first and foremost a serious cinema projector.

HDR10, HDR10+ & HLG

The RS3200 supports:

• HDR10
• HDR10+
• HLG
• Gen2 Frame Adapt HDR
• Frame Adapt HDR Vivid
• Theater Optimizer
• Deep Black Tone Control

HDR10+ provides scene-specific dynamic metadata, while JVC's proprietary processing dynamically tone-maps conventional HDR10 material.

Wide Color Gamut

The RS3200 combines its BLU-Escent laser with JVC's cinema filter to reproduce a wide color gamut including DCI-P3.

A 6-axis Color Management System provides precise adjustment of:

• Red
• Green
• Blue
• Cyan
• Magenta
• Yellow

The projector also provides 12-bit color processing.

Filmmaker Mode

The RS3200 includes Filmmaker Mode, allowing viewers to minimize unnecessary processing and preserve a presentation closer to the filmmaker's original intent.

Professional Calibration

The RS3200 is ISFccc certified and supports JVC's Auto Calibration system.

Professional calibration can optimize:

• Color balance
• Gamma
• Color space
• Color tracking
• HDR performance
• Screen characteristics

JVC's calibration system can account for the actual installation rather than assuming every projector is operating in the same room on the same screen.

At this level, that's important.

3D Capability

The RS3200 retains 3D playback.

Supported formats include:

• Frame Packing
• Side-by-Side
• Top & Bottom

JVC's optional PK-EM2 3D emitter and PK-AG3 glasses are required.

For someone with an existing Blu-ray 3D collection, that's an increasingly difficult feature to find in a modern high-end display.

Professional Home Automation Integration

The RS3200 is designed for professionally installed theaters.

Integration capabilities include:

• LAN / IP control
• RS-232
• 12V Trigger
• Control4
• RTI
• Josh.ai

That allows the projector to become part of the complete cinema experience.

A single command can start the theater, lower the lights, close motorized shades, activate the projector, lower a screen, select the source and recall the appropriate theater settings.

Ceiling Mount Included

JVC includes a ceiling mount with the DLA-RS3200 beginning September 1, 2026.

For a Reference Series projector that's likely to be professionally installed in a dedicated theater, that's a useful addition.

Key Specifications

• Series: JVC Reference Series
• Display Technology: 3-Chip D-ILA
• D-ILA Device: Third-Generation 0.69" Native 4K
• Native Resolution: 4096 × 2160
• 8K/e-shiftX: Gen2
• Displayed Resolution: 8192 × 4320
• Light Source: BLU-Escent Laser
• Brightness: 2,700 Lumens
• Laser Life: Approximately 20,000 Hours
• Native Contrast: 100,000:1
• Dynamic Contrast: Infinity:1
• Dynamic Laser Control: Yes
• Manual Aperture: Yes
• HDR: HDR10, HDR10+, HLG
• Frame Adapt HDR: Gen2
• Frame Adapt HDR Vivid: Yes
• Theater Optimizer: Yes
• Deep Black Tone Control: Yes
• DCI-P3: Yes
• Color Depth: 12-Bit
• Lens Diameter: 65mm
• Lens Construction: 17 Elements / 15 Groups
• Lens Barrel: Aluminum
• Zoom: 2× Motorized
• Focus: Motorized
• Lens Shift: Motorized
• Vertical Lens Shift: ±80%
• Horizontal Lens Shift: ±34%
• Throw Ratio: 1.43–2.92:1
• Screen Size: 60"–200"
• Installation Memories: 10
• HDMI Inputs: 2
• HDMI Bandwidth: 48Gbps
• 8K Input: Up to 8K/60p
• 4K Input: Up to 4K/120p
• HDCP: 2.3
• 3D: Yes
• ALLM: Yes
• ISFccc Certified: Yes
• Auto Calibration: Yes
• Control: LAN, RS-232 and 12V Trigger
• Home Automation: Control4, RTI and Josh.ai
• Warranty: 3 Years Parts & Labor / First-Year Advanced Exchange
• Ceiling Mount: Included on qualifying units beginning September 1, 2026

RS3200 or RS4200?

The RS4200 is the flagship, but the RS3200 retains a surprising amount of its technology.

Both provide:

• Native 4K D-ILA
• Gen2 8K/e-shiftX
• 8K/60 input
• 4K/120 input
• 48Gbps HDMI
• Gen2 Frame Adapt HDR
• HDR10+
• 3D
• 10 installation memories

The RS4200 steps up to 3,300 lumens and 150,000:1 native contrast, but one of its biggest upgrades is the optical system.

The RS4200 uses JVC's massive 100mm, 18-element/16-group lens with five ED elements, while the RS3200 uses an excellent 65mm, 17-element/15-group all-glass lens.

For an especially large screen or a theater where you're trying to extract the maximum performance JVC offers, the RS4200 is the step up.

For many dedicated private cinemas, the RS3200 hits an extremely strong balance of performance and capability.

RS3200 or NZ800?

The RS3200 and NZ800 are essentially counterparts within JVC's lineup.

Both deliver the same fundamental performance platform:

• 2,700 lumens
• 100,000:1 native contrast
• Gen2 8K/e-shiftX
• 65mm all-glass lens
• 8K60 / 4K120
• 48Gbps HDMI
• Gen2 Frame Adapt HDR
• 3D capability

The RS3200 belongs to JVC's Reference Series, making it particularly appropriate for dealer-designed and professionally installed private cinema systems.

Experience the JVC DLA-RS3200 at The Grid HiFi

The Grid HiFi is your JVC Reference Series and private cinema expert in Houston, Texas.

A projector at this level shouldn't be selected from a specification sheet alone.

Screen size, screen material, gain, throw distance, seating distance, room dimensions, ambient light and even the reflectivity of the walls and ceiling can dramatically affect the final image.

The Grid designs the entire cinema as a system.

We can specify the RS3200 and projection screen, engineer projector placement and sightlines, design the immersive audio system, integrate Control4 automation, lighting and motorized shades, specify theater seating, and professionally install and calibrate the completed room.

For CinemaScope theaters, we can also design around 2.35:1 or 2.39:1 screens, lens memories, masking systems and anamorphic solutions.

The goal isn't simply to sell you a JVC projector.

It's to build the room that allows that projector to perform the way it was designed to.
