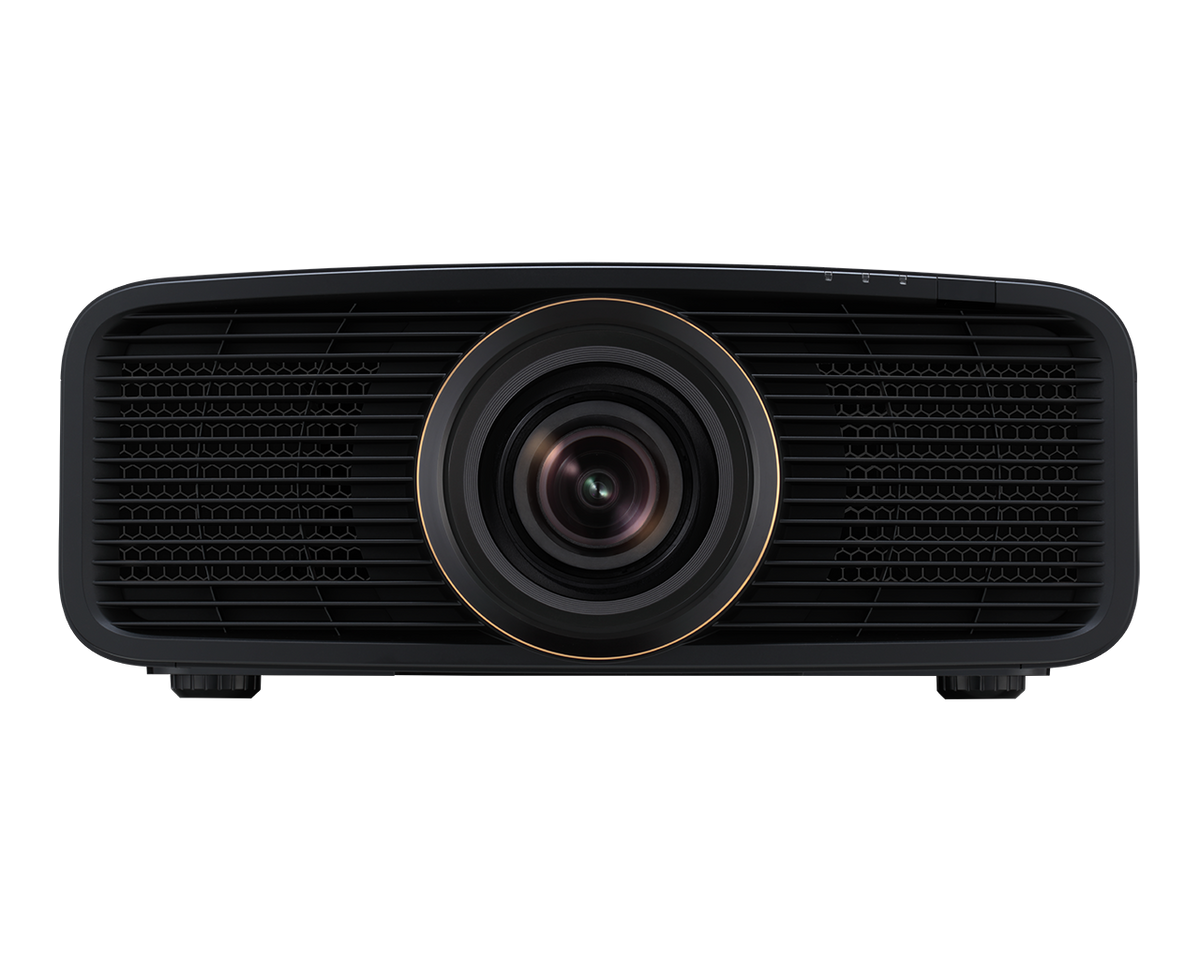

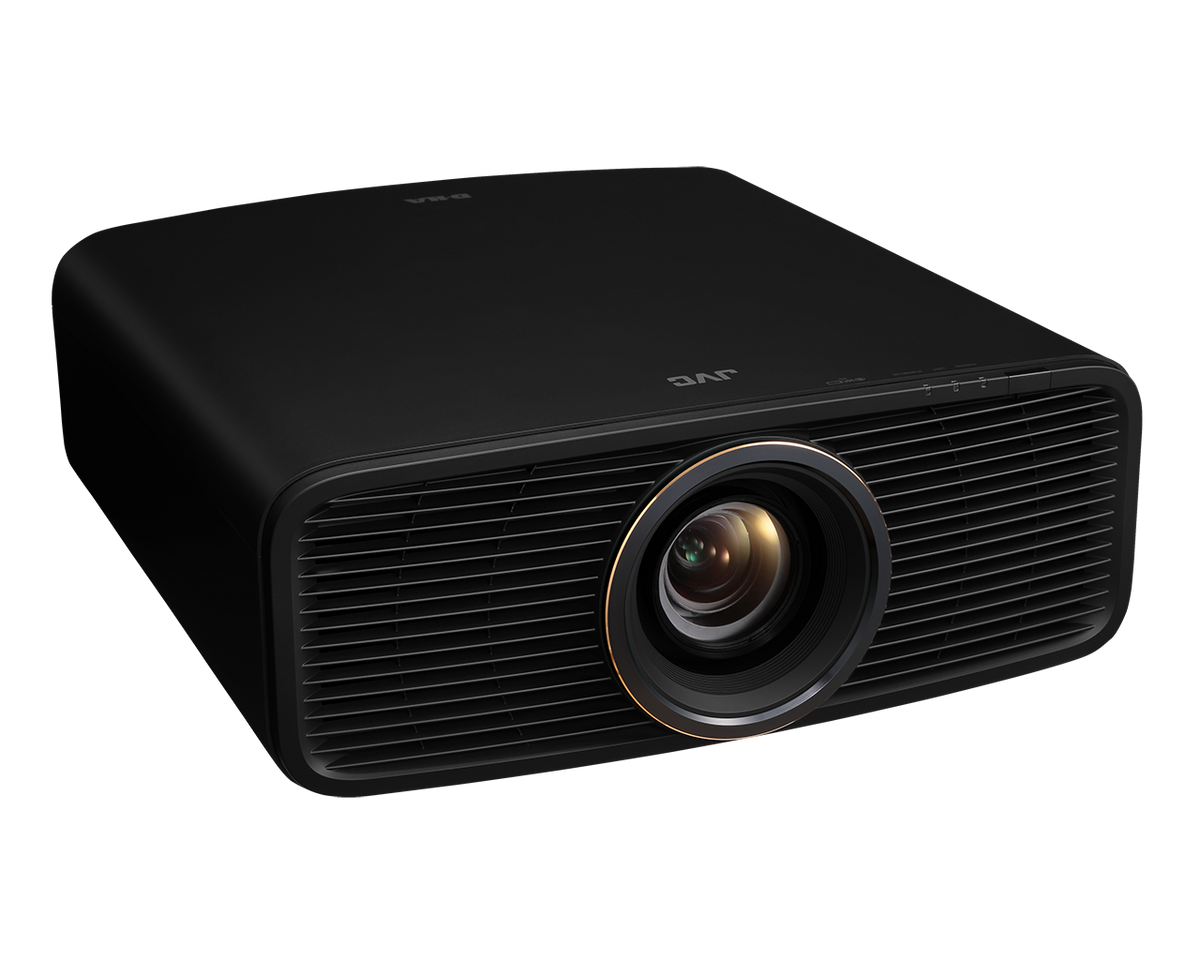

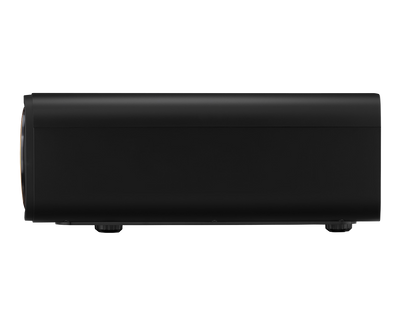

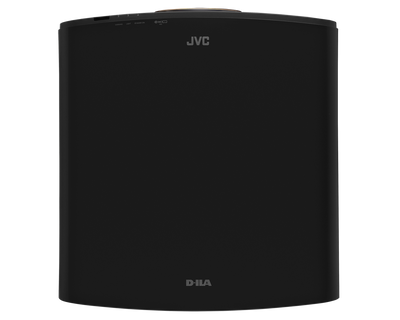

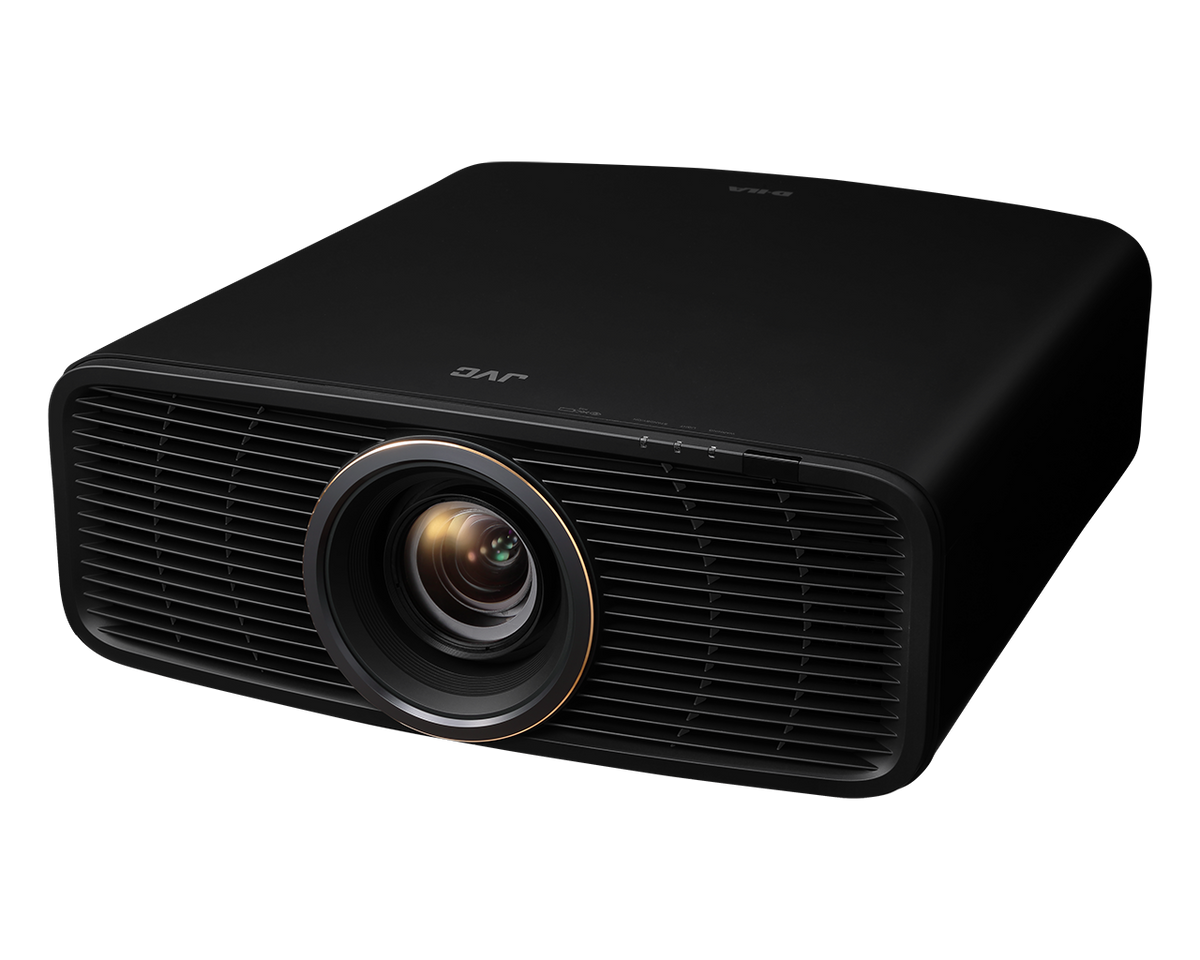

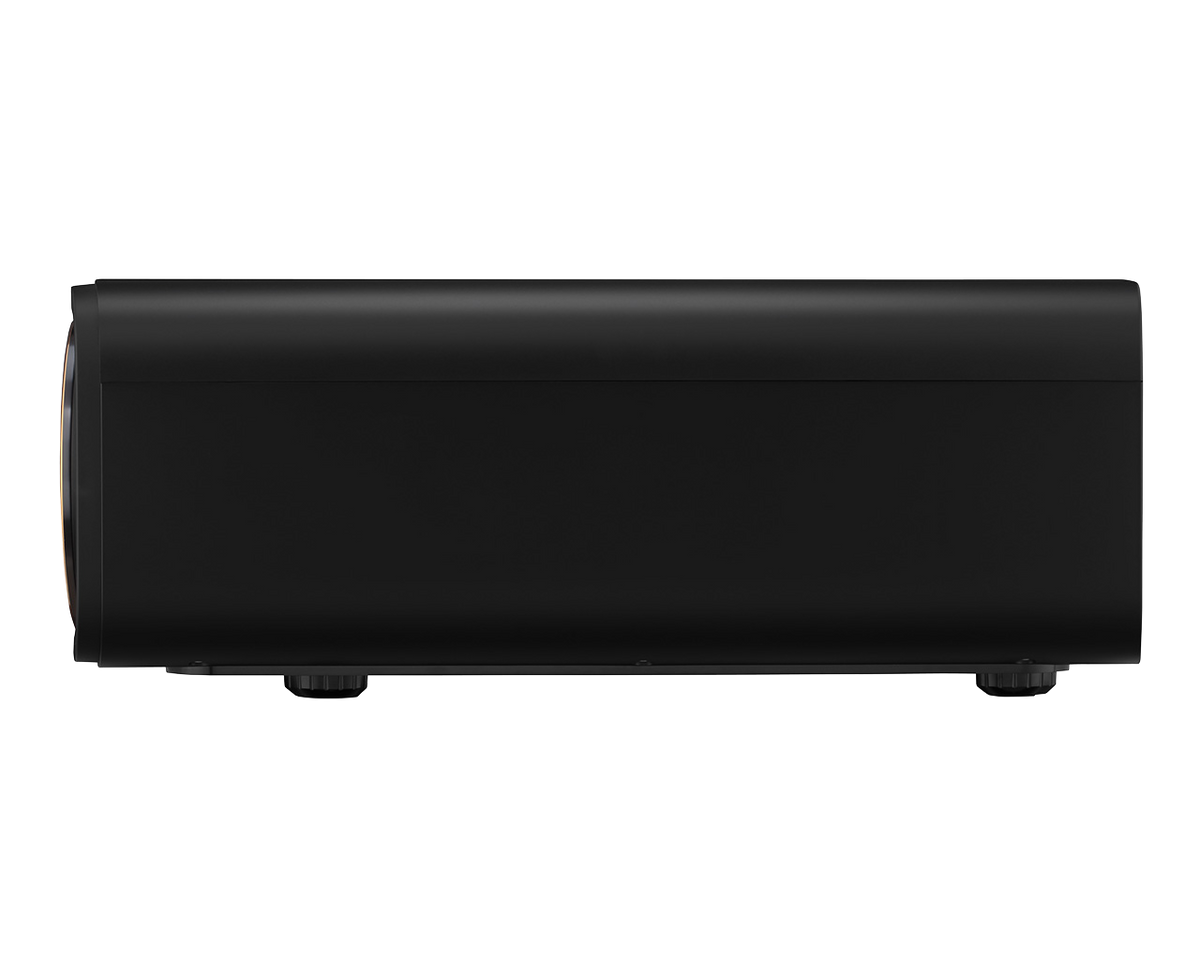

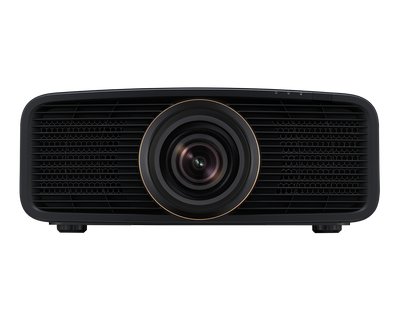

JVC DLA-RS1200 Reference Series Native 4K Laser Projector

The JVC DLA-RS1200 brings JVC's Reference Series native 4K projection technology to dedicated home theaters and professionally designed private cinemas.

Built around three native 4K D-ILA imaging devices, the RS1200 combines a 2,000-lumen BLU-Escent laser, 40,000:1 native contrast, Gen2 Frame Adapt HDR and a newly designed 80mm fully motorized lens in a compact chassis.

For someone building a dedicated theater who wants the black levels, contrast and natural cinematic image JVC is known for, the RS1200 is an excellent entry point into the Reference Series.

True Native 4K D-ILA

The RS1200 uses three 0.69-inch native 4K D-ILA devices with a true native resolution of:

4096 × 2160

There is no pixel shifting required to create its 4K image.

JVC's latest-generation D-ILA devices improve pixel flatness and alignment while maintaining the high native contrast that makes this technology so well suited to dedicated theater environments.

40,000:1 Native Contrast

The RS1200 delivers:

40,000:1 native contrast

JVC's dynamic laser control can further adjust light output according to the image and completely shut down the laser during a full-black frame for an Infinity:1 dynamic contrast ratio.

But native contrast is what really matters during actual movie scenes.

Better black levels give an image depth and dimensionality. Dark scenes retain detail rather than appearing gray, while brighter objects have greater impact against a genuinely dark background.

2,000-Lumen BLU-Escent Laser

The RS1200 uses JVC's BLU-Escent laser light source to produce up to:

2,000 lumens

Expected laser life is approximately:

20,000 hours

Light output can be adjusted across 101 individual steps, allowing the projector to be precisely matched to screen size, screen gain and the desired brightness of the theater.

Gen2 Frame Adapt HDR

JVC's Gen2 Frame Adapt HDR is one of the RS1200's most important features.

The system analyzes HDR10 material scene-by-scene or frame-by-frame and dynamically adjusts tone mapping around the projector's available dynamic range.

The RS1200 also uses both DML and MaxCLL metadata when determining HDR levels.

Rather than applying one fixed HDR curve to an entire movie, Frame Adapt HDR continually optimizes the image as the content changes.

Deep Black Tone Control

JVC's Deep Black Tone Control works alongside Frame Adapt HDR to improve reproduction of the darkest portions of HDR images.

It helps preserve subtle gradation and shadow detail while taking advantage of the RS1200's native D-ILA contrast.

The result is more convincing night scenes, dark interiors and other challenging material containing both deep shadows and bright highlights.

HDR10, HDR10+ & HLG

The RS1200 supports today's major HDR formats, including:

• HDR10
• HDR10+
• HLG
• Gen2 Frame Adapt HDR
• Deep Black Tone Control

HDR10+ provides dynamic scene-specific metadata, while JVC's proprietary Frame Adapt HDR provides dynamic tone mapping for conventional HDR10 content.

Newly Designed 80mm 4K Lens

The RS1200 uses a newly designed 80mm large-aperture 4K lens constructed from:

• 15 lens elements
• 11 groups
• 1.6× motorized zoom

The optical system is designed to maintain the resolution of the native 4K D-ILA devices across the entire projected image.

Fully Motorized Lens

The RS1200 provides fully motorized:

• Focus
• Zoom
• Lens Shift

Lens shift reaches:

• ±70% Vertical
• ±28% Horizontal

Throw ratio is:

1.34–2.14:1 for 16:9

This gives a professional theater designer considerable flexibility when determining projector placement.

Lens Memory & CinemaScope

The RS1200 can store five different installation modes.

Stored settings can include lens control, pixel adjustment, masking, anamorphic configuration, screen adjustment, installation style, keystone and aspect ratio.

This is particularly useful in a theater using a 2.35:1 or 2.39:1 CinemaScope screen, where separate configurations can be stored for widescreen movies and conventional 16:9 programming.

The RS1200 also provides four anamorphic modes for systems using an external anamorphic lens.

Vivid Picture Mode

JVC includes a dedicated Vivid picture mode for SDR content.

It's designed to provide brighter, richer colors for animation and other SDR programming where a more dynamic presentation may be preferred.

Filmmaker Mode

The RS1200 also includes Filmmaker Mode, allowing viewers to minimize unnecessary processing and maintain a presentation closer to the filmmaker's original intent.

Professional Calibration

The RS1200 is ISFccc certified and supports JVC's Auto Calibration system.

Professional calibration can optimize:

• Color balance
• Gamma
• Color space
• Color tracking
• Screen characteristics

A 6-axis Color Management System provides individual adjustment of red, green, blue, cyan, magenta and yellow.

This level of adjustment allows the projector to be calibrated around the actual screen, room and sources being used.

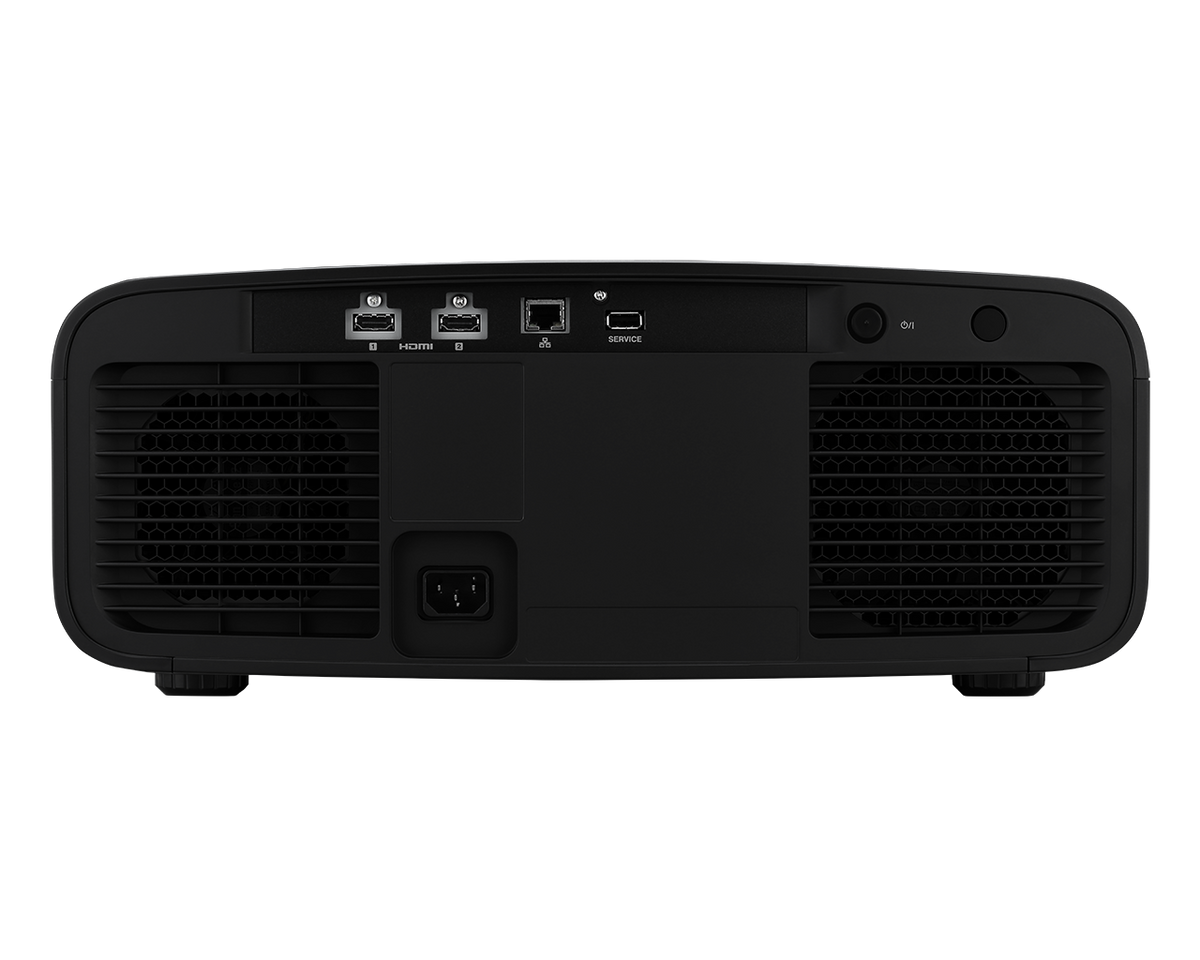

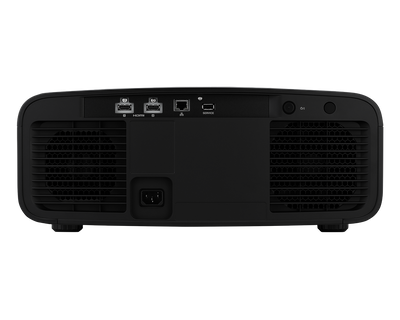

HDMI Connectivity

The RS1200 provides:

• 2 HDMI inputs
• 32Gbps data rate
• 4K/60p input support
• HDCP 2.3

This provides the connectivity needed for modern UHD Blu-ray players, media servers, streaming devices and AV processors.

Professional Home Automation Integration

The RS1200 is designed to become part of a professionally integrated private cinema.

JVC supports integration with systems including:

• Control4
• RTI
• Josh.ai

The projector also provides LAN/IP connectivity and Control4 SDDP support.

That means lighting, shades, audio, video and projector operation can all be integrated into a single theater experience.

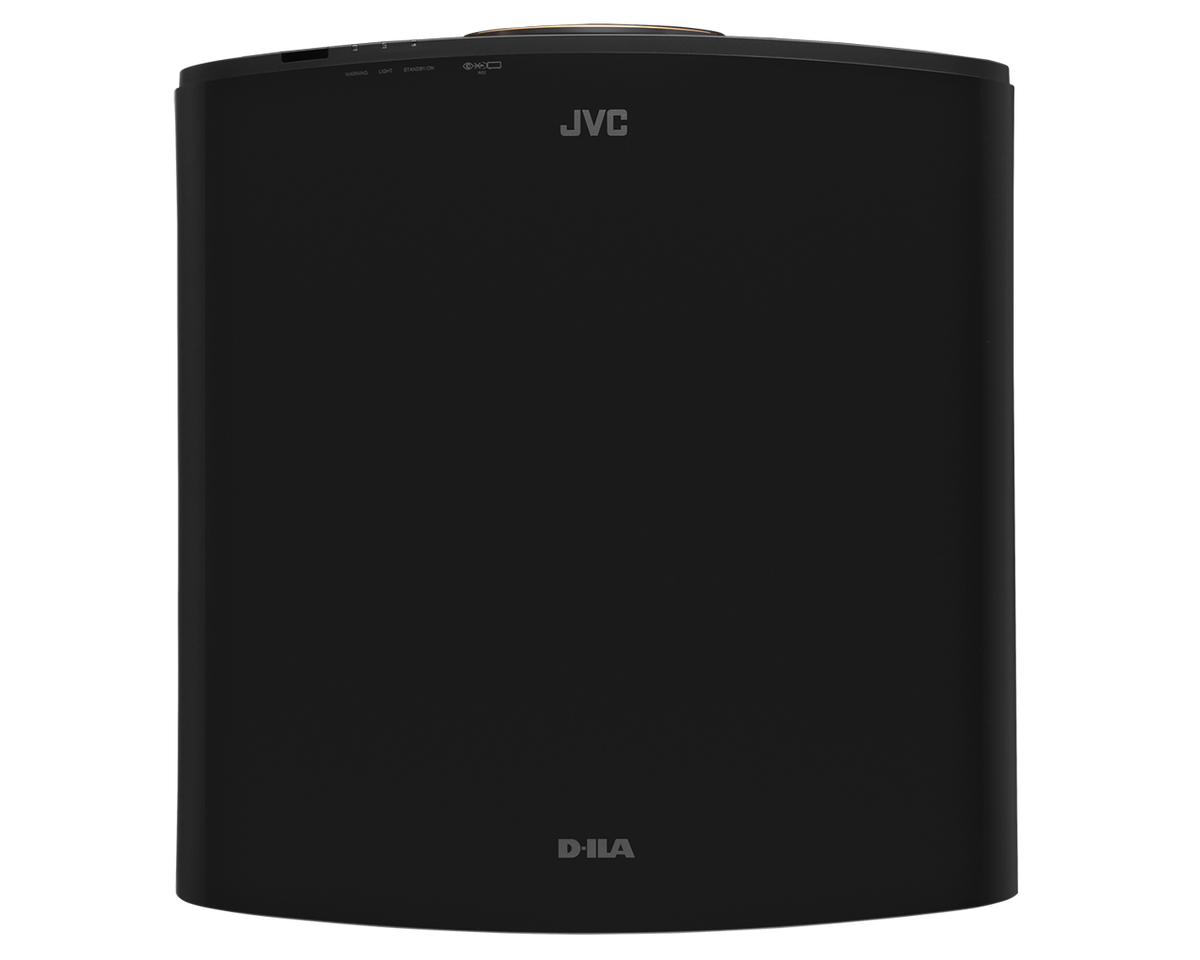

Compact New Chassis

JVC redesigned the optical unit, lens and circuit board for this generation.

The result is a chassis approximately 35% smaller than the previous RS2100/NZ7 generation, while still incorporating a native 4K three-chip D-ILA system and BLU-Escent laser light source.

Heat exhaust has also been moved to the rear, improving installation flexibility.

Key Specifications

• Series: JVC Reference Series
• Display Technology: 3-Chip D-ILA
• Native Resolution: 4096 × 2160
• Native 4K: Yes
• Light Source: BLU-Escent Laser
• Brightness: 2,000 Lumens
• Laser Life: Approximately 20,000 Hours
• Native Contrast: 40,000:1
• Dynamic Contrast: Infinity:1
• Dynamic Laser Control: Yes
• Manual Aperture: Yes
• HDR: HDR10, HDR10+, HLG
• Frame Adapt HDR: Gen2
• Deep Black Tone Control: Yes
• REC.709 Coverage: 100%
• Color Depth: 12-Bit
• Lens Diameter: 80mm
• Lens Construction: 15 Elements / 11 Groups
• Zoom: 1.6× Motorized
• Focus: Motorized
• Lens Shift: Motorized
• Vertical Lens Shift: ±70%
• Horizontal Lens Shift: ±28%
• Throw Ratio: 1.34–2.14:1 for 16:9
• Screen Size: 60"–200"
• Installation Memories: 5
• HDMI Inputs: 2
• HDMI Bandwidth: 32Gbps
• Maximum 4K Input: 4K/60p
• HDCP: 2.3
• ISFccc Certified: Yes
• Auto Calibration: Yes
• Control4 SDDP: Yes
• Fan Noise: 23dB
• Dimensions: 17-23/32" W × 7-5/32" H × 18-7/8" D
• Weight: 32.2 lbs.
• Warranty: 3 Years Parts & Labor / First-Year Advanced Exchange

RS1200 or RS2200?

The RS1200 and RS2200 share the same basic platform, including native 4K D-ILA, BLU-Escent laser illumination, Gen2 Frame Adapt HDR, the 80mm motorized lens and compact chassis.

The RS2200 makes two significant performance jumps:

Brightness: 2,300 vs. 2,000 lumens
Native Contrast: 80,000:1 vs. 40,000:1

The RS2200 also adds JVC's Cinema Filter for wider DCI-P3 color reproduction.

For a larger screen or a theater where maximum HDR performance and black level are priorities, the RS2200 is the logical step up.

For a moderately sized dedicated theater, the RS1200 delivers the core JVC Reference Series experience at a more accessible point in the lineup.

RS1200 or NZ500?

The RS1200 and NZ500 are essentially counterparts within JVC's current projector lineup.

Both share the same fundamental performance platform:

• 2,000 lumens
• 40,000:1 native contrast
• Native 4K D-ILA
• 80mm motorized lens
• Gen2 Frame Adapt HDR
• HDR10+
• Five installation memories
• 4K/60 input

The RS1200 belongs to JVC's Reference Series, making it particularly appropriate for dealer-designed and professionally installed private cinema systems.

Experience the JVC DLA-RS1200 at The Grid HiFi

The Grid HiFi is your JVC Reference Series and private cinema expert in Houston, Texas.

A great theater isn't created by choosing a projector from a specification sheet.

Screen size, screen material, gain, throw distance, seating distance, room dimensions, ambient light and even the reflectivity of the walls and ceiling influence the picture you ultimately see.

The Grid designs the entire cinema as a system.

We can specify the RS1200 and projection screen, engineer projector placement and sightlines, design the immersive audio system, integrate Control4 automation, lighting and motorized shades, specify theater seating, and professionally install and calibrate the completed room.

For CinemaScope theaters, we can also design around 2.35:1 or 2.39:1 screens, lens memories, masking systems and anamorphic solutions.

The goal isn't simply to sell you a JVC projector. It's to build the room that allows it to perform at its best.

Contact The Grid HiFi for JVC DLA-RS1200 demonstrations, private cinema design, professional installation and calibration.
