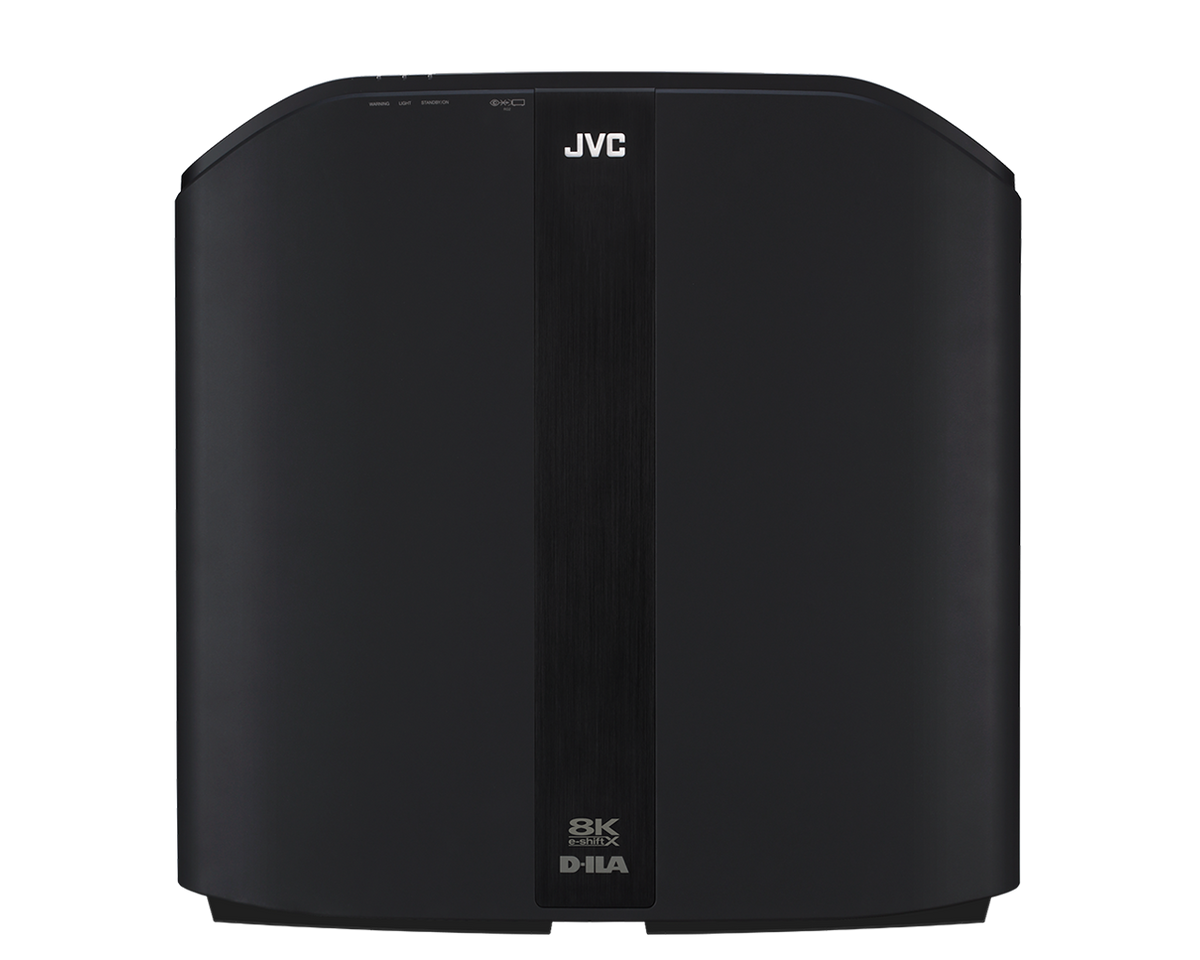

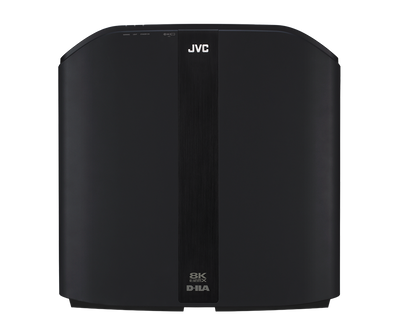

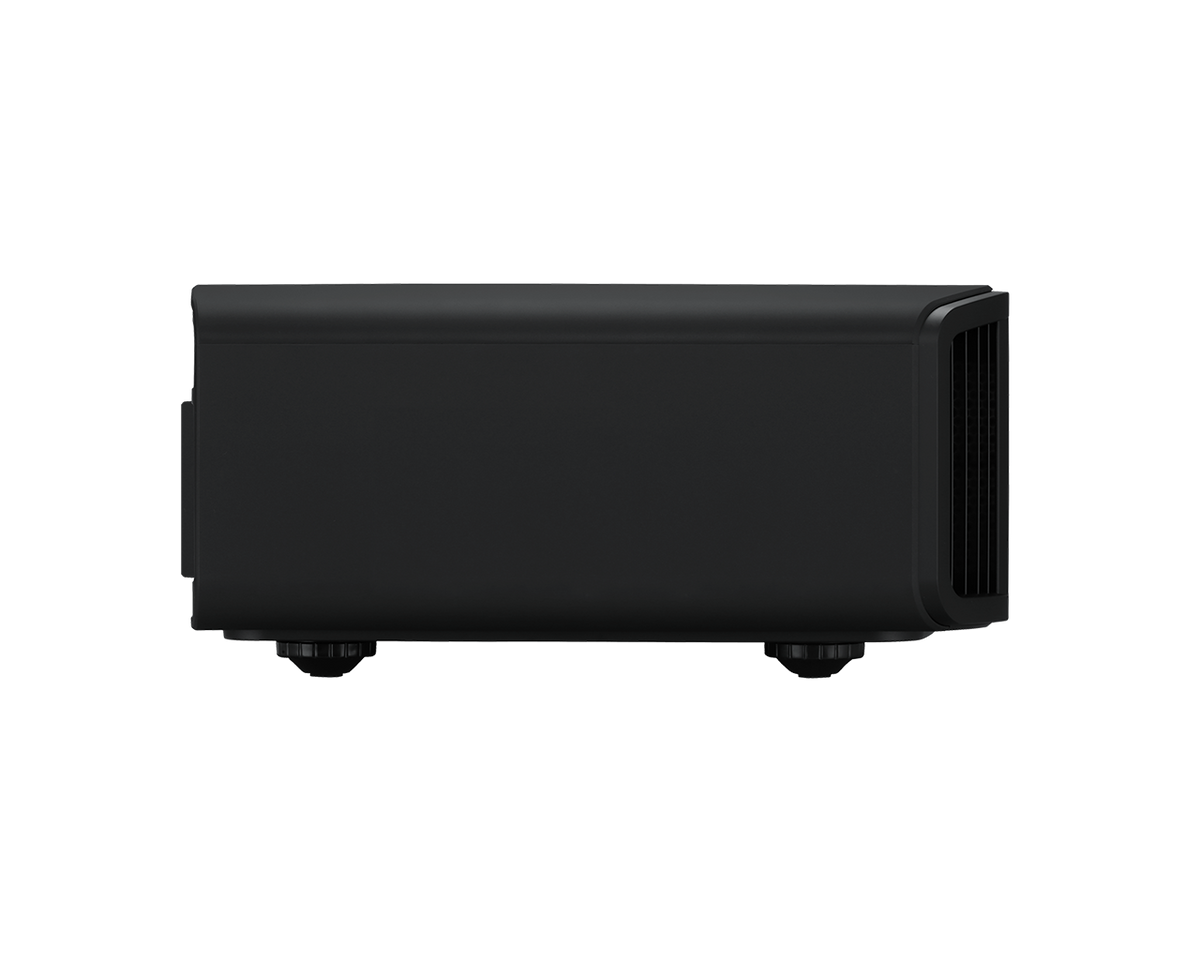

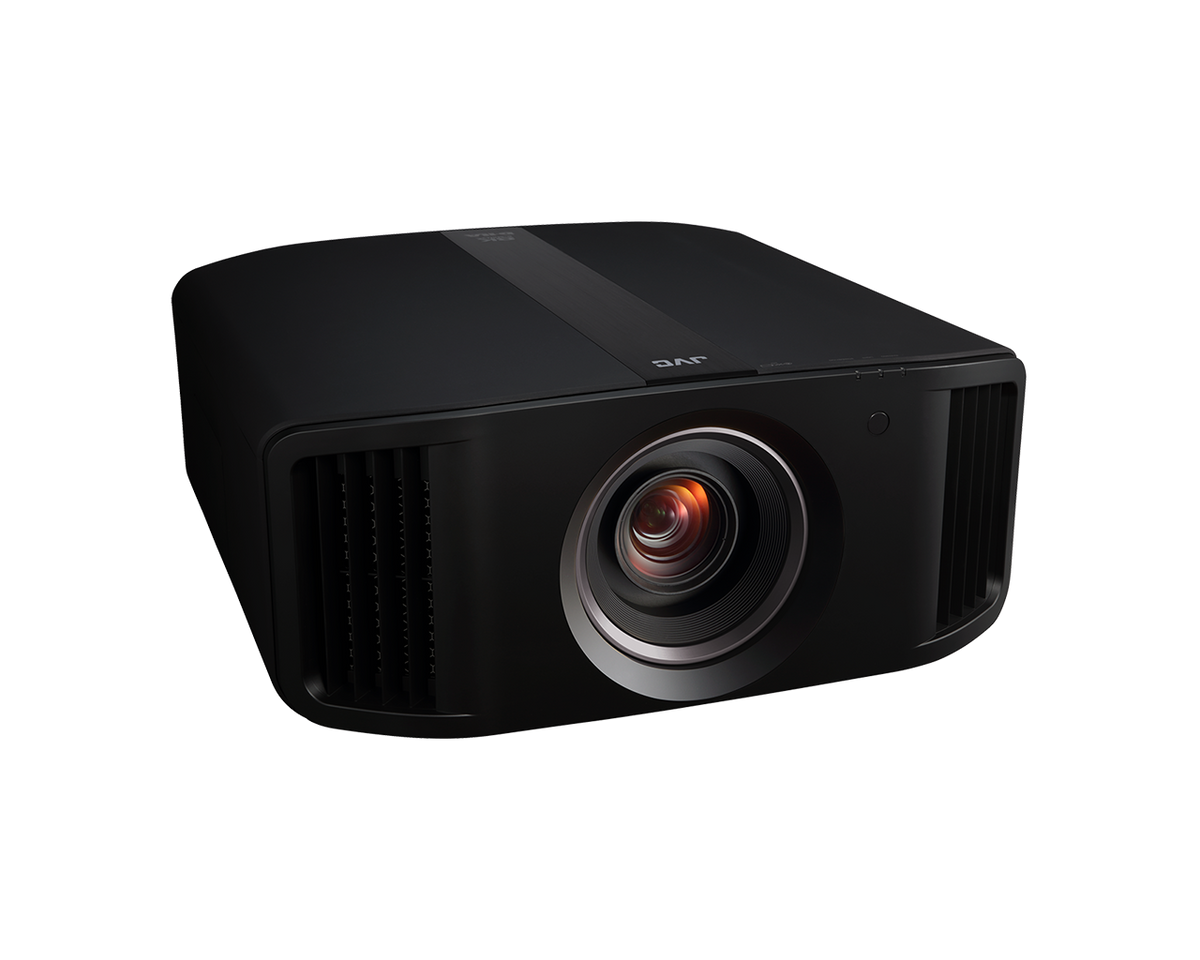

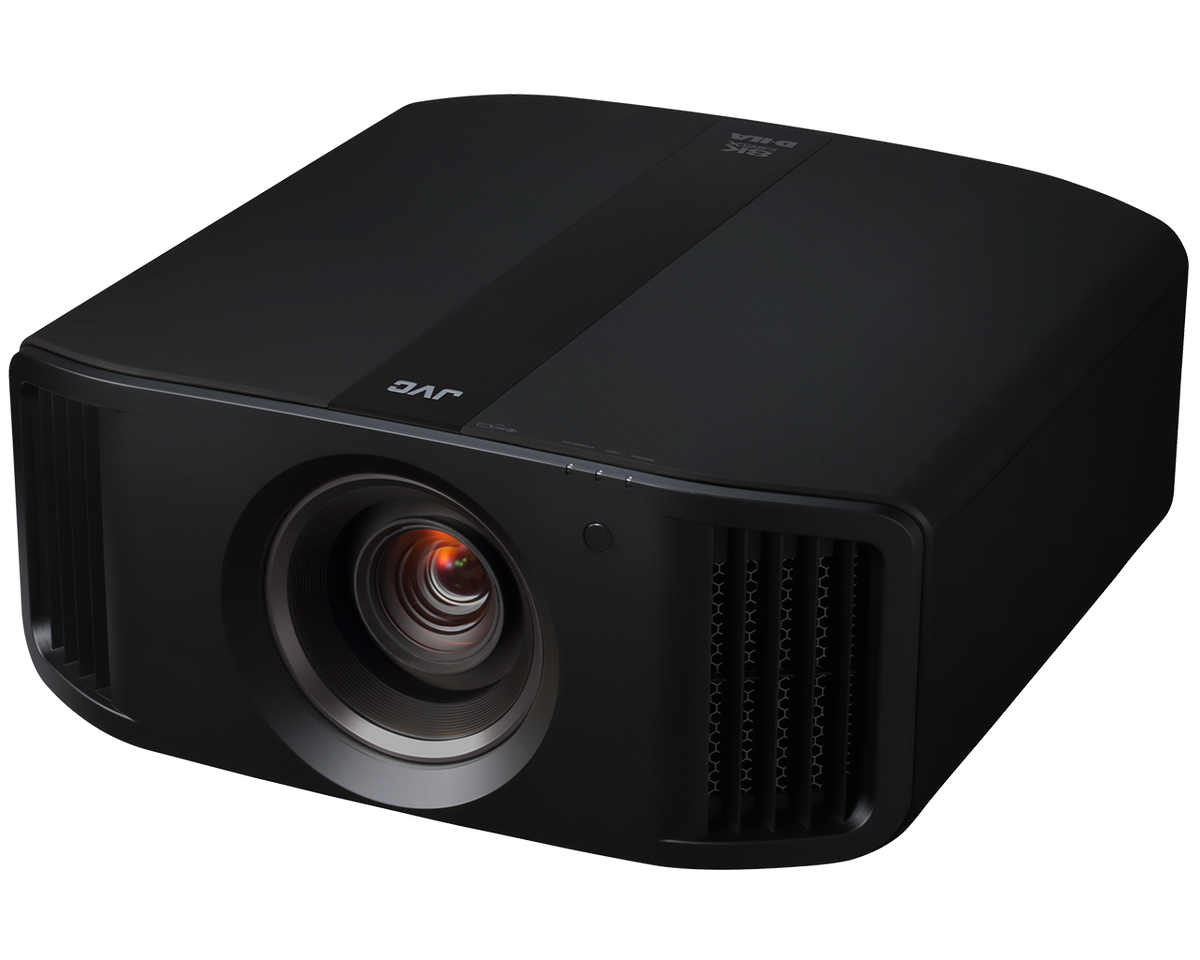

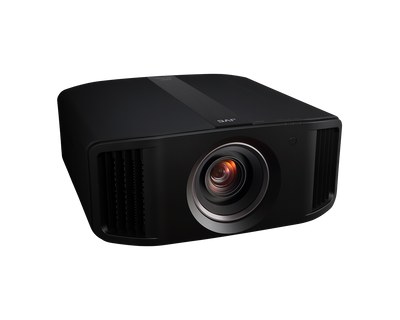

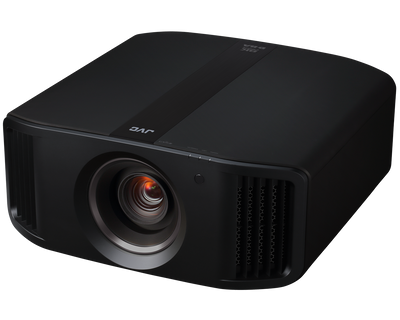

JVC DLA-NZ800 8K/e-shiftX Native 4K Laser Home Theater Projector

The JVC DLA-NZ800 is a high-performance native 4K laser projector built for serious dedicated home theaters and private cinemas.

It combines JVC's third-generation native 4K D-ILA imaging devices, Gen2 8K/e-shiftX, a 2,700-lumen BLU-Escent laser, an exceptional 100,000:1 native contrast ratio, 8K60 and 4K120 input capability, and JVC's advanced Gen2 Frame Adapt HDR processing.

For someone building a high-end theater who wants much of the technology found in JVC's flagship NZ900, the NZ800 hits a very interesting sweet spot.

Native 4K D-ILA + Gen2 8K/e-shiftX

The NZ800 starts with three third-generation 0.69-inch native 4K D-ILA devices with a native resolution of:

4096 × 2160

JVC then adds its second-generation 8K/e-shiftX technology to produce an 8192 × 4320 displayed image.

The system rapidly shifts the native 4K image in four directions while JVC's latest 8K scaling engine extracts additional detail from both 4K and 8K sources.

The result is an image designed for the kind of large screen sizes where fine detail and image structure really become visible.

100,000:1 Native Contrast

One of the NZ800's biggest strengths is its:

100,000:1 native contrast ratio

That's native contrast—not simply a dynamic contrast number created by turning the laser up and down.

JVC's dynamic laser control can further adjust light output according to the image and completely shut down the laser during a full-black frame for an Infinity:1 dynamic contrast ratio.

But in a properly designed dark theater, it's that extremely high native contrast that gives the NZ800 its characteristic depth.

Dark scenes stay dark. Shadow detail remains visible. Bright objects can stand out against genuinely deep blacks.

2,700-Lumen BLU-Escent Laser

The NZ800 uses JVC's BLU-Escent laser light source to produce up to:

2,700 lumens

Expected laser life is approximately:

20,000 hours

The laser output can be adjusted across 101 individual steps, allowing the projector to be precisely matched to the screen size, screen gain and desired image brightness.

That level of control becomes especially useful when professionally calibrating a dedicated theater.

Gen2 Frame Adapt HDR

HDR is one of the most difficult things for any projector to reproduce correctly.

JVC's Gen2 Frame Adapt HDR analyzes HDR10 content scene-by-scene or frame-by-frame and dynamically adjusts tone mapping around the projector's available brightness.

The NZ800 can use both DML and MaxCLL metadata when determining the appropriate HDR level.

Instead of forcing one tone curve onto an entire movie, the projector continually adapts to the content being shown.

Frame Adapt HDR Vivid

JVC's newer Frame Adapt HDR Vivid picture mode builds on its dynamic HDR processing to increase the visual impact of HDR material.

Bright portions of the image gain additional presence while darker areas retain depth and detail, helping subjects stand out more naturally from the background.

Highlight Color Control

Increasing brightness can sometimes wash color out of the brightest areas of an HDR image.

JVC's Highlight Color Control works with Frame Adapt HDR to balance brightness and color saturation in high-intensity scenes.

Low, Mid and High settings allow the presentation to be adjusted around the room, screen and viewer preference.

Deep Black Tone Control

The NZ800 also incorporates Deep Black Tone Control.

This processing specifically addresses the darkest portions of HDR images, helping preserve black depth and gradation in difficult scenes.

Combined with the NZ800's 100,000:1 native contrast, it can make night scenes, space scenes and dark interiors look dramatically more convincing.

Theater Optimizer

The same projector can perform very differently on a 100-inch screen versus a 150-inch screen.

JVC's Theater Optimizer allows screen size and gain information to be entered into the projector.

Frame Adapt HDR can then use that information when determining how to tone-map HDR content.

That's exactly how a projector should be treated in a custom theater—as part of the room rather than an isolated component.

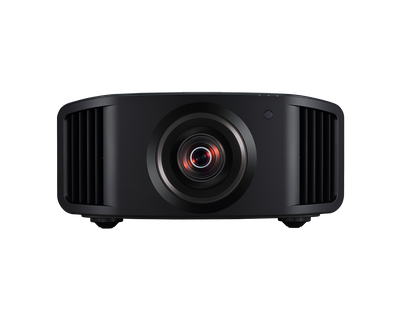

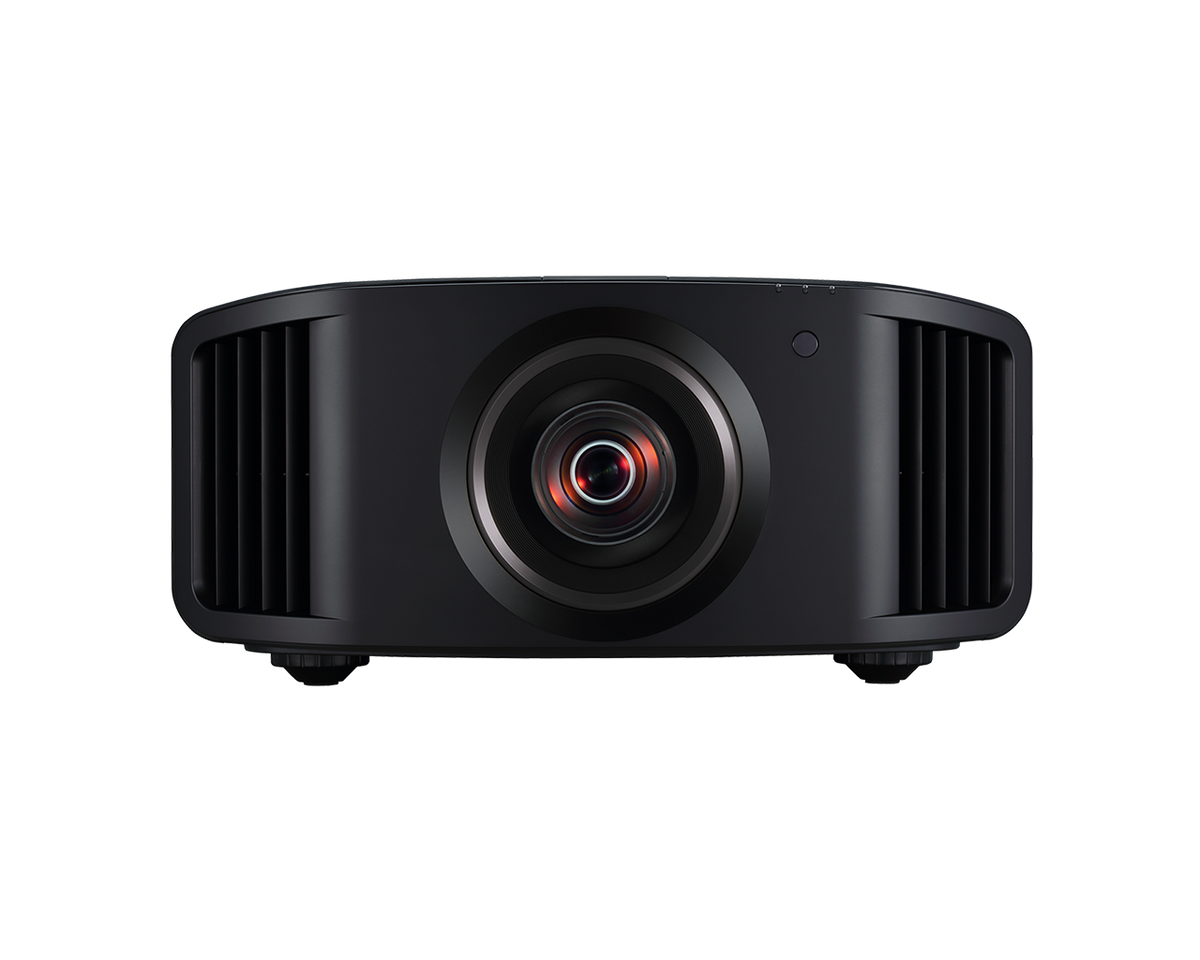

All-Glass 8K Lens

The NZ800 uses a 65mm all-glass lens constructed from:

• 17 elements
• 15 groups
• Full aluminum lens barrel

The optical system is designed to maintain high resolution across the entire projected image.

That's especially important when using 8K/e-shiftX on a large screen. Generating additional resolution inside the projector only matters if the lens can accurately put that information onto the screen.

Fully Motorized 2× Lens

The NZ800 provides a 2× motorized lens with:

• Motorized Zoom
• Motorized Focus
• Motorized Lens Shift

Lens shift reaches:

• ±80% Vertical
• ±34% Horizontal

Throw ratio is:

1.43–2.92:1

That gives a theater designer substantial flexibility when determining projector placement.

10 Installation Memories

The NZ800 can store 10 different installation modes.

These memories can retain settings including:

• Lens position
• Pixel adjustment
• Masking
• Anamorphic settings
• Screen settings
• Installation style
• Keystone
• Aspect ratio

This is particularly useful in a theater built around a 2.35:1 or 2.39:1 CinemaScope screen.

Different lens positions and settings can be recalled for widescreen movies and conventional 16:9 programming.

8K60 & 4K120 HDMI

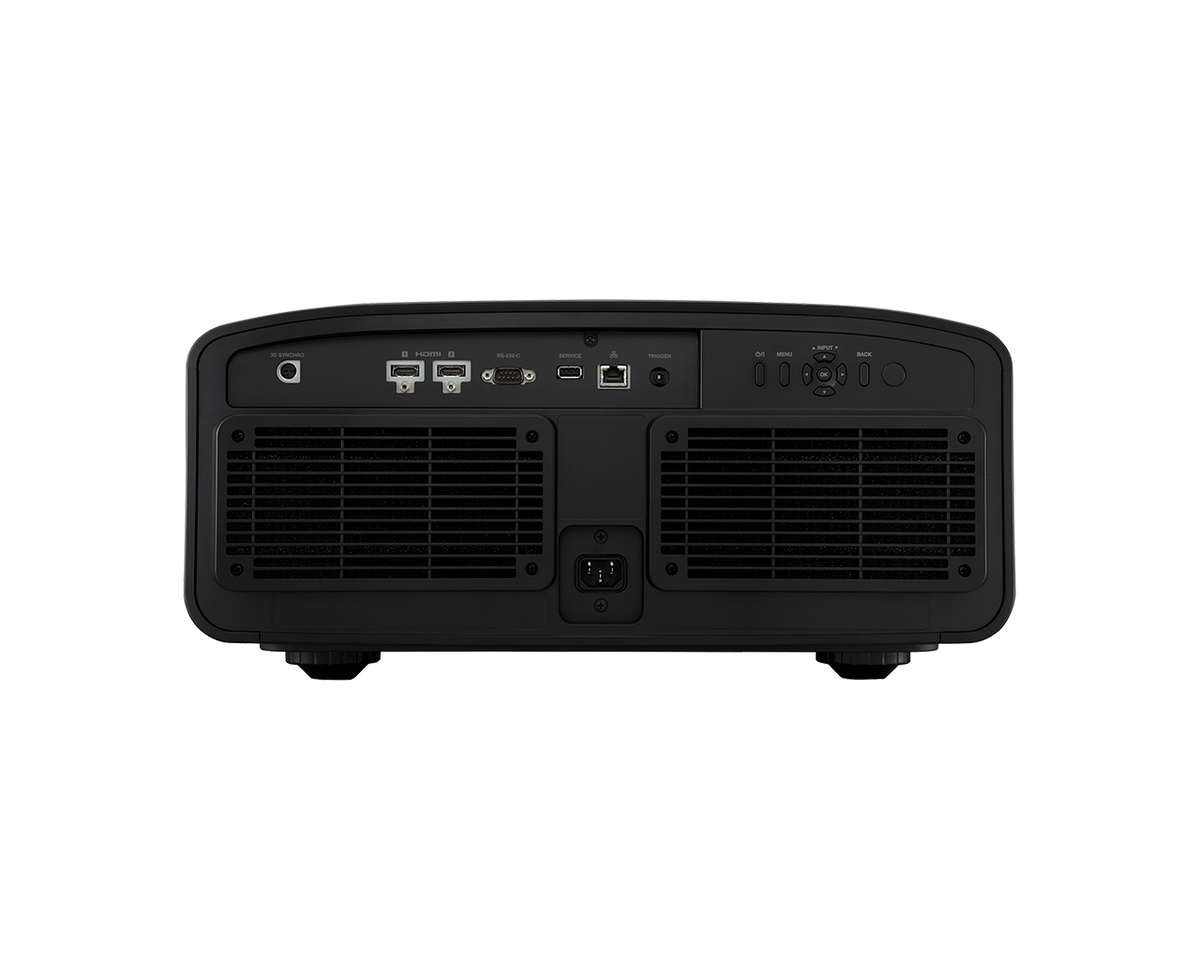

The NZ800 has two HDMI inputs supporting a full:

48Gbps

Video capability includes:

• 8K/60p
• 4K/120p
• 4K/60p
• HDCP 2.3

This gives the NZ800 the bandwidth required for modern high-resolution movie sources as well as high-frame-rate gaming.

ALLM for Gaming

The NZ800 supports Auto Low Latency Mode — ALLM.

When connected to a compatible gaming source, the projector can automatically switch into its low-latency mode.

Combine ALLM with 4K/120 input capability, and the NZ800 can serve double duty as a reference movie projector and an enormous high-performance gaming display.

HDR10, HDR10+ & HLG

The NZ800 supports:

• HDR10
• HDR10+
• HLG
• Gen2 Frame Adapt HDR
• Frame Adapt HDR Vivid
• Theater Optimizer
• Deep Black Tone Control

HDR10+ provides dynamic scene-specific metadata, while JVC's own Frame Adapt HDR technology provides dynamic tone mapping for conventional HDR10 material.

Wide Color Gamut

The NZ800 combines its BLU-Escent laser with JVC's cinema filter to reproduce a wide color gamut including DCI-P3.

A 6-axis Color Management System provides individual adjustment of:

• Red
• Green
• Blue
• Cyan
• Magenta
• Yellow

The NZ800 also supports 12-bit color processing.

Filmmaker Mode

Filmmaker Mode is included for viewers who want to minimize unnecessary processing and maintain a presentation closer to the creative intent of the filmmakers.

Professional Calibration

The NZ800 is ISFccc certified and supports JVC's Auto Calibration system.

Professional calibration can optimize:

• Color balance
• Gamma
• Color gamut
• Color tracking
• HDR performance
• Screen characteristics

JVC's calibration system can also account for changes caused by the installation and optical environment over time.

3D Capability

The NZ800 retains 3D playback, something that's becoming increasingly difficult to find in modern displays.

Supported 3D formats include:

• Frame Packing
• Side-by-Side
• Top & Bottom

JVC's optional PK-EM2 3D emitter and PK-AG3 3D glasses are required.

For someone with an existing Blu-ray 3D collection, that's a significant feature.

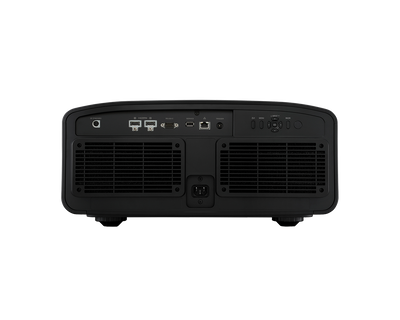

Professional Home Automation Integration

The NZ800 is designed to work in professionally integrated private cinemas.

Control capabilities include:

• LAN / IP
• RS-232
• 12V Trigger
• Control4
• RTI
• Josh.ai

This allows the projector to become part of the complete theater experience rather than something that has to be operated separately.

A single command can activate the theater, lower the lights, close the shades, start the AV system, select the source and recall the appropriate projector settings.

Key Specifications

• Display Technology: 3-Chip D-ILA
• D-ILA Device: Third-Generation 0.69" Native 4K
• Native Resolution: 4096 × 2160
• 8K/e-shiftX: Gen2
• Displayed Resolution: 8192 × 4320
• Light Source: BLU-Escent Laser
• Brightness: 2,700 Lumens
• Laser Life: Approximately 20,000 Hours
• Native Contrast: 100,000:1
• Dynamic Contrast: Infinity:1
• Dynamic Laser Control: Yes
• Manual Aperture: Yes
• HDR: HDR10, HDR10+, HLG
• Frame Adapt HDR: Gen2
• Frame Adapt HDR Vivid: Yes
• Theater Optimizer: Yes
• Deep Black Tone Control: Yes
• DCI-P3: Yes
• Color Depth: 12-Bit
• Lens Diameter: 65mm
• Lens Construction: 17 Elements / 15 Groups
• Lens Barrel: Aluminum
• Zoom: 2× Motorized
• Focus: Motorized
• Lens Shift: Motorized
• Vertical Lens Shift: ±80%
• Horizontal Lens Shift: ±34%
• Throw Ratio: 1.43–2.92:1
• Screen Size: 60"–200"
• Installation Memories: 10
• HDMI Inputs: 2
• HDMI Bandwidth: 48Gbps
• 8K Input: Up to 8K/60p
• 4K Input: Up to 4K/120p
• HDCP: 2.3
• 3D: Yes
• ALLM: Yes
• ISFccc Certified: Yes
• Auto Calibration: Yes
• Control: LAN, RS-232 and 12V Trigger
• Home Automation: Control4, RTI and Josh.ai
• Warranty: 3 Years Parts & Labor / First-Year Advanced Exchange

NZ800 or NZ700?

The NZ800 is a meaningful step up from the NZ700.

The biggest differences include:

• 2,700 vs. 2,300 lumens
• 100,000:1 vs. 80,000:1 native contrast
• Gen2 8K/e-shiftX
• 8K/60 input
• 4K/120 input
• 48Gbps HDMI
• 2× motorized zoom
• Greater lens shift
• 10 installation memories
• 3D capability

For a larger or more ambitious dedicated theater, the NZ800 gives you significantly more capability.

NZ800 or NZ900?

The NZ900 sits above the NZ800 as JVC's flagship.

The NZ900 steps up to 3,300 lumens, 150,000:1 native contrast, and JVC's massive premium 100mm all-glass lens with five ED elements.

But the NZ800 retains many of the technologies that make the NZ900 special—including Gen2 8K/e-shiftX, 8K60, 4K120, 48Gbps HDMI, Gen2 Frame Adapt HDR and 3D.

That makes the NZ800 a particularly compelling choice for someone who wants flagship-level JVC technology but doesn't necessarily need the NZ900's additional brightness, contrast or premium lens system.

Experience the JVC DLA-NZ800 at The Grid HiFi

The Grid HiFi is your JVC projection and private cinema expert in Houston, Texas.

A projector at this level shouldn't be selected from a specification sheet alone.

Screen size, screen material, gain, throw distance, seating distance, room dimensions, wall and ceiling finishes and ambient light all affect the image that ultimately reaches your eyes.

The Grid designs the entire cinema as a system.

We can specify the NZ800 for the room, engineer projector and screen placement, design the immersive audio system, integrate Control4 automation, lighting and motorized shades, specify theater seating, and professionally install and calibrate the completed theater.

For CinemaScope systems, we can also design around 2.35:1 or 2.39:1 screens, lens memories, masking and anamorphic solutions.

The goal isn't simply to put an NZ800 in your theater.

It's to design the theater that lets the NZ800 show you what it's capable of.

Contact The Grid HiFi for JVC DLA-NZ800 demonstrations, private cinema design, professional installation and calibration.
