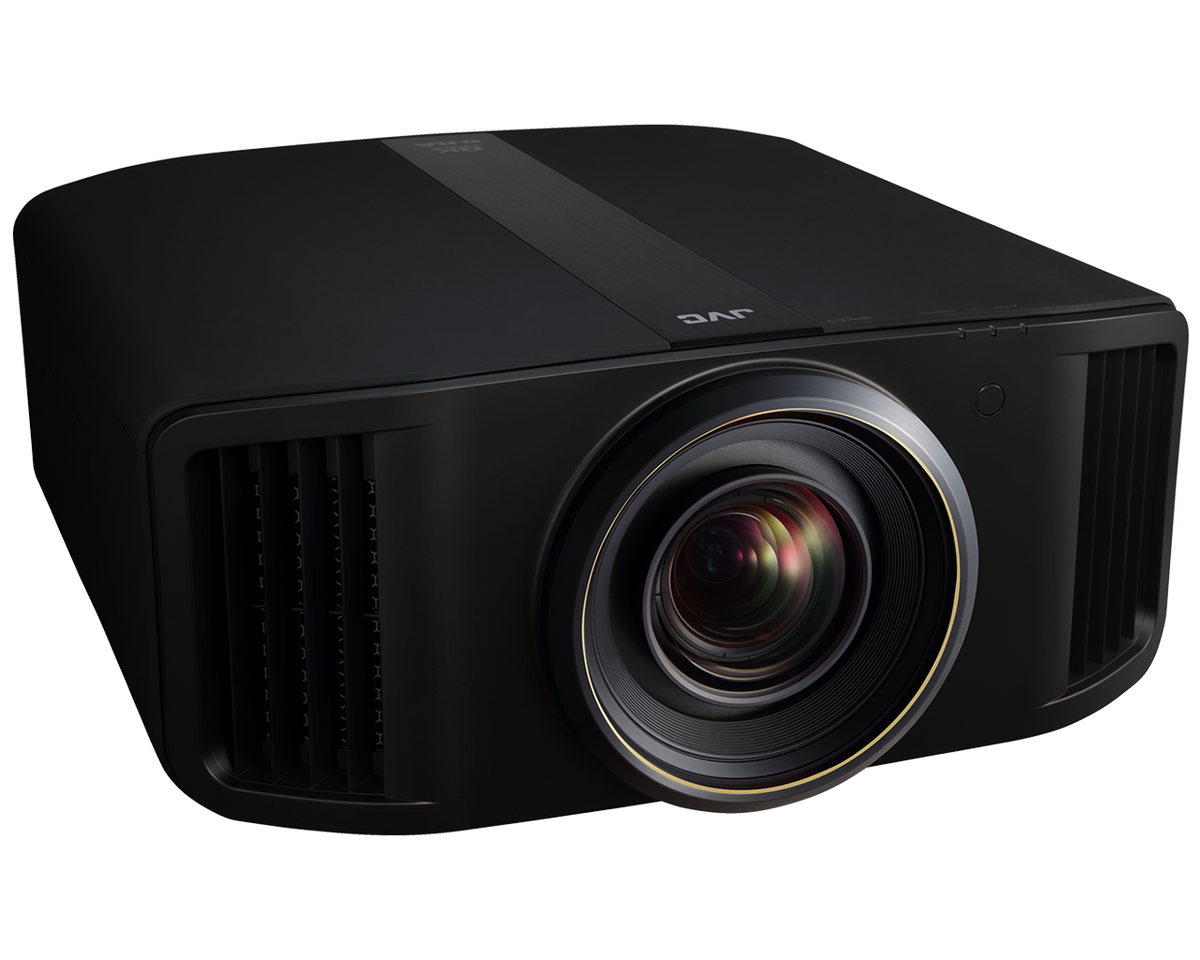

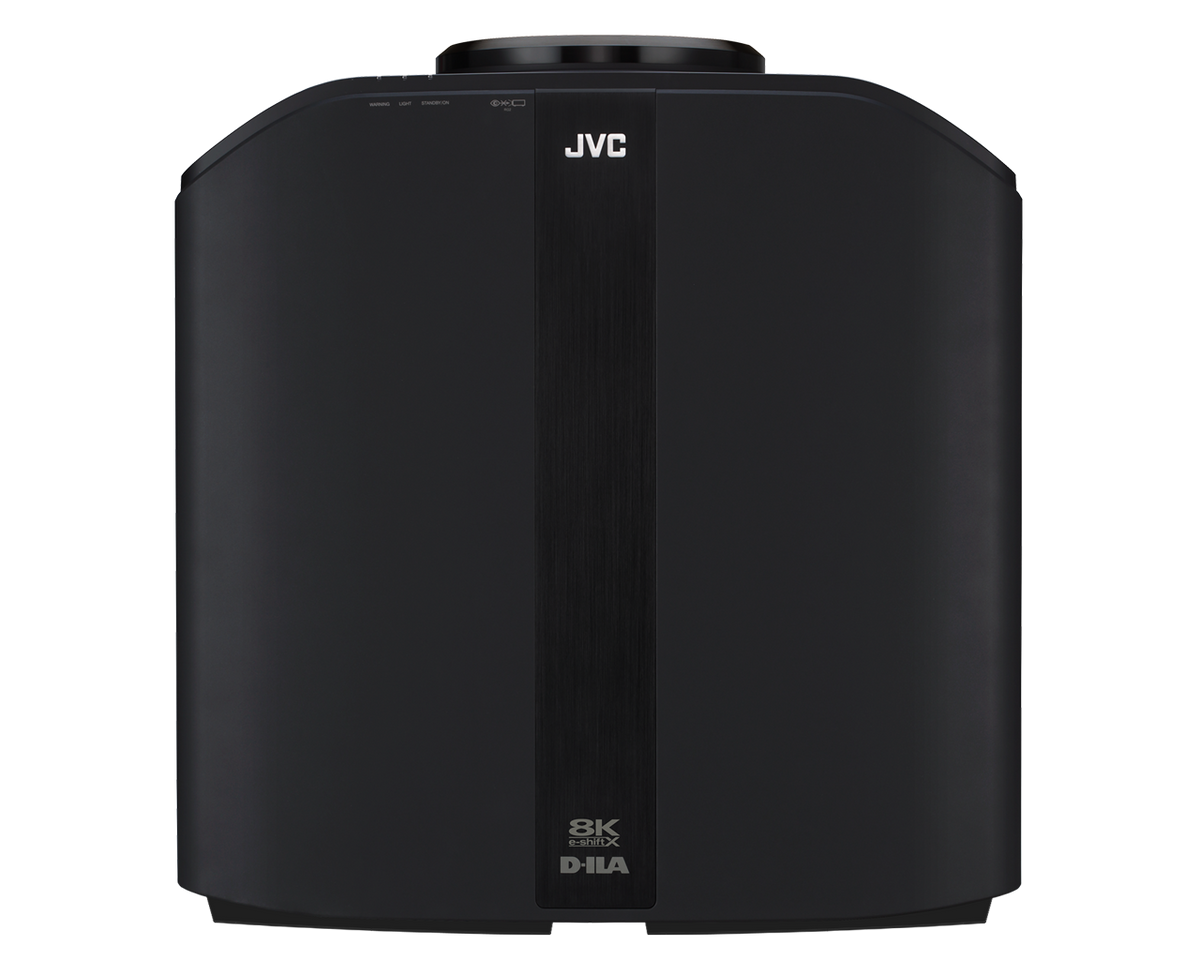

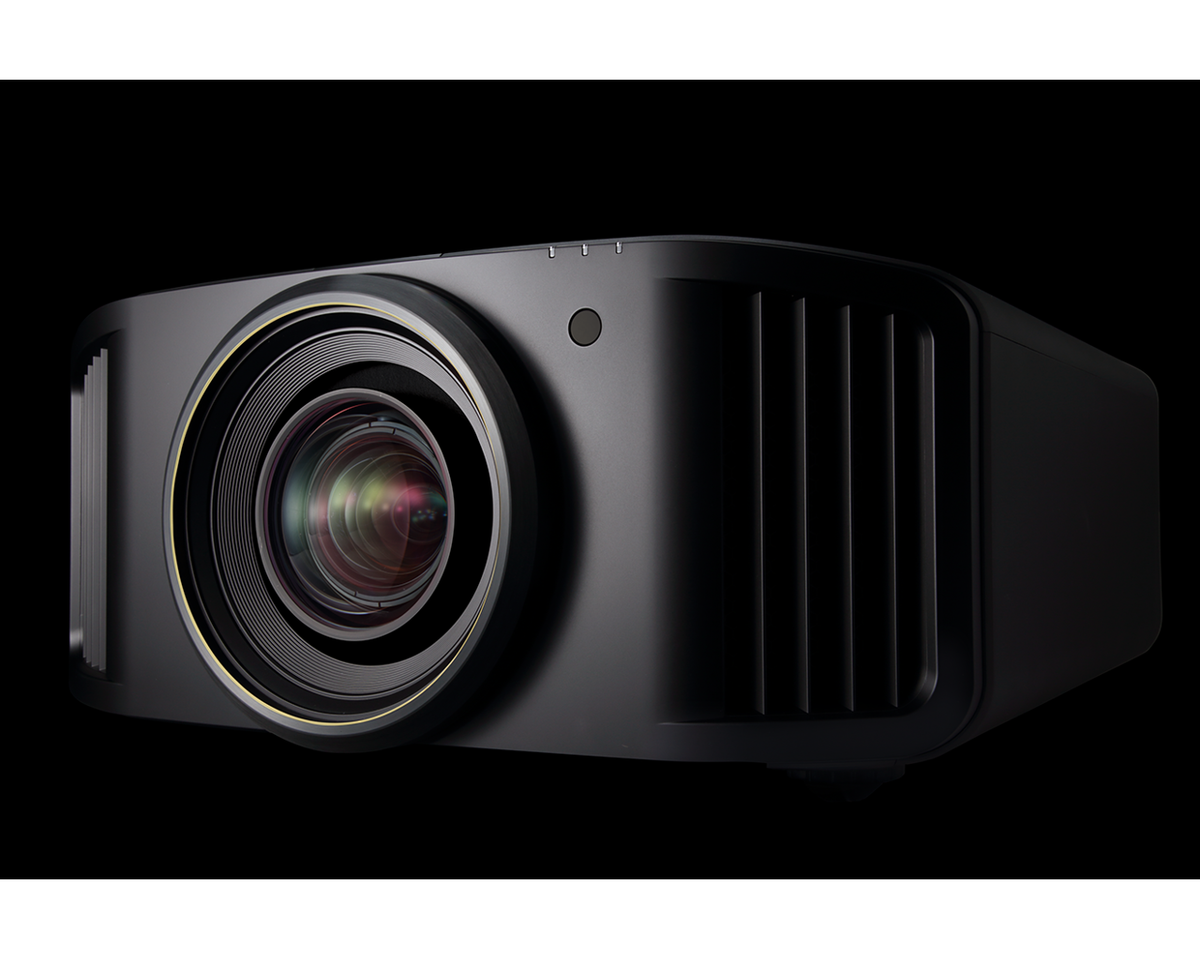

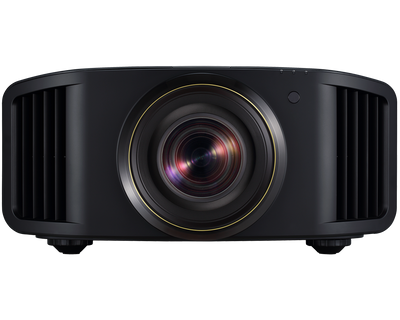

JVC DLA-RS4200 Reference Series 8K/e-shiftX Native 4K Laser Projector

The JVC DLA-RS4200 sits at the top of JVC's Reference Series projection lineup, designed for high-end dedicated theaters and professionally installed private cinemas.

It combines third-generation native 4K D-ILA imaging, Gen2 8K/e-shiftX, a 3,300-lumen BLU-Escent laser, an exceptional 150,000:1 native contrast ratio, JVC's premium 100mm all-glass lens and some of the best HDR processing available in home projection.

For a large, purpose-built cinema where black level, contrast, optics and HDR performance matter more than simply chasing the highest lumen number, the RS4200 is an exceptional projector.

Native 4K D-ILA + Gen2 8K/e-shiftX

The RS4200 starts with three third-generation 0.69-inch native 4K D-ILA devices.

Native resolution is:

4096 × 2160

JVC then adds its second-generation 8K/e-shiftX technology, rapidly shifting the native 4K image in four directions to produce an:

8192 × 4320 displayed image

JVC's latest 8K scaling engine further improves detail and sharpness across 4K and 8K sources.

On a large projection screen, where fine image structure becomes much easier to see, that additional resolution can make a meaningful difference.

150,000:1 Native Contrast

This is one of the biggest reasons to consider JVC for a serious theater.

The RS4200 delivers an extraordinary:

150,000:1 native contrast ratio

That's before dynamic laser control.

JVC's laser system can dynamically adjust light output and completely shut off during a full-black image, allowing a dynamic contrast ratio of Infinity:1.

But it's the extremely high native contrast during real movie scenes that makes the RS4200 special.

Deep blacks give the image depth. Shadow detail remains visible, and bright highlights can exist alongside genuinely dark portions of the picture without everything turning gray.

In a properly designed dark theater, it's immediately noticeable.

3,300-Lumen BLU-Escent Laser

The RS4200 uses JVC's BLU-Escent laser light source to produce up to:

3,300 lumens

Expected laser life is approximately:

20,000 hours

The additional brightness gives the RS4200 the headroom needed for larger screens while also helping HDR material retain greater impact.

Laser output can be adjusted across 101 individual steps, allowing the projector to be precisely matched to the screen size, screen gain and desired luminance.

Gen2 Frame Adapt HDR

HDR is one of the hardest things for a projector to reproduce properly.

JVC's Gen2 Frame Adapt HDR analyzes HDR10 material on a scene-by-scene or frame-by-frame basis and dynamically adjusts tone mapping around the projector's available dynamic range.

The RS4200 also uses both DML and MaxCLL metadata when determining HDR levels.

Rather than forcing one fixed HDR curve onto an entire movie, the projector continually adapts its processing to the content.

Frame Adapt HDR Vivid

JVC's Frame Adapt HDR Vivid expands on its dynamic HDR processing.

The mode improves contrast and color expression by increasing the impact of brighter areas while extracting greater detail from darker portions of the image.

The result is a more dimensional HDR presentation without simply making the entire picture brighter.

Highlight Color Control

Increasing HDR brightness can sometimes reduce color saturation in bright portions of an image.

JVC's Highlight Color Control works with Frame Adapt HDR to balance brightness and saturation.

Low, Mid and High settings give the system additional flexibility when being calibrated around the actual screen and viewing environment.

Deep Black Tone Control

The RS4200's Deep Black Tone Control concentrates on the darkest portions of HDR images.

Combined with the projector's 150,000:1 native contrast, it can make night scenes, space scenes and dark interiors look substantially more convincing while preserving subtle gradation and shadow detail.

Theater Optimizer

A projector doesn't perform independently of the room.

Screen size, screen gain and installation conditions all influence how much light actually reaches the viewer.

JVC's Theater Optimizer allows information about the screen and installation to be incorporated into the projector's HDR processing.

Frame Adapt HDR can then optimize tone mapping around the actual theater rather than treating every installation the same.

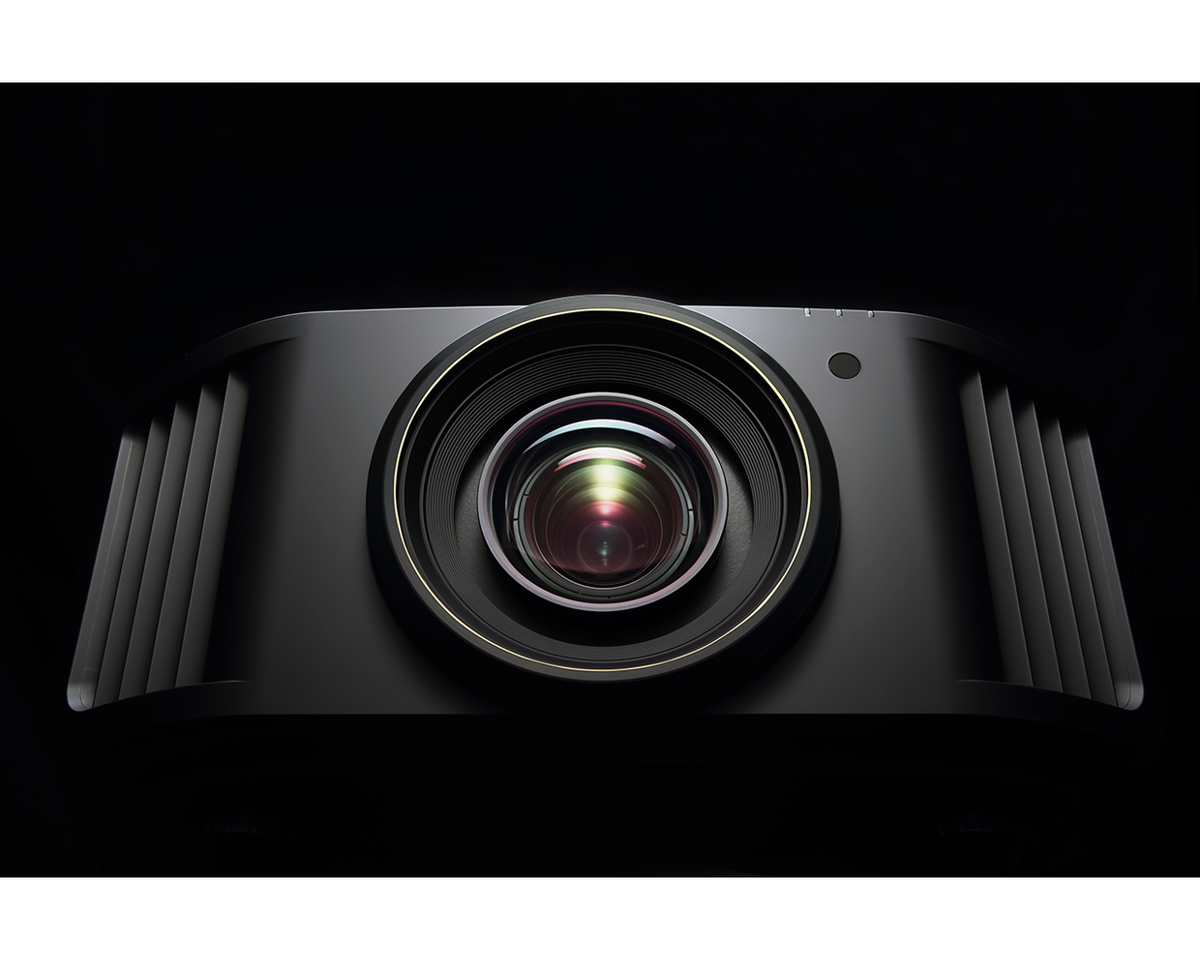

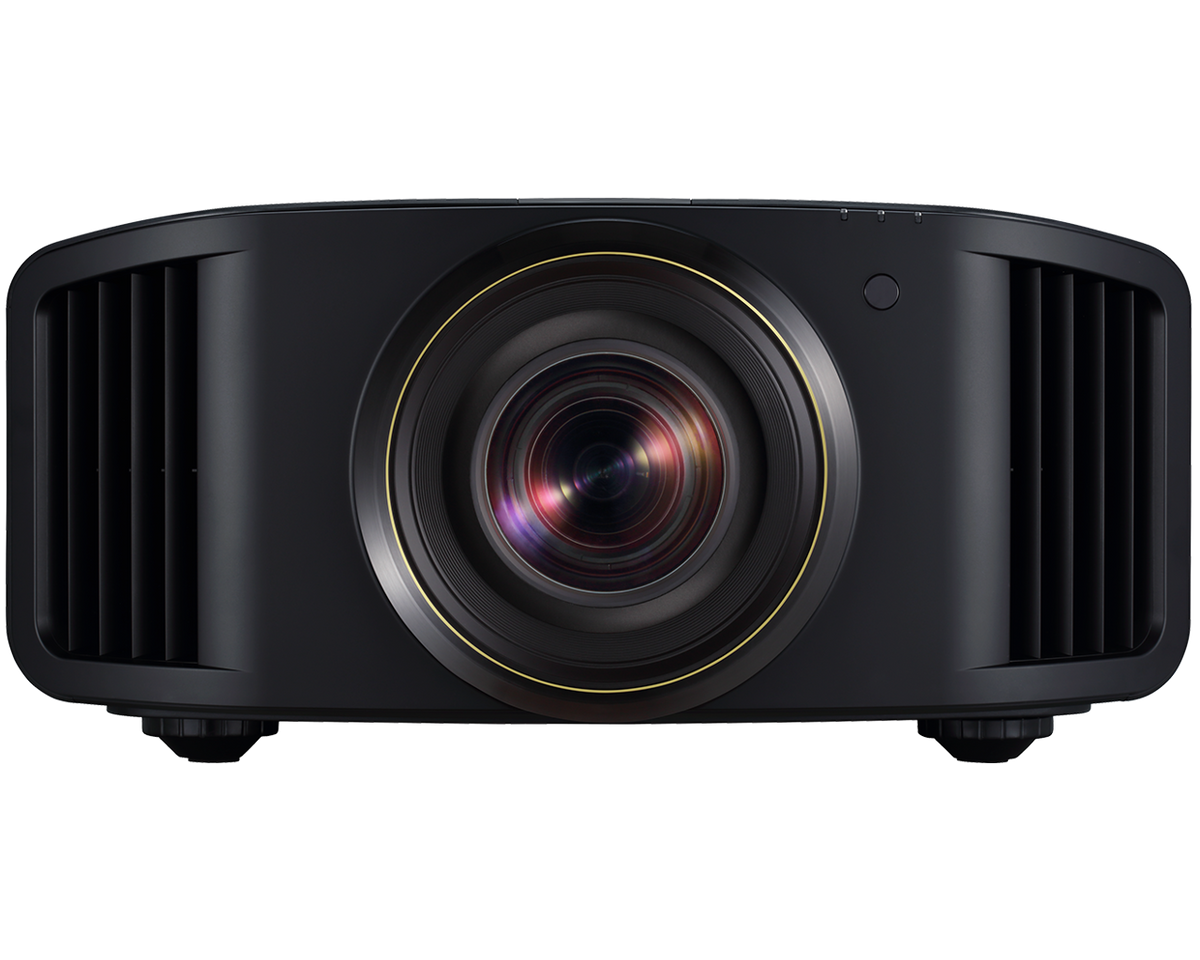

Flagship 100mm All-Glass Lens

The optical system is one of the most important parts of the RS4200.

JVC equips it with a massive 100mm all-glass lens constructed from:

• 18 elements
• 16 groups
• 5 ED lens elements
• Full aluminum lens barrel

The ED elements help reduce chromatic aberration and color fringing while maintaining image quality across the screen—even when significant lens shift is being used.

On a projector capable of native 4K and 8K/e-shiftX imagery, lens quality matters tremendously.

There's no point creating extraordinary resolution inside the projector if the lens can't accurately put it onto the screen.

Fully Motorized 2× Lens

The RS4200 provides a 2× motorized lens with:

• Motorized Zoom
• Motorized Focus
• Motorized Lens Shift

Lens shift reaches:

• ±100% Vertical
• ±43% Horizontal

Throw ratio is:

1.35–2.75:1

This gives a theater designer tremendous flexibility when positioning the projector.

The RS4200 can accommodate projected image sizes from approximately 60 inches to 300 inches diagonal, depending on the installation.

10 Installation Memories

The RS4200 can store 10 installation modes.

Stored parameters can include lens position, masking, pixel adjustment, anamorphic settings, screen settings, installation style, keystone and aspect ratio.

This is particularly useful in a theater built around a 2.35:1 or 2.39:1 CinemaScope screen.

Separate configurations can be stored for widescreen movies and conventional 16:9 programming and recalled as needed.

8K60 & 4K120 HDMI

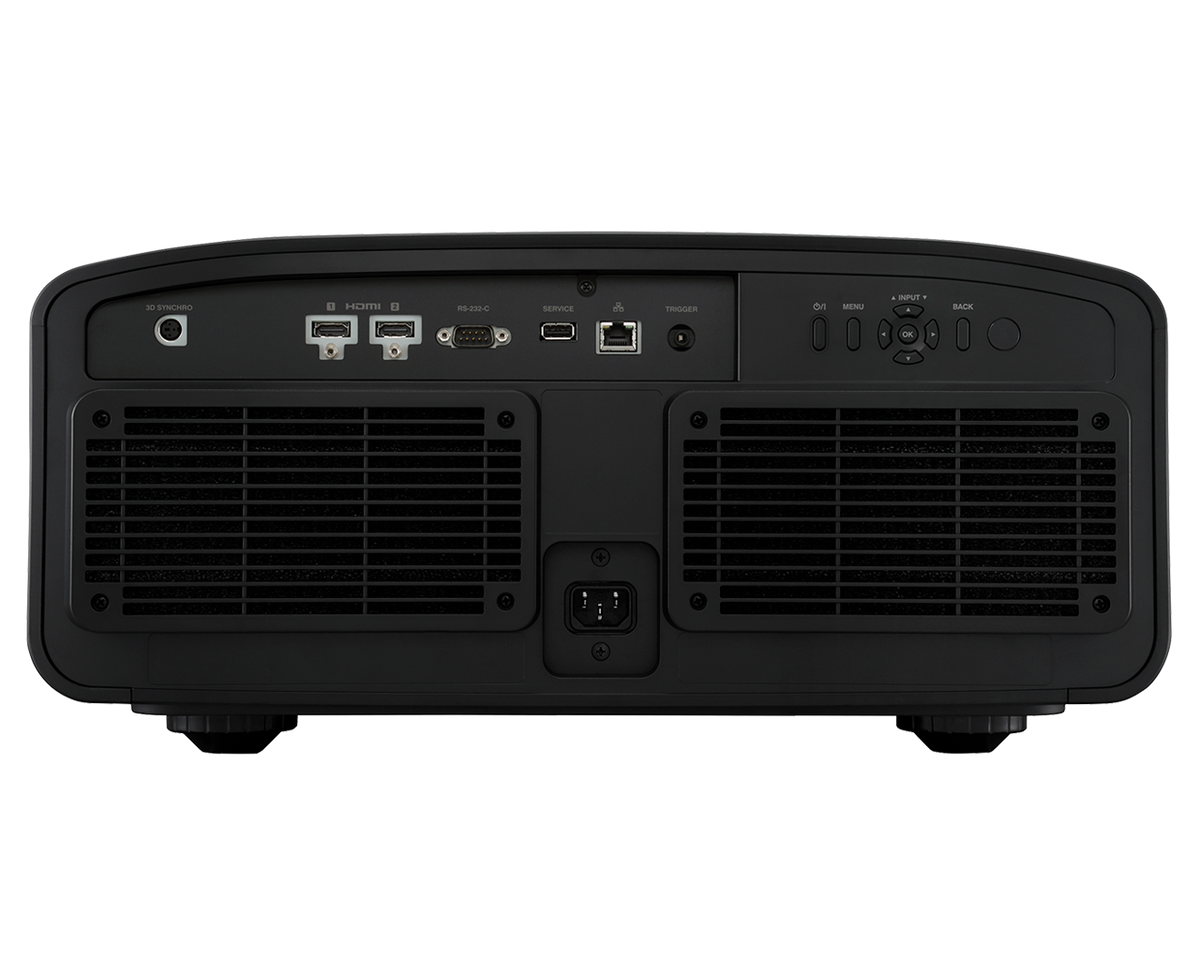

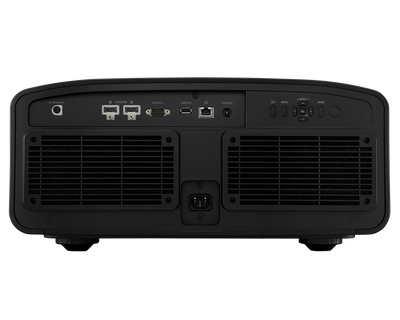

The RS4200 provides two high-bandwidth HDMI inputs supporting:

• 48Gbps HDMI
• 8K/60p
• 4K/120p
• 4K/60p
• HDCP 2.3

That gives it the bandwidth needed for high-resolution movie sources as well as high-frame-rate gaming.

Auto Low Latency Mode

The RS4200 supports ALLM — Auto Low Latency Mode.

When connected to a compatible source, the projector can automatically enter its low-latency configuration.

During ALLM operation, processing functions that would increase latency are disabled to improve responsiveness.

Combined with 4K/120 input, the RS4200 can produce a genuinely massive gaming experience without giving up its role as a reference-level cinema projector.

HDR10, HDR10+ & HLG

The RS4200 supports:

• HDR10
• HDR10+
• HLG
• Gen2 Frame Adapt HDR
• Frame Adapt HDR Vivid
• Theater Optimizer
• Deep Black Tone Control

HDR10+ provides scene-specific dynamic metadata, while JVC's proprietary Frame Adapt HDR provides dynamic tone mapping for conventional HDR10 material.

Wide Color Gamut

The RS4200 combines JVC's BLU-Escent laser with its cinema filter to reproduce the wide color gamut required for premium UHD content, including DCI-P3.

A 6-axis Color Management System provides precise adjustment of:

• Red
• Green
• Blue
• Cyan
• Magenta
• Yellow

The projector also provides 12-bit color processing.

Filmmaker Mode

The RS4200 includes Filmmaker Mode, giving viewers the ability to minimize processing that could alter the presentation intended by the filmmaker.

For a professionally calibrated private cinema, it's another useful way to preserve the creative intent of the source material.

Professional Calibration

The RS4200 is ISFccc certified and supports JVC's Auto Calibration system.

Professional calibration can optimize:

• Color balance
• Gamma
• Color space
• Color tracking
• HDR performance
• Screen characteristics

JVC's latest calibration software also allows color temperature and color gamut to be selected as calibration targets.

At this level of projection, calibration isn't something we'd consider optional. The projector, screen and room need to be treated as one system.

3D Capability

The RS4200 retains 3D playback.

Supported formats include:

• Frame Packing
• Side-by-Side
• Top & Bottom

JVC's optional PK-EM2 3D emitter and PK-AG3 glasses are required.

For someone with a substantial Blu-ray 3D collection, that's becoming an increasingly rare capability.

Professional Home Automation Integration

The RS4200 is designed for custom-installed private cinemas.

Integration capabilities include:

• LAN / IP control
• RS-232
• 12V Trigger
• Control4
• RTI
• Josh.ai

That allows the projector to operate as part of the complete theater.

One command can start the system, lower the lighting, close motorized shades, activate the projector, lower a screen, select the source and recall the appropriate theater settings.

Ceiling Mount Included

For current installations, JVC includes a ceiling mount with the DLA-RS4200 beginning September 1, 2026.

That's a particularly appropriate addition for the RS4200, since this is a projector that will most often be professionally installed as part of a dedicated cinema.

Key Specifications

• Series: JVC Reference Series
• Display Technology: 3-Chip D-ILA
• D-ILA Device: Third-Generation 0.69" Native 4K
• Native Resolution: 4096 × 2160
• 8K/e-shiftX: Gen2
• Displayed Resolution: 8192 × 4320
• Light Source: BLU-Escent Laser
• Brightness: 3,300 Lumens
• Laser Life: Approximately 20,000 Hours
• Native Contrast: 150,000:1
• Dynamic Contrast: Infinity:1
• Dynamic Laser Control: Yes
• Manual Aperture: Yes
• HDR: HDR10, HDR10+, HLG
• Frame Adapt HDR: Gen2
• Frame Adapt HDR Vivid: Yes
• Theater Optimizer: Yes
• Deep Black Tone Control: Yes
• DCI-P3: Yes
• Color Depth: 12-Bit
• Lens Diameter: 100mm
• Lens Construction: 18 Elements / 16 Groups
• ED Lens Elements: 5
• Lens Barrel: Aluminum
• Zoom: 2× Motorized
• Focus: Motorized
• Lens Shift: Motorized
• Vertical Lens Shift: ±100%
• Horizontal Lens Shift: ±43%
• Throw Ratio: 1.35–2.75:1
• Screen Size: 60"–300"
• Installation Memories: 10
• HDMI Inputs: 2
• HDMI Bandwidth: 48Gbps
• 8K Input: Up to 8K/60p
• 4K Input: Up to 4K/120p
• HDCP: 2.3
• 3D: Yes
• ALLM: Yes
• ISFccc Certified: Yes
• Auto Calibration: Yes
• Control: LAN, RS-232 and 12V Trigger
• Home Automation: Control4, RTI and Josh.ai
• Warranty: 3 Years Parts & Labor / First-Year Advanced Exchange
• Ceiling Mount: Included on qualifying units beginning September 1, 2026

RS4200 or NZ900?

The RS4200 and NZ900 occupy essentially the same flagship performance tier in JVC's lineup.

Both offer the major technologies you'd expect at this level:

• 3,300-lumen BLU-Escent laser
• 150,000:1 native contrast
• Third-generation native 4K D-ILA
• Gen2 8K/e-shiftX
• 100mm all-glass lens
• Five ED lens elements
• Gen2 Frame Adapt HDR
• 8K/60 input
• 4K/120 input
• 48Gbps HDMI
• 3D capability

The RS4200 is part of JVC's Reference Series, making it particularly appropriate for professionally designed and dealer-installed private cinema systems.

For most customers considering either model, we'd recommend choosing based on the specific system, availability and installation requirements rather than assuming one is inherently a different performance class.
