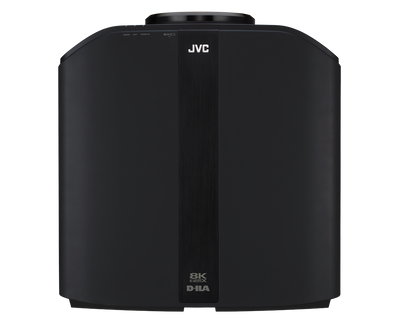

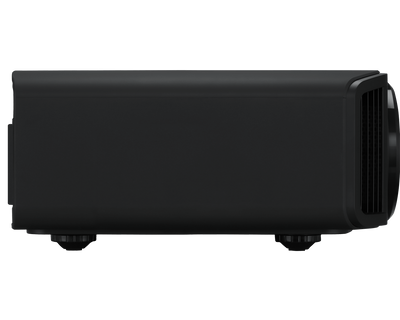

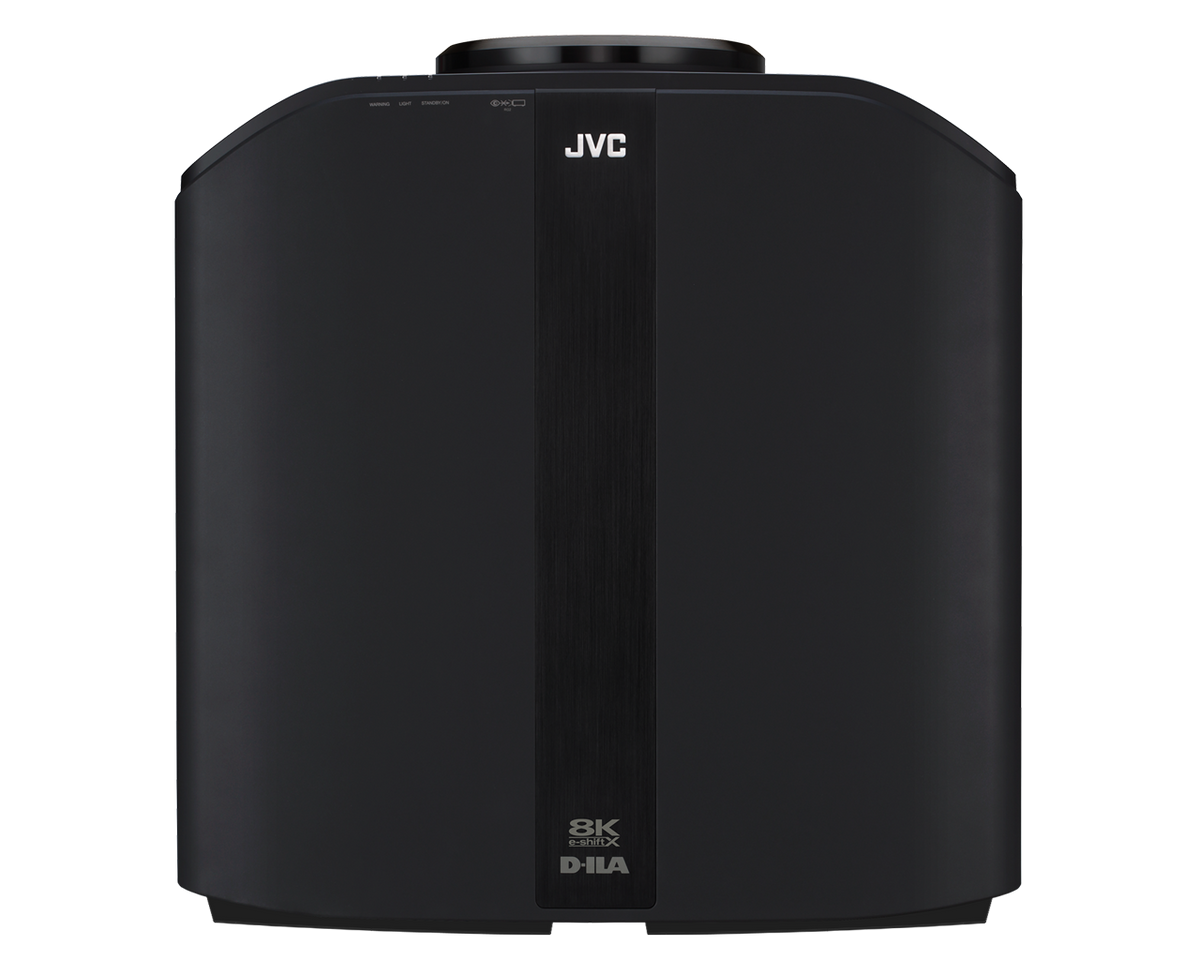

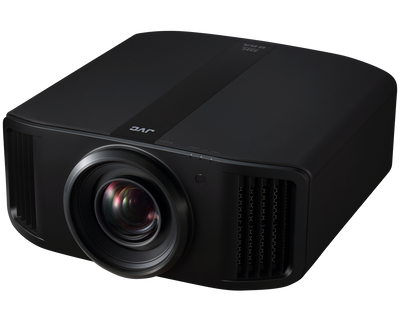

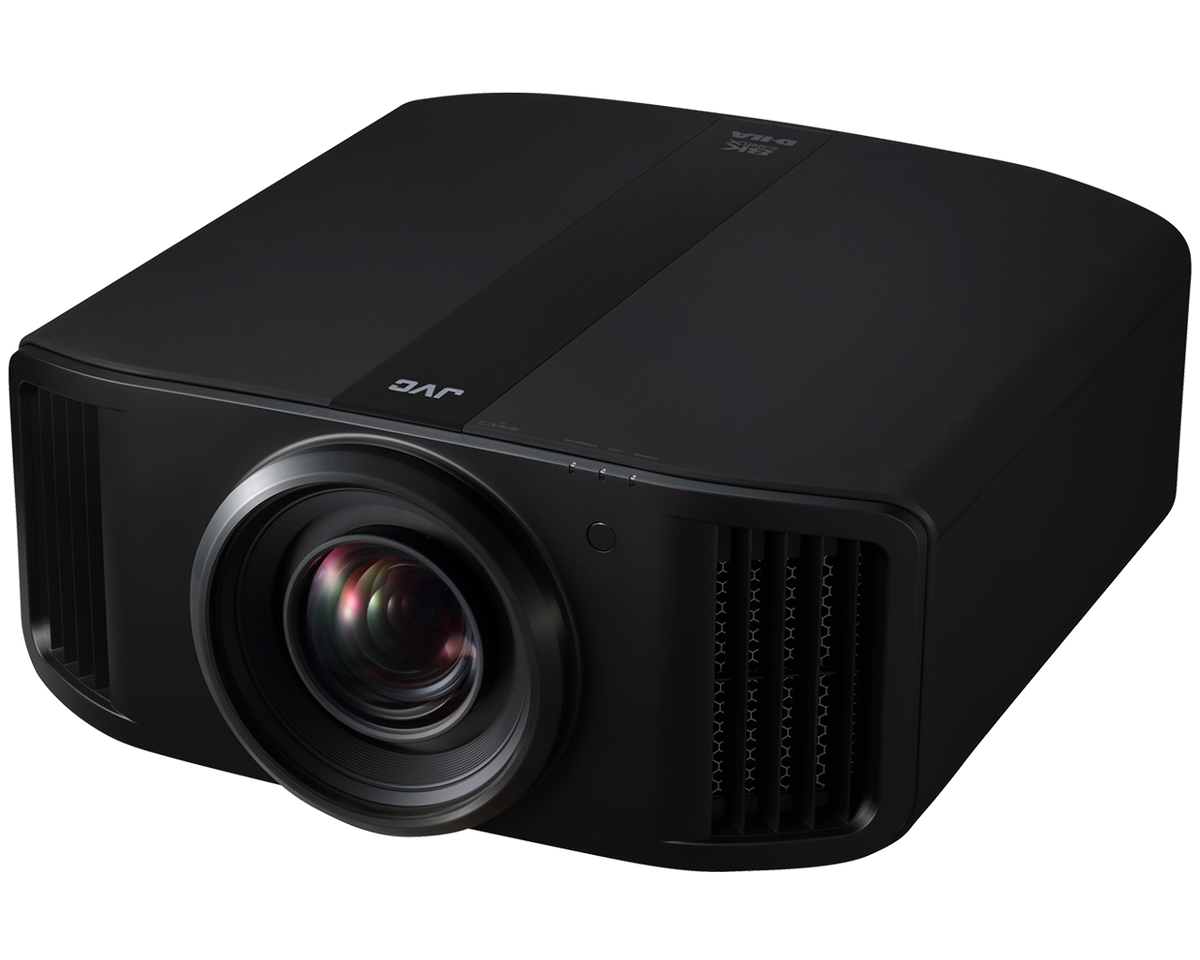

JVC DLA-NZ900 8K/e-shiftX Native 4K Laser Home Theater Projector

The JVC DLA-NZ900 is JVC's flagship home cinema projector, built for dedicated theaters where image quality comes first.

It combines third-generation native 4K D-ILA imaging, Gen2 8K/e-shiftX, a 3,300-lumen BLU-Escent laser, an exceptional 150,000:1 native contrast ratio, advanced dynamic HDR processing and JVC's premium 100mm all-glass lens.

This is the JVC for large, high-performance private cinemas where black level, lens quality, HDR performance and image scale all matter.

Native 4K D-ILA + Gen2 8K/e-shiftX

The NZ900 starts with three third-generation 0.69-inch native 4K D-ILA devices with a native resolution of:

4096 × 2160

JVC then adds its second-generation 8K/e-shiftX system.

Rather than simply scaling an image and calling it 8K, e-shiftX rapidly shifts the native 4K image in four directions to create an 8192 × 4320 displayed image.

JVC's latest 8K scaling engine further improves detail and sharpness with both 4K and 8K source material.

150,000:1 Native Contrast

This is one of the numbers that really separates the NZ900.

Native Contrast: 150,000:1

That's before dynamic laser control enters the equation.

With JVC's dynamic laser system, the NZ900 can completely shut down its light source during a full-black image, allowing dynamic contrast to reach Infinity:1.

But it's the extremely high native contrast that matters most during actual mixed-content scenes.

Deep blacks, shadow detail and bright highlights can coexist in the same image without dark scenes taking on the washed-out gray appearance common to lower-contrast projection technologies.

In a properly designed dark theater, that's a major advantage.

3,300-Lumen BLU-Escent Laser

The NZ900 uses JVC's latest BLU-Escent laser light source, producing up to:

3,300 lumens

Expected laser life is approximately:

20,000 hours

The increased output gives the NZ900 substantially more flexibility with larger screens while also providing the brightness headroom needed for impactful HDR projection.

Light output can be adjusted across 101 individual steps, allowing the projector to be precisely matched to the screen, room and desired luminance.

Gen2 Frame Adapt HDR

HDR was created around flat-panel displays capable of producing far more peak brightness than a projection system.

JVC's Gen2 Frame Adapt HDR addresses that problem by analyzing HDR10 material on a scene-by-scene or frame-by-frame basis and dynamically adjusting tone mapping for projection.

The NZ900 also uses DML and MaxCLL metadata when determining the appropriate HDR level.

Rather than applying one static tone curve to an entire movie, the projector continually adapts its processing to the content being displayed.

Frame Adapt HDR Vivid

JVC's newer Frame Adapt HDR Vivid picture mode expands on its dynamic HDR processing.

The mode is designed to increase the visual impact of HDR by improving highlight brightness, dark detail and color expression while maintaining the dimensionality of the image.

Highlight Color Control

More brightness isn't always better if color saturation disappears in bright scenes.

JVC's Highlight Color Control works with Frame Adapt HDR to balance brightness and saturation in high-intensity portions of the image.

Low, Mid and High settings allow the projector to be adjusted for the room, screen and viewer preference.

Deep Black Tone Control

JVC's Deep Black Tone Control concentrates specifically on the darkest portions of HDR material.

Night scenes, space scenes, dark interiors and images containing small bright objects against dark backgrounds can benefit substantially from the NZ900's combination of native contrast and intelligent black-level processing.

Theater Optimizer

Projector HDR performance changes dramatically depending on the theater.

A 100-inch screen and a 160-inch screen don't present the projector with the same challenge.

JVC's Theater Optimizer takes factors such as screen size and screen gain into account and adjusts HDR tone mapping around the actual installation.

That's particularly valuable in a professionally designed theater because the projector can be optimized around the room rather than treated as an isolated component.

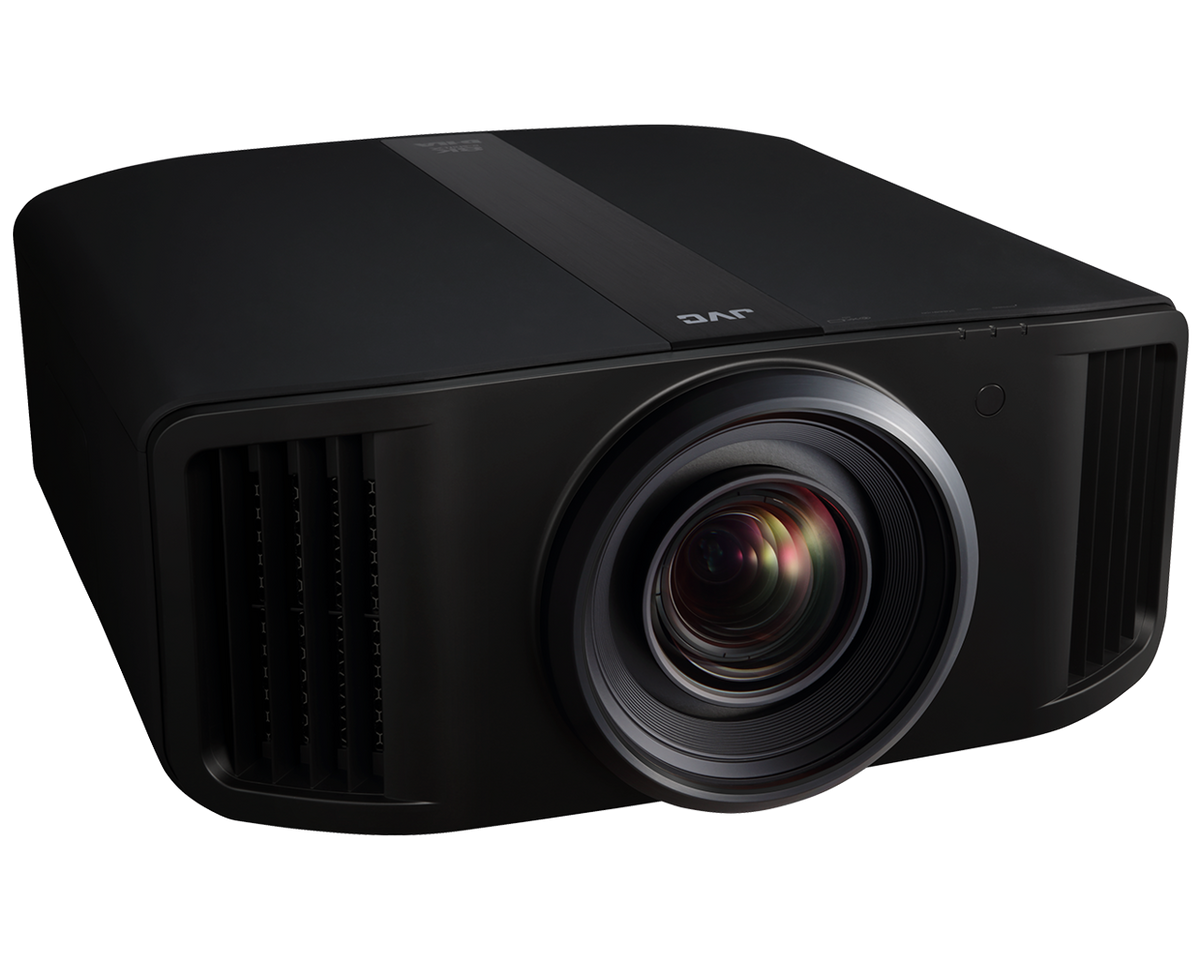

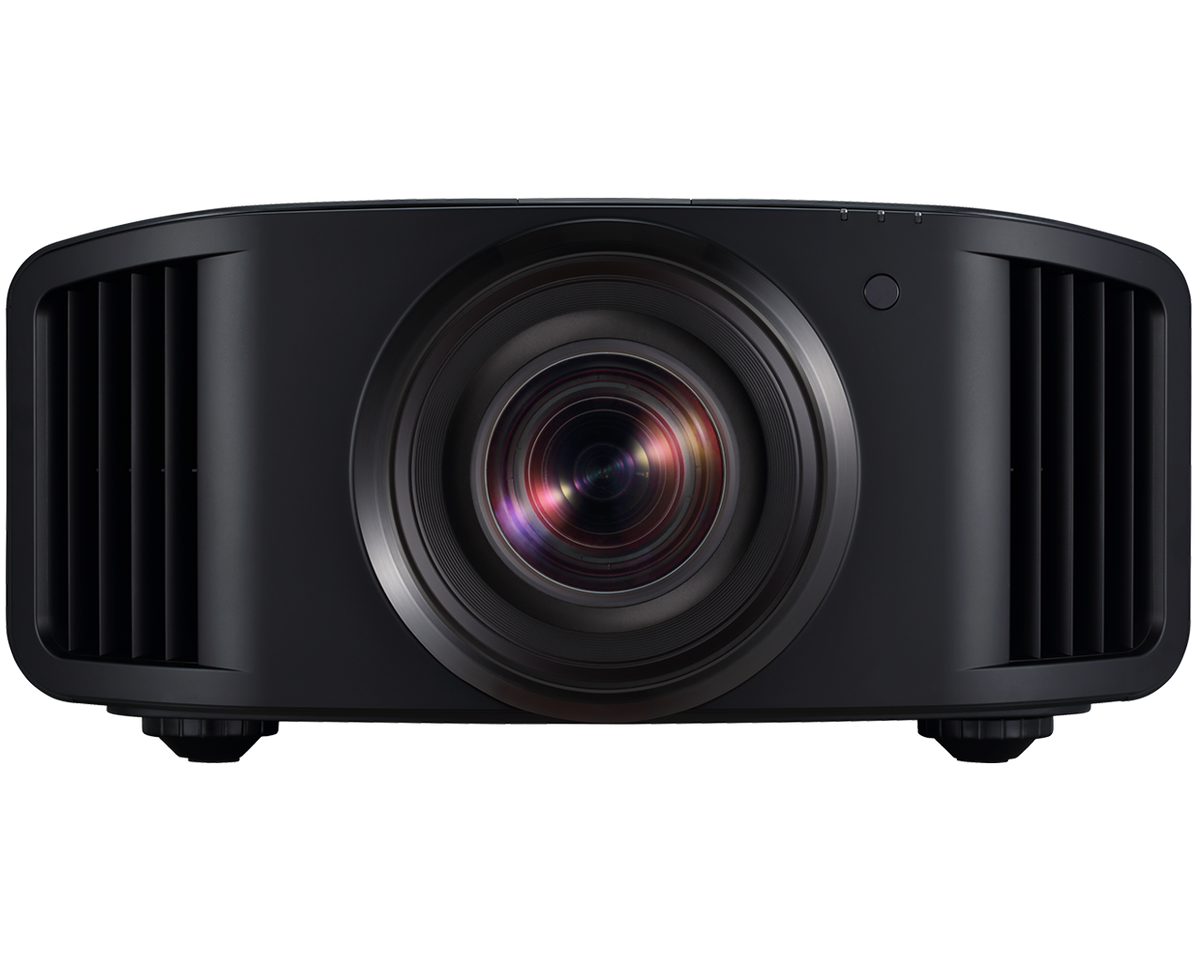

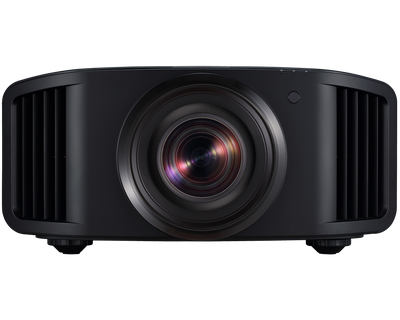

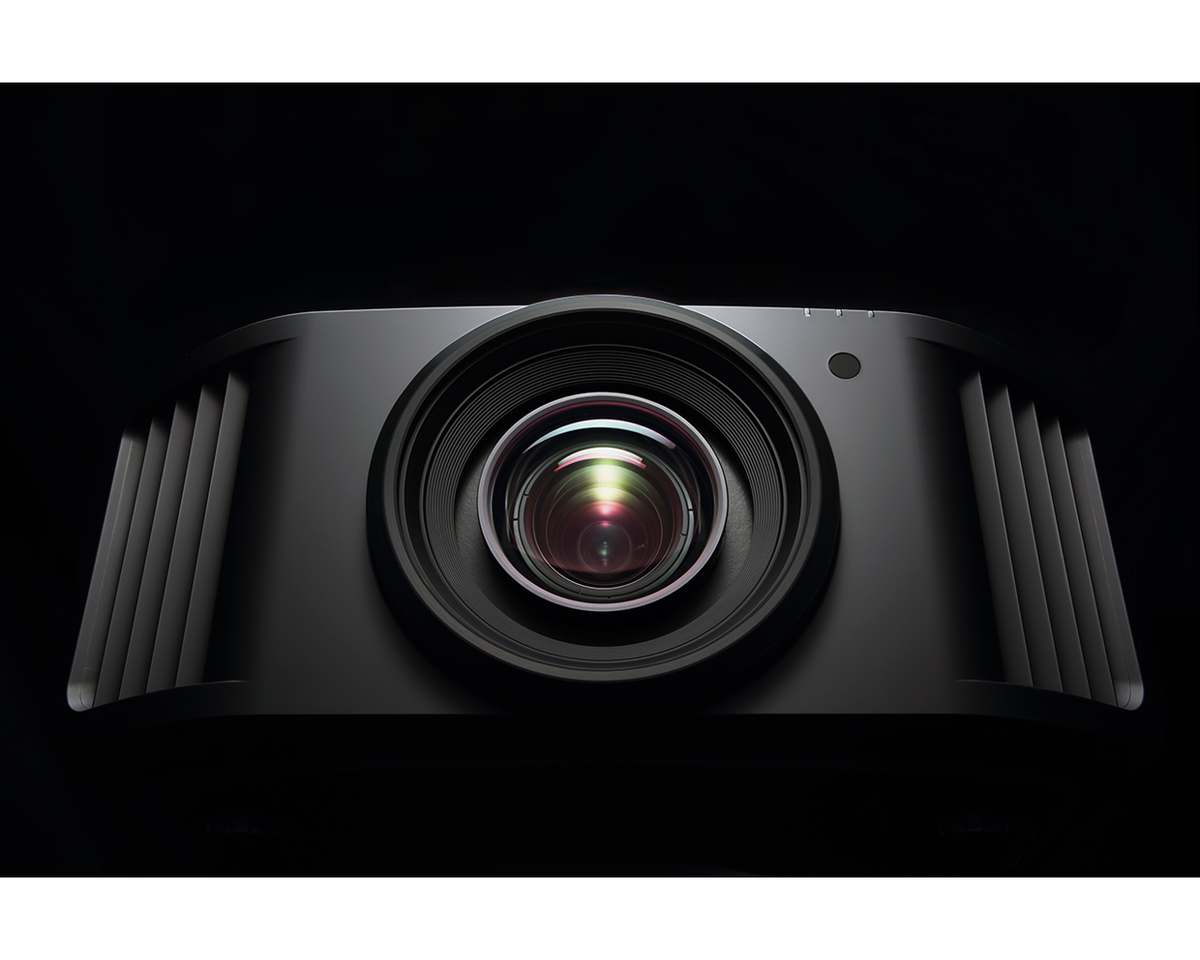

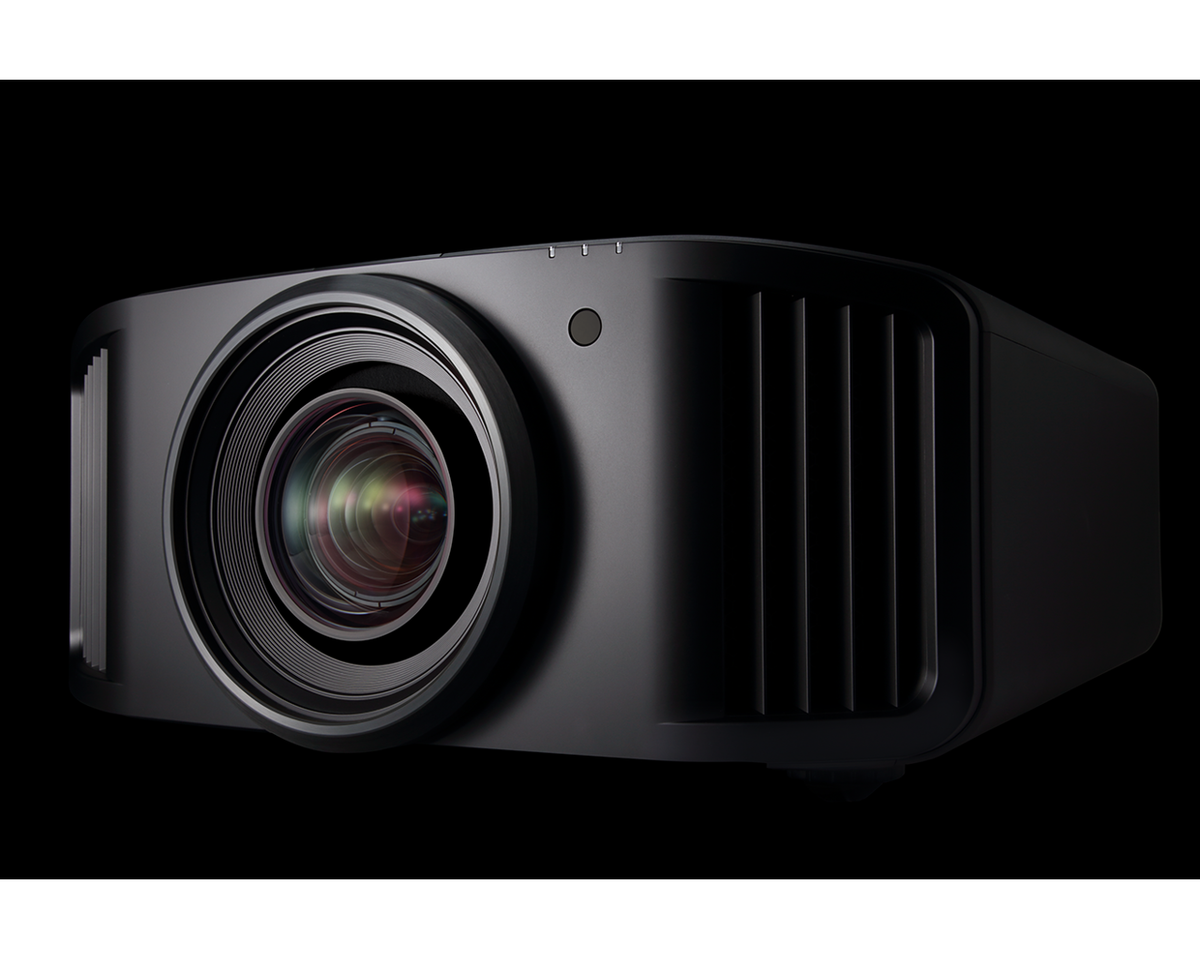

Massive 100mm All-Glass Lens

The lens is one of the biggest differences between the NZ900 and lesser projectors.

JVC equips the NZ900 with a premium 100mm all-glass lens constructed from:

• 18 elements
• 16 groups
• 5 ED lens elements
• Full aluminum lens barrel

The ED elements help reduce chromatic aberration and color fringing while maintaining image quality across the entire screen.

When you're projecting native 4K and 8K/e-shiftX imagery onto a very large screen, lens quality becomes extremely important.

There's little value in generating extraordinary resolution inside the projector if the lens can't accurately put that information onto the screen.

2× Motorized Lens

The NZ900 provides a 2× motorized zoom lens with:

• Motorized Zoom
• Motorized Focus
• Motorized Lens Shift

Lens shift reaches an exceptional:

• ±100% Vertical
• ±43% Horizontal

That gives a theater designer tremendous flexibility when positioning the projector.

Throw ratio is:

1.35–2.75:1

The NZ900 supports screen sizes from approximately 60 inches to 300 inches diagonal, depending on the installation.

10 Installation Memories

The NZ900 can store 10 installation modes.

Settings can include:

• Lens position
• Pixel adjustment
• Masking
• Anamorphic settings
• Screen settings
• Installation style
• Keystone
• Aspect ratio

This is particularly valuable in a theater using a 2.35:1 or 2.39:1 CinemaScope screen, where different lens positions can be recalled automatically for widescreen films and conventional 16:9 material.

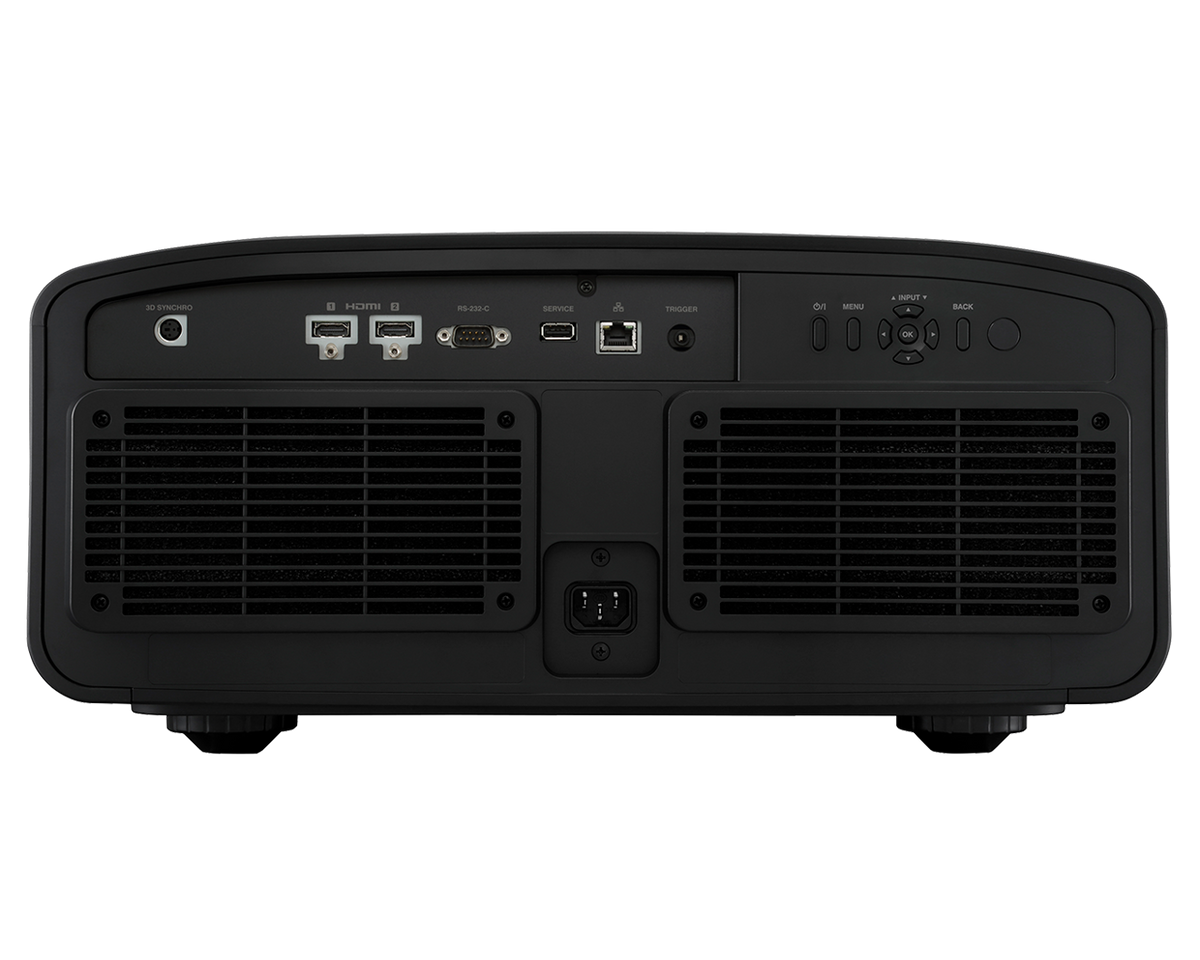

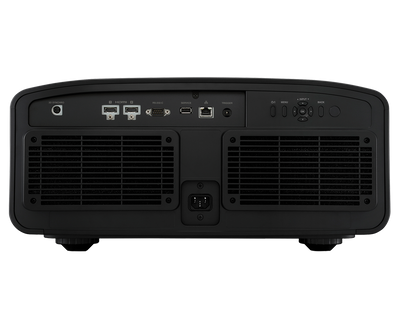

8K60 & 4K120 HDMI

The NZ900 provides two full-bandwidth HDMI connections supporting:

• 48Gbps HDMI
• 8K/60p
• 4K/120p
• 4K/60p
• HDCP 2.3

That makes it equally comfortable with high-end movie sources and modern gaming systems.

ALLM for Gaming

The NZ900 supports Auto Low Latency Mode — ALLM.

When connected to a compatible gaming source, the projector can automatically enter its low-latency mode.

During ALLM operation, processing functions that would increase latency are disabled to prioritize responsiveness.

Combine that with 4K/120 input capability and the NZ900 becomes an unusually capable projector for large-screen gaming as well as reference movie playback.

HDR10, HDR10+ & HLG

The NZ900 supports:

• HDR10
• HDR10+
• HLG
• Gen2 Frame Adapt HDR
• Frame Adapt HDR Vivid
• Theater Optimizer
• Deep Black Tone Control

HDR10+ adds dynamic metadata on a scene-by-scene basis, while JVC's proprietary processing provides dynamic tone mapping for conventional HDR10 content.

Wide Color Gamut

The NZ900 combines its BLU-Escent laser with a cinema filter to reproduce the wide color gamut required by premium UHD material.

It supports DCI-P3 and includes a 6-axis Color Management System for precise adjustment of:

• Red
• Green
• Blue
• Cyan
• Magenta
• Yellow

Filmmaker Mode

The NZ900 includes Filmmaker Mode, providing another option for viewers who want to minimize unnecessary processing and preserve the presentation intended by the content creator.

Professional Calibration

A projector at this level deserves to be properly calibrated.

The NZ900 is ISFccc certified and supports JVC's Auto Calibration system.

Professional adjustment can address:

• Color balance
• Gamma
• Color gamut
• Color tracking
• HDR performance
• Screen characteristics

The projector can then store the calibrated settings for the specific room and screen.

3D Capability

Unlike many modern displays, the NZ900 still supports 3D playback.

Compatible formats include Frame Packing, Side-by-Side and Top & Bottom.

JVC's optional PK-EM2 3D emitter and PK-AG3 glasses are required for 3D viewing.

For someone with a substantial Blu-ray 3D collection, that's a feature worth having.

Professional Home Automation Integration

The NZ900 is designed for custom-installed private cinemas.

Control options include:

• LAN / IP
• RS-232
• 12V Trigger
• Control4
• RTI
• Josh.ai

That allows the projector to become part of a complete theater automation system.

Press Watch Movie, and the system can lower the lights, close the shades, activate the projector, lower a motorized screen, select the appropriate AV source and recall the correct theater settings.

That's how a properly integrated private cinema should operate.

Key Specifications

• Display Technology: 3-Chip D-ILA
• D-ILA Device: Third-Generation 0.69" Native 4K
• Native Resolution: 4096 × 2160
• 8K/e-shiftX: Gen2
• Displayed Resolution: 8192 × 4320
• Light Source: BLU-Escent Laser
• Brightness: 3,300 Lumens
• Laser Life: Approximately 20,000 Hours
• Native Contrast: 150,000:1
• Dynamic Contrast: Infinity:1
• Dynamic Laser Control: Yes
• Manual Aperture: Yes
• HDR: HDR10, HDR10+, HLG
• Frame Adapt HDR: Gen2
• Frame Adapt HDR Vivid: Yes
• Theater Optimizer: Yes
• Deep Black Tone Control: Yes
• DCI-P3: Yes
• Color Depth: 12-Bit
• Lens Diameter: 100mm
• Lens Construction: 18 Elements / 16 Groups
• ED Lens Elements: 5
• Lens Barrel: Aluminum
• Zoom: 2× Motorized
• Focus: Motorized
• Lens Shift: Motorized
• Vertical Lens Shift: ±100%
• Horizontal Lens Shift: ±43%
• Throw Ratio: 1.35–2.75:1
• Screen Size: 60"–300"
• Installation Memories: 10
• HDMI Inputs: 2
• HDMI Bandwidth: 48Gbps
• 8K Input: Up to 8K/60p
• 4K Input: Up to 4K/120p
• HDCP: 2.3
• 3D: Yes
• ALLM: Yes
• ISFccc Certified: Yes
• Auto Calibration: Yes
• Control: LAN, RS-232 and 12V Trigger
• Home Automation: Control4, RTI and Josh.ai
• Warranty: 3 Years Parts & Labor / First-Year Advanced Exchange

NZ900 or NZ700?

These are both serious JVC projectors, but the NZ900 is built for a different level of theater.

The NZ700 gives you native 4K D-ILA, excellent native contrast and JVC's outstanding HDR processing in a smaller chassis.

The NZ900 steps substantially beyond it with:

• 3,300 vs. 2,300 lumens
• 150,000:1 vs. 80,000:1 native contrast
• Gen2 8K/e-shiftX
• 8K/60 input
• 4K/120 input
• 48Gbps HDMI
• 100mm premium all-glass lens
• 5 ED lens elements
• 2× zoom
• Much greater lens shift
• 10 installation memories
• 3D capability

For a large, purpose-built private cinema where the projector is expected to deliver the best image JVC can produce, the NZ900 is the one to look at.

Experience the JVC DLA-NZ900 at The Grid HiFi

The Grid HiFi is your JVC projection and private cinema expert in Houston, Texas.

At this level, choosing the projector is only the beginning.

A DLA-NZ900 needs to be matched to the correct screen size, screen material, gain, throw distance, seating distance and room environment to deliver what it's capable of.

The Grid designs the entire cinema around those relationships.

We can specify the projector and screen, engineer projector placement and sightlines, design the immersive audio system, integrate the room with Control4, engineer lighting and motorized shades, specify theater seating and professionally install and calibrate the finished system.

For CinemaScope theaters, we can also design around 2.35:1 or 2.39:1 screens, lens memories, masking systems and anamorphic solutions.

The goal isn't simply to sell you JVC's flagship projector.

It's to build the room that allows it to perform like one.

Contact The Grid HiFi for JVC DLA-NZ900 demonstrations, private cinema design, professional installation and calibration.
