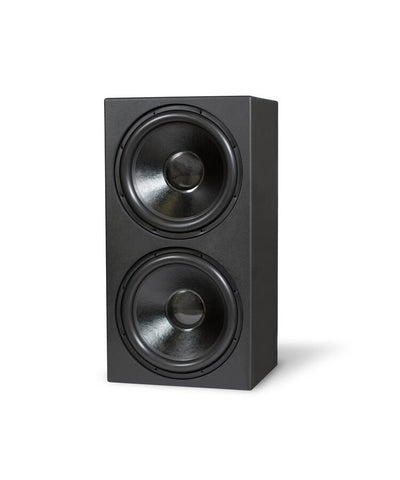

JTR Captivator RS2 | Dual 18" 4000W Sealed Subwoofer

The JTR Captivator RS2 is a reference-level sealed powered subwoofer built for home theaters and high-performance audio systems requiring enormous output, deep in-room extension and the characteristics of a sealed enclosure. With dual high-excursion 18-inch drivers, a built-in 4000-watt RMS DSP-optimized Class D amplifier and a heavily braced Baltic Birch cabinet, the RS2 delivers formidable low-frequency capability from a relatively compact footprint.

Unlike JTR's large ported Captivator ULF models, the RS2 uses a sealed enclosure. JTR rates its outdoor response at 22 Hz to 600 Hz ±3 dB and specifically notes that room gain can result in sub-10 Hz in-room performance.

Dual 18-Inch High-Excursion Drivers

The Captivator RS2 uses two 18-inch drivers with 36 mm of Xmax, providing tremendous displacement capability for a sealed subwoofer.

JTR's current driver platform incorporates redesigned motor structures with more than a pound of aluminum within each driver's motor and less than 1 mH of inductance. JTR states that the current drivers produce approximately 30% lower distortion than its previous reference drivers, along with increased output and additional low-frequency capability.

JTR also notes that a 21-inch driver would require approximately 26 mm of Xmax to equal the displacement of one of its 18-inch drivers with 36 mm of excursion.

Sealed Design for Deep In-Room Bass

The RS2's sealed architecture distinguishes it from the ported Captivator 2400 and 4000 series.

Rather than relying on a low-tuned port to extend response, the RS2 is designed to take advantage of the natural low-frequency reinforcement available in enclosed listening rooms. JTR specifically engineered the sealed design for single-digit in-room frequency reproduction under appropriate conditions.

This makes the RS2 particularly interesting for dedicated theaters where room gain, placement and DSP can be used together to achieve exceptional low-frequency extension.

4000-Watt RMS DSP Amplifier

Powering the dual 18-inch drivers is an integrated 4000-watt RMS Class D amplifier capable of operating at up to 95% efficiency.

DSP is optimized specifically for the RS2's drivers and sealed enclosure. JTR's current DSP platform incorporates automatic input selection, advanced automatic turn-on and a reduced noise floor.

Additional controls include adjustable delay, low-end adjustment and a low-pass filter, providing useful flexibility when integrating the RS2 into sophisticated theater and audio systems.

XLR & RCA Connectivity

The Captivator RS2 provides both balanced XLR and RCA connections, allowing it to integrate with a broad range of surround processors, preamplifiers and other system electronics.

A 12V trigger is also provided, along with automatic turn-on functionality for installations where the subwoofer needs to operate seamlessly as part of the complete system.

Completely Front-Firing

Both 18-inch drivers are positioned on the front of the cabinet.

This completely front-firing configuration provides greater flexibility when positioning the RS2 behind an acoustically transparent screen, near walls or within a properly designed theater structure.

With dimensions of 40" H × 21" W × 18" D, the RS2 is also remarkably shallow considering its dual 18-inch driver configuration.

Baltic Birch Construction

Controlling two 18-inch drivers operating at high excursion requires an exceptionally rigid enclosure.

JTR constructs the Captivator RS2 from 18 mm, 13-ply void-free Baltic Birch plywood and heavily braces the cabinet to resist unwanted movement and resonance.

The enclosure is finished in Matte Black Paint and includes a magnetically attached grille.

An Exceptional Choice for Multi-Subwoofer Systems

The RS2's sealed design, relatively shallow 18-inch cabinet depth and substantial output capability can make it particularly attractive for sophisticated multi-subwoofer home theater systems.

Multiple RS2 subwoofers can be positioned throughout a theater to provide substantial headroom while helping achieve more consistent low-frequency response across multiple seating positions when combined with appropriate DSP, room correction and professional calibration.

Technical Specifications

Shipping / Freight Notice

JTR Speakers products require additional freight charges. Freight is not included at checkout. After your order is received, JTR will calculate the applicable shipping/freight cost based on the product and delivery destination. An additional freight charge will be invoiced after order entry.

JTR Captivator RS2 at The Grid HiFi

The JTR Captivator RS2 offers a compelling alternative to JTR's ported Captivator models for systems where a sealed enclosure, enormous driver displacement and powerful in-room low-frequency extension are desired. Its dual 18-inch 36 mm Xmax drivers, 4000-watt RMS amplifier and relatively shallow cabinet make it especially well suited to serious dedicated theaters and multi-subwoofer installations.

At The Grid HiFi in Houston, Texas, we can help design and integrate JTR subwoofers into complete high-performance private cinema systems, including subwoofer placement, multi-subwoofer layouts, surround processing, room acoustics and professional system calibration.
