JL Audio Fathom f112v2 – 12-Inch Powered Subwoofer

Product Description

Deep, controlled bass. 1,800 watts of power. Precision room optimization.

The JL Audio Fathom f112v2 is a high-performance powered subwoofer designed for reference two-channel audio systems, dedicated home theaters and premium media rooms. Combining a 12-inch W7-HT ultra-long-throw driver with a powerful 1,800-watt amplifier, it delivers substantial low-frequency output from a compact, sealed enclosure.

Engineered to reproduce both the subtle textures of acoustic instruments and the demanding low-frequency effects of modern movie soundtracks, the f112v2 incorporates JL Audio's proprietary driver technologies, extensive signal processing and Digital Automatic Room Optimization (D.A.R.O.). Its high-gloss black finish and relatively compact footprint make it suitable for installations where performance and appearance are equally important.

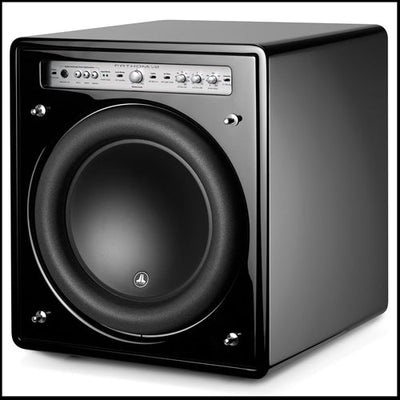

12-Inch W7-HT Driver

The f112v2 features a purpose-built 12-inch W7-HT driver that shares key technologies with JL Audio's flagship Gotham subwoofers.

Its proprietary W-Cone construction uses two lightweight, mineral-filled polypropylene skins bonded into a rigid cone structure. This design combines low moving mass with the strength needed to maintain control during demanding low-frequency passages.

JL Audio's Dynamic Motor Analysis technology optimizes the driver's motor and suspension system for extended, linear excursion. OverRoll surround technology maximizes usable cone area, while Elevated Frame Cooling and radial cross-drilled pole-piece ventilation help manage heat during sustained high-output playback.

With 84 square inches of effective piston area and 287 cubic inches of effective displacement, the f112v2 is engineered to move substantial volumes of air while maintaining control and minimizing distortion.

1,800-Watt Amplification

A powerful switching amplifier delivers up to 1,800 watts RMS of short-term power to the f112v2's long-excursion driver.

Its design incorporates a large toroidal transformer and JL Audio's proprietary amplifier circuitry, providing the power and control needed to reproduce demanding bass transients.

The combination of amplifier power, driver excursion and sealed-enclosure construction gives the f112v2 an anechoic frequency response of 21–119Hz (±1.5dB), with low-frequency extension reaching 17Hz at −10dB.

This performance makes it suitable for reproducing the impact of cinematic soundtracks while preserving the articulation and tonal detail required for high-quality music playback.

Digital Automatic Room Optimization

The acoustic characteristics of a room can have a substantial effect on subwoofer performance. JL Audio's Digital Automatic Room Optimization (D.A.R.O.) system is designed to address these challenges.

Using a calibration microphone and onboard digital signal processing, D.A.R.O. measures the subwoofer's response at the listening position and applies corrective equalization to reduce the effects of room-induced frequency peaks.

This helps the f112v2 deliver more consistent bass performance in rooms where furniture placement, architectural features and listening positions influence low-frequency response.

D.A.R.O. is especially useful when integrating a subwoofer into an existing listening room or media space where placement options may be limited.

Comprehensive Bass Management

The f112v2 provides extensive signal-processing controls for matching its output to main loudspeakers and home theater systems.

Its adjustable low-pass crossover operates from 30Hz to 130Hz, with selectable 12dB- and 24dB-per-octave slopes. The filter can also be defeated when bass management is handled by an external AV processor or crossover.

Variable phase adjustment from 0° to 280°, switchable polarity and Extreme Low Frequency trim provide additional control over the subwoofer's response.

These adjustments allow the f112v2 to be integrated into systems ranging from compact two-channel setups to sophisticated multichannel home theaters.

Balanced Connectivity and Multiple-Subwoofer Integration

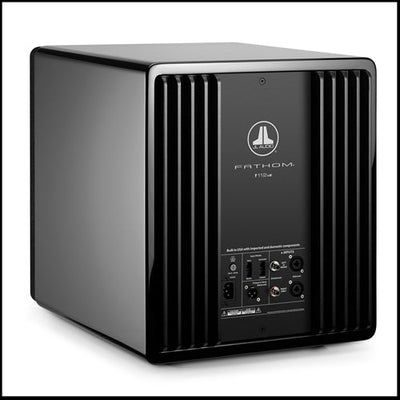

Balanced XLR and unbalanced RCA inputs provide compatibility with a wide selection of stereo preamplifiers, integrated amplifiers with suitable outputs and home theater processors.

The f112v2 also includes a balanced XLR output for connecting an additional compatible JL Audio subwoofer in a master/slave configuration. This provides a convenient way to expand bass capability or improve low-frequency coverage across a larger listening area.

Selectable fixed or variable input gain and automatic signal-sensing power operation add further installation flexibility.

Compact Sealed Cabinet

The f112v2's sealed enclosure delivers substantial bass capability without requiring the size of a conventional large ported subwoofer.

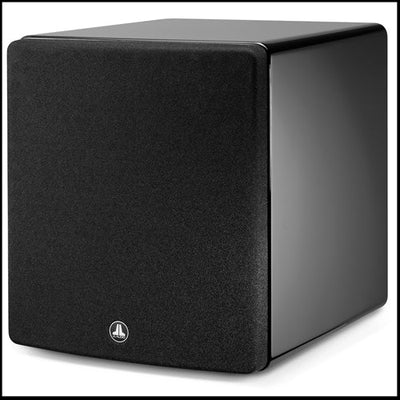

At approximately 18.5 inches tall and 15 inches wide, its cabinet is suitable for a range of dedicated listening rooms, home theaters and premium living spaces. A high-gloss black finish and removable fabric grille provide a refined appearance, while front-accessible controls simplify adjustment during setup.

The sealed design, advanced driver and high-power amplifier work together to deliver deep bass extension with the precision required for both music and movies.
