JL Audio Fathom f110 v2 10-Inch Powered Subwoofer

Free Delivery!

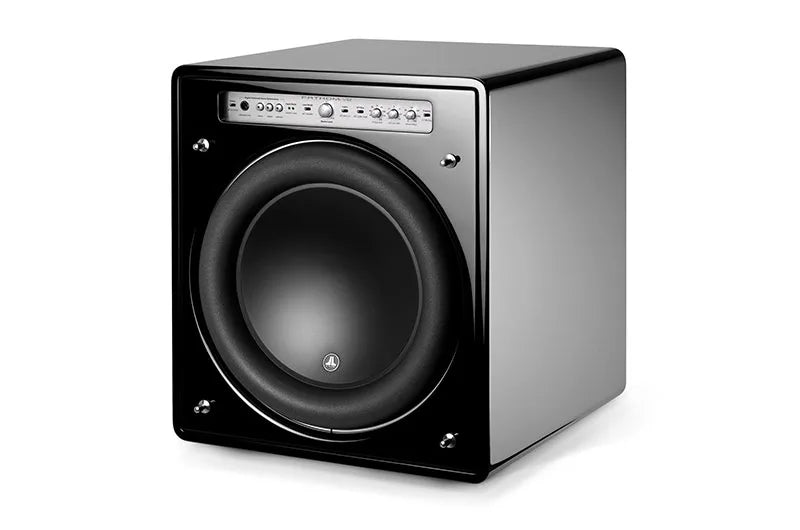

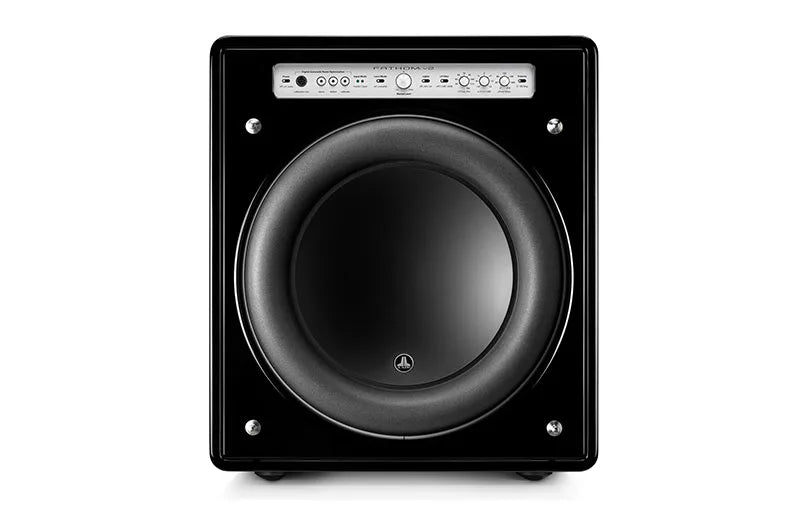

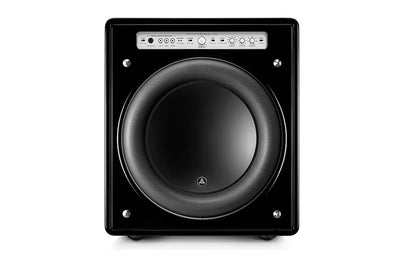

The JL Audio Fathom f110 v2 combines a high-excursion 10-inch driver, a powerful 1,100-watt RMS short-term amplifier, and advanced Digital Automatic Room Optimization (D.A.R.O.) in a compact, sealed subwoofer. Engineered for reference-quality two-channel music systems and premium home theaters, the f110 v2 delivers deep, articulate bass with exceptional control and low distortion.

Its proprietary JL Audio driver technology, extensive crossover adjustments, and 18-band digital room correction make the Fathom f110 v2 an outstanding solution for demanding listening environments where performance and placement flexibility are essential.

Key Features

• 10-Inch High-Excursion Driver: Proprietary JL Audio woofer engineered for substantial displacement and controlled low-frequency reproduction.

• 1,100W RMS Short-Term Amplification: High-output Class D amplifier designed to deliver powerful bass transients.

• D.A.R.O. Room Correction: Integrated 18-band digital equalization with included calibration microphone.

• Sealed Cabinet Design: Compact enclosure optimized for tight, accurate bass in stereo and surround sound systems.

• Deep Bass Extension: Anechoic frequency response of 27–111Hz (±1.5dB), with -3dB response at 25Hz.

• Balanced and Unbalanced Inputs: Stereo or mono XLR and RCA connections for flexible system integration.

• Adjustable Low-Pass Crossover: Selectable 12dB or 24dB/octave slopes with 30–130Hz crossover adjustment.

• Variable Phase and Polarity: Precise integration with main loudspeakers and room acoustics.

• Extreme Low Frequency Trim: Adjustable deep-bass contour for fine-tuning system response.

• Master/Slave Capability: Balanced XLR output supports integration with additional compatible JL Audio subwoofers.

• High-Gloss Black Finish: Premium cabinet construction suited to sophisticated home audio installations.

High-Output Bass from a Compact 10-Inch Subwoofer

The Fathom f110 v2 uses JL Audio's advanced long-excursion woofer technology to produce powerful low-frequency output from a relatively compact enclosure. Its 10-inch driver provides 60 square inches of effective piston area and 160 cubic inches of effective displacement.

Combined with its 1,100-watt RMS short-term amplifier, the f110 v2 reproduces demanding bass passages with precision, dynamic authority, and minimal coloration.

Digital Automatic Room Optimization (D.A.R.O.)

Room acoustics can dramatically affect subwoofer performance. JL Audio's D.A.R.O. system uses an included calibration microphone and 18-band digital equalization to measure and correct significant room-induced frequency response irregularities.

The result is smoother, more consistent bass at the listening position, improving integration with high-end loudspeakers and home theater systems.

Flexible Integration for Stereo and Home Theater

The f110 v2 provides balanced XLR and unbalanced RCA inputs, adjustable crossover frequency and slope, variable phase, selectable polarity, and low-frequency trim. These controls allow precise matching with stereo preamplifiers, AV processors, and full-range loudspeakers.

Its sealed enclosure and compact dimensions make it suitable for dedicated listening rooms, media rooms, and custom home cinemas.

Technical Specifications

JL Audio Fathom f110 v2 at The Grid HiFi

Discover the JL Audio Fathom f110 v2 powered subwoofer at The Grid HiFi. Our Houston showroom specializes in high-performance stereo systems, reference home theaters, and professionally integrated audio solutions.

Shop online or call (713) 218-8120 for expert assistance selecting and integrating the ideal JL Audio subwoofer for your system.
