JL Audio Dominion d110 – 10-Inch Powered Subwoofer, Gloss Black or Ash Black

The Garmin link is for the JL Audio Dominion d110-GLOSS, part number 010-03813-00. This is the larger 10-inch Dominion model, featuring a 750-watt Class D amplifier and a high-gloss black finish.

Product Description

Deep bass. Compact footprint. Precision-engineered performance.

The JL Audio Dominion d110 delivers powerful, articulate low-frequency performance from a compact, sealed 10-inch powered subwoofer. Designed for high-performance stereo systems, premium media rooms and dedicated home theaters, it combines a purpose-built long-excursion driver with a 750-watt Class D amplifier to reproduce demanding bass passages with impact and control.

Its advanced driver technology, studio-grade analog signal processing and flexible connectivity make the d110 equally suited to music and movies. The high-gloss black cabinet provides a refined appearance, while its compact dimensions allow placement in rooms where larger subwoofers may be impractical.

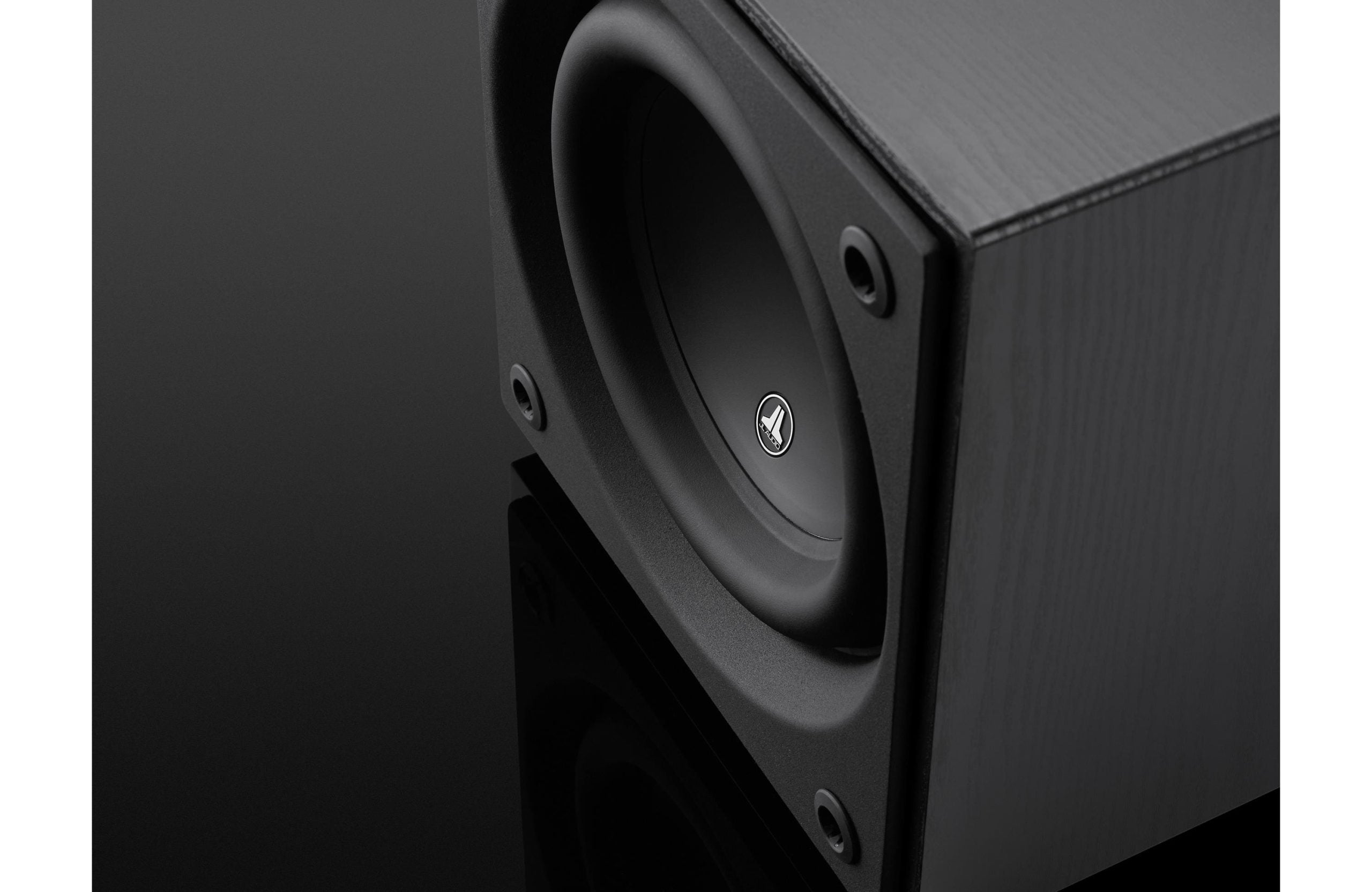

Advanced 10-Inch Long-Excursion Driver

The Dominion d110 incorporates JL Audio's proprietary Dynamic Motor Analysis (DMA) technology, developed to optimize driver performance throughout its operating range.

Its long-excursion woofer is engineered to move substantial volumes of air while maintaining precise cone control. A carefully designed lead-wire system helps minimize mechanical noise during demanding passages, allowing the driver to operate through an extended range of motion.

With 48.71 square inches of effective piston area and 127 cubic inches of effective displacement, the d110 provides substantial bass capability from a relatively small enclosure.

The driver is capable of more than 2.7 inches of peak-to-peak excursion, allowing it to reproduce demanding low-frequency content without requiring an oversized cabinet.

750-Watt Class D Amplifier

The d110's integrated Class D amplifier delivers 750 watts RMS of short-term power. Its tightly regulated switching power supply provides the drive needed to maintain control over the long-excursion woofer during demanding playback.

The combination of amplifier power, driver displacement and sealed enclosure produces an anechoic frequency response of 27–111Hz (±1.5dB), with extension to 21Hz at −10dB.

Whether reproducing the impact of a movie soundtrack or the texture of acoustic bass instruments, the d110 is designed to deliver substantial low-frequency output without sacrificing definition.

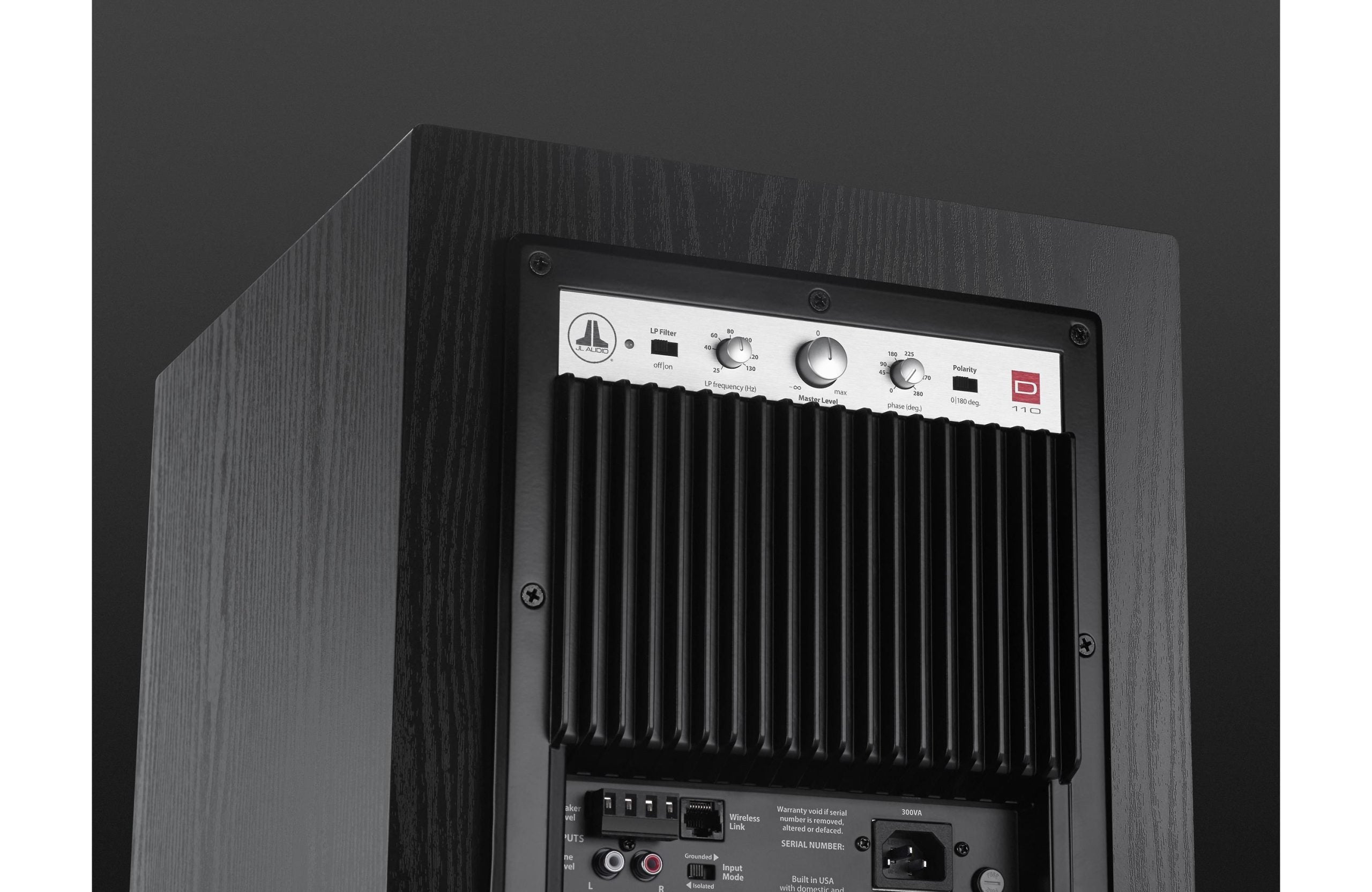

Studio-Grade Analog Signal Processing

The Dominion d110 features an adjustable analog low-pass crossover that allows its output to be matched to a wide range of main loudspeakers.

Its 24dB-per-octave Linkwitz-Riley filter operates from 25Hz to 130Hz. The filter can also be defeated when crossover management is handled by an external home theater processor.

Variable phase adjustment from 0° to 280° and switchable polarity provide additional tools for aligning the subwoofer with the main speakers. A continuously adjustable level control allows precise balancing of low-frequency output.

These controls make the d110 suitable for systems ranging from compact two-channel listening rooms to professionally designed multichannel theaters.

Flexible Stereo and Home Theater Connectivity

The d110 provides stereo RCA and speaker-level inputs, accommodating a wide range of compatible audio equipment.

Its line-level inputs connect to preamplifiers, integrated amplifiers with suitable outputs and home theater processors. Speaker-level inputs allow the subwoofer to receive a signal from compatible amplifier speaker outputs, making it particularly useful for traditional two-channel systems without dedicated subwoofer connections.

Selectable input grounding can help address ground-related noise during installation, while automatic signal-sensing power operation allows the subwoofer to activate when an audio signal is detected.

For installations where running a signal cable is difficult, the d110 also supports JL Audio's optional JLINK wireless audio system, sold separately.

Compact Sealed Cabinet

The Dominion d110's sealed enclosure measures just 13.4 inches high, 12 inches wide and 15.86 inches deep.

Its cabinet is constructed from precision-cut MDF with extensive internal bracing to withstand the substantial pressures generated by its long-excursion driver. The sealed design supports controlled transient response while maintaining a compact footprint.

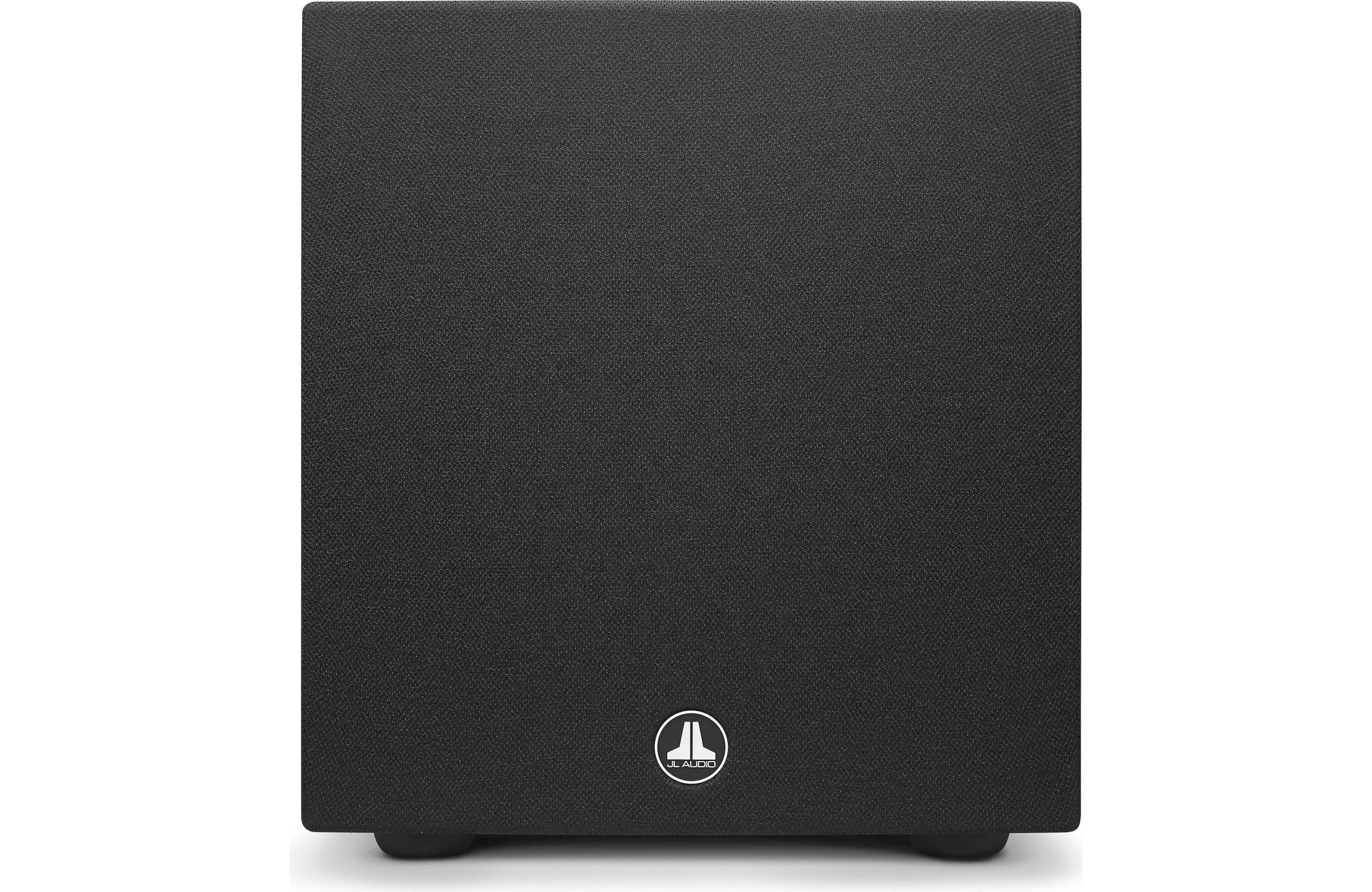

A high-gloss black finish and removable fabric grille allow the d110 to integrate into luxury living spaces, dedicated listening rooms and custom home theaters.

Manufactured in the United States using domestic and imported components, the Dominion d110 combines JL Audio's advanced driver engineering with practical installation flexibility.

Experience JL Audio at The Grid HiFi

Discover the JL Audio Dominion d110 at The Grid HiFi in Houston, Texas. Our team designs and installs high-performance stereo systems, premium media rooms and dedicated home theaters, helping clients select subwoofers that complement their loudspeakers, room dimensions and listening preferences.

Whether you're adding low-frequency extension to a two-channel system or designing a custom home theater with multiple subwoofers, The Grid HiFi provides personalized guidance on equipment matching, placement and professional system integration.

Technical Specifications
