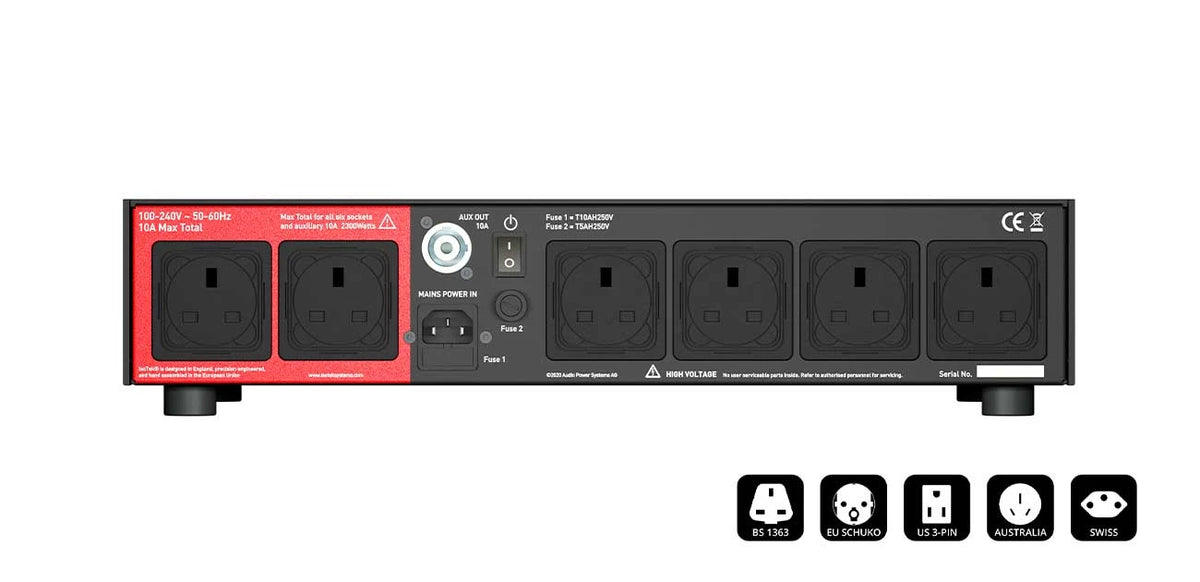

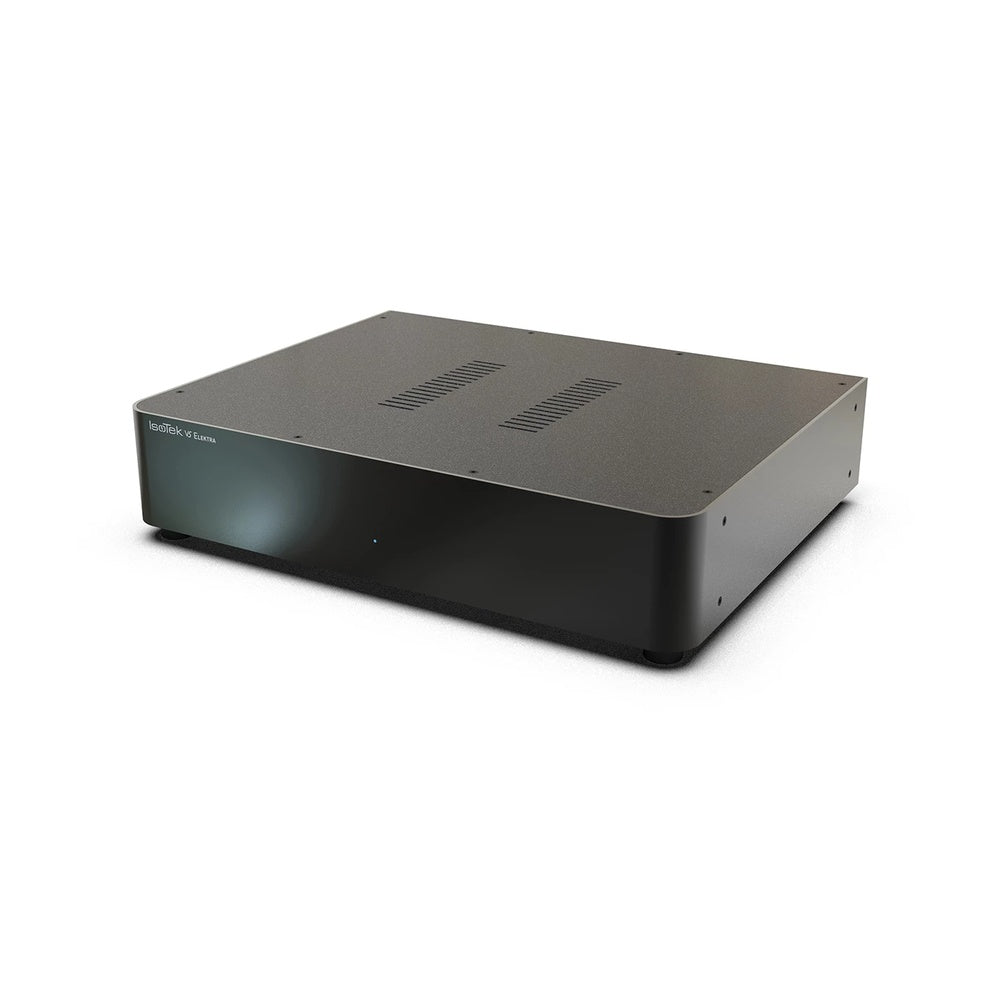

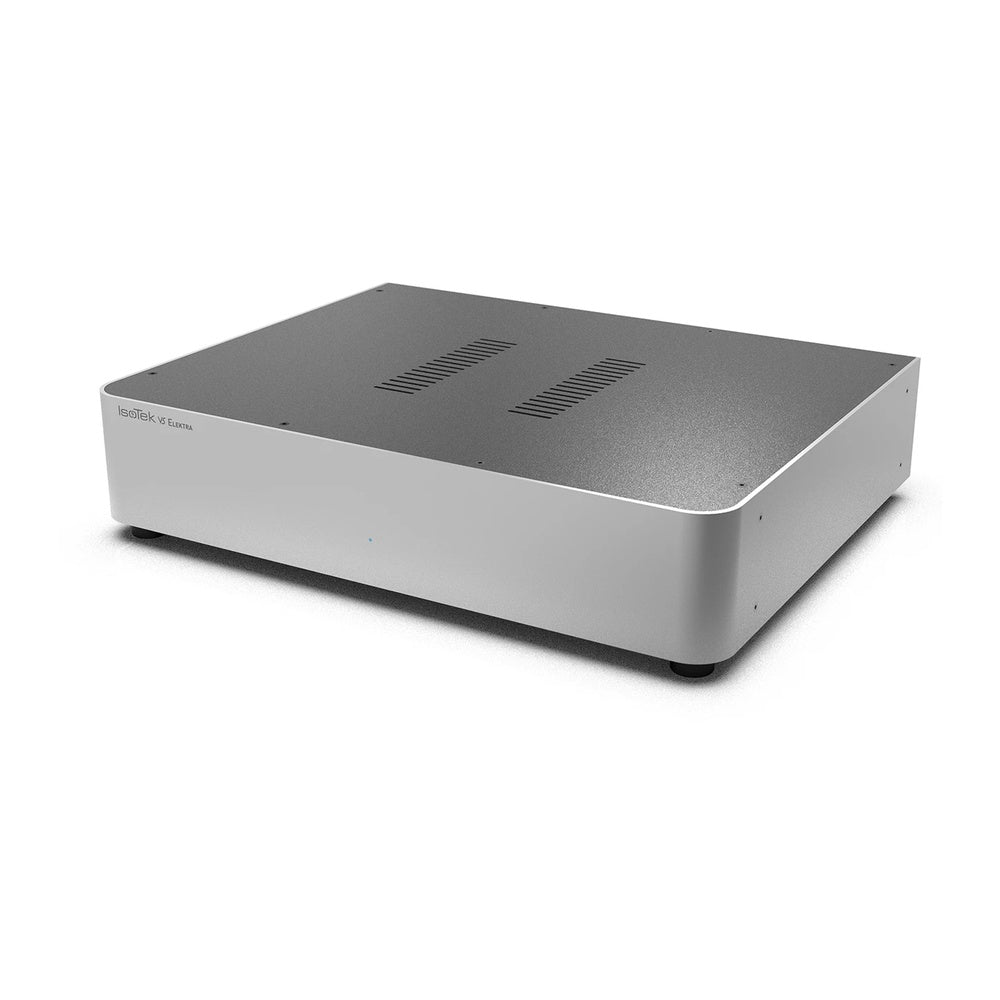

IsoTek V5 Elektra – 6-Outlet High-Performance Power Cleaner

The IsoTek V5 Elektra is a full-width, six-outlet power cleaning system designed for serious HiFi and home theater systems. Rather than using one shared filter for every connected component, the V5 Elektra incorporates six independent power-cleaning networks—effectively providing six dedicated power cleaners within a single chassis.

Its architecture combines four independently filtered medium-current outlets for source components with two high-current outlets designed for power amplifiers, active loudspeakers, subwoofers, televisions, and other higher-demand electronics. IsoTek combines this with Adaptive Gating, KERP technology, star grounding, silver-plated 6N OFC internal wiring, and substantial surge protection.

Key Features

• 6 independent power outlets with dedicated cleaning networks
• 4 × 5A outlets optimized for source components
• 2 × 10A high-current outlets for power amplifiers, active speakers, subwoofers, TVs, and other high-demand equipment
• 55 dB RFI reduction
• Reduces both Common Mode and Differential Mode mains noise
• Adaptive Gating helps optimize filtration according to the connected load
• KERP (Kirchhoff’s Equal Resistance Path) for equal resistance and power delivery across outlets
• 67,500A instantaneous surge protection
• 32,500A continuous protection
• Fully star-earthed architecture
• Silver-plated 6N OFC internal wiring
• Aerospace-grade FEP dielectric
• Low-resistance design for unrestricted current delivery
• Easy-replacement fusing system
• System Link connection for expanding an IsoTek power system
• Supplied with IsoTek EVO3 Initium 1.5m power cable
• Available with US, UK, EU, AU, and CH outlets

Six Independent Power-Cleaning Networks

A major advantage of the V5 Elektra is its Multiple Filter System. Each outlet has its own dedicated power-cleaning path rather than sharing a conventional filter with neighboring outlets.

This helps minimize Differential Mode noise cross-contamination created by connected components themselves. Digital sources, DACs, streamers, amplifiers, and other electronics can therefore receive dedicated filtered power without unnecessarily contaminating one another.

Dedicated High-Current Outlets

The Elektra separates its six outlets according to the type of equipment being powered. Four outlets employ independent six-stage Delta filter networks for source components, while two high-current outlets use a two-stage network combining choke and double-Pi filtering.

This makes the V5 Elektra an excellent single-box solution for systems containing both sensitive source electronics and higher-current amplification.

Advanced Surge Protection

The V5 Elektra provides 67,500A instantaneous surge protection and 32,500A continuous protection. IsoTek's sequential and repeatable protection architecture is designed to protect both the internal filtering circuitry and valuable connected audio or AV components.

KERP & Premium Internal Construction

IsoTek's KERP (Kirchhoff's Equal Resistance Path) architecture is designed to maintain equal resistance and equal power delivery across the outlets.

Internally, the V5 Elektra uses a 2 sq. mm silver-plated 6N oxygen-free copper wiring system with FEP dielectric. The PCB also uses increased copper loading and silver plating to support high current while maintaining very low resistance.

Specifications

Ideal Applications

The V5 Elektra is ideal for sophisticated systems combining power amplifiers, integrated amplifiers, active speakers, powered subwoofers, DACs, music streamers, network players, CD players, phono stages, turntable power supplies, televisions, and home theater electronics.

The Grid HiFi

The IsoTek V5 Elektra provides a major step up in power management for high-performance audio and home theater systems. With six independent cleaning networks, dedicated high-current outputs, advanced noise filtration, and robust surge protection, it provides a clean and protected power foundation for both source components and amplification.
