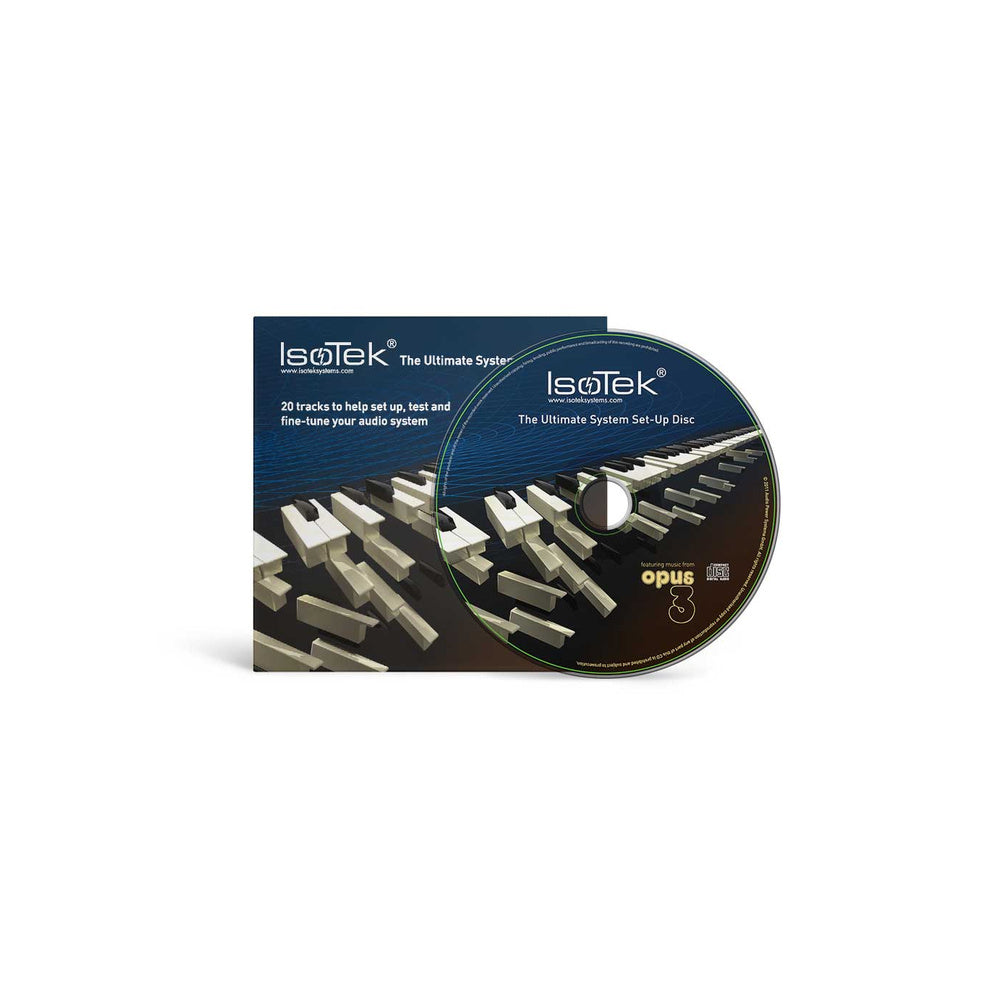

IsoTek Ultimate System Set-Up Disc – Audio System Calibration & Speaker Setup CD

The IsoTek Ultimate System Set-Up Disc is a practical calibration tool designed to help audiophiles correctly set up, test, and fine-tune a two-channel audio system. With 20 tracks, including 14 dedicated test and setup tracks plus six carefully selected audiophile music recordings, the disc provides a straightforward way to optimize speaker placement, phase, stereo imaging, soundstage depth, and overall system performance.

Clear spoken instructions guide the listener through each setup procedure, making the disc useful for both experienced enthusiasts and anyone setting up a serious HiFi system for the first time.

Key Features

• 20 total tracks for system setup and evaluation
• 14 dedicated test and calibration tracks
• 6 audiophile music tracks from the Opus3 record label
• Left/right channel evaluation
• Phase testing to verify correct system connections
• Loudspeaker positioning and adjustment
• Stereo soundstage optimization
• 360-degree imaging test
• Stereo image depth testing
• Increasing and decreasing 20Hz–20kHz frequency tests
• Helps identify significant peaks or dips caused by speaker/room interaction
• Clear spoken instructions for setup procedures
• Designed for two-channel HiFi systems
• No specialized measurement equipment required

Optimize Speaker Placement & Soundstage

Correct loudspeaker positioning can have a major impact on imaging, tonal balance, bass response, and soundstage. The Ultimate System Set-Up Disc provides a logical sequence of tests to help determine the best speaker placement for a particular listening room.

Tracks 5–8 focus on soundstage and 360-degree imaging, while Tracks 9–12 help evaluate and optimize front-to-back stereo image depth. Small adjustments to speaker position and toe-in can then be evaluated using repeatable test material.

Full-Range Frequency Testing

Tracks 13 and 14 provide frequency tests covering 20Hz to 20kHz, first increasing and then decreasing in frequency. These tests can help reveal significant peaks or dips in the combined response of the loudspeakers and listening room.

The frequencies tested include 20Hz, 43Hz, 93Hz, 200Hz, 430Hz, 930Hz, 2kHz, 4.3kHz, 9.3kHz, and 20kHz.

Track Listing

Audiophile Music Evaluation

After calibration, six recordings from the highly regarded Opus3 audiophile label provide real-world listening material for evaluating characteristics including timing, dynamics, soundstage, atmosphere, and bass depth.

This makes the disc useful not only during initial installation, but also after changing loudspeakers, electronics, equipment racks, or speaker positioning.

Ideal For

The IsoTek Ultimate System Set-Up Disc is an excellent tool for stereo speaker installation, listening-room setup, channel and phase verification, speaker toe-in adjustment, soundstage optimization, frequency-response evaluation, and final listening tests.

The Grid HiFi

The IsoTek Ultimate System Set-Up Disc provides a simple and repeatable way to get more performance from a high-quality stereo system through proper setup and calibration. Before changing electronics or cables, correct speaker positioning and system configuration can help ensure that the equipment is performing as intended.

Contact The Grid HiFi for availability and expert assistance with HiFi system setup, speaker positioning, system calibration, and high-performance audio solutions.
