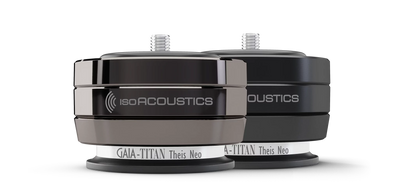

IsoAcoustics GAIA-TITAN Theis Neo | Speaker Isolation Feet

The IsoAcoustics GAIA-TITAN Theis Neo brings IsoAcoustics’ next-generation isolation technology to large floorstanding loudspeakers and subwoofers weighing up to 320 lbs (145 kg) per set of four. As the direct successor to the original GAIA-TITAN Theis, the Neo version retains the same substantial load capacity while introducing redesigned internal isolation, integrated height adjustment, easier installation and a cleaner flush-fit appearance. IsoAcoustics

Built for serious high-end loudspeakers where cabinet mass and driver energy can transfer significant vibration into the floor, Theis Neo provides a controlled mechanical interface between the speaker and supporting surface. Rather than rigidly coupling the loudspeaker to the floor with conventional spikes, its patented isolation system is engineered to reduce vibration transfer while maintaining the stability required by large speaker systems.

Next-Generation GAIA-TITAN Isolation

IsoAcoustics developed the GAIA-TITAN Neo from the inside out, refining the geometry, materials, profile, thickness and durometer of the internal isolators for the demands of high-mass loudspeakers.

Only the lower isolator contacts the supporting surface, preventing the metal housing from creating a rigid pathway for vibration. The design is intended to reduce mechanical energy transferred into the floor while attenuating energy reflected back toward the loudspeaker cabinet. IsoAcoustics

IsoAcoustics describes the resulting benefits as improved clarity, tighter bass, better imaging and a more open soundstage.

NRC-Tested Isolation Approach

IsoAcoustics has also subjected its isolation approach to testing at the National Research Council of Canada. According to the manufacturer, testing demonstrated reduced cabinet vibration compared with spikes while maintaining consistent frequency response from 20 Hz to 20 kHz. IsoAcoustics

That distinction is important: GAIA-TITAN Neo is intended to control unwanted mechanical vibration without acting as an equalizer or deliberately changing the loudspeaker's tonal balance.

320-Pound Capacity

The GAIA-TITAN Theis Neo supports speakers and subwoofers weighing up to 320 lbs (145 kg) per set of four.

This places Theis Neo immediately above the standard GAIA range and makes it appropriate for substantial high-end floorstanding speakers that exceed the capacity of GAIA I or GAIA I Neo. IsoAcoustics

The weight limit represents the intended performance range of the isolation system rather than simply how much physical weight the isolators can hold.

Integrated 8.5mm Height Adjustment

One of the biggest improvements over the original GAIA-TITAN is integrated height adjustment.

Theis Neo can be raised or lowered by up to 0.34 inches (8.5mm) using its rotating lower ring. This makes it easier to level a large loudspeaker on an uneven floor and establish proper contact across all four isolators. IsoAcoustics

The isolator can also pivot to maintain full contact with a supporting surface that isn't perfectly level.

Flush-Fit O-Ring Installation

GAIA-TITAN Neo eliminates the visible lock nut used with the original GAIA-TITAN.

Instead, an integrated O-ring compresses as the isolator is tightened, creating a secure connection while allowing the footer to be rotated into the proper alignment. The result is a cleaner installation that sits tightly against the bottom of the loudspeaker. IsoAcoustics

IsoAcoustics places its logo on both sides of the Neo housing to make directional alignment easier during installation.

Floor Sliders Included

Moving a 200- or 300-pound loudspeaker after installing isolation feet isn't easy, so IsoAcoustics includes Floor Sliders with each set of GAIA-TITAN Neo isolators.

The sliders allow the loudspeaker to be repositioned after installation. Once final placement, toe-in and alignment are established, the sliders can be removed for optimal isolation performance. IsoAcoustics

Included Thread Adapters

GAIA-TITAN Theis Neo includes:

• ½"-13
• M8-1.25
• M14-2.0

Alternative thread adapters are available for loudspeakers requiring different mounting hardware. IsoAcoustics

GAIA-TITAN Theis Neo Technical Specifications

GAIA-TITAN Theis Neo at The Grid HiFi

The IsoAcoustics GAIA-TITAN Theis Neo provides a serious isolation solution for large high-performance loudspeakers and subwoofers. Its combination of a 320-lb capacity, refined internal isolation, integrated leveling, flush-fit installation and included Floor Sliders makes it a substantial evolution of the original Theis.

At The Grid HiFi in Houston, Texas, we can help verify your loudspeaker's weight and factory thread size to determine the correct GAIA-TITAN Neo model and mounting hardware for your system.
