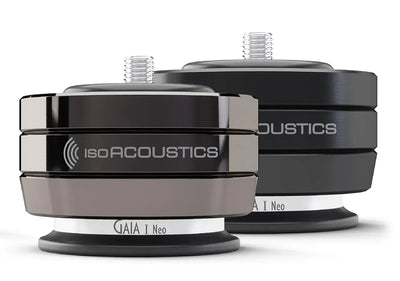

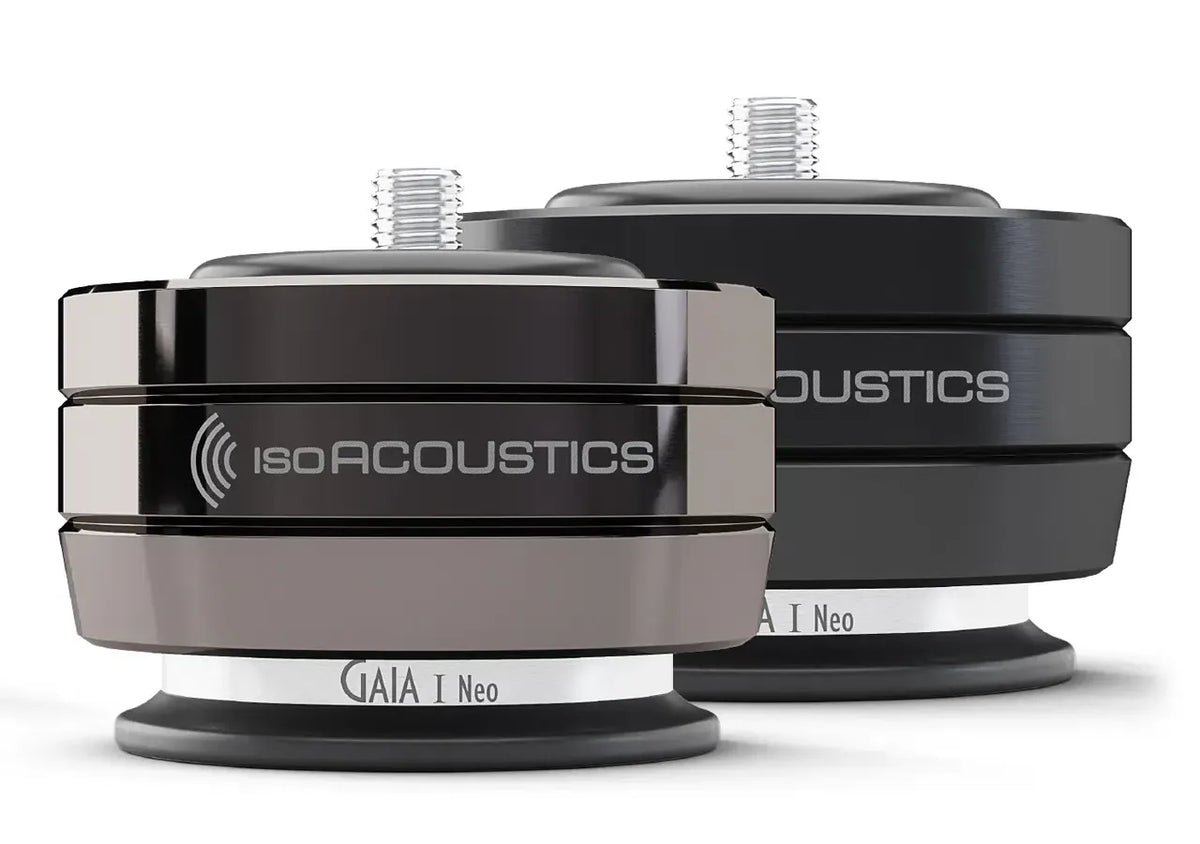

IsoAcoustics GAIA I Neo | Speaker Isolation Feet

IsoAcoustics GAIA I Neo | Speaker Isolation Feet

The IsoAcoustics GAIA I Neo is the largest model in the GAIA Neo Series, engineered for substantial floorstanding loudspeakers and subwoofers weighing up to 220 lbs (100 kg) per set of four. Building on the award-winning original GAIA platform, GAIA I Neo introduces refined isolation performance, easier installation and seamless height adjustment while maintaining the controlled mechanical isolation that made GAIA a popular upgrade for high-performance loudspeaker systems. IsoAcoustics

Next-Generation GAIA Isolation

GAIA Neo uses an evolution of IsoAcoustics' patented isolation technology to reduce the transmission of mechanical vibration between the loudspeaker and supporting surface.

For the Neo generation, IsoAcoustics refined the shape, thickness and durometer of the internal isolators following additional research and performance testing. According to IsoAcoustics, these changes are designed to improve clarity, focus and low-frequency definition compared with the original design. IsoAcoustics

Rather than rigidly coupling the loudspeaker to the floor with conventional spikes, GAIA I Neo provides a controlled mechanical interface that manages vibration while resisting lateral movement and maintaining loudspeaker stability.

Seamless 8.5mm Height Adjustment

One of the most significant upgrades to GAIA Neo is its integrated height adjustment.

The lower ring can be rotated to raise or lower the speaker by up to 0.34 inches (8.5mm) without changing the isolator's on-axis alignment. This makes it considerably easier to level a large loudspeaker, compensate for an uneven floor and achieve even weight distribution across all four isolators. IsoAcoustics

The adjustment can also be useful when fine-tuning speaker setup and positioning.

Easier Flush-Fit Installation

GAIA Neo eliminates the traditional lock-nut arrangement used by the original GAIA Series.

An integrated O-ring compression system creates a secure, flush connection between the isolator and loudspeaker while making installation and alignment easier. IsoAcoustics also places its logo on both sides of the Neo housing, simplifying correct directional alignment during installation. IsoAcoustics

GAIA Neo requires a threaded connection to the loudspeaker or subwoofer and is intended to replace the manufacturer's existing threaded spikes or feet.

Designed for Large Loudspeakers and Subwoofers

With a 220-lb (100 kg) maximum capacity per set of four, GAIA I Neo is designed for large high-end floorstanding loudspeakers and substantial subwoofers.

IsoAcoustics establishes its weight limits according to the performance curve of the isolation system rather than simply the amount of physical weight the isolators can hold. The manufacturer therefore recommends not exceeding the specified weight limit. IsoAcoustics

Included Thread Adapters

GAIA I Neo includes three commonly used thread adapters:

• M12-1.25
• M8-1.25
• ¼"-20

A variety of alternative thread adapters are available separately for loudspeakers requiring other sizes. IsoAcoustics

Floor Slider Compatibility

GAIA Neo is designed to work with IsoAcoustics Floor Sliders, making it easier to position heavy loudspeakers after the isolators have been installed.

The sliders work directly on carpet and can be fitted with the included felt pads for use on hard surfaces. Once the loudspeaker is correctly positioned, it can be tilted one side at a time to remove the sliders. IsoAcoustics

GAIA I Neo Technical Specifications

IsoAcoustics GAIA I Neo at The Grid HiFi

The IsoAcoustics GAIA I Neo takes the proven GAIA concept further with refined isolation, adjustable height, easier installation and a cleaner contemporary design. Its 220-lb capacity makes it particularly well suited to substantial reference loudspeakers and subwoofers where controlling mechanical interaction with the room is an important part of system setup.

At The Grid HiFi in Houston, Texas, we can help determine the correct GAIA Neo model and thread adapter for your specific loudspeaker or subwoofer, ensuring proper fit, load capacity and installation.
