IsoAcoustics GAIA I | Speaker & Subwoofer Isolation Feet

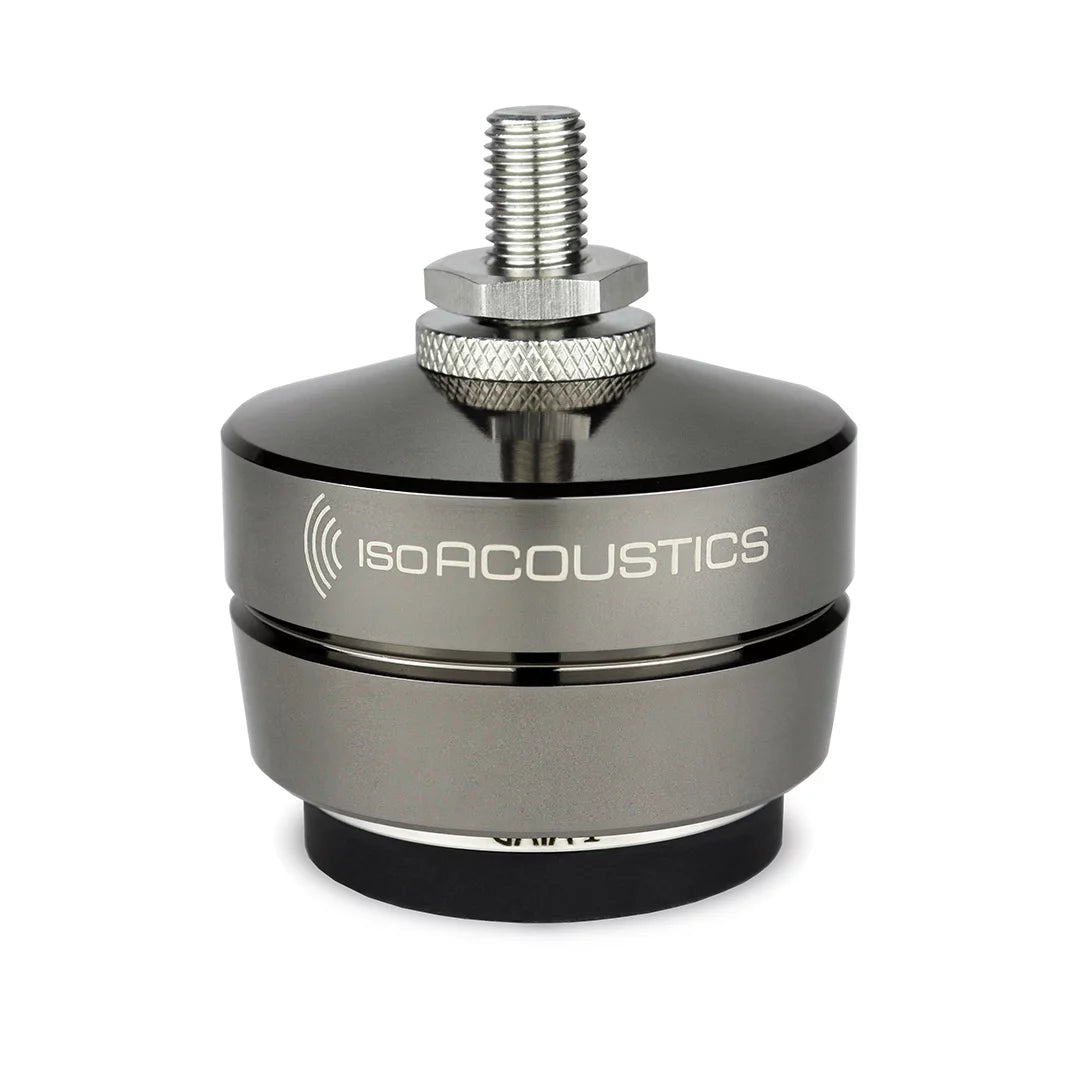

The IsoAcoustics GAIA I is a high-performance isolation footer engineered for large floorstanding loudspeakers and subwoofers weighing up to 220 lbs (100 kg). Installed in place of the speaker’s factory spikes or feet, GAIA I creates a controlled mechanical connection between the loudspeaker and floor, reducing the transfer of vibration while maintaining stability and proper alignment with the listening position. IsoAcoustics

For serious high-end systems, speaker isolation is about more than protecting the floor. Energy generated by the loudspeaker cabinet can travel into the supporting surface and reflect back into the enclosure. GAIA I is designed to manage that mechanical energy, with IsoAcoustics describing improvements in clarity, openness and focus when the loudspeaker is properly isolated. IsoAcoustics

Patented IsoAcoustics Isolation Technology

Unlike conventional speaker spikes that mechanically couple the loudspeaker to the floor, GAIA I uses IsoAcoustics’ patented isolation design to provide a controlled path for vibration to dissipate.

The machined dark-chrome metal housing surrounds the internal isolator, but the housing itself does not create a rigid connection with the floor. Only the lower isolator contacts the supporting surface. This helps prevent vibration from bypassing the isolation system through the outer housing. IsoAcoustics

GAIA is also engineered to resist lateral movement and oscillation. This allows the loudspeaker to remain stable while the isolation system manages unwanted mechanical energy.

Designed for Large Floorstanding Speakers

The GAIA I supports speakers and subwoofers weighing up to 220 lbs (100 kg), making it the highest-capacity model in the standard GAIA Series.

This makes GAIA I particularly well suited to substantial high-end floorstanding loudspeakers and large subwoofers that exceed the weight limits of GAIA II and GAIA III. IsoAcoustics

For correct performance, the speaker's total weight should remain within the GAIA I's specified capacity.

Threaded Directly Into the Speaker

GAIA I is designed to replace the loudspeaker's existing spikes or threaded feet. Threading the isolators directly into the base creates a secure mechanical connection between the loudspeaker and the upper portion of the GAIA assembly.

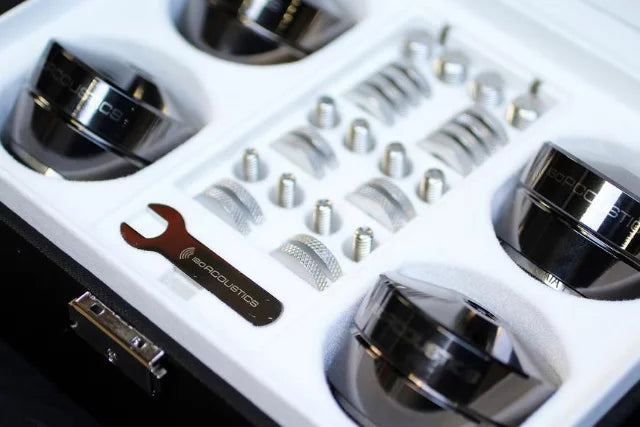

GAIA I includes thread adapters for:

• M8-1.25
• M12-1.25
• ¼"-20

IsoAcoustics also offers alternative thread adapters for loudspeakers requiring different mounting hardware. IsoAcoustics

Directional Installation

GAIA isolators are directional and should be installed with the IsoAcoustics logo facing the listening position or rotated 180 degrees.

This orientation aligns the isolators with the loudspeaker's motive forces and is important for achieving the intended isolation performance. Once installed, the lower portion of the GAIA grips the supporting surface, helping keep the loudspeaker securely positioned. IsoAcoustics

Hardwood, Tile and Carpet Installation

GAIA I can be positioned directly on solid surfaces such as hardwood, tile and other hard flooring.

For carpeted rooms, optional IsoAcoustics GAIA Carpet Disks provide a stable interface through the carpet to the solid flooring underneath. The GAIA isolator sits on top of the carpet disk, allowing the speaker to maintain the intended isolation configuration.

IsoAcoustics also offers application-specific adapters for certain loudspeakers, including solutions for select Bowers & Wilkins, Focal and Sonus faber models. IsoAcoustics

GAIA I Technical Specifications

The 220-lb rating applies to a complete set of four GAIA I isolators, not to each individual footer. IsoAcoustics

Choosing Between GAIA I, II and III

The standard GAIA Series is primarily differentiated by the weight of the loudspeaker or subwoofer. GAIA I supports up to 220 lbs (100 kg), GAIA II up to 120 lbs (55 kg), and GAIA III up to 70 lbs (32 kg) per set of four. The models also differ in physical dimensions and supplied thread sizes. IsoAcoustics

Choosing the model appropriate for the speaker's weight is important because the internal isolators are designed to operate within a specific load range.

IsoAcoustics GAIA I at The Grid HiFi

The IsoAcoustics GAIA I is a sophisticated upgrade for high-performance floorstanding loudspeakers and subwoofers where controlling mechanical vibration is an important part of system setup. Its combination of patented isolation technology, secure threaded installation and 220-lb capacity makes it particularly well suited to substantial reference-level loudspeakers.

At The Grid HiFi in Houston, Texas, we can help determine the correct IsoAcoustics GAIA model and thread adapter for your specific loudspeaker or subwoofer, ensuring proper fit, weight capacity and installation.
