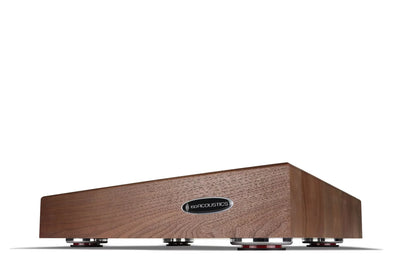

IsoAcoustics DELOS 2216W2 | Walnut Turntable Isolation Platform

The IsoAcoustics DELOS 2216W2 is a premium turntable isolation platform combining a substantial 3-inch-thick walnut butcher block with six integrated IsoAcoustics isolators. Designed for turntables and sensitive HiFi components weighing up to 90 lbs, the DELOS 2216W2 helps reduce structure-borne vibration and resonance before they can reach the component.

At 22 inches wide by 16 inches deep, the 2216W2 is one of the larger DELOS platforms, making it particularly well suited to substantial high-end turntables, turntables with external motors, and heavy tube electronics. The combination of mass and IsoAcoustics' patented isolation technology creates a stable mechanical foundation engineered to lower the effects of vibration and allow greater clarity and detail to emerge from an audio system. IsoAcoustics

3-Inch Solid Walnut Butcher Block

The 2216W2 uses a 3-inch-thick laminated walnut butcher block, providing considerably more mass than the 1¾-inch DELOS 2216W1.

That additional mass is intentional. IsoAcoustics combines the mass of the platform and supported component with its integrated isolators to more effectively diminish structural vibrations and resonances. For turntables in particular, this helps protect the delicate interaction between stylus and record groove from vibration traveling through floors, furniture and equipment racks. IsoAcoustics

The walnut itself features a rich, dark-brown appearance with natural variations in color and grain. Each platform is unique, and IsoAcoustics seals the butcher block with a urethane-based satin finish resistant to stains and most solvents. Walnut carries a Janka hardness rating of 1100, providing a durable foundation for high-end audio equipment. IsoAcoustics

Six Integrated IsoAcoustics Isolators

Underneath the DELOS 2216W2 are six integrated isolators derived from the technology developed for IsoAcoustics' award-winning GAIA Series.

Rather than simply placing a heavy slab beneath the turntable, the DELOS is designed to decouple the component from the supporting surface. Its isolators absorb vibration so that energy is less likely to travel through—or reflect back from—the surface beneath the component.

The isolators are partially recessed into the butcher block and securely fastened, creating an integrated platform rather than a separate board resting on individual isolation feet. IsoAcoustics

Designed for High-End Turntables

Turntables are especially sensitive to vibration. The cartridge and stylus are designed to respond to extremely small movements in the record groove, meaning unwanted mechanical energy can also enter the playback chain.

The DELOS 2216W2 creates a mechanically isolated platform intended to reduce those external influences. IsoAcoustics specifically recommends the DELOS design for turntables with external motors, because both the turntable and motor can sit on the same isolated surface and remain at the same height. IsoAcoustics

Its large 22 × 16-inch surface also accommodates many substantial audiophile turntables that may be too large or heavy for smaller isolation platforms.

Not Just for Turntables

Although DELOS was developed primarily as a turntable isolation platform, its application isn't limited to vinyl playback.

The 2216W2 can also provide isolation for:

• Tube amplifiers and tube preamplifiers
• CD and SACD players
• DACs and digital source components
• Music servers and streamers
• Phono preamplifiers
• Other vibration-sensitive HiFi electronics

Tube electronics can be particularly susceptible to mechanically induced vibration and microphonics, making a substantial isolated platform useful beyond the turntable itself.

DELOS 2216W2 Specifications

These are the correct specifications for the 2216W2 specifically. IsoAcoustics rates the thinner 2216W1 at 100 lbs, while this thicker 3-inch 2216W2 is rated at 90 lbs because the additional mass of the platform changes the optimal operating range of its isolation system. IsoAcoustics

DELOS 2216W2 at The Grid HiFi

The IsoAcoustics DELOS 2216W2 is an excellent foundation for serious analog systems where turntable isolation, stability and appearance all matter. Its substantial walnut construction looks at home beneath premium turntables while the six integrated IsoAcoustics isolators provide purpose-designed vibration control.

At The Grid HiFi in Houston, Texas, we can help match the correct IsoAcoustics isolation platform to your turntable or audio component based on its dimensions, weight and installation environment.
