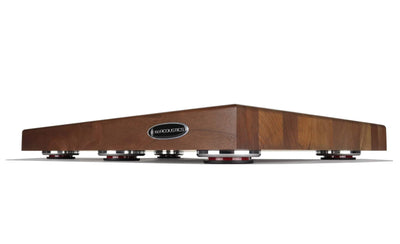

IsoAcoustics DELOS 2216W1 | Walnut Turntable Isolation Platform

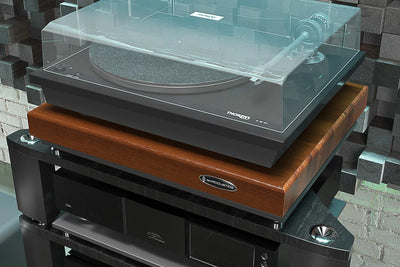

The IsoAcoustics DELOS 2216W1 is a premium turntable isolation platform combining a 1¾-inch-thick walnut butcher block with six integrated IsoAcoustics isolators. Measuring 22 inches wide by 16 inches deep and supporting components up to 100 lbs, the DELOS 2216W1 provides a stable, mechanically isolated foundation for high-end turntables and other vibration-sensitive audio components. IsoAcoustics

By combining the mass and rigidity of solid walnut with IsoAcoustics’ patented isolation technology, the DELOS is designed to reduce structure-borne vibrations and resonances that can interfere with vinyl playback. The result is a purpose-built isolation platform designed to help a turntable perform without unwanted energy entering through the equipment rack, furniture or floor.

Designed Specifically for Turntable Isolation

A turntable cartridge responds to extremely small movements in the record groove. Unfortunately, that also makes an analog playback system susceptible to vibrations traveling through the surrounding structure.

The DELOS 2216W1 creates an isolated platform between the turntable and the surface supporting it. Its integrated isolators are designed to absorb vibration rather than allowing that energy to travel through—or reflect back into—the turntable. IsoAcoustics

This makes the DELOS particularly useful in rooms with suspended floors, equipment positioned near loudspeakers, or systems where footfall and other mechanical vibrations can reach the turntable.

1¾-Inch Walnut Butcher Block

The 2216W1 features a substantial 1¾-inch (45mm) walnut butcher block. The dark natural appearance and visible grain of walnut give the platform a furniture-grade aesthetic that complements premium turntables and HiFi systems.

Individual pieces of walnut are selected and laminated together, creating a strong, stable platform with natural variations in grain and coloration. No two DELOS walnut platforms will look exactly alike.

IsoAcoustics seals the wood with a urethane-based satin finish designed to resist stains and most solvents. IsoAcoustics

Six Integrated IsoAcoustics Isolators

Rather than placing a conventional wooden platform on rubber feet, the DELOS incorporates six purpose-designed IsoAcoustics isolators directly into the butcher block.

The isolation system is based on technology developed for the company's GAIA Series. Each isolator incorporates multiple elements engineered to work together so there is no single direct mechanical path between the audio component and the supporting surface.

The isolators are partially recessed and secured directly to the butcher block, creating a complete isolation system rather than a platform and feet assembled separately. IsoAcoustics

100-Pound Weight Capacity

The DELOS 2216W1 supports turntables and audio components weighing up to 100 lbs (45.4kg), making it the highest-capacity configuration in the DELOS 2216 range.

Interestingly, the thinner W1 actually carries a higher recommended load than the thicker 2216W2. IsoAcoustics tunes its isolators around the combined mass of the butcher block and component. Because the 3-inch W2 platform itself has greater mass, its specified component capacity is 90 lbs, while the 1¾-inch W1 is rated for 100 lbs. IsoAcoustics

Ideal for Turntables with External Motors

The large 22 × 16-inch surface provides enough room for many substantial audiophile turntables and can be particularly useful with designs incorporating an external motor.

IsoAcoustics specifically recommends DELOS when a turntable uses an external motor because the platform can support both the turntable and motor on the same isolated surface and at the same height. IsoAcoustics

Isolation for More Than Turntables

While DELOS was developed with vinyl playback in mind, the 2216W1 can also be used beneath other vibration-sensitive HiFi components. Tube amplifiers and preamplifiers are particularly relevant applications because tubes can be susceptible to mechanically induced vibration and microphonics.

The DELOS can also provide an isolated foundation for digital source components, CD/SACD players, DACs, phono stages and other audio electronics where controlling mechanical vibration is desirable. IsoAcoustics

DELOS 2216W1 Technical Specifications

The key difference from the 2216W2 we just did is thickness and load rating: 2216W1 = 1¾ inches / 100 lbs, while 2216W2 = 3 inches / 90 lbs. The W2 provides additional platform mass; the W1 provides the higher rated component capacity. IsoAcoustics

IsoAcoustics DELOS 2216W1 at The Grid HiFi

The IsoAcoustics DELOS 2216W1 provides a clean, elegant way to address vibration in a serious analog system. Its 22 × 16-inch walnut butcher block provides a substantial foundation for larger turntables, while six integrated IsoAcoustics isolators help decouple the component from structure-borne vibration.

At The Grid HiFi in Houston, Texas, we can help match the correct IsoAcoustics isolation platform to your turntable or audio component based on its dimensions, weight and installation environment.
