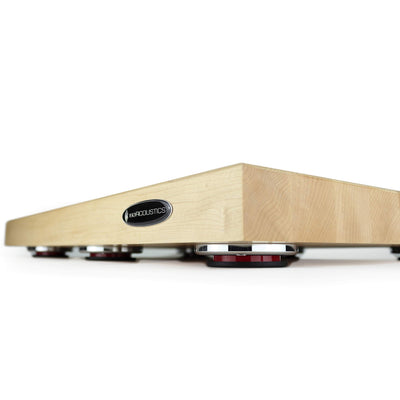

IsoAcoustics DELOS 2216M1 | Maple Turntable Isolation Platform

The IsoAcoustics DELOS 2216M1 is a premium turntable isolation platform combining a 1¾-inch-thick maple butcher block with six integrated IsoAcoustics isolators. Measuring 22 inches wide by 16 inches deep and supporting turntables or audio components up to 100 lbs, the 2216M1 provides a large, stable foundation for substantial high-end analog systems.

By combining the mass and rigidity of hard maple with IsoAcoustics’ patented isolation technology, the DELOS is designed to decouple a turntable from its supporting surface and reduce the structural vibrations and resonances that can interfere with vinyl playback. IsoAcoustics

Designed for Serious Turntable Isolation

A turntable cartridge is extremely sensitive by design. While that sensitivity allows the stylus to retrieve microscopic information from a record groove, it also makes the playback system susceptible to unwanted vibration traveling through floors, furniture and equipment racks.

The DELOS 2216M1 creates an isolated mechanical foundation between the turntable and supporting surface. IsoAcoustics combines the mass of the butcher block with its isolation system to absorb vibration and reduce reflected mechanical energy. IsoAcoustics

1¾-Inch Hard Maple Butcher Block

The 2216M1 features a substantial 1¾-inch (45mm) maple butcher block. Maple gives the DELOS a light amber appearance that works especially well with contemporary turntables, natural wood equipment racks and modern listening rooms.

IsoAcoustics selected maple for its combination of appearance, hardness and performance. The company rates its maple at 1450 on the Janka hardness scale, providing excellent resistance to scratches and dents.

Each butcher block is assembled from individually selected pieces of maple, producing natural variations in grain and coloration. A urethane-based satin finish protects the surface against stains and most solvents. IsoAcoustics

Six Integrated IsoAcoustics Isolators

The DELOS 2216M1 incorporates six integrated IsoAcoustics isolators based on technology developed for the company's GAIA Series.

Each isolator uses a three-part construction consisting of upper and lower isolation elements connected through a central structure. IsoAcoustics designs this arrangement so there is no single direct mechanical path between the audio component and the supporting surface.

The isolators are partially recessed into the maple platform and securely fastened, creating a complete engineered isolation platform rather than simply placing a butcher block on conventional rubber feet. IsoAcoustics

100-Pound Weight Capacity

With a maximum recommended component weight of 100 lbs (45.4kg), the DELOS 2216M1 offers the highest weight capacity in the DELOS range.

IsoAcoustics establishes its weight ratings according to the optimal operating range of the isolation system. While the platform can physically support additional weight, the company notes that isolation performance begins to decline when its specified capacity is exceeded. IsoAcoustics

This makes the 2216M1 an excellent choice for large and heavy turntables that fit within its 22 × 16-inch footprint.

Ideal for Turntables with External Motors

The large platform also makes the DELOS particularly useful with turntables incorporating an external motor.

When both the turntable and motor fit on the DELOS, they remain at the same height and on the same isolated surface. IsoAcoustics specifically recommends DELOS for external-motor turntable designs for this reason. IsoAcoustics

Maple or Walnut?

IsoAcoustics offers the DELOS in both Maple and Walnut. According to the manufacturer, the difference is primarily aesthetic—both wood choices provide the same level of isolation performance.

Maple provides a lighter amber appearance and carries a Janka hardness rating of 1450, while Walnut provides a darker, richer appearance. For customers choosing between the 2216M1 and 2216W1, the decision can therefore be based primarily on which wood better complements the turntable, equipment rack and listening room. IsoAcoustics

More Than a Turntable Platform

Although DELOS was developed with turntables in mind, the 2216M1 can also isolate other vibration-sensitive audio components.

IsoAcoustics specifically identifies tube amplifiers as another application. The platform can also be considered for appropriately sized HiFi electronics where reducing structure-borne vibration is desirable. IsoAcoustics

DELOS 2216M1 Technical Specifications

The 22 × 16-inch dimensions, 1¾-inch thickness, six-isolator configuration and 100-lb capacity are confirmed by IsoAcoustics specifically for the 2216M1. IsoAcoustics

DELOS 2216M1 vs. 2216M2

The 2216M1 uses a 1¾-inch maple butcher block and supports up to 100 lbs, while the 2216M2 uses a thicker 3-inch maple block and is rated for up to 90 lbs.

The M2 provides greater butcher-block mass, while the M1 provides the higher component weight capacity. Both use six integrated isolators and have the same 22 × 16-inch footprint. IsoAcoustics

IsoAcoustics DELOS 2216M1 at The Grid HiFi

The IsoAcoustics DELOS 2216M1 provides a substantial yet elegant foundation for high-performance turntables. Its large maple butcher block, six integrated isolators and 100-lb capacity make it particularly well suited to larger analog systems where controlling structure-borne vibration is a priority.

At The Grid HiFi in Houston, Texas, we can help match the correct IsoAcoustics DELOS platform to your turntable based on its dimensions, foot placement and total weight.
