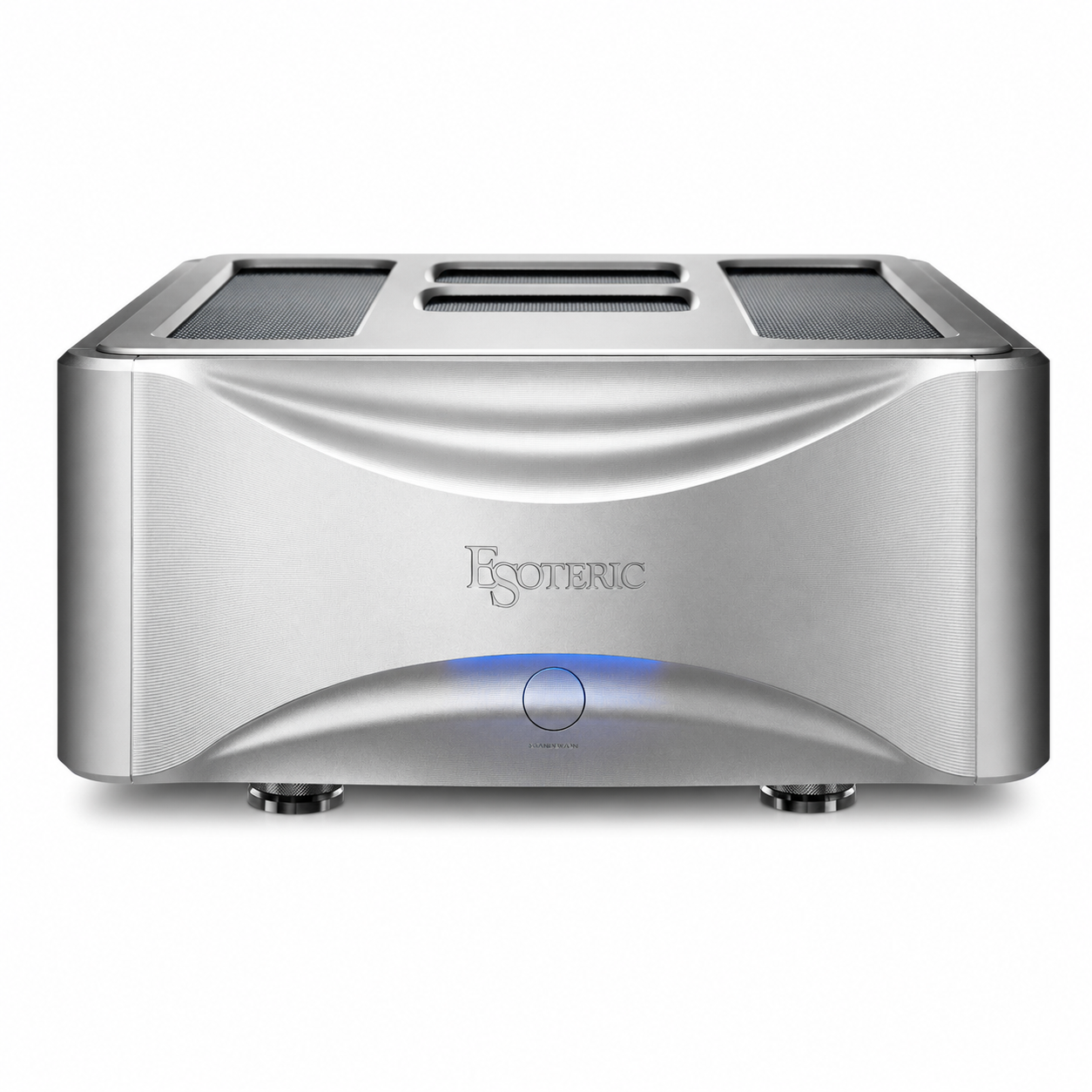

ESOTERIC Grandioso S1X Class A Stereo Power Amplifier

The ESOTERIC Grandioso S1X is the flagship Class A stereo power amplifier in ESOTERIC’s Grandioso range, developed from the amplifier platform created for the Grandioso M1X monoblock. Rated at 50 watts per channel into 8 ohms in Class A and 100 watts per channel into 4 ohms, the S1X combines a newly designed five-parallel push-pull bipolar output stage, massive independent power supplies, ES-LINK Analog connectivity and an exceptionally substantial 48 kg chassis. Esoteric

Rather than pursuing headline wattage, the S1X is engineered around current delivery, power linearity, extremely low internal impedance and the inherently linear operating characteristics of Class A amplification. ESOTERIC describes it as a milestone in its pursuit of a Class A stereo amplifier capable of combining fine resolution with the scale and dynamic character developed for the M1X. Esoteric

Pure Class A — 50W Into 8 Ohms

The Grandioso S1X delivers:

50W + 50W into 8Ω — Class A operation
100W + 100W into 4Ω
200W + 200W maximum into 2Ω

The near-doubling of output as impedance falls from 8 to 4 ohms demonstrates the S1X's strong power linearity and substantial current-delivery capability. Esoteric

This is not a conventional 50-watt amplifier. Class A requires the output devices to remain continuously biased, producing substantial heat and consuming considerable power even when no music is playing. ESOTERIC specifies approximately 270W consumption with no signal. Esoteric

Five-Parallel Push-Pull Output Stage

The S1X uses a newly engineered output stage consisting of five parallel push-pull pairs of high-capacity bipolar transistors per channel.

This drive-stage architecture was developed as part of the new-generation Grandioso amplifier platform introduced with the M1X. ESOTERIC's goal is high instantaneous current capability combined with the delicacy and low-level resolution associated with Class A operation. Esoteric

The design deliberately balances output-device count against circuit simplicity. Rather than simply adding more parallel devices, ESOTERIC optimized the configuration around its desired combination of drive capability, transparency and dynamic response.

Grandioso M1X-Derived Amplifier Platform

The S1X is closely related to ESOTERIC's flagship Grandioso M1X monoblock.

Development of the M1X resulted in a complete redesign of ESOTERIC's amplifier platform, including the drive circuitry, power supply, internal construction and mechanical architecture. The S1X takes that engineering foundation and applies it to a pure Class A stereo amplifier. Esoteric

This distinction is important for the Shopify listing: the S1X isn't simply an updated Grandioso S1. It belongs to the newer Grandioso X-generation amplifier architecture.

Massive Toroidal Power Transformer

At the heart of the Grandioso S1X is a large-capacity toroidal-core power transformer engineered for rapid response to changes in current demand.

For an amplifier operating in Class A, power-supply stability is particularly important because the output stage maintains substantial continuous bias regardless of the instantaneous musical signal.

ESOTERIC combines the transformer with extremely low-impedance power distribution to maintain stable current delivery during demanding transient passages. Esoteric

Three Independent Power Transformers

The S1X actually employs a three-transformer power architecture.

Separate transformers supply the:

Front stage
Drive stage
Control circuitry

This reduces interaction between the sensitive signal circuitry, high-current amplification stages and control electronics. Esoteric

It is a recurring Grandioso design philosophy: instead of allowing unrelated sections of the amplifier to compete through a common power supply, ESOTERIC provides electrical separation at the transformer level.

120,000µF of Main Power-Supply Capacitance

Each channel receives its own bank of custom Grandioso capacitors:

10,000µF × 6 per channel

That equals:

60,000µF per channel
120,000µF total across the stereo amplifier. Esoteric

The high-capacity reservoir supports instantaneous current delivery while maintaining the channel separation expected from a reference stereo power amplifier.

These aren't generic off-the-shelf capacitors. ESOTERIC specifies Grandioso Custom Block Capacitors as part of the S1X power-supply architecture.

Pure Copper Busbars & Ultra-Thick Wiring

High current capability can be compromised if resistance exists between the power supply and output stage.

ESOTERIC addresses this with:

Pure copper busbars
Ultra-thick internal wiring
Extremely short circuit-pattern connections

The objective is to minimize internal impedance and allow the amplifier's power supply to respond rapidly to changes in loudspeaker demand. Esoteric

This is particularly important as loudspeaker impedance falls and current requirements increase.

ES-LINK Analog

In addition to conventional RCA and balanced XLR connections, the Grandioso S1X supports ES-LINK Analog.

ES-LINK Analog is ESOTERIC's proprietary current-transmission interface for connecting compatible preamplifiers and power amplifiers. Rather than relying solely on conventional voltage transmission, ES-LINK is designed to make the interconnect less susceptible to impedance-related effects. Esoteric

The S1X provides:

1 pair ES-LINK Analog inputs
1 pair balanced XLR inputs
1 pair unbalanced RCA inputs. Esoteric

When paired with a compatible Grandioso preamplifier, ES-LINK Analog creates the intended all-ESOTERIC signal architecture.

Fully Balanced Signal Architecture

ESOTERIC uses balanced audio connections between the individual circuit blocks inside the S1X.

Balanced architecture helps suppress common-mode noise and keeps the signal less vulnerable to interference as it passes through the amplifier. Esoteric

This internal construction complements the S1X's external balanced XLR and ES-LINK Analog interfaces.

IDM-01 Discrete Amplifier Module

The Grandioso S1X incorporates ESOTERIC's IDM-01 discrete amplifier module as part of its signal architecture.

Rather than depending entirely on conventional integrated operational-amplifier devices, ESOTERIC developed dedicated discrete circuitry around the performance objectives of the Grandioso platform. The company also specifies high-grade FET switching devices for input selection. Esoteric

The emphasis throughout the S1X is maintaining signal integrity from input selection through the final high-current output stage.

5Hz–100kHz Frequency Response

The S1X has an exceptionally wide specified frequency response:

5Hz–100kHz (+0dB / -3dB, 8Ω). Esoteric

The objective of bandwidth extending far beyond the audible spectrum isn't reproduction of ultrasonic music. Wide-bandwidth circuitry can preserve phase behavior and transient response throughout the audible range without operating near the amplifier's frequency limits.

109dB Signal-to-Noise Ratio

Despite its substantial Class A power architecture, ESOTERIC specifies:

S/N Ratio: 109dB, IHF-A, XLR

and:

Total Harmonic Distortion: 0.006% at 1kHz, 8Ω, 50W. Esoteric

The combination of high current capability and a low noise floor is particularly important when the S1X is partnered with highly resolving reference loudspeakers.

Stereo or Bi-Amp Configuration

The Grandioso S1X can also form the foundation of a more elaborate amplification system.

ESOTERIC supports both:

Conventional stereo operation
Bi-amplified operation using two S1X amplifiers. Esoteric

For loudspeakers designed for separate low- and high-frequency amplification, a pair of S1X amplifiers can therefore provide dedicated amplification sections while retaining the sonic and electrical characteristics of the same amplifier throughout the system.

Grandioso-Scale Chassis

The S1X uses the same general chassis scale as the flagship M1X:

491 × 221 × 536 mm
19-3/8 × 8-3/4 × 21-1/8 in.

and weighs:

48 kg / approximately 105.8 lb. Esoteric

The considerable mass is the result of the power-supply architecture, heat management and mechanical construction required for a large pure Class A stereo amplifier.

Dual Honeycomb Grille & Semi-Floating Top Panel

Class A amplification produces substantial continuous heat, so thermal management is integral to the S1X chassis.

ESOTERIC employs a dual honeycomb grille and semi-floating top panel engineered to promote heat evacuation while controlling the mechanical behavior of the enclosure. Esoteric

The chassis itself is designed around a deliberate balance between rigidity and controlled flexibility rather than simply maximizing structural stiffness everywhere.

Wave-Shaped Heat Sinks

The S1X uses distinctive wave-shaped heat sinks.

Beyond providing the large surface area required to dissipate heat from the continuously biased Class A output stage, ESOTERIC designed the shape to reduce concentrated mechanical resonances. Esoteric

Thermal and mechanical engineering are therefore treated as interconnected parts of the amplifier rather than separate packaging considerations.

Pinpoint Isolation Feet

The Grandioso S1X rests on ESOTERIC's proprietary pinpoint isolation feet.

Their mechanical structure is designed to minimize stress on the chassis while establishing a controlled interface between the amplifier and the equipment support beneath it. Esoteric

Given the amplifier's approximately 106-pound weight, equipment support and ventilation should be considered during system design rather than after installation.

DC Trigger Integration

The S1X includes a DC trigger input, allowing power operation to be coordinated with compatible ESOTERIC components. Esoteric

This is particularly useful in a complete Grandioso system where the preamplifier can function as the central control component for the associated power amplifier.

Technical Specifications

One specification is worth handling carefully. ESOTERIC's 2023 launch material lists 310W power consumption, while its newer owner’s manual and current 2025 product catalog specify 330W, with 270W at no signal. I would use the newer 330W figure on The Grid listing. Esoteric

Grandioso S1X vs. M1X

The S1X should not be positioned as merely a less powerful M1X.

The Grandioso M1X is ESOTERIC's flagship high-output monoblock, rated at 300W into 8Ω and 600W into 4Ω. The Grandioso S1X takes the new-generation M1X amplifier philosophy in a different direction: two-channel Class A operation, rated at 50W per channel into 8Ω and 100W into 4Ω. Esoteric

That gives each amplifier a distinct purpose. The M1X prioritizes enormous power and independent monoblock construction; the S1X prioritizes the purity and fine-grained presentation of a heavily biased Class A stereo architecture.
