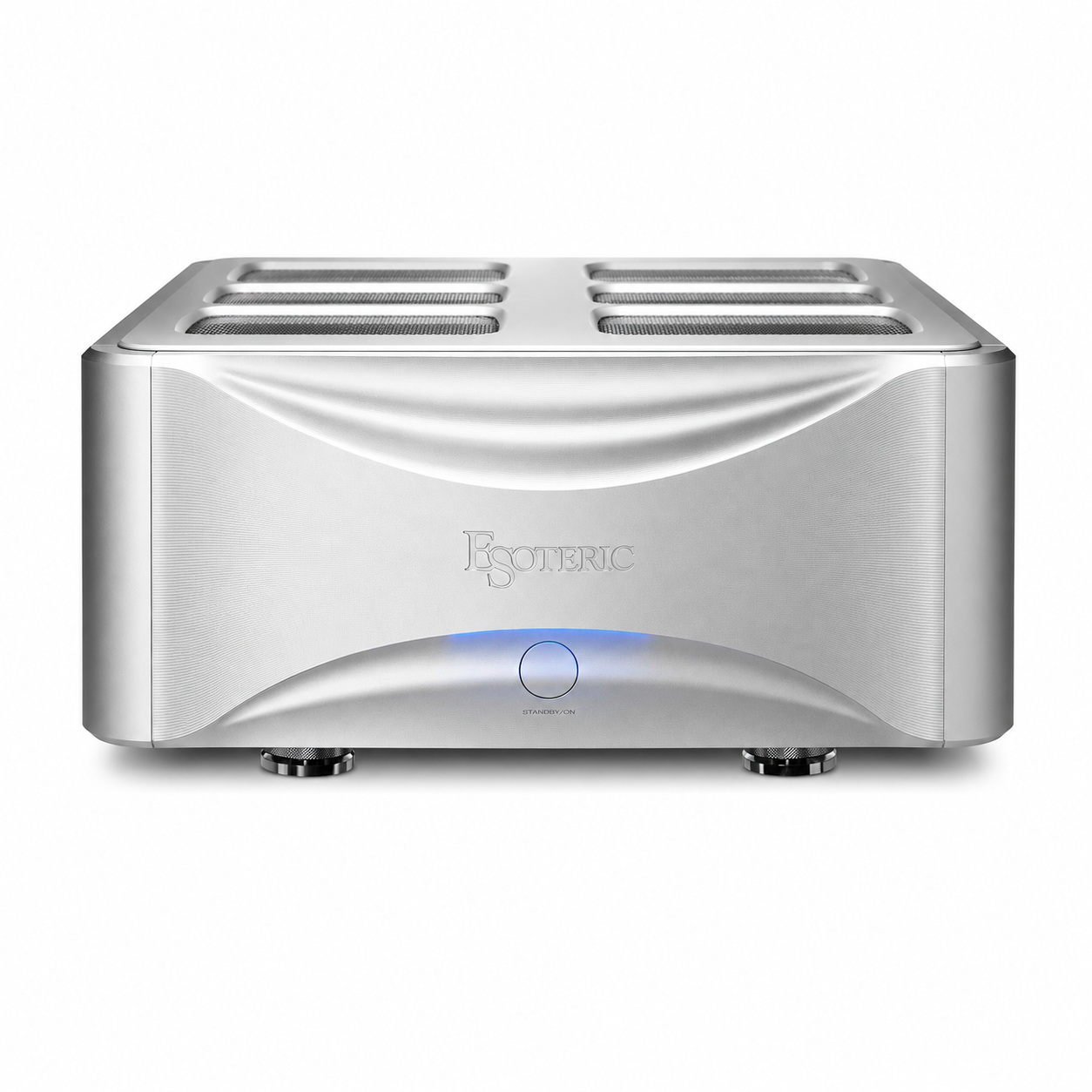

ESOTERIC Grandioso M1X Monoblock Power Amplifier

ESOTERIC’s flagship monoblock amplifier—300 watts into 8 ohms, extraordinary current delivery, and uncompromising Grandioso engineering.

The ESOTERIC Grandioso M1X is a reference monoblock power amplifier engineered to combine immense loudspeaker control with the transparency, speed, and fine resolution expected from ESOTERIC’s flagship Grandioso Series.

Delivering 300 watts into 8 ohms and 600 watts into 4 ohms, with maximum output reaching 1,200 watts into 2 ohms, the M1X is built for loudspeakers that demand far more than a conventional power rating can reveal.

At approximately 137 pounds per amplifier, its enormous chassis houses a massive power supply, high-current bipolar output stage, ultra-low-impedance circuit architecture, and ESOTERIC’s proprietary analog transmission technology.

A reference stereo system requires two M1X monoblocks.

1,200 Watts Into 2 Ohms

The Grandioso M1X demonstrates exceptional power linearity as loudspeaker impedance falls.

Rated output doubles from 300 watts at 8 ohms to 600 watts at 4 ohms, while maximum output reaches an extraordinary 1,200 watts into 2 ohms.

That ability to maintain substantial output into difficult loads is critical with reference loudspeakers whose impedance and phase characteristics can change dramatically with frequency.

The M1X is engineered not simply to play loudly, but to maintain control, scale, and dynamic freedom when the loudspeaker places extreme instantaneous demands on the amplifier.

High-Current Bipolar Output Stage

ESOTERIC uses a high-current bipolar transistor output stage designed around exceptional instantaneous current capability.

The amplifier employs a deliberately direct signal path and low-impedance circuit architecture, reducing unnecessary complexity between the input stage and loudspeaker output.

The result is an amplifier designed to respond immediately to musical transients while maintaining the grip required to control large, complex loudspeaker systems.

Massive Power Supply

The power supply is fundamental to the M1X.

ESOTERIC has long treated the power transformer as one of the most important contributors to amplifier performance, particularly when reproducing sudden dynamic peaks and controlling low frequencies.

The Grandioso architecture uses an exceptionally large power transformer and substantial reservoir capacity to provide the instantaneous energy demanded by its high-current output stage.

Rather than relying solely on stored electrical energy, the design prioritizes rapid current delivery throughout the amplifier.

Ultra-Low Impedance Design

The M1X was developed around ESOTERIC’s philosophy of reducing impedance throughout the signal and power paths.

Heavy-duty internal conductors, optimized circuit layouts, substantial power-supply connections, and carefully selected components minimize electrical resistance between stages.

Reducing internal impedance helps the amplifier react more directly to the loudspeaker load and contributes to the M1X’s damping factor of 500.

The result is exceptional driver control, particularly through the lower frequencies where large loudspeaker motors can place enormous demands on an amplifier.

ES-Link Analog

In addition to conventional balanced XLR and unbalanced RCA connections, the Grandioso M1X supports ES-Link Analog.

When paired with a compatible ESOTERIC preamplifier, ES-Link Analog uses current transmission rather than conventional voltage transmission.

The system is designed to reduce the effects of cable impedance and improve the integrity of the signal transferred between the preamplifier and power amplifier.

This allows the M1X to become part of a complete Grandioso signal architecture rather than functioning simply as an isolated component.

119dB Signal-to-Noise Ratio

Extreme power is only useful in a reference amplifier if it is accompanied by equally serious noise performance.

ESOTERIC specifies an exceptional 119dB signal-to-noise ratio through the balanced XLR input.

Total harmonic distortion is rated at only 0.006% at 300 watts into 8 ohms.

The M1X is therefore designed to preserve extremely low-level musical information while retaining the enormous dynamic headroom available from its high-current output stage.

5Hz–100kHz Bandwidth

The Grandioso M1X provides a wide 5Hz–100kHz frequency response, extending far beyond the audible spectrum.

Wide-bandwidth amplifier design contributes to accurate transient behavior, phase integrity, and the sense of immediacy expected from a modern reference amplifier.

Combined with its low noise, low distortion, and substantial current capability, the M1X is engineered to reproduce both microscopic musical information and explosive dynamic shifts without changing character.

A 137-Pound Monoblock

Each Grandioso M1X weighs approximately 62 kg / 136.7 pounds.

Its massive chassis is not simply cosmetic. Mechanical rigidity, resonance control, power-supply isolation, heat management, and the physical separation of critical circuits all contribute to the amplifier’s construction.

The sculpted Grandioso chassis also uses substantial aluminum construction and ESOTERIC’s precision mechanical engineering to provide a stable foundation for the electronics inside.

With two amplifiers required for stereo, an M1X system places more than 270 pounds of amplification behind the loudspeakers.

Built for Reference Loudspeakers

The M1X is designed for systems where loudspeaker difficulty should not determine what music can be played or how dynamically it can be reproduced.

Its combination of high current, 1,200-watt maximum 2-ohm capability, wide bandwidth, high damping factor, and extremely low noise makes it particularly suited to large full-range loudspeakers and other demanding reference designs.

This is amplification engineered to provide both control and finesse—not simply brute-force output.

Technical Specifications

ESOTERIC Grandioso M1X at The Grid HiFi

The ESOTERIC Grandioso M1X is built for reference systems where amplification must combine effortless power with exceptional transparency. With 300 watts into 8 ohms, 600 watts into 4 ohms, extraordinary 2-ohm output capability, a 500 damping factor, ES-Link Analog connectivity, and massive Grandioso construction, it is designed to take command of the world’s most demanding loudspeakers without sacrificing musical refinement.

The Grid HiFi can build a complete reference system around the Grandioso M1X, including ESOTERIC source components and preamplification, reference loudspeakers, power conditioning, cabling, isolation, and professional system setup.

Considering the Grandioso M1X? Let’s build the system around it.

Contact The Grid HiFi at (713) 218-8120 for availability, private audition, and reference-system consultation.
