Goldmund Telos 9800 Ultimate Power Amplifier

The Goldmund Telos 9800 represents the pinnacle of Goldmund amplification—a reference monoblock power amplifier created to deliver extraordinary power, speed, control, and transparency while preserving the integrity and emotional depth of the musical performance.

Building upon decades of Telos development and the foundation established by the Telos 8800, the Telos 9800 introduces a completely redesigned architecture. For the first time, Goldmund separates the power supply and amplification stages into two distinct yet interconnected enclosures, allowing each section to operate under optimized conditions while creating the amplifier’s striking sculptural form.

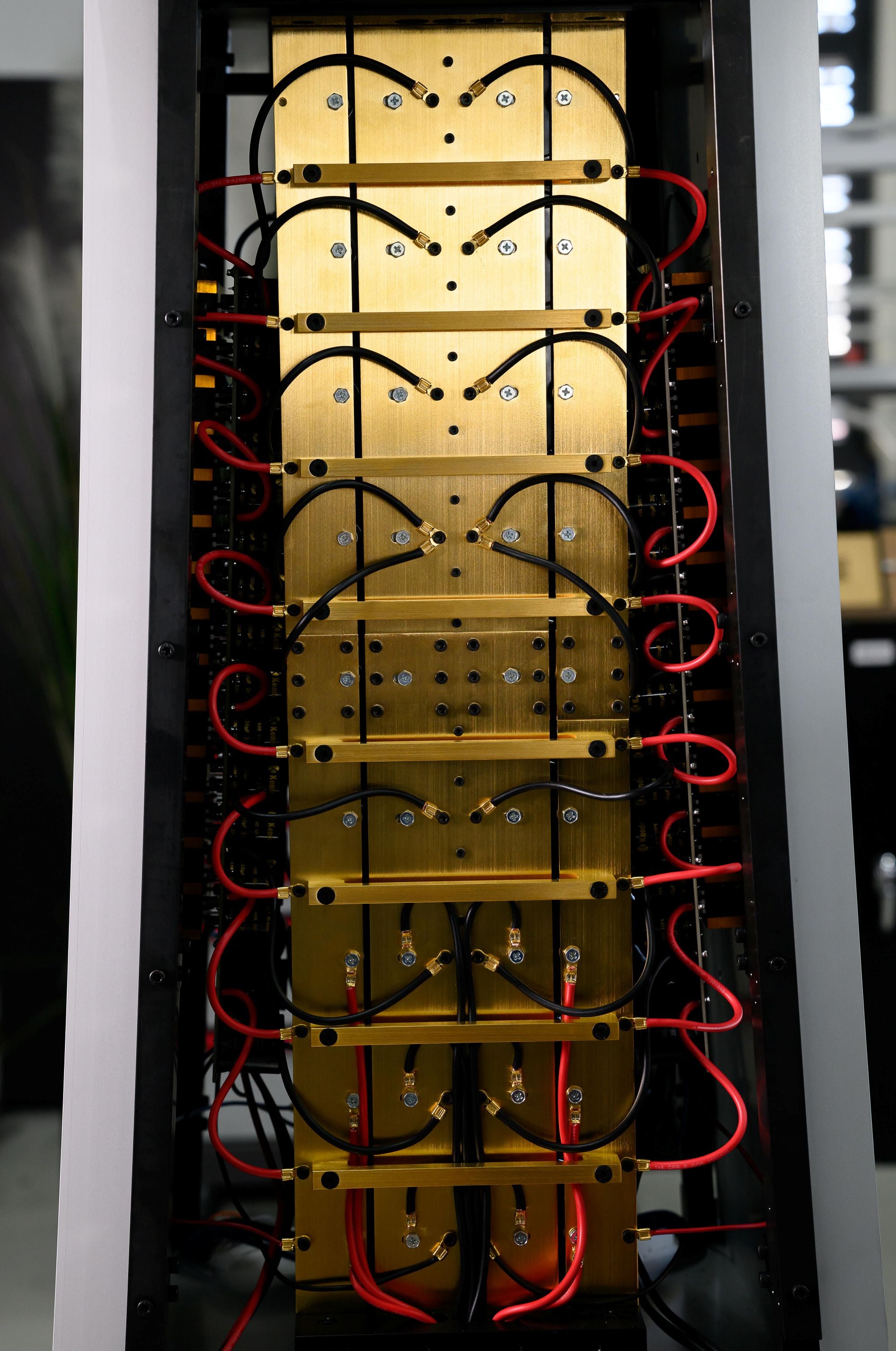

At the heart of the Telos 9800 is a completely redesigned power stage featuring next-generation MOSFET output devices, high-performance custom transformers, increased energy reserves, and Goldmund’s Controlled Energy Management System. The result is immense dynamic capability combined with exceptional transient response and loudspeaker control.

Delivering 1,560 watts RMS into 8 ohms, the Telos 9800 increases output to 2,520 watts into 4 ohms, 3,250 watts into 2.7 ohms, and 4,180 watts into 1.4 ohms. A damping factor of 900 gives the amplifier exceptional command over even highly demanding loudspeakers, while distortion remains below 0.005% from 20 Hz to 20 kHz under Goldmund's specified test conditions.

The engineering extends well beyond power. Goldmund developed the mechanical architecture, amplification stages, energy management, material selection, vibration control, and thermal management as a unified system. Precision-machined aluminum construction, Goldmund Mechanical Grounding, and natural-convection cooling provide the stable mechanical and electrical environment required for reference-level performance.

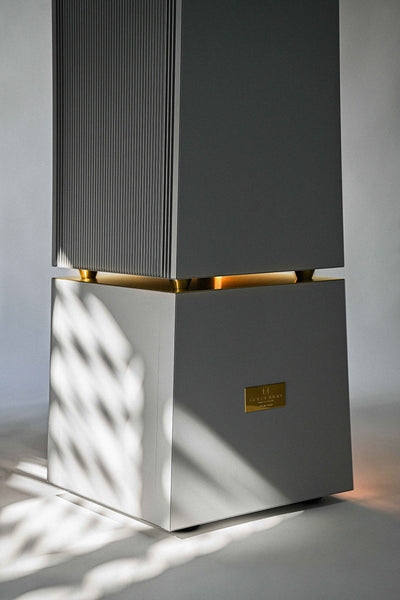

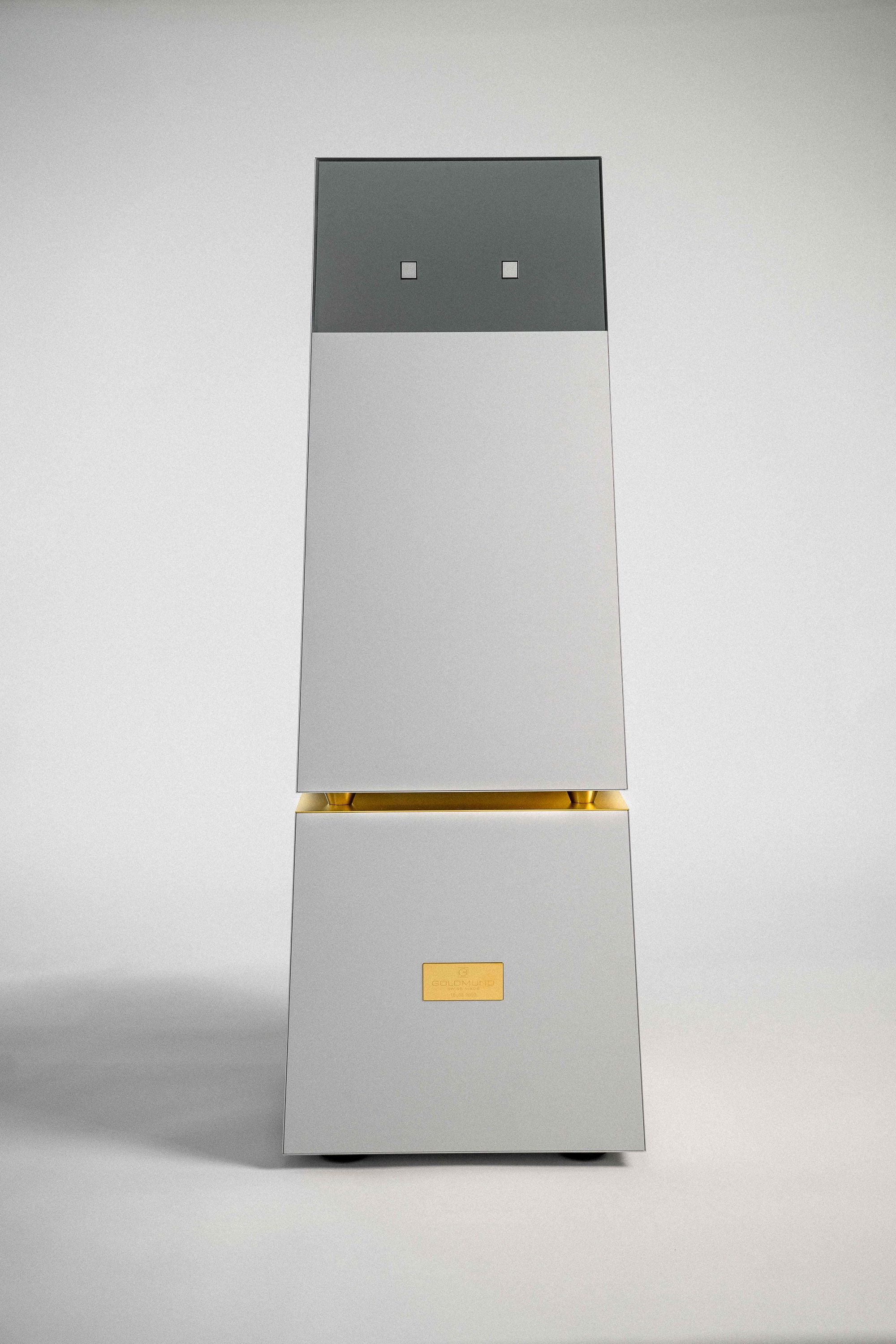

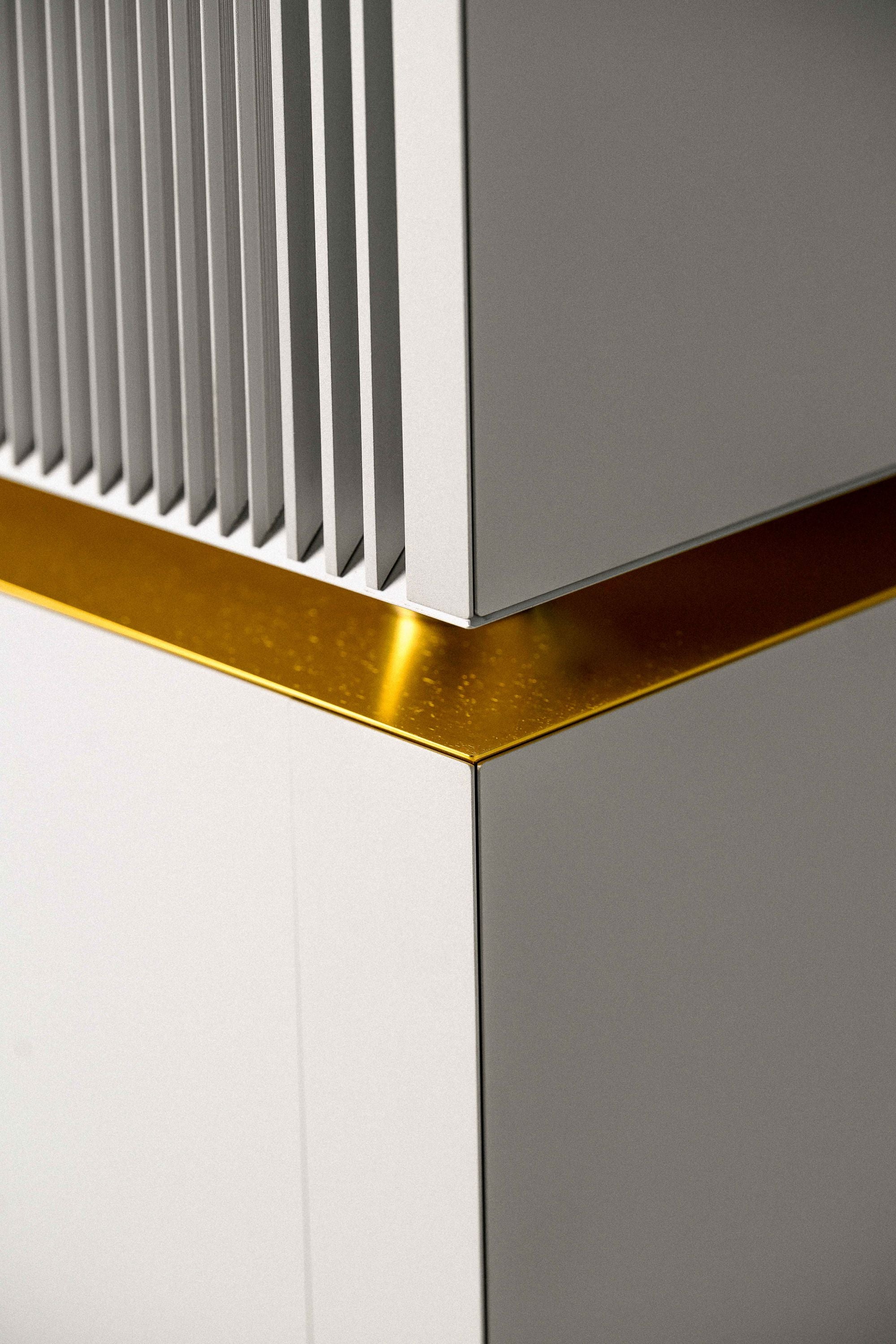

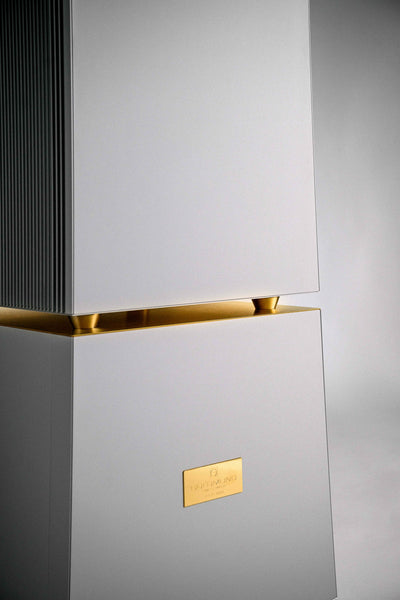

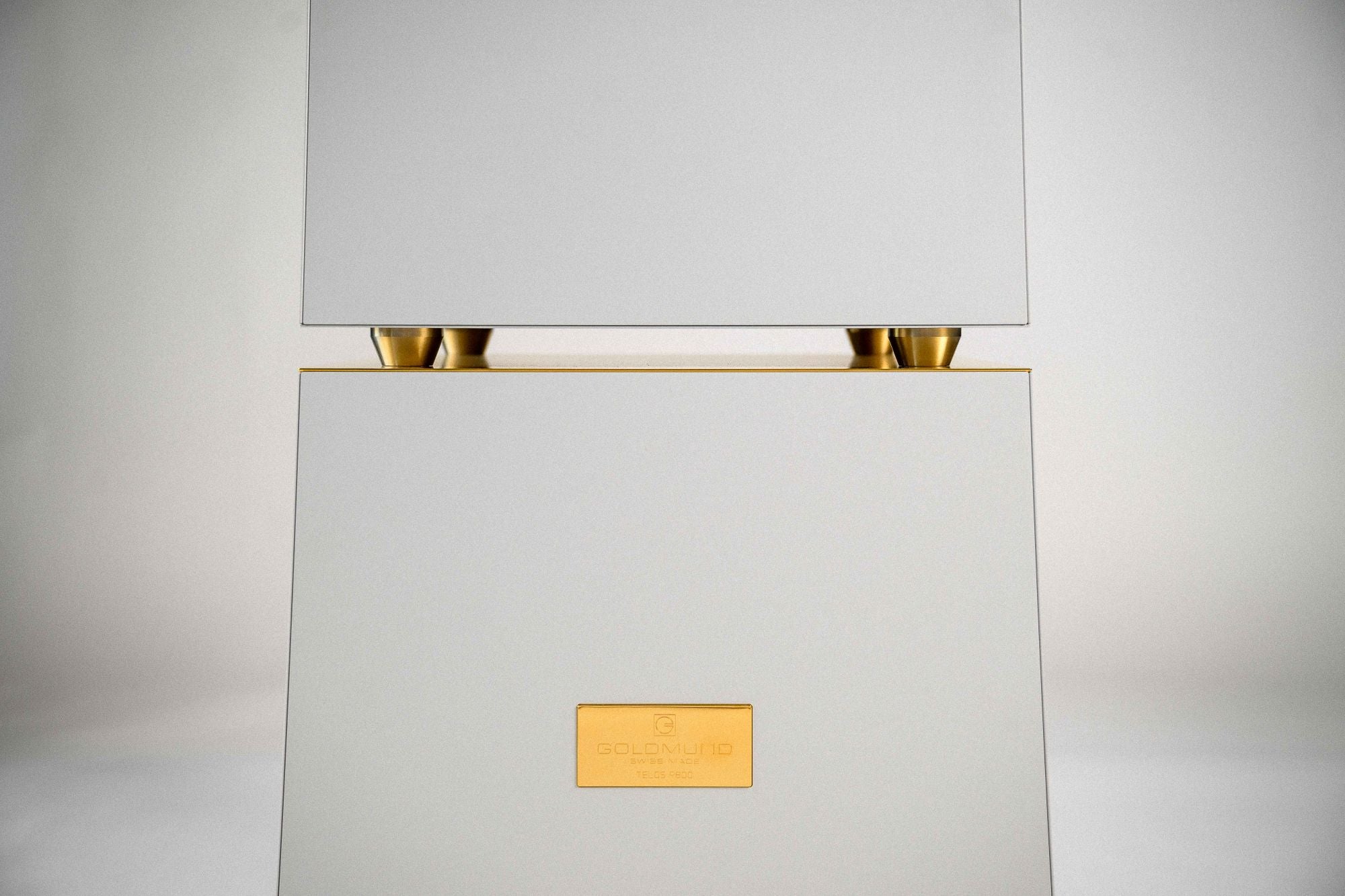

Developed in collaboration with designer Cécile Barani, the Telos 9800 translates its engineering architecture into an equally distinctive physical design. The power supply and amplification sections form two sculptural volumes separated by a subtle gold plate, while a redesigned digital display is integrated into the amplifier's clean, understated exterior.

Conceived, engineered, and assembled in Switzerland, the Telos 9800 is the most advanced expression of Goldmund's amplification research to date—designed not simply to produce extraordinary power, but to reveal greater dynamics, scale, texture, nuance, and presence from the music.

Key Features

• Reference monoblock power amplifier
• 1,560 Wrms continuous output into 8 ohms
• 2,520 Wrms into 4 ohms
• 3,250 Wrms into 2.7 ohms
• 4,180 Wrms into 1.4 ohms
• Proprietary symmetrical amplification architecture
• Fully symmetrical power stage
• Next-generation MOSFET output devices
• Controlled Energy Management System
• High-performance custom power transformers
• High-capacity capacitor bank
• Damping factor of 900 at 1 kHz / 8 ohms
• THD + N below 0.005% from 20 Hz to 20 kHz at 30 Vrms output
• Goldmund Mechanical Grounding
• Precision-machined aluminum chassis
• Natural-convection cooling
• Integrated thermal, overcurrent, and short-circuit protection

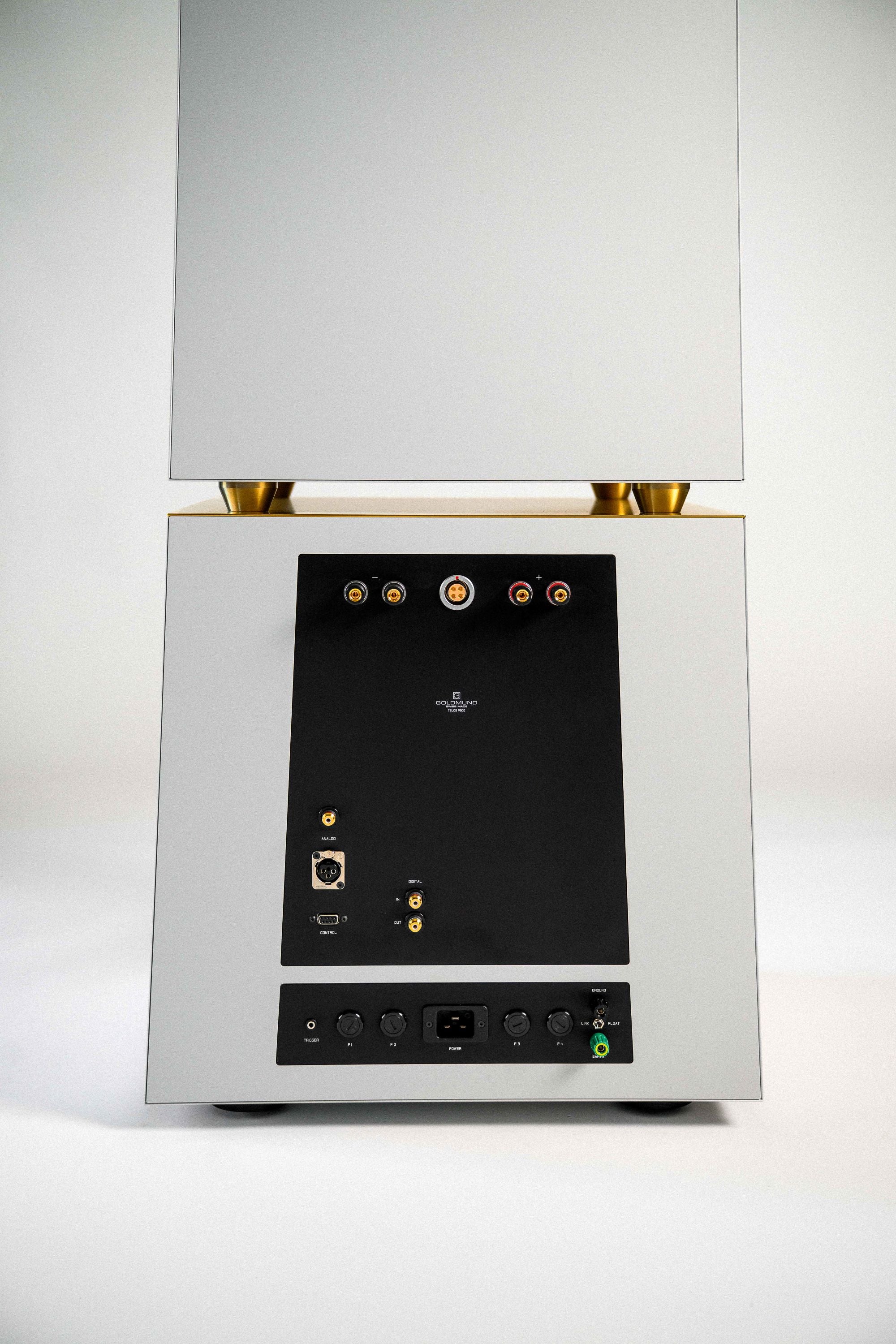

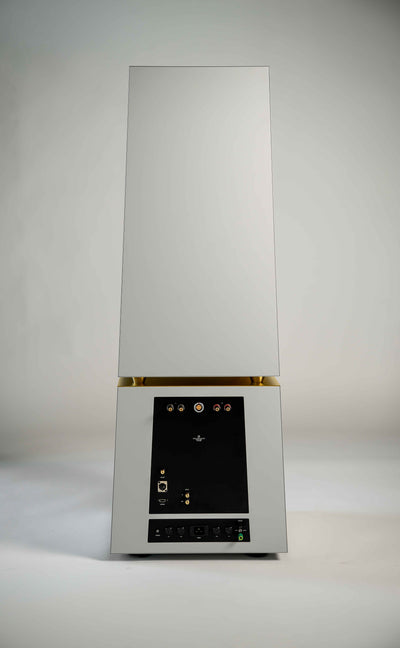

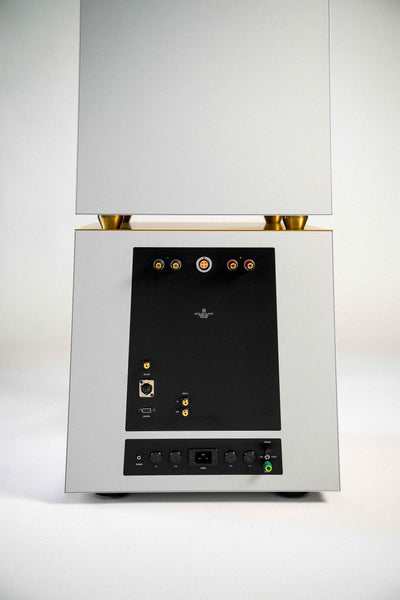

• Analog XLR and RCA inputs
• S/PDIF digital input and output
• Goldmund 4B and binding-post speaker connections
• Trigger and RS232 connectivity
• Designed and manufactured in Switzerland

Technical Specifications

Configuration: Monoblock Power Amplifier
Architecture: Proprietary Symmetrical Architecture
Power Stage: Fully Symmetrical Design
Power Supply: Controlled Energy Management System
Power Transformers: High-Performance Custom Transformers
Energy Storage: High-Capacity Capacitor Bank

Continuous Output Power – 8Ω: 1,560 Wrms
Continuous Output Power – 4Ω: 2,520 Wrms
Continuous Output Power – 2.7Ω: 3,250 Wrms
Continuous Output Power – 1.4Ω: 4,180 Wrms
Damping Factor: 900 at 1 kHz / 8Ω
THD + N: <0.005% from 20 Hz to 20 kHz at 30 Vrms output
IMD (SMPTE): <0.01%
Output Floor Noise: <3 μV from 20 Hz to 20 kHz
Gain: 35 dB, ±9 dB, adjustable in 3 dB steps for each input
Maximum Output Voltage: 375 Vpp at 1% THD, unloaded
Slew Rate: 18 V/μs

Analog Inputs: XLR / RCA
Digital Input: S/PDIF
Digital Output: S/PDIF
Speaker Outputs: Goldmund 4B + Binding Posts
Trigger: Yes
RS232: Yes

Chassis: Precision-machined aluminum
Cooling: Natural convection heatsink
Mechanical Grounding: Goldmund Mechanical Grounding
Dimensions (H × W × D): 1,367 × 500 × 500 mm
Weight: 360 kg per unit
Nominal Voltage: 115 V / 230 V
Frequency: 50 / 60 Hz
