Overview
Bring Depth and Energy to Your Outdoor Music
Complete your landscape audio system with the Focal Littora OD SUB 12. This passive outdoor subwoofer adds a rich bass foundation to patio playlists, poolside afternoons, and evenings spent entertaining.

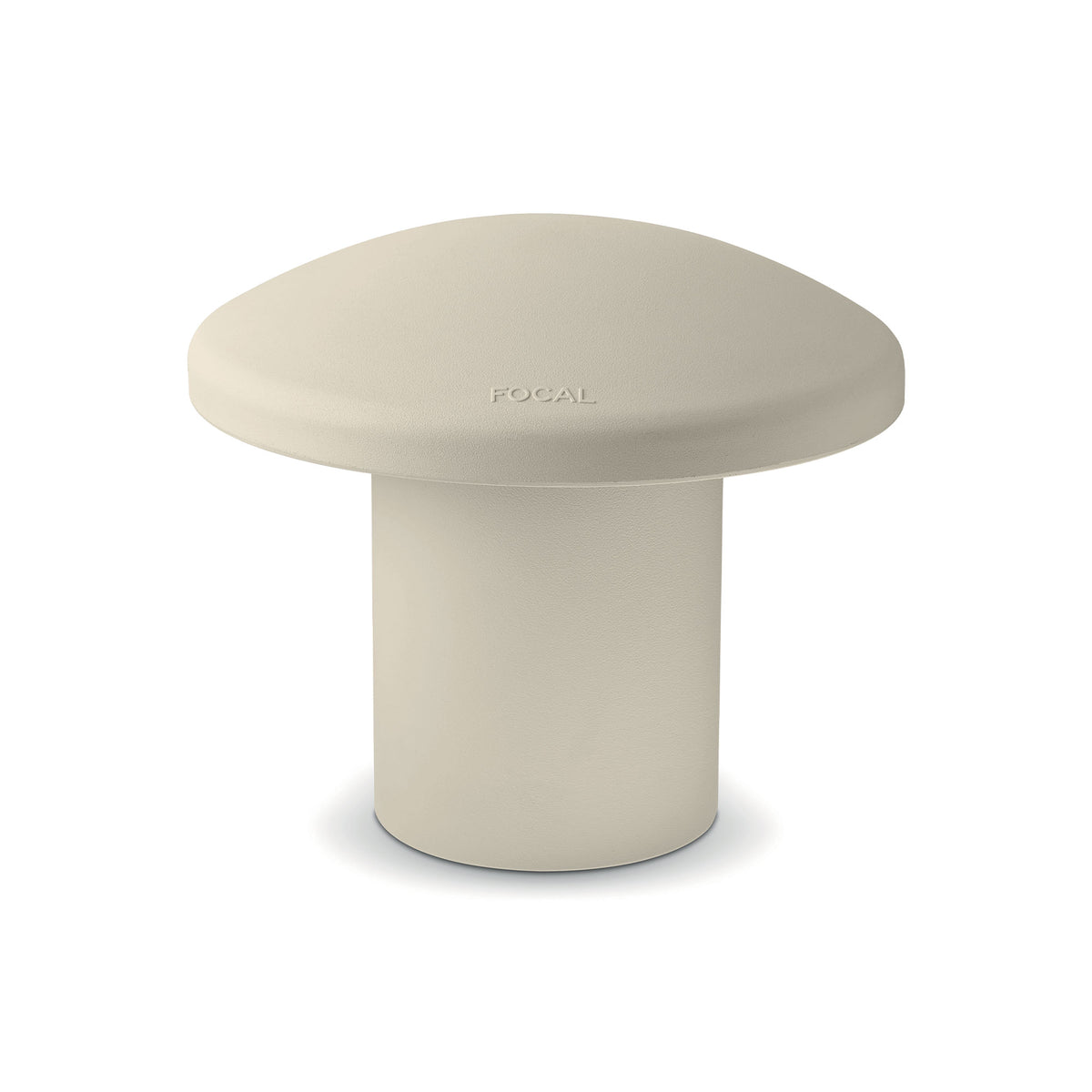

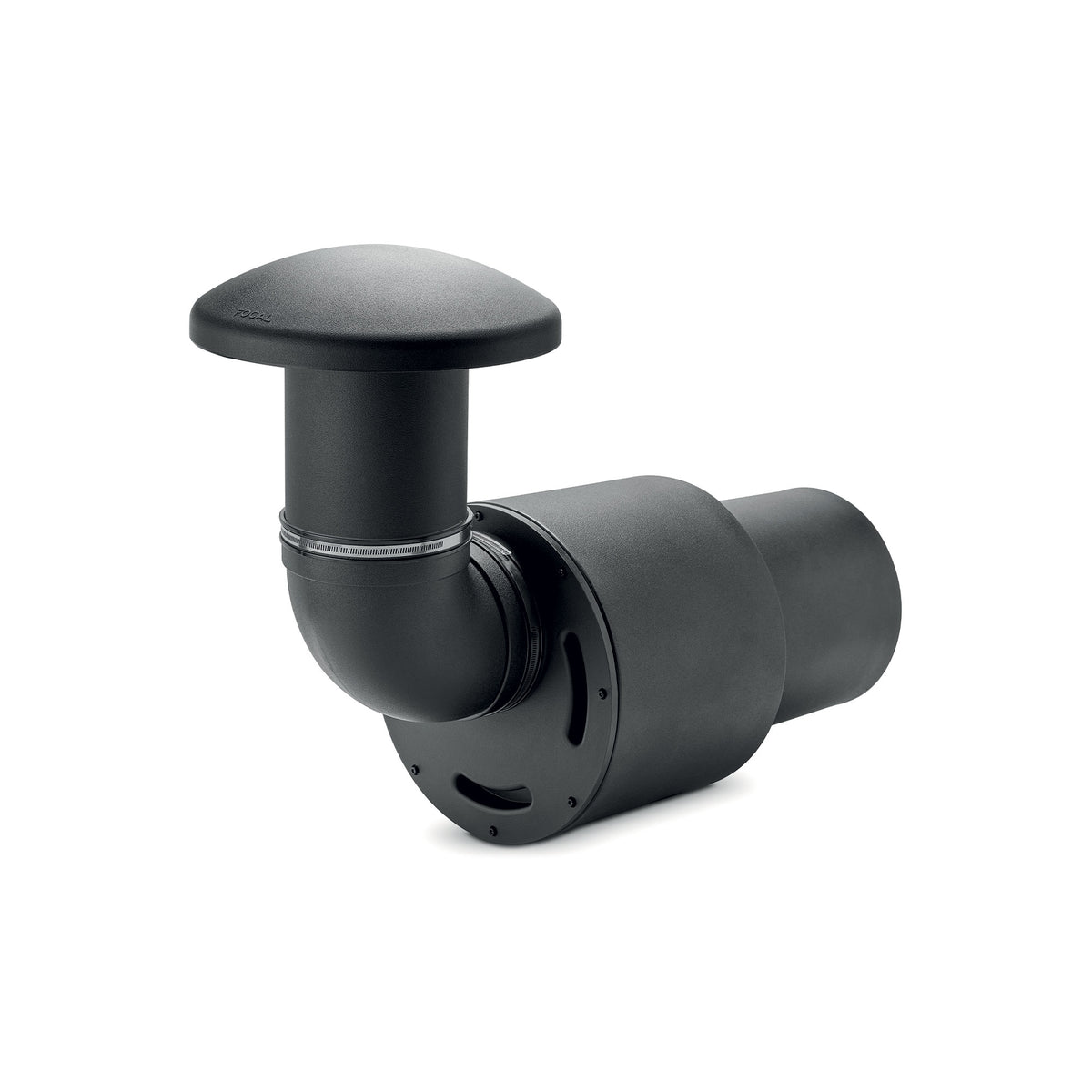

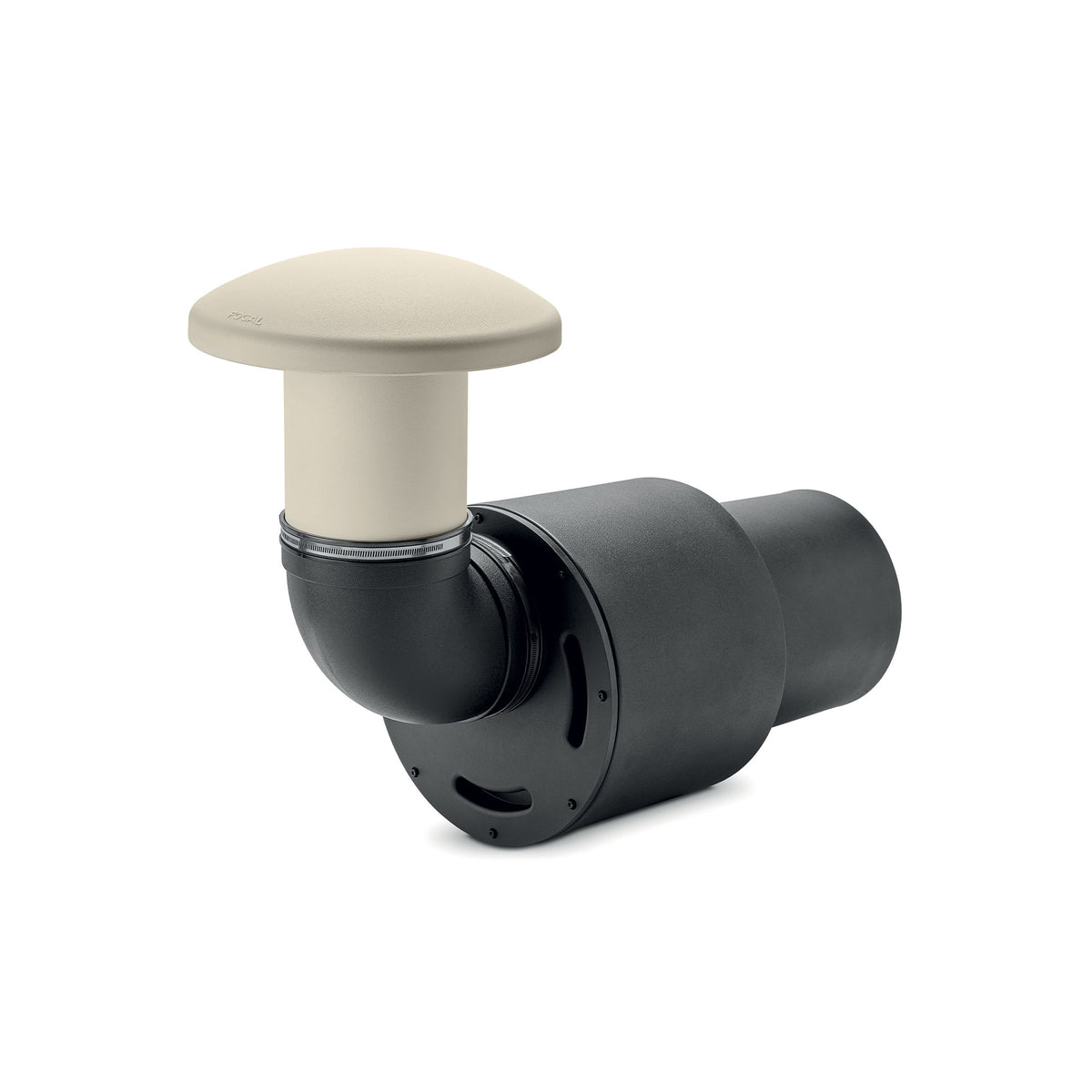

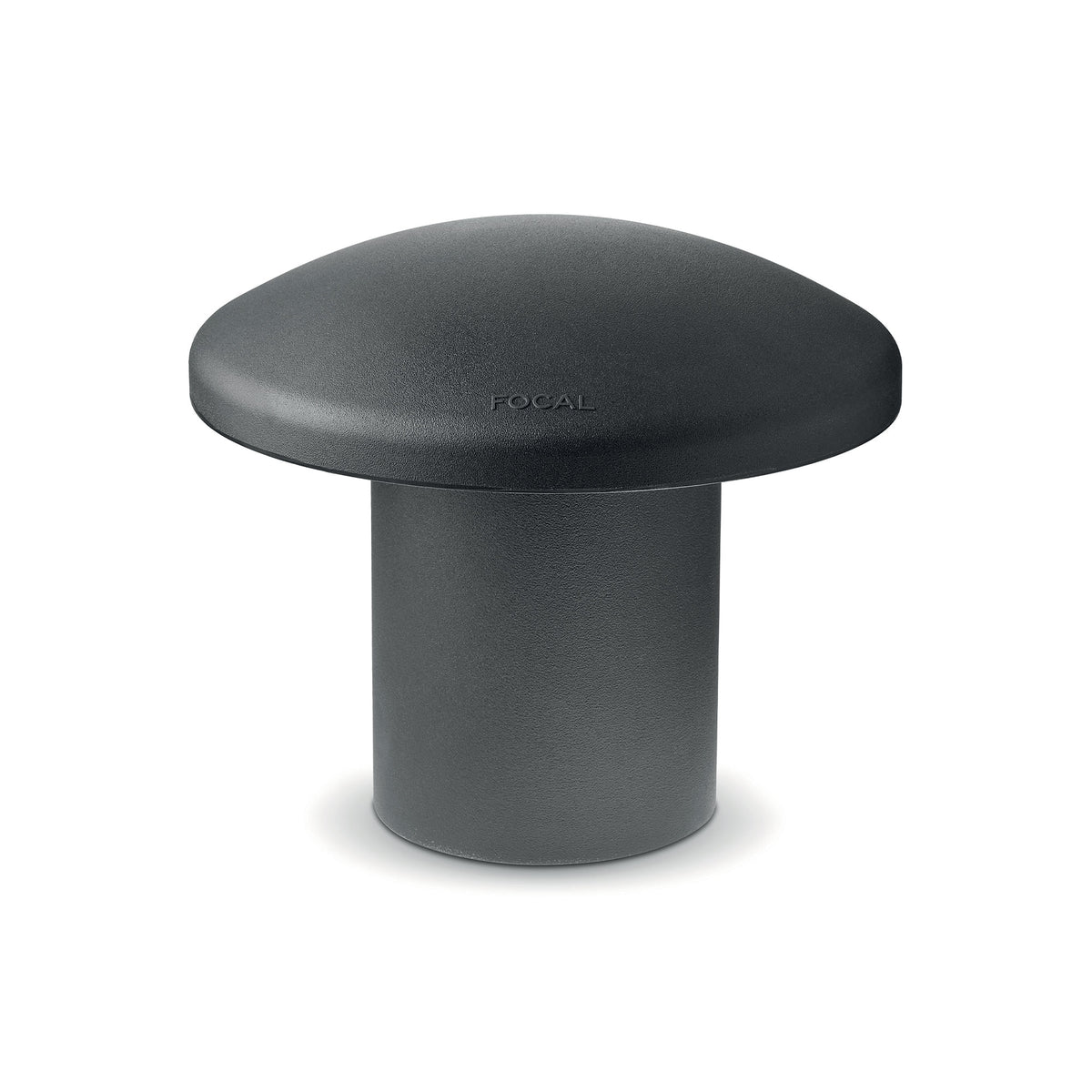

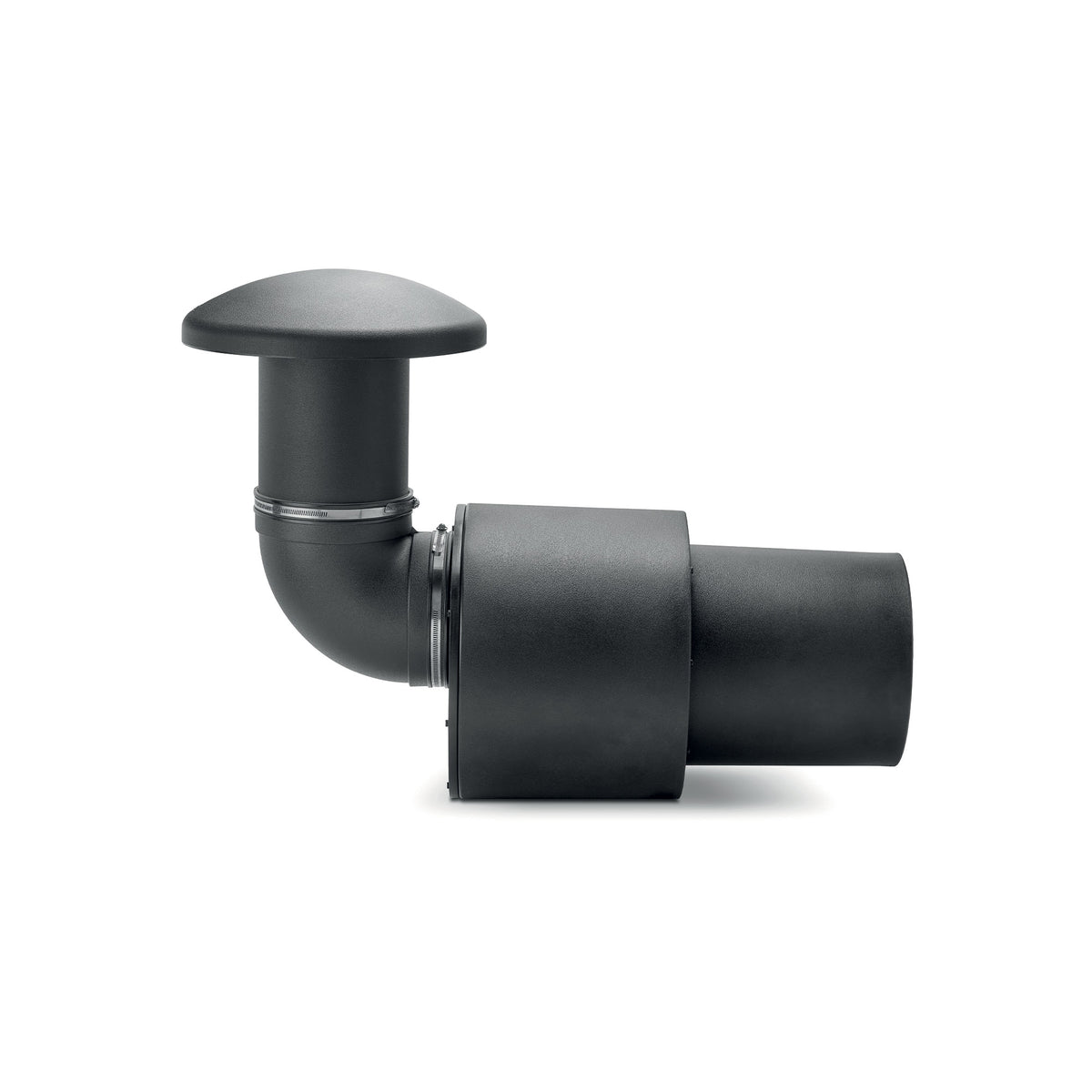

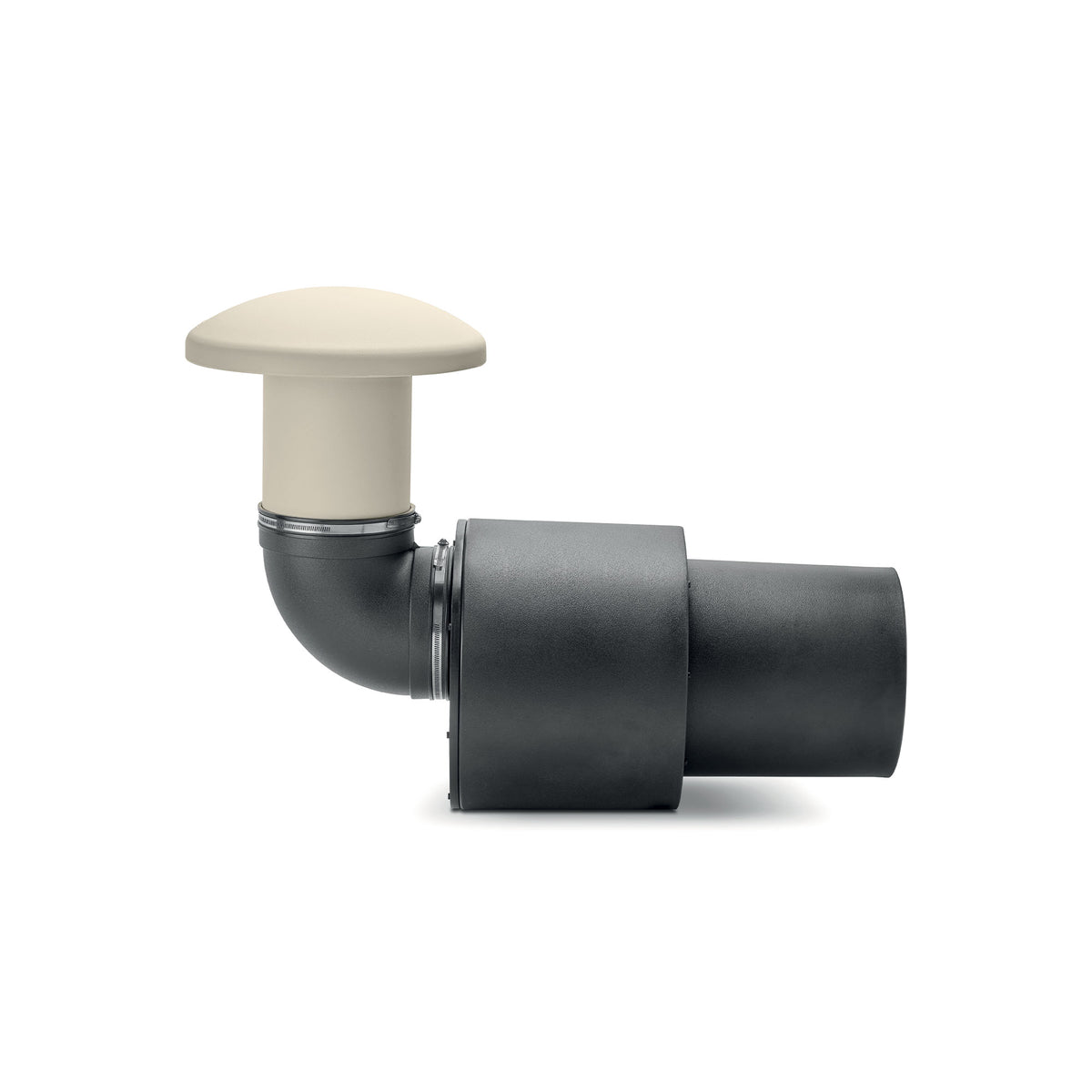

Available in Dark and Light finishes, its partially buried design keeps the enclosure discreet while bringing greater impact to your favorite music.
Powerful Bass with Iris IP Technology
A 12-inch Iris IP woofer delivers bass across a 40–120 Hz frequency range. The cone combines polypropylene with injected carbon fibers for rigidity and outdoor durability. With 100W RMS and 400W peak power handling, the OD SUB 12 complements Focal OD SAT 5 and OD Stone 8 speakers.
Discreet Installation and Flexible Integration
An adjustable-height vent helps the subwoofer blend into its surroundings. Its integrated transformer supports compatible 70V/100V systems, providing flexibility for professionally designed outdoor installations.
Designed for Outdoor Conditions
The robust enclosure carries an IP55 rating, offering protection against rain and dust intrusion.
Key Features
- Dark and Light finish options
- 12-inch Iris IP woofer
- Partially buried landscape installation
- Adjustable vent height
- 40–120 Hz frequency range
- 100W RMS / 400W peak power handling
- Integrated transformer for 70V/100V operation
- IP55-rated protection
- Designed to complement OD SAT 5 and OD Stone 8 speakers
Technical Specifications
| Specification | Details |
|---|---|
| Model | OD SUB 12 |
| Series | Littora 200 |
| Type | Passive outdoor subwoofer |
| Woofer | 12-inch / 30 cm Iris IP |
| Frequency Range | 40–120 Hz |
| Sensitivity | 90 dB |
| Nominal Impedance | 6 ohms, per standalone product sheet |
| Minimum Impedance | 5 ohms at 55 Hz |
| Power Handling | 100W RMS / 400W peak |
| Recommended Amplifier Power | 50–300W, specified at 8Ω |
| Distributed Audio | 70V / 100V |
| Protection Rating | IP55 |
| Dimensions, W × D × H | 15 × 36¼ × 22 inches |
| Weight | 41.9 lbs / 19 kg |
| Finishes | Dark, Light |
What’s Included
- One Focal OD SUB 12 in the selected finish
- Adjustable vent assembly
- Integrated connection cable
Installation and Care Notes
Sold individually. Compatible external amplification, an audio source, and outdoor-rated wiring are required. Follow the installation instructions for burial depth, drainage, vent clearance, and wiring configuration.
Focal’s standalone sheet lists 6-ohm nominal impedance, while some system literature references 8-ohm operation. Verify the supplied unit’s documentation when selecting amplification.
Cover or shelter the product during extreme weather, including snow and hail.
