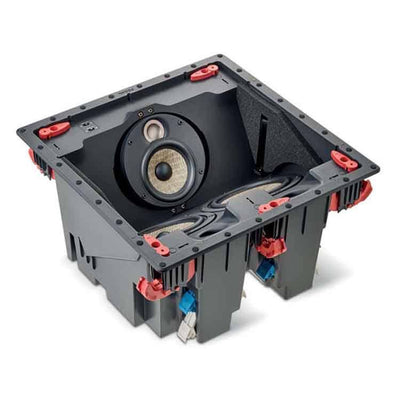

3-WAY IN-CEILING LOUDSPEAKER
The 300ICLCR5 in-ceiling loudspeakers are made in France and are dedicated to residential use. This LCR (Left, Central, Right) loudspeaker is ideal for building an exceptional Home Cinema set-up in rooms up to 320ft?. This in-ceiling loudspeaker is perfect for very open-plan spaces without any nearby rear wall. Five uses are possible; front left, front right, center, rear left, or rear right channels.

These loudspeakers are equipped with Focal?s famous Flax cone woofer and a tweeter with an inverted dome to deliver perfect acoustics. The bass are controlled and articulated for an optimal fidelity. Flax cones produce an intelligible sound, ideal for movie dialogues. The trebles are very precise. Re-discover your favorite movies.

Thanks to the horizontally-orientable mid-treble plate, you can focus the sound on the listening point. The medium and tweeter levels are adjustable to perfectly fit the acoustic environment. The sealed cabinet provides the same level of performance wherever the product is installed.

The key quality of these new loudspeakers is the ease and rapidity of installation with the patented EQI system (Easy Quick Install). No tools needed! These new products also meet the most essential criteria regarding use and installation; frameless, magnetic grilles, and anti-vibration feet.

Focal 300 ICLCR 5 3-Way In-Ceiling LCR Speaker

3-Way In-Ceiling LCR • Flax Cone • Al/Mg Inverted-Dome Tweeter • Adjustable Midrange/Tweeter Assembly • 91 dB Sensitivity

The Focal 300 ICLCR 5 is a high-performance 3-way in-ceiling LCR speaker designed for discreet home theater installations where conventional front or surround speaker placement is not possible. It can serve as a left, center, right, rear or height channel, giving system designers substantial flexibility without sacrificing the tonal character of Focal's 300 Series. Focal

Its adjustable midrange and tweeter assembly can be aimed toward the listening position, making the 300 ICLCR 5 particularly effective when the loudspeaker must be installed off-axis. Focal

True LCR In-Ceiling Design

The 300 ICLCR 5 is more than a conventional architectural ceiling speaker.

Its 3-way architecture and directional midrange/tweeter assembly allow it to function as a front left, center or right speaker, as well as a rear or height channel in a multichannel theater. Focal

This makes it an excellent solution for rooms where floorstanding, on-wall or in-wall speakers are not practical.

Focal Flax Cone Technology

The 300 ICLCR 5 uses Focal's proprietary Flax cone technology.

French flax fibers are sandwiched between thin fiberglass layers to create a diaphragm engineered for a combination of low mass, rigidity and damping. The result is particularly well suited to dialogue intelligibility and natural midrange reproduction in home cinema systems. Focal

Aluminum/Magnesium Inverted-Dome Tweeter

Focal's Al/Mg inverted-dome tweeter combines aluminum rigidity with magnesium damping.

The inverted-dome geometry provides controlled dispersion and low moving mass, while the adjustable assembly allows high frequencies to be directed toward the primary seating position. Focal

Aim the Sound Toward the Listener

The adjustable midrange/tweeter section allows the acoustic output to be aimed toward the listening area.

This is particularly important in an in-ceiling LCR installation, where the loudspeaker may be positioned forward of or away from the primary seats. Focal

Easy Quick Install

Focal's EQI, or Easy Quick Install, system is designed to simplify architectural speaker installation.

The mounting system allows installation without conventional tools and significantly reduces installation time. The 300 ICLCR 5 also includes a pre-mounting kit and cutout template. Focal

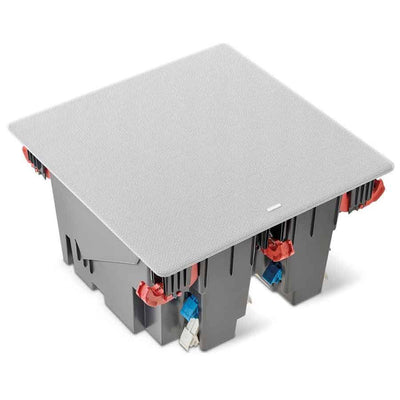

Paintable Square Grille

A square paint-ready grille is included for discreet architectural integration.

Once installed and painted to match the ceiling, the speaker maintains a low visual profile while delivering a substantially more sophisticated LCR solution than a conventional distributed-audio ceiling speaker. Focal

Technical Specifications

Focal's current specifications list 91 dB sensitivity, 8-ohm nominal impedance, 2.9-ohm minimum impedance, 50-150 watts recommended amplification and a 45 Hz low-frequency point at -6 dB. Focal

Built for Discreet Home Cinema

The 300 ICLCR 5 is especially useful when the architecture prevents conventional ear-level speaker placement.

Its aimable acoustic assembly and LCR capability allow a complete cinema system to be integrated into the ceiling while maintaining precise directionality toward the listening area. It can also be combined with other Focal 300 Series architectural speakers for a visually discreet multichannel system. Focal
