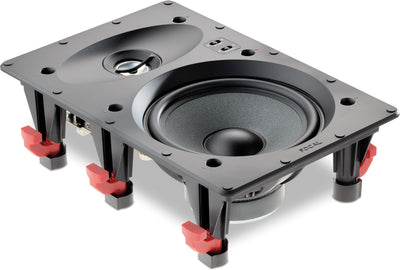

Focal 100 IW6 2-Way In-Wall Speaker

2-Way Architectural In-Wall Speaker • 6.5" Polyglass Mid-Bass • Adjustable Inverted-Dome Tweeter • 89 dB Sensitivity • 3.44" Mounting Depth

The Focal 100 IW6 is a compact 2-way in-wall speaker designed for high-quality stereo, distributed audio and home theater installations. A 6.5-inch Polyglass mid-bass driver is paired with an adjustable aluminum inverted-dome tweeter, delivering Focal's core acoustic technologies in a discreet architectural format. Focal

Its shallow installation depth and 60 Hz to 23 kHz frequency response make the 100 IW6 well suited to small and medium-size rooms, including living rooms, bedrooms, kitchens and dedicated home theater systems. Focal

6.5" Polyglass Driver

Focal's Polyglass cone applies fine glass microbeads to a cellulose-pulp cone. The construction combines the damping characteristics of paper with increased rigidity for improved linearity and midrange definition. Focal

Adjustable Inverted-Dome Tweeter

The aluminum inverted-dome tweeter can be aimed toward the listening area to optimize high-frequency coverage.

Focal also incorporates treble and midrange correction controls, allowing the speaker's response to be adjusted for room acoustics and installation position. Focal

Shallow In-Wall Installation

With only 3.44 inches of mounting depth, the 100 IW6 integrates easily into a wide range of wall constructions while maintaining a clean, low-profile appearance.

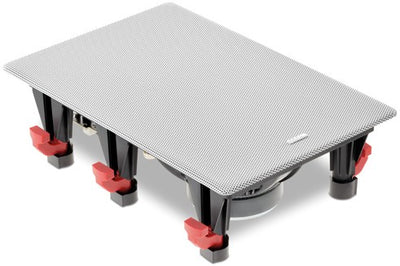

A ready-to-paint magnetic grille allows the finished speaker to blend into the surrounding wall. Focal

Stereo, Whole-Home Audio or Home Theater

The 100 IW6 is flexible enough for two-channel listening, whole-home music and architectural home theater. Its 8-ohm nominal impedance and 89 dB sensitivity also make it compatible with a broad range of stereo and AV amplification. Focal

Technical Specifications

Focal specifies 89 dB sensitivity, an 8-ohm nominal impedance, 7.2-ohm minimum impedance and recommended amplifier power of 25 to 120 watts. Frequency response extends from 60 Hz to 23 kHz ±3 dB, reaching 48 Hz at -6 dB. Focal

Complete Focal Architectural Systems

The 100 IW6 can be combined with other Focal 100 Series architectural speakers to maintain consistent performance throughout a home. For systems requiring additional low-frequency output, the 100 IWSUB8 provides a matching architectural subwoofer solution. Focal also identifies the Naim CI-Uniti 102 and CI-NAP 108 as complementary electronics for the range. Focal

Focal 100 Series at The Grid HiFi

The Grid HiFi designs and installs complete Focal architectural audio, whole-home music and home theater systems.

As a Focal Powered by Naim partner, we can match the 100 IW6 with the appropriate Focal speakers, architectural subwoofers, Naim CI amplification and system electronics. The Grid can also integrate Control4 automation, networking, lighting, shades, home theater and low-voltage infrastructure into a complete residential system.

Planning a Focal architectural audio system? Call The Grid HiFi at (713) 218-8120 and let us design the speaker layout, amplification and control system around your home.
